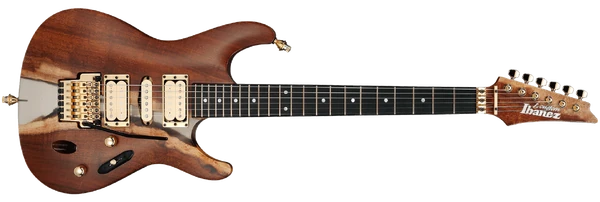

JPCS25 (2022)

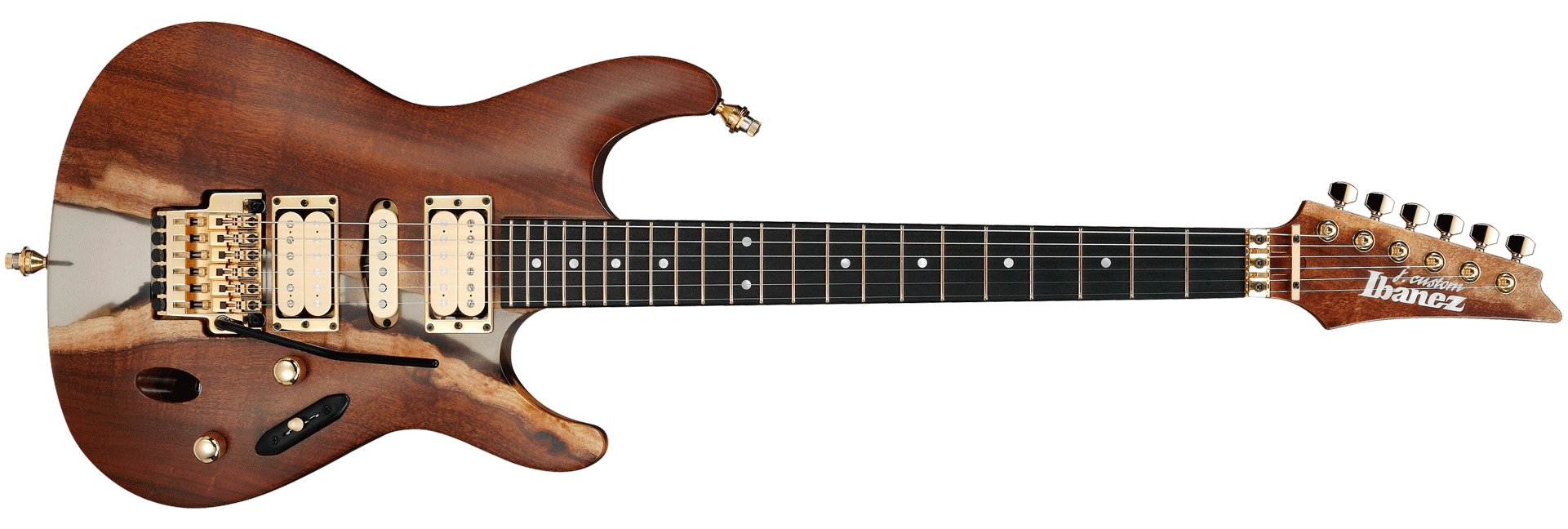

JPCS25 "KOA CANYON" Natural Flat (more images) Red copyright sprite

The JPCS25 - "KOA CANYON" is a J Custom series, S series solid body electric guitar model introduced by Ibanez for 2022. It was crafted by the Japan Custom Shop in Nagoya as part of the 50th anniversary of Ibanez’s US-based distributor Hoshino U.S.A. Inc.

The JPCS25 is a One-off model which is sold exclusively by select Ibanez music retailers.

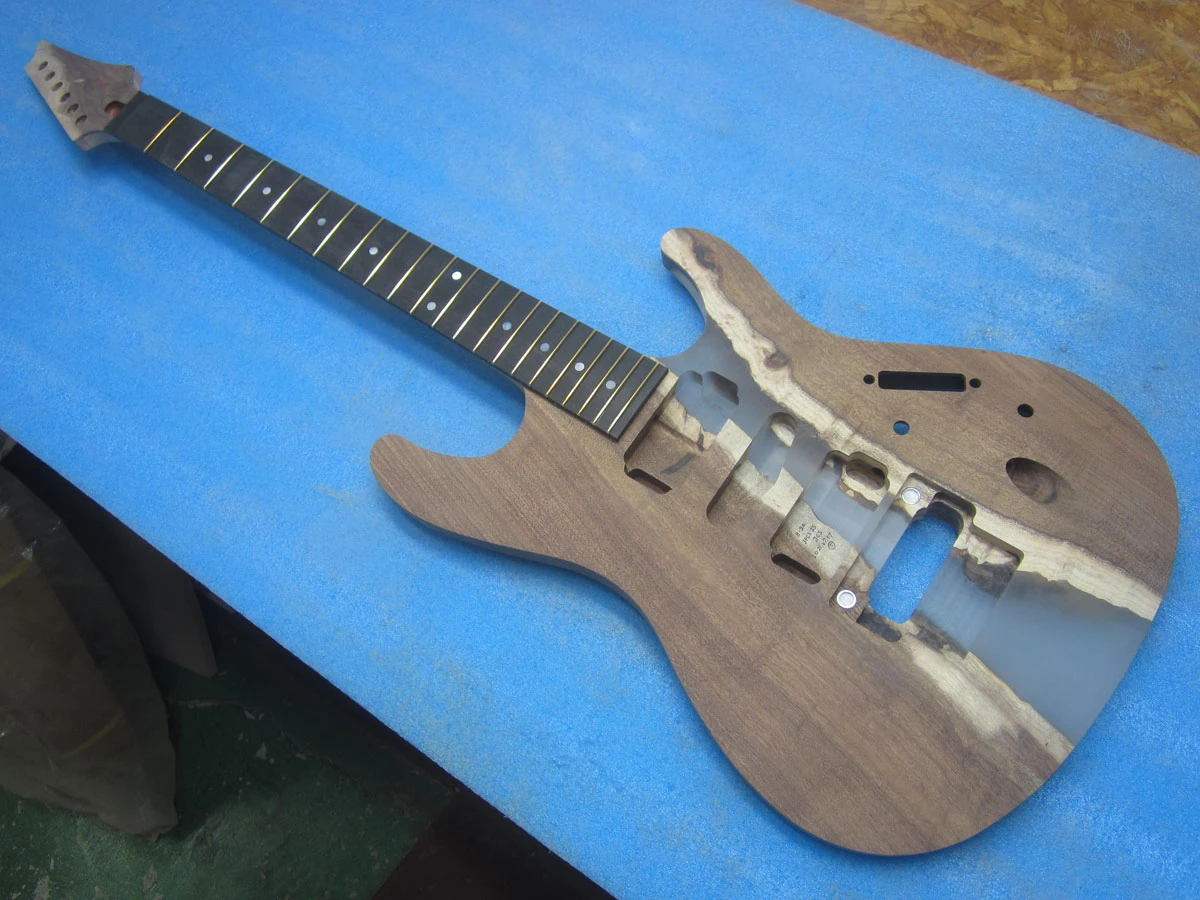

JPCS25 build
JPCS25 - "KOA CANYON" build Enlarge sprite

This may be one of, if not the most, unique S models ever built. Its most impactful feature is the hybrid body, comprised of two beautiful pieces of Koa, joined at the center by captivatingly clear epoxy resin, creating an effect reminiscent of a crevasse or canyon. The clear resin makes the center of the guitar transparent and turns up the custom vibes on this axe well past the point of overdrive. Other unique highlight of this instrument include a set neck construction, highly unusual and very rare for an S model.

The JPCS25 - "KOA CANYON" features a Koa with transparent resin body mated to a set-in 5 piece mahogany and bubinga neck with a 24-fret Ebony fingerboard with MOP dots and luminlay side dots position markers. Components include a DiMarzio Air Norton humbuckers pickups on the neck position, a DiMarzio True Velvet single coil pickup in the middle position and a DiMarzio The Tone Zone humbuckers pickups in the bridge position, a Lo-pro Edge double locking tremolo bridge with a locking nut, gold hardware and Gotoh tuning machines. Includes Hardshell Case & Certificate of Authenticity


Specifications[]

Related content: J Custom series | S series | Models-icon
Specifications for JPCS25 - "KOA CANYON"
Model name: JPCS25 - "KOA CANYON"
Year(s) offered: 2022
Sold in: USA
Made in: Japan
Price: MSRP: US$13,333.32
Finish(es): Natural Flat
Body
Body type:
Solid body
Body material:
Koa w/ transparent epoxy resin core
Neck joint:
Set-in
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Gold
Neck
Neck type:
Wizard
Neck material:
5-piece mahogany/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony (Radius: 16.9")
Fingerboard inlays:
MOP Dots and Luminlay side dots
Frets:
24 Jescar Evo Gold / jumbo
Nut:
Top-Lok III
Machine heads:
Gotoh
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled face mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

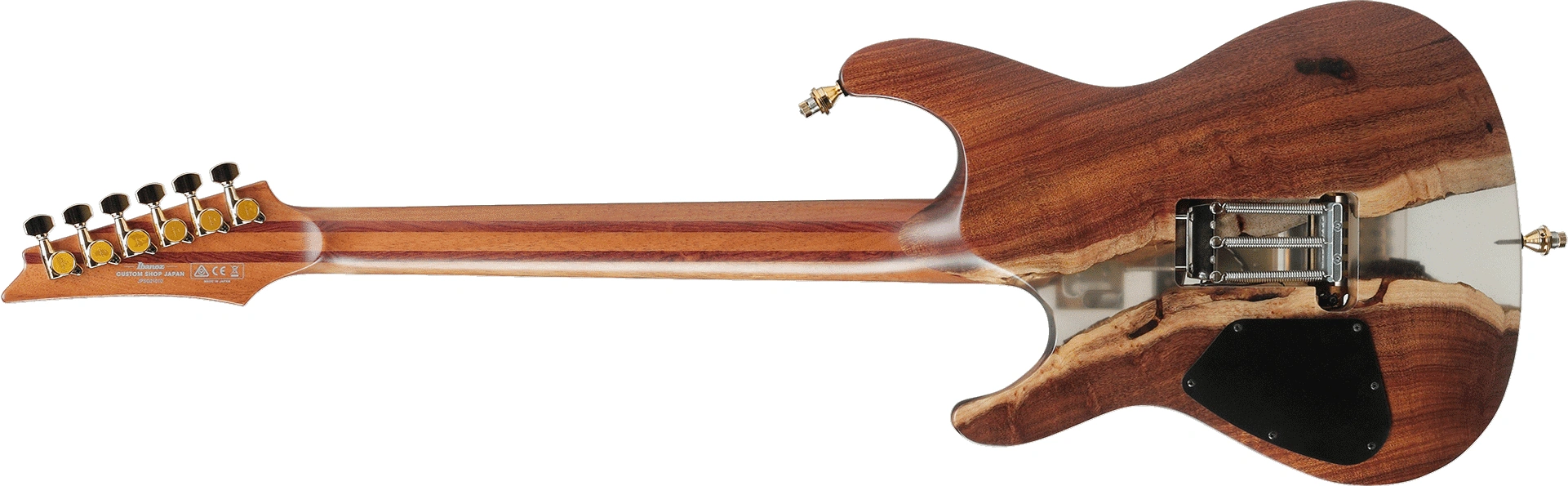

JPCS25 rear
2022 Ibanez JPCS25 - "KOA CANYON" ( Rear: Koa with clear epoxy resin core body mated to a Set-in 5-piece mahogany/ bubinga Wizard neck and Gotoh machine heads ) Red copyright sprite
Additional details

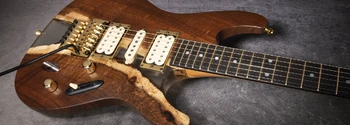

JPCS25 top
Koa with clear epoxy resin core (front)

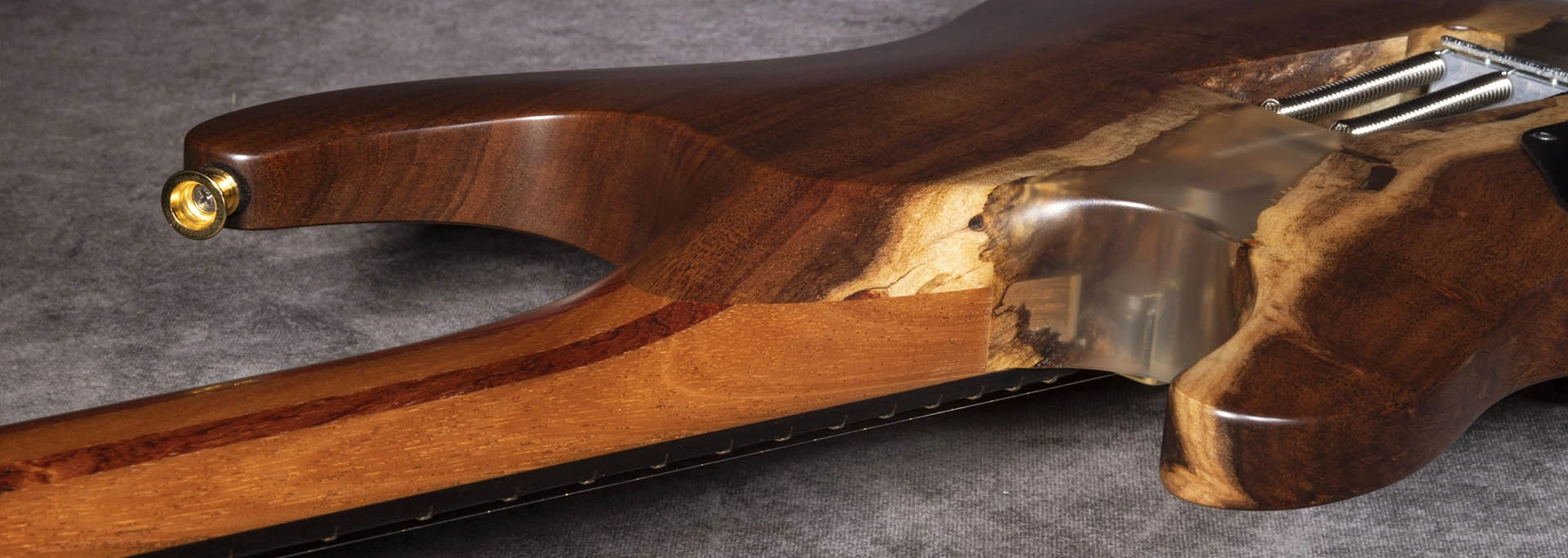

JPCS25 neck
Set-neck construction

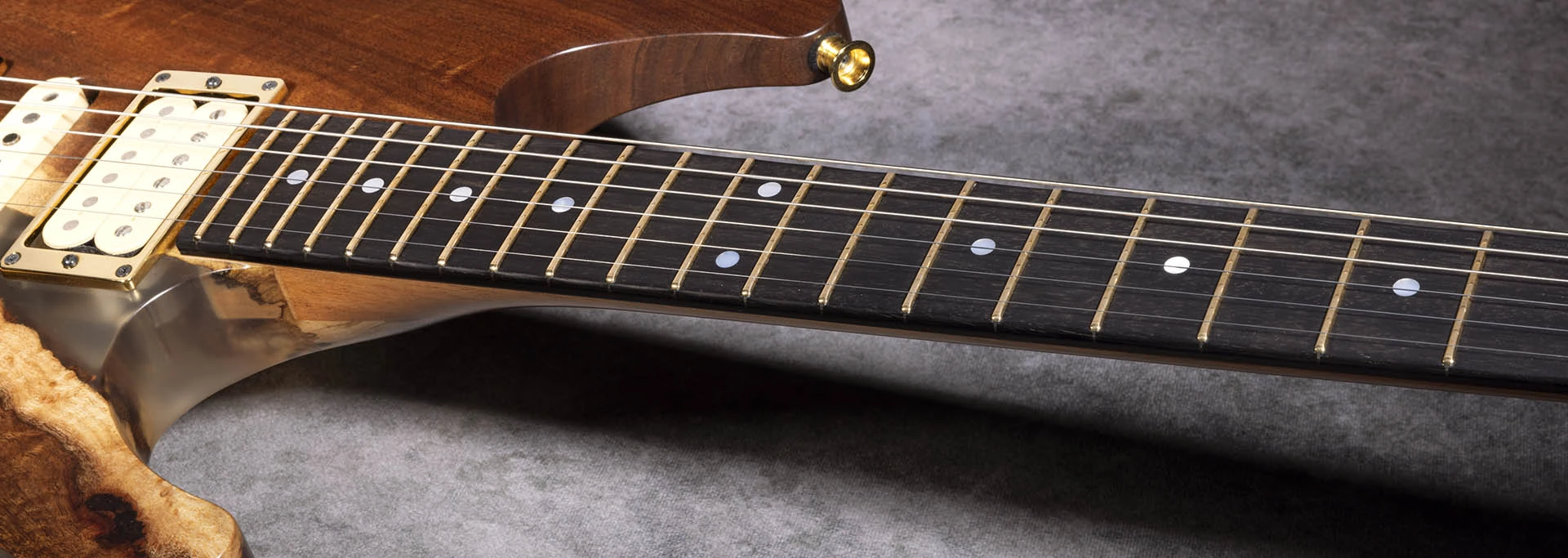

JPCS25 fb
Ebony fingertboard with gold frets

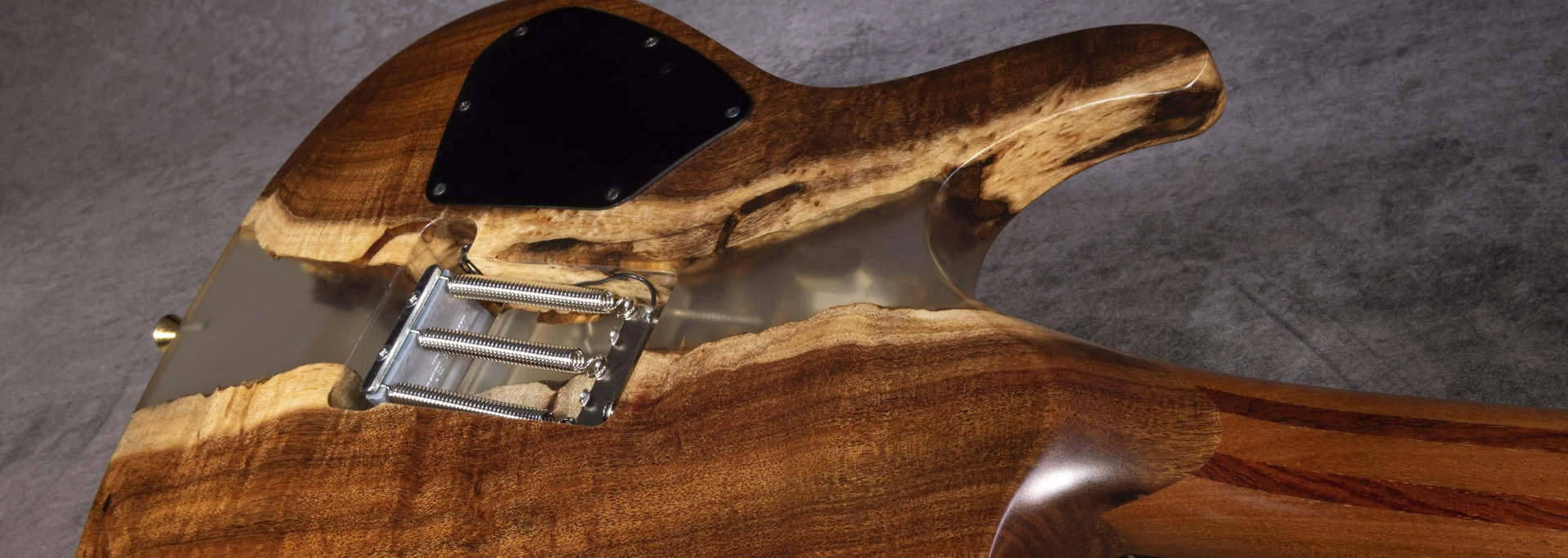

JPCS25 back
Koa with clear epoxy resin core (back)

Sources[]

Ibanez "Hoshino (USA) Inc. 50th Anniversary" : JPCS25 "KOA CANYON" product page / February 2022
