Ibanez Wiki

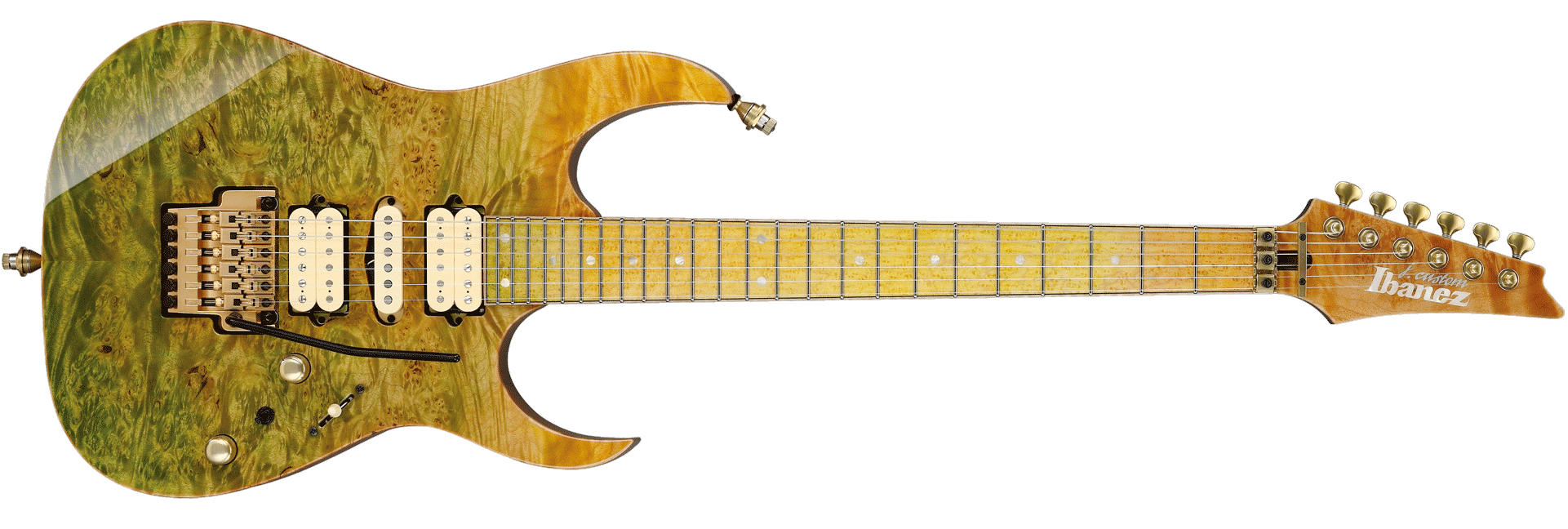

JPCS21 "JADE MANTIS" Green Gradation (more images)

The JPCS21 "JADE MANTIS" is an high end J Custom line. RG series solid body electric guitar model introduced by Ibanez for 2022. It was crafted by the Japan Custom Shop in Nagoya as part of the 50th anniversary of Ibanez’s US-based distributor Hoshino U.S.A. Inc.

The JPCS21 is a One-off model which was sold exclusively by select Ibanez music retailers.

The JPCS21 - "JADE MANTIS" features African Mahogany body with figured maple top bolted to a 3 piece wenge and purpleheart neck, with birdseye maple fingerboard, 24 jumbo frets with mother of pearl dots and luminlay side dots inlays. Components are a DiMarzio Air NortonHumbucking pickups on the neck position, a DiMarzio True Velvet Single coil pickup in the middle position and a DiMarzio The Tone Zone on the bridge position, a Lo-Pro Edge tremolo, satin gold hardware, gotoh machine heads and includes hardshell case & certificate of authenticity.

This guitar is based on an RG570 model but was produced in the style of a special run of J. Customs; The JCRG2001 & JCRG2002 models that were only available in Europe.

Specifications[]

Related content: J Custom series | RG series |
Specifications for JPCS21 - "JADE MANTIS"
Model name: JPCS21 - "JADE MANTIS"
Year(s) offered: 2022
Sold in: USA
Made in: Japan
Price: MSRP: US$ 10.666.65
Finish(es): Green Gradation
Body
Body type:
Solid body
Body material:
African Mahogany w/ figured maple top
Neck joint:
AANJ
Bridge:
Lo Pro Edge tremolo (10.8m string spacing)
Knob style:
Knurled metal dome (Gold)
Hardware color:
Satin gold
Neck
Neck type:
JCRG Super Wizard
Neck material:
3-piece wenge/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Birdseye Maple
Fingerboard inlays:
MOP dots and luminlay side dots
Frets:
24 / Jumbo Stainless Steel (J Custom edge treatment)
Nut:
Top-Lok III (1.692")
Machine heads:
Gotoh
String gauge (factory):
D'Addario® EXL120
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector / coil split toggle switch

Images[]

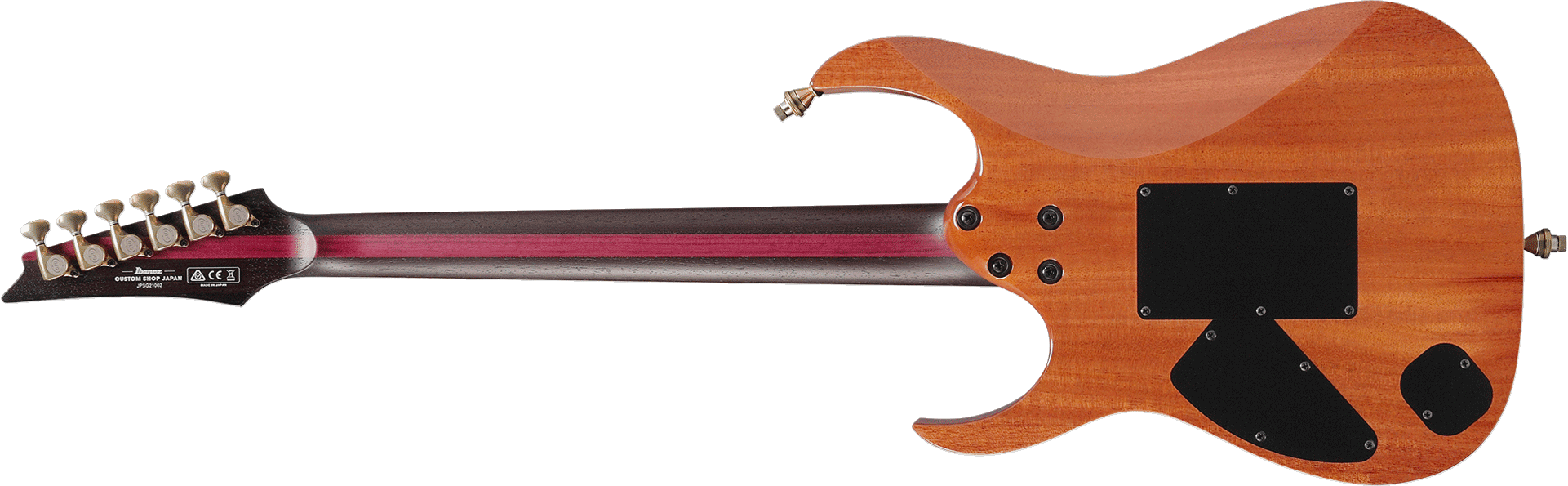

2022 Ibanez JPCS21 - "JADE MANTIS" ( Rear: African mahogany bolted to a 3pc Wenge/Purpleheart JCRG Super Wizard neck and Gotoh machine heads )
Additional details
Green Gradation / Maple top
Gold Lo Pro Edge tremolo

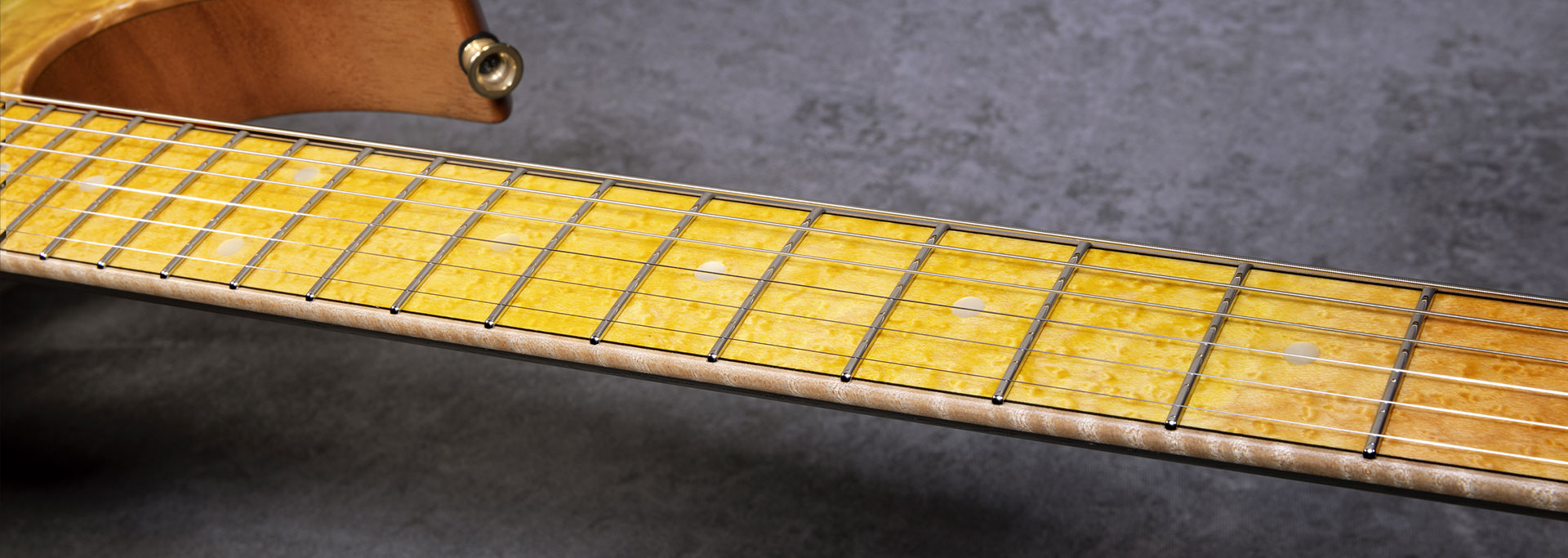

Birdseye Maple fretboard

Sources[]

Ibanez "Hoshino (USA) Inc. 50th Anniversary" : JPCS21 "JADE MANTIS" product page, February 2022
