JPCS20 "CALDERA" Natural (more images)

The JPCS20 "CALDERA" is an high end J Custom line. RG series solid body electric guitar model introduced by Ibanez for 2022. It was crafted by the Japan Custom Shop in Nagoya as part of the 50th anniversary of Ibanez’s US-based distributor Hoshino U.S.A. Inc.

The JPCS20 is a One-off model which is sold exclusively by select Ibanez music retailers.

With this design, the Japan Custom Shop wanted to create a contemporary, artistic take on the classic RG550, while still preserving the characteristics that make this model instantly identifiable, such as a HSH pickup configuration, top rout design with a pickguard, and a bolt-on neck joint.


The JPCS20 - "CALDERA" features ash body with figured koa top bolted to a 3pc maple/purpleheart neck, with ebony fingerboard, 24 jumbo frets with tree of life and luminlay side dots inlays. Components are a DiMarzio Air NortonHumbucking pickups on the neck position, a DiMarzio True Velvet Single coil pickup in the middle position and a DiMarzio The Tone Zone on the bridge position, a Lo-Pro Edge tremolo, gold hardware, gotoh machine heads and includes hardshell case & certificate of authenticity.

Specifications[]

Related content: J Custom series | RG series |
Specifications for JPCS20 - "CALDERA"
Model name: JPCS20 - "CALDERA"
Year(s) offered: 2022
Sold in: USA
Made in: Japan
Price: MSRP: US$10,666.65
Finish(es): Natural
Body
Body type:
Solid body
Body material:
Ash w/ Figured Koa top
Neck joint:
AANJ
Bridge:
Lo Pro Edge tremolo (10.8m string spacing)
Pickguard:
Figured wood and a poured epoxy blue resin
Knob style:
2 Knurled metal dome (Gold)
Hardware color:
Gold
Neck
Neck type:
RG J Custom Wizard
Neck material:
3-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Hybrid mother of pearl/blue resin Tree of life and luminlay side dots
Frets:
24 / Jumbo Stainless Steel (J Custom edge treatment)
Nut:
Top-Lok III (1.692")
Machine heads:
Gotoh
String gauge (factory):
D'Addario® EXL120
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

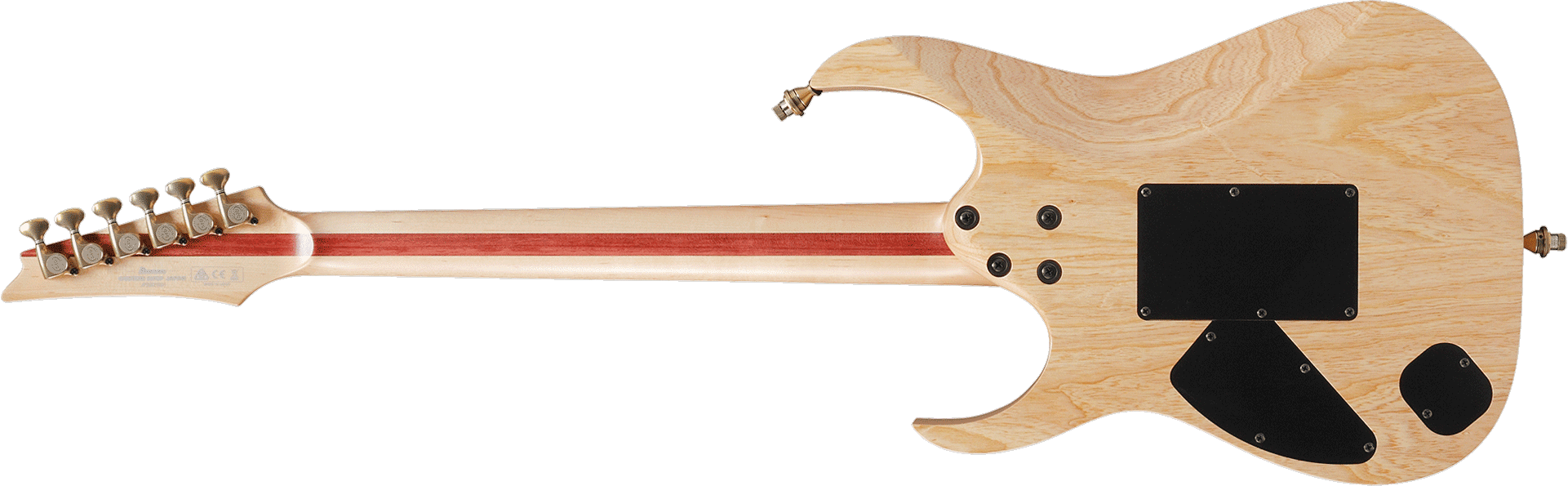

2022 Ibanez JPCS20 - CALDERA ( Rear: Ash body bolted to a 3pc Maple/Purpleheart RG J Custom Wizard neck and Gotoh machine heads )
Additional details

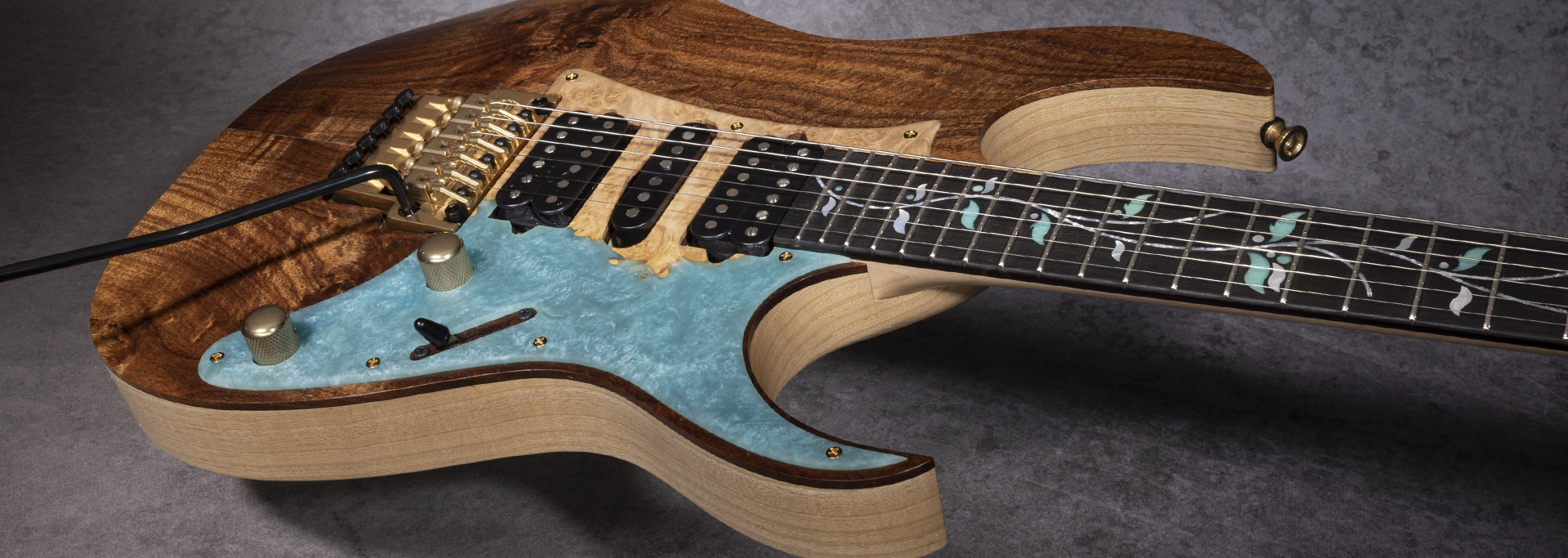

Front of body - Figured Koa top

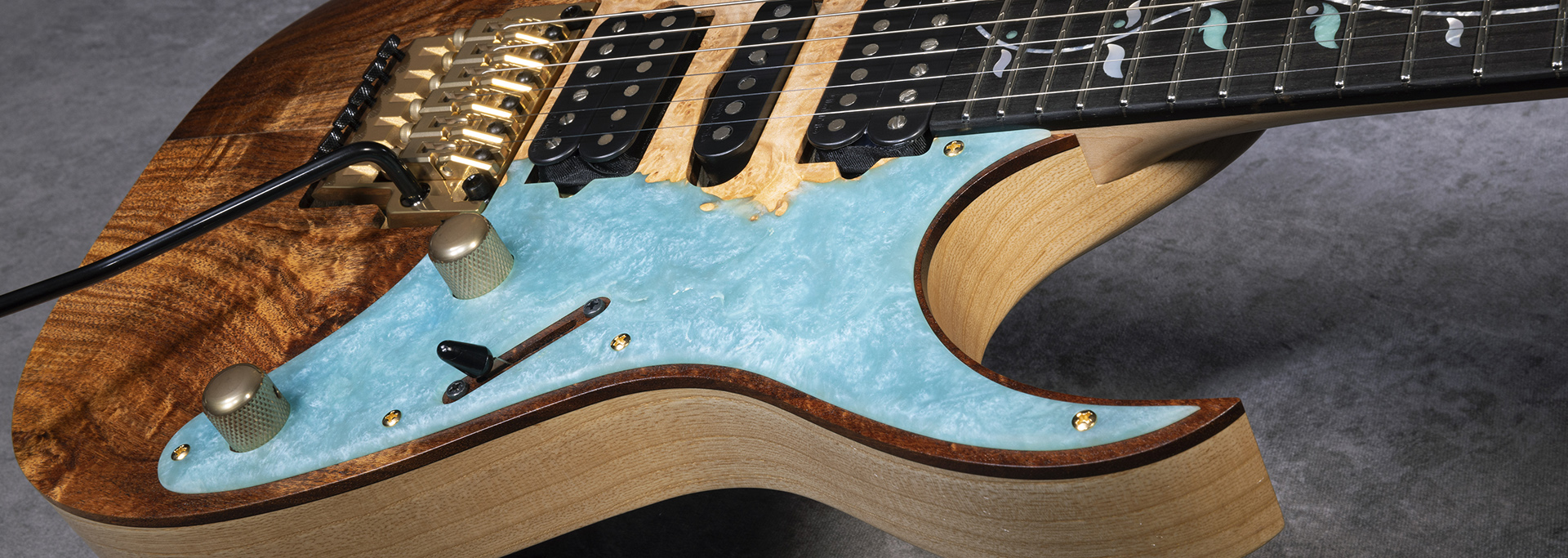

Figured wood/blue resin pickguard

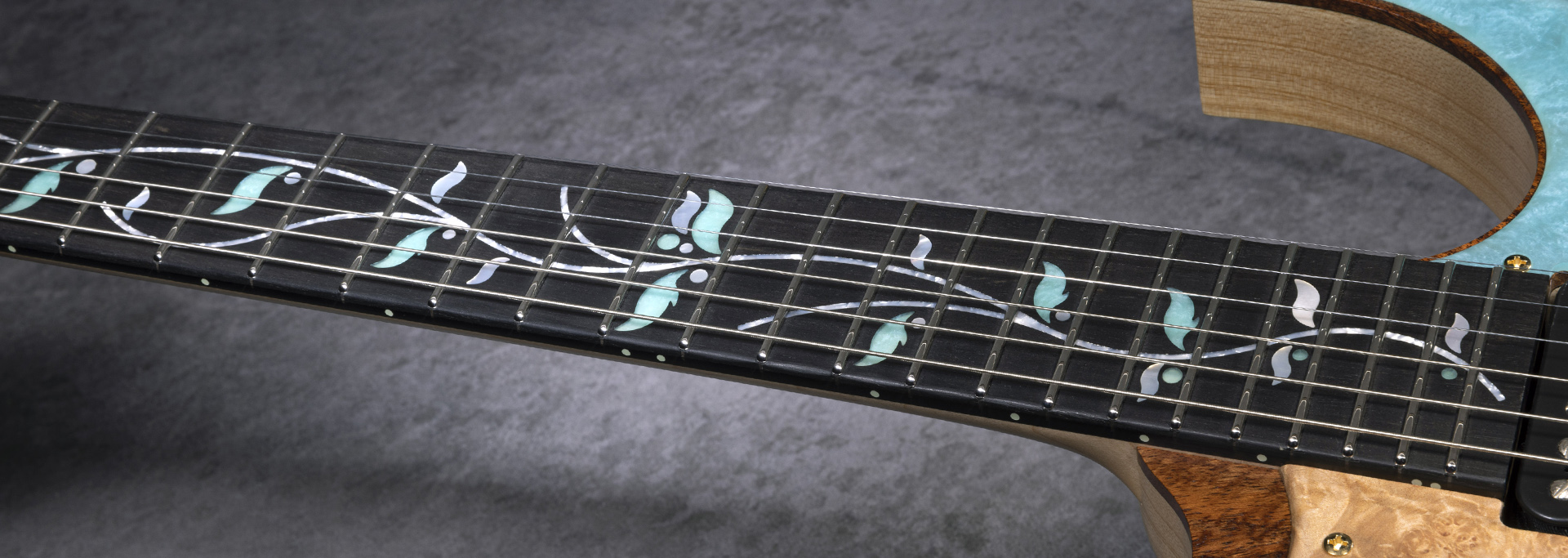

Mother of pearl/blue resin Tree of life

Sources[]

Ibanez "Hoshino (USA) Inc. 50th Anniversary" : JPCS20 "CALDERA" product page / February 2022
