JPCS14 (2022)

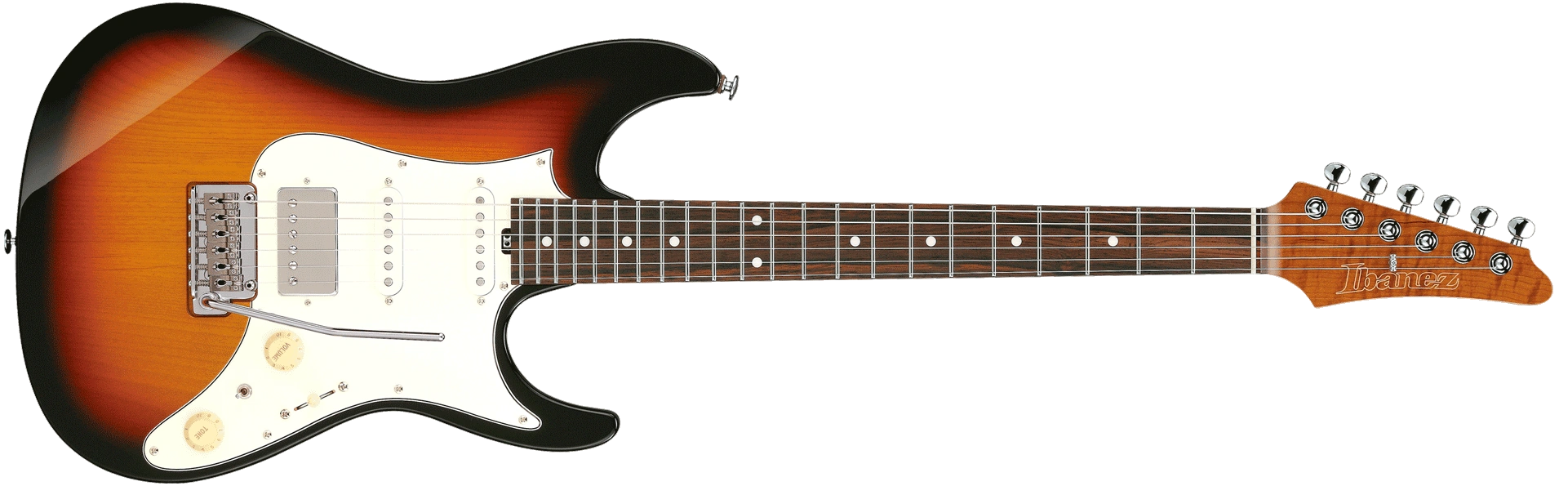

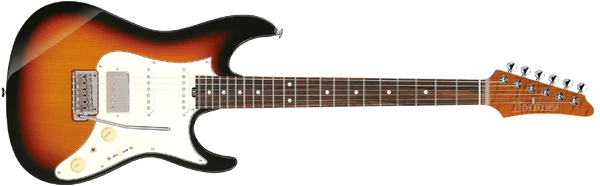

JPCS14 "ASTERISK" Nitrocellulose (more images) Red copyright sprite

The JPCS14 (also referred to as ASTERISK) is an AZ series solid body electric guitar model introduced by Ibanez for 2022. It was crafted by the Japan Custom Shop in Nagoya, Japan, as part of the commemoration of the 50th anniversary of Hoshino USA.

The JPCS14 features alder body bolted to an S-Tech roasted flamed maple neck with a titanium truss rod with adjustment wheel at the neck joint, a 22-fret Madagascar rosewood fingerboard with cream dot position markers and luminescent side dots, and a matching headstock with the Ibanez logo. Components include a Y.O.S. Smoggy pickups with a humbucker at the bridge and single-coils in the neck and middle positions mounted in a white pickguard, a Gotoh T1802 two-point synchronized tremolo bridge, and chrome Gotoh MG-T Locking tuning machines. A hardshell case and Certificate of Authenticity are included.

The JPCS15 is a similar model featuring a swamp ash body with a clear finish and a tortoiseshell pickguard. The JPCS13 is a related model with a swamp ash body and a different pickup configuration.

Only a single example was produced and it was sold by Ish guitars in Syracuse, New York.[1]

Specifications[]

Related content: Japan Custom Shop series | AZ series | Models-icon
Specifications for JPCS14 / "ASTERISK"
Model name: JPCS14 / "ASTERISK"
Year(s) offered: 2022
Sold in: USA
Made in: Japan
Price: MSRP: US$13,333.32 • SMAP: US$9,999.99
Finish(es): Tri-Fade Burst (TFB) nitrocellulose
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
AANJ
Bridge:
Gotoh T1802 tremolo (10.5mm string spacing)
Pickguard:
White
Knob style:
Plastic top hat (cream)
Hardware color:
Chrome
Neck
Neck type:
Fat AZ Oval C
Thickness: 21mm at 1st Fret, 23mm a 12th Fret
Width: 42mm at Nut, 56.4mm at 22th Fret
Neck material:
One-piece S-Tech roasted flamed maple
Scale length:
648mm/ 25½"
Fingerboard material:
Madagascar rosewood (12" radius)
Fingerboard inlays:
Cream dots
luminescent side dots
Frets:
22 / jumbo stainless steel
Nut:
Bone (42mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
Y.O.S. Smoggy (H)
Middle pickup:
Y.O.S. Smoggy (S)
Neck pickup:
Y.O.S. Smoggy (S)
Controls:
Master volume / master tone / 5-way lever pickup selector / coil-split toggle
Output jack:
¼" stereo barrel (angled side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

JPCS14 rear

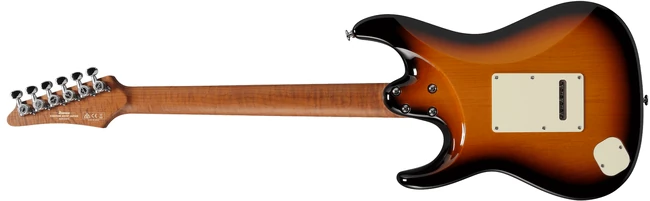

2022 Ibanez JPCS14 - "ASTERISK" ( Rear: Alder body bolted to a One-piece S-Tech roasted flamed maple AZ neck with Gotoh SG381 MG-T locking machine heads ) Red copyright sprite
Additional details
JPCS14 top

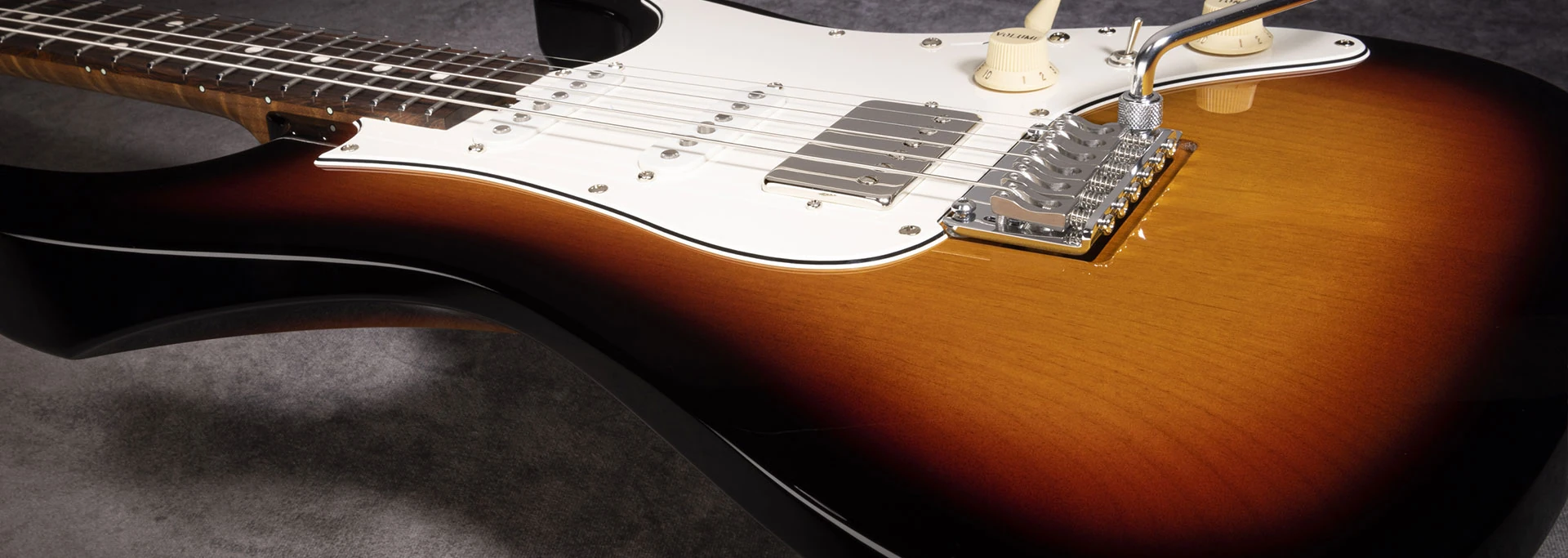

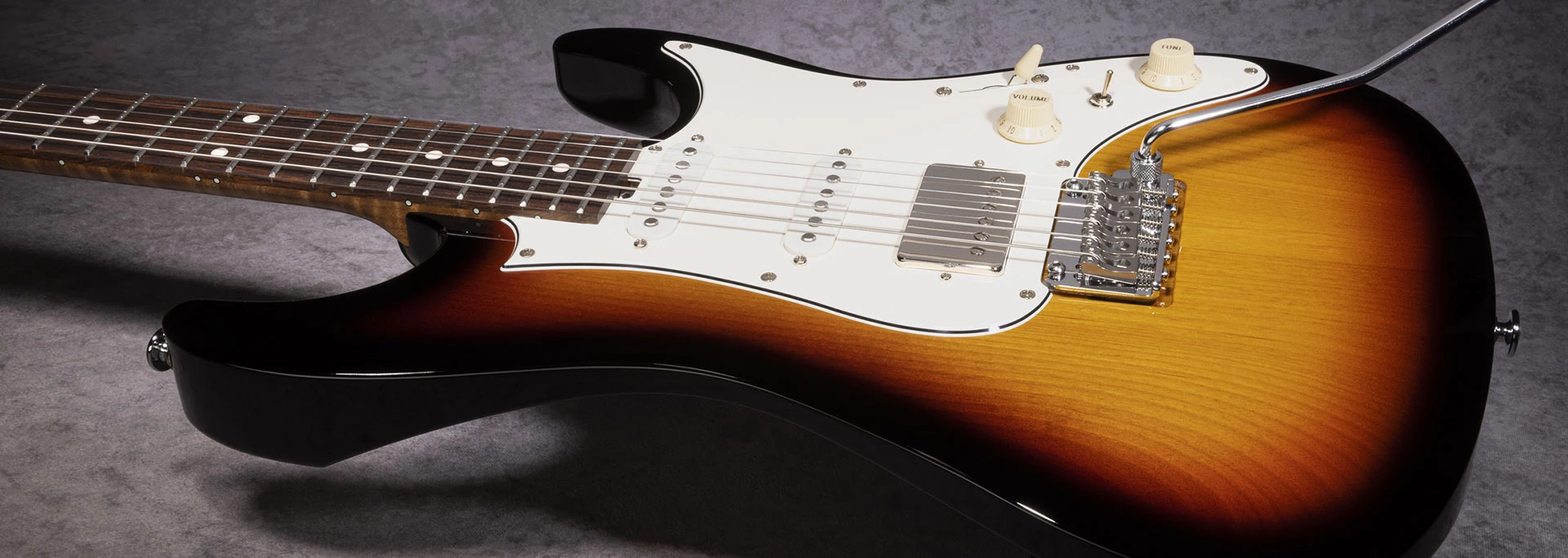

Alder body with Nitrocellulose top
JPCS14 trem
Gotoh T1802 two-point synchronized tremolo
JPCS14 HSS

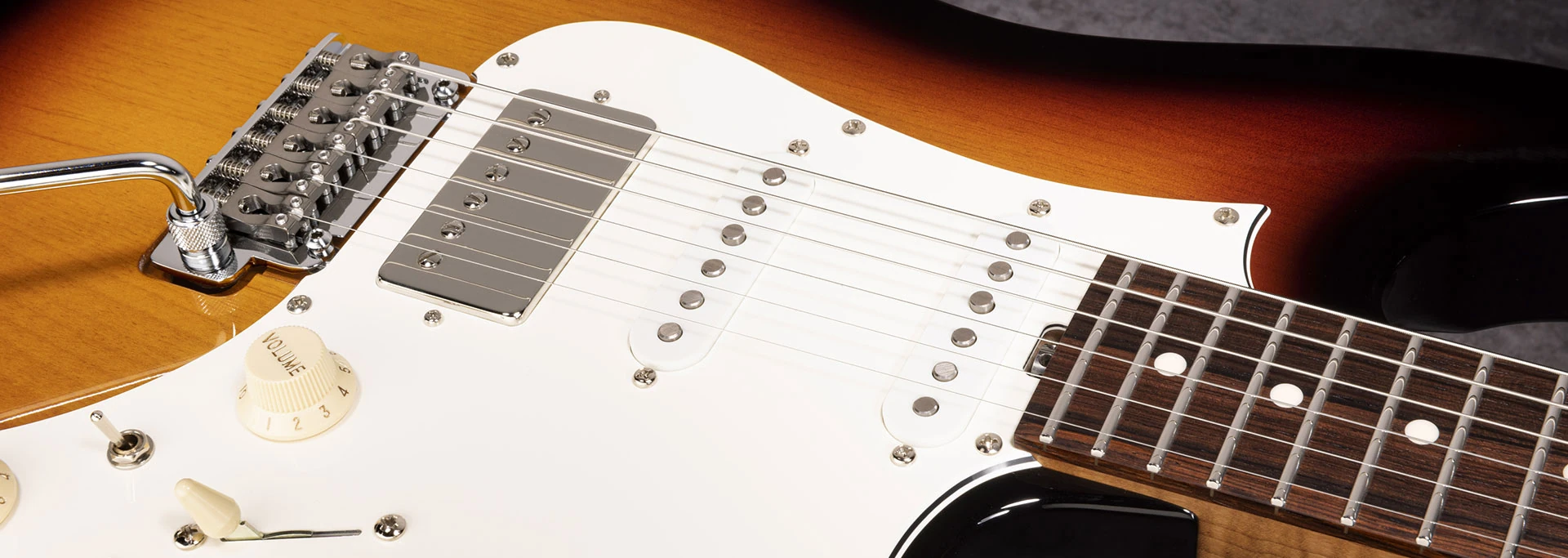

Y.O.S. Smoggy™ pickups

Sources[]

  1. Where to purchase, Ibanez USA, archived June 2022
  • "ASTERISK" product page, Ibanez USA, archived June 2022
