JEM77 PMC

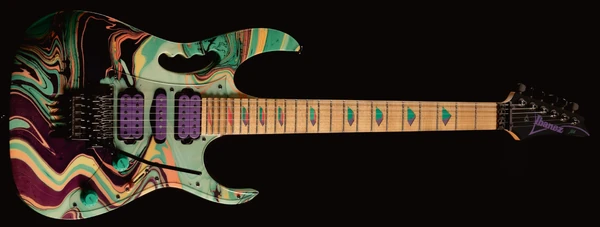

JEM77 Purple Multi Color (more images) Red copyright sprite

The JEM77 Purple Multi Color (PMC) is a JEM series solid body electric guitar model introduced by Ibanez in 1992. It is a signature model of American guitarist Steve Vai. It was made in Japan by FujiGen.

The JEM77 PMC features a multi-color purple swirl paint job which was applied by Darren Johansen of About Time Design (ATD). It has a basswood body with a monkey grip handle and lion's claw tremolo rout bolted to a maple neck with a 24-fret maple fingerboard with three color disappearing pyramid position markers. The upper four frets are scalloped. Components include DiMarzio pickups mounted in a clear pickguard with a pair of green and black humbuckers flanking a green single-coil, a Lo-Pro Edge double locking tremolo bridge, a tilt output jack and Gotoh tuning machines.

The JEM77 GMC is a similar model with a green swirl and a rosewood fingerboard with green vine inlays.

The JEM77 PMC was offered only in 1992. Just 271 examples were produced.

Specifications

Specifications for JEM77 (Purple Multi Color)
Year(s) produced: 1992
Sold in: Worldwide
Made in: Japan
Finish(es): Purple Multi Color (PMC)
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
Cutaway Heel
Bridge:
Lo-Pro Edge tremolo
Pickguard:
Clear
Knob style:
Top hat (green)
Hardware color:
Cosmo black
Neck
Neck type:
JEM
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Frets 21-24 scalloped
Fingerboard inlays:
Three color disappearing pyramid
Frets:
24 / Jim Dunlop 6100
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio PAF Pro (H) purple
Middle pickup:
DiMarzio JEM Single (S) purple
Neck pickup:
DiMarzio PAF Pro (H) purple
Controls:
Master volume / master tone / 5-way lever

Images

Additional images/ details

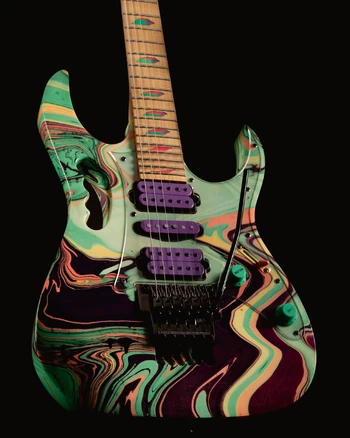

Jem77PMC body front
JEM77 PMC owned by BufordTJustice6
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
