For the similarly named model introduced in 2015, see JEMJR.
JEM-JR BK
JEM-JR Black (more images) Red copyright sprite

The JEM-JR, also known as the JEM333, is a solid body electric guitar introduced by Ibanez in 2002. It is a signature model of American guitarist Steve Vai and part of Vai's JEM series. It was the most affordable JEM model.

In terms of specifications, it is more similar to the RG350DX than the JEM7V from which it takes it's aesthetic cues. It has a basswood body with a monkey grip handle and lion's claw tremolo rout bolted to a maple Wizard II neck with a 24-fret rosewood fingerboard with dot position markers. Components include a double locking tremolo bridge and Ibanez Infinity pickups mounted in a pickguard with a pair of humbuckers flanking a single-coil.

The JEM-JR was discontinued after 2012, but a similarly named model, the JEMJR, was brought out in 2015.

Specifications[]

Related content: JEM series | Signature series | Models-icon
Specifications for JEM-JR / JEM333
Model name: JEM-JR / JEM333
Year(s) offered: 2002–2012
Sold in: Asia / Central & South America
Made in: Korea (2002–2004)/ Indonesia (2005–2012)
Finish(es): Black (BK) / White (WH) / Walnut (WN) 2002–2004
Body
Body type:
Solid body
Body material:
Basswood
Neck joint:
AANJ
Bridge:
2002–2006: ILT1 tremolo
2007–2012: Edge III tremolo
Pickguard:
BK; WN: Black
WH: White
Hardware color:
Cosmo black
Neck
Neck type:
2002–2006: JEM
2007–2010: Wizard II
2011–2012: Wizard III
Neck material:
2002–2004: 1-piece maple
2005–2012: 3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
Dot
Frets:
24 / jumbo
Nut:
Locking
Electronics
Pickup configuration:
HSH
Bridge pickup:
Ibanez Infinity 2) (H)
Middle pickup:
Ibanez Infinity Single 1 (S)
Neck pickup:
Ibanez Infinity 1 (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

Additional finishes/ details
JEM-JR WN
Walnut

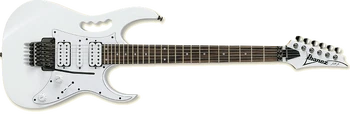

JEM-JR WH
White
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
