JCS21U-GAM

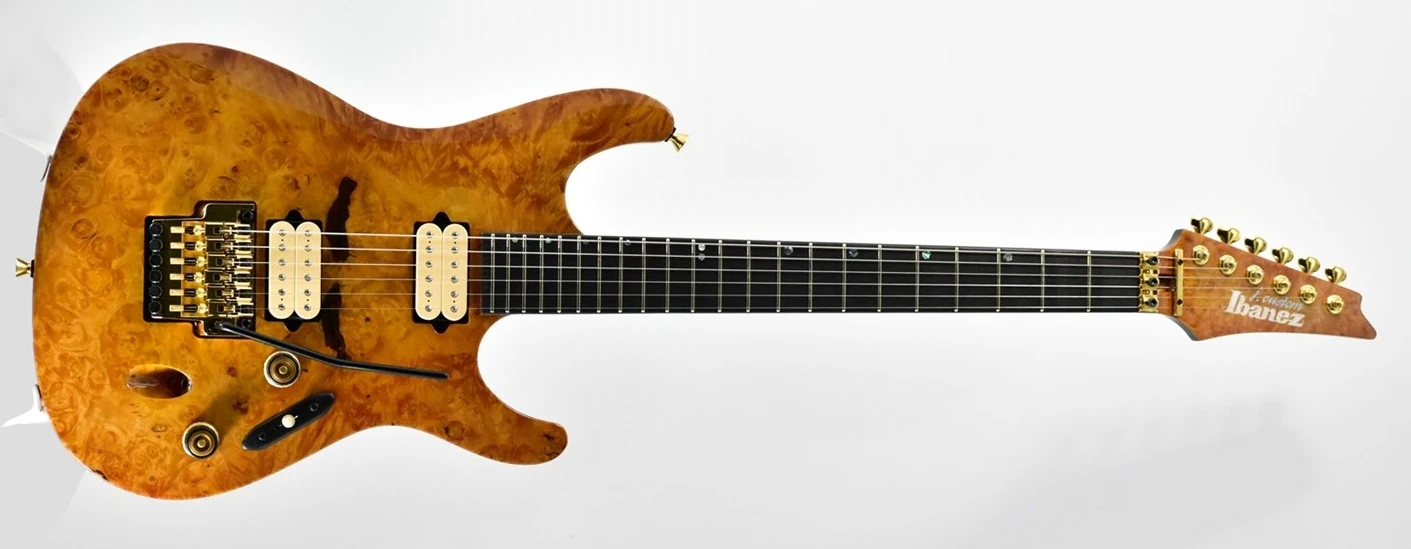

JCS21U Gold Amber (more images) Red copyright sprite

The JCS21U is a limited edition S series solid body electric guitar introduced by Ibanez in 2021. It was made in Japan by Sugi as part of the exclusive J Custom line.

The JCS21U features a 13.5mm thick exotic maple top on a Honduras mahogany body mated to a set-in Honduras mahogany neck with an asymmetric Ultra profile and an ebony fingerboard with 22 Jescar EVO Gold frets with J.Custom edge treatment, offset abalone dot position markers and Luminlay phosphorescent side dots. Components include a pair of DiMarzio Titan humbucking pickups, a Lo-Pro Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

The "U" in the model name represents the Ultra neck profile and ultra-light weight; the four examples produced weigh between 3.01 kg (6 lb. 10.2 oz.) and 3.08 kg (6 lb. 12.6 oz.). In order to further reduce weight no tremolo cavity cover is included. Each piece has a unique finish on the top with black paint on the rear of the body and neck.

The JCS21U was offered only in 2021 and was sold only in Japan.

Specifications[]

Related content: J Custom series | S series | Models-icon
Specifications for JCS21U
Model name: JCS21U
Year(s) offered: 2021
Sold in: Japan
Made in: Japan
Finish(es): Gold Amber (GAM) / Green Emerald (GRE) / Morion Black (MBK) / Transparent Turquoise (TTE)
Body
Body type:
Solid body
Body material:
Honduras Mahogany w/ 13.5mm exotic maple top
Neck joint:
Set-in
Bridge:
Lo-Pro Edge tremolo\ (10.8mm string spacing)
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
J.Custom Asymmetric Ultra profile
Neck material:
1-piece mahogany
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Offset abalone dot
Luminlay side dots
Frets:
22 / FW55090 Jescar EVO Gold (J. Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SGi510
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Titan (H) passive
Neck pickup:
DiMarzio Titan (H) passive
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
Switchcraft ¼" stereo barrel (angled face mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes

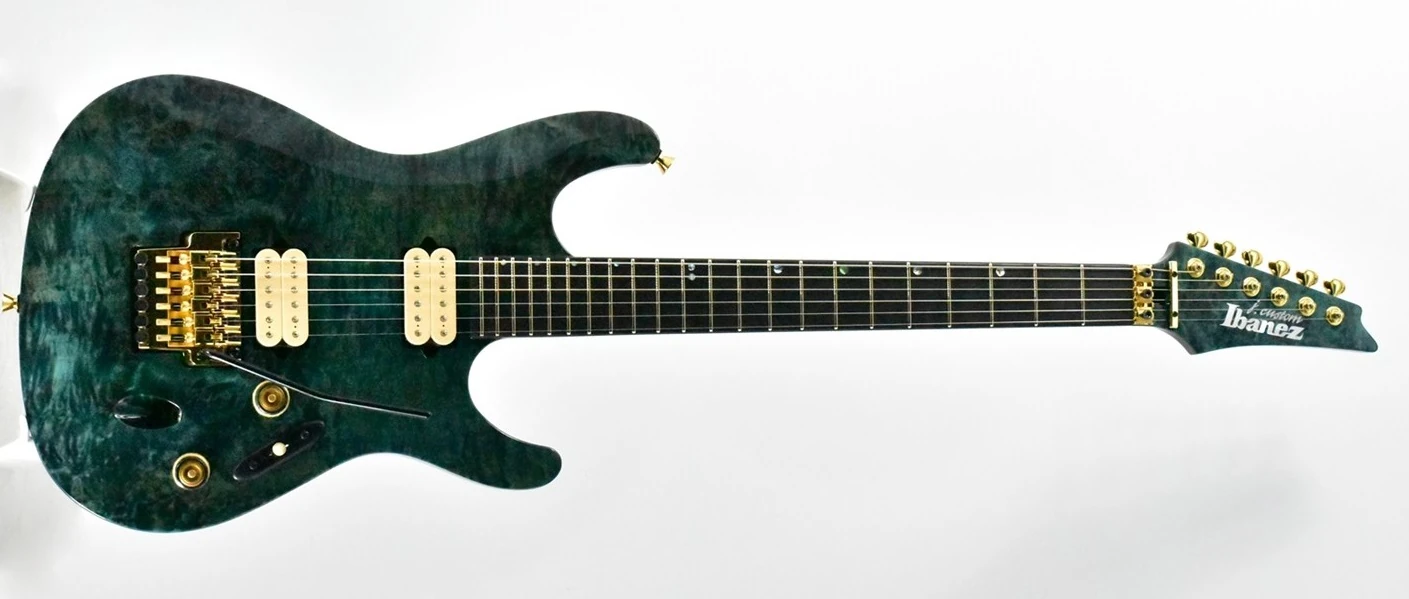

JCS21U-GRE
Green Emerald

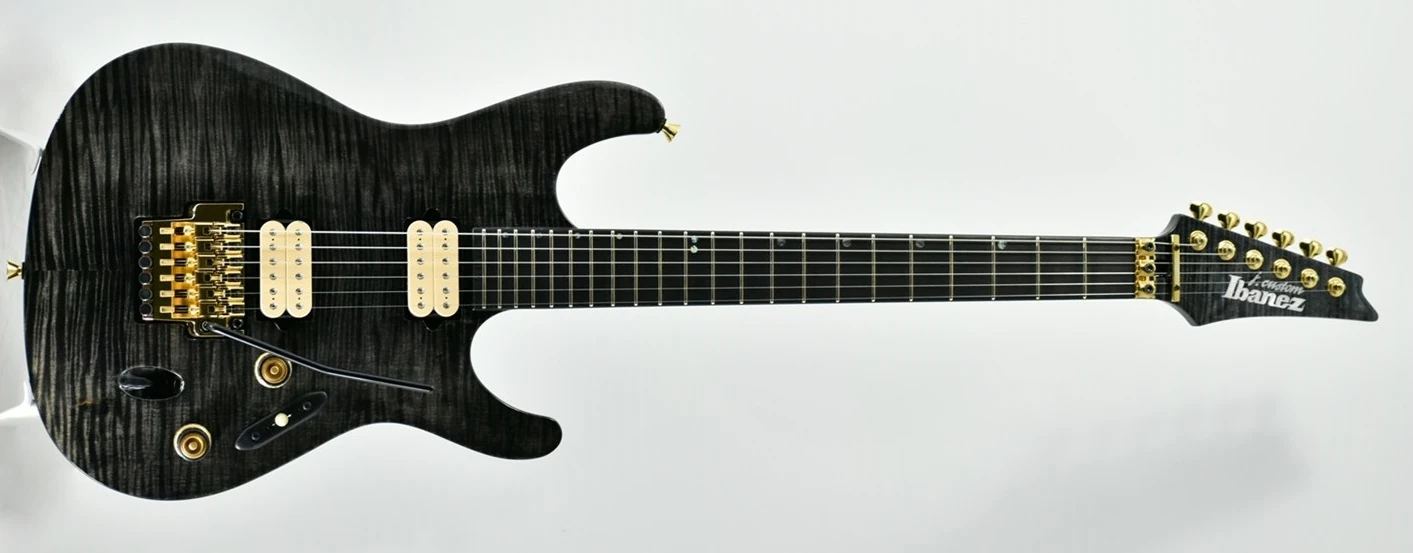

JCS21U-MBK
Morion Black

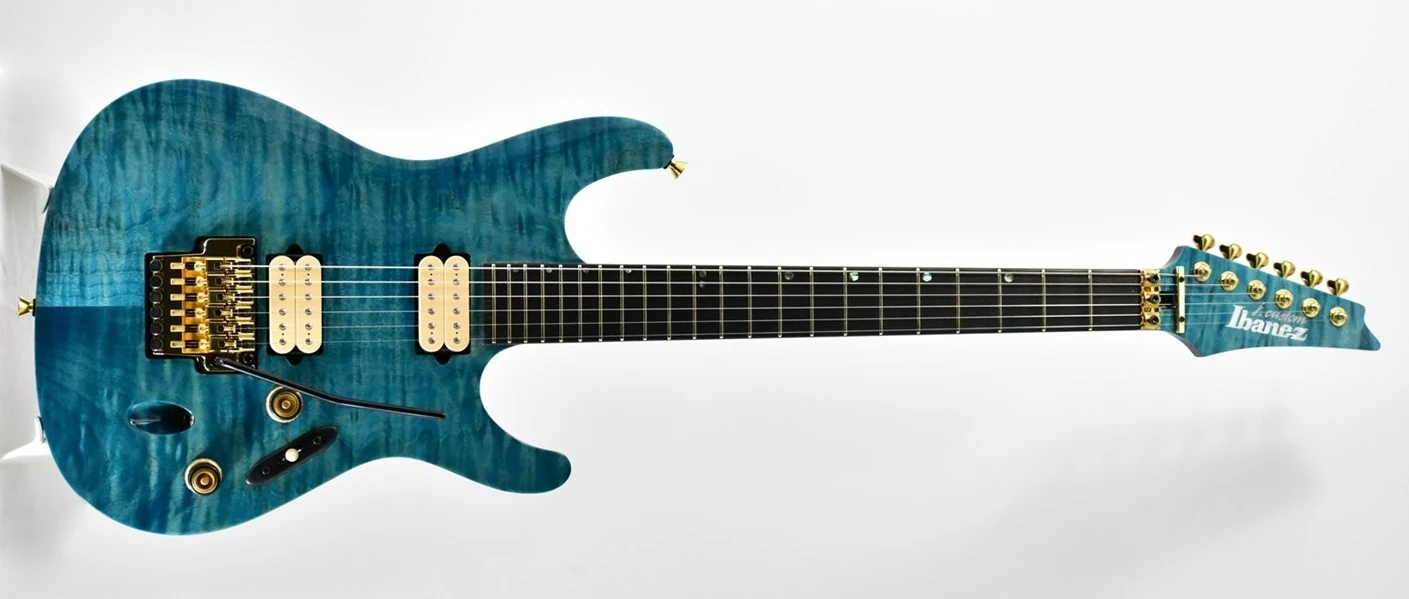

JCS21U-TTE
Transparent Turquoise
Additional details
JCS21U Ultra LW Body
Ultra-light weight body

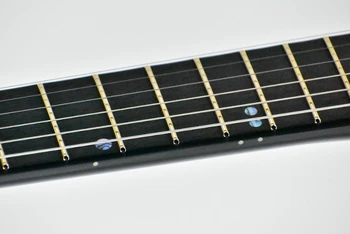

JCS21U FB&FRETS
Ebony fretboard

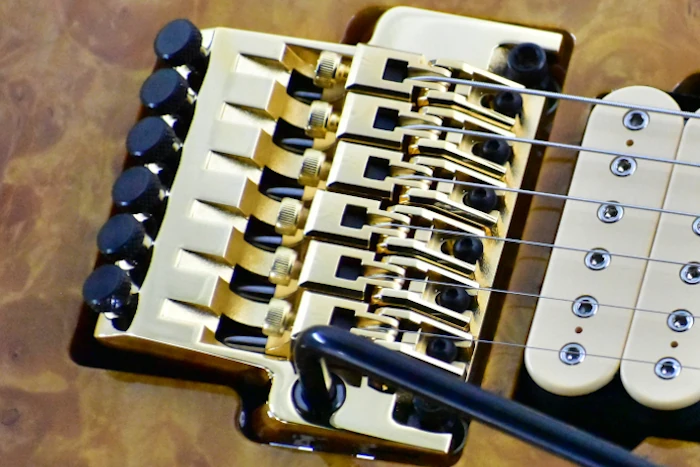

JCS21U LOPRO
Lo-Pro Edge tremolo

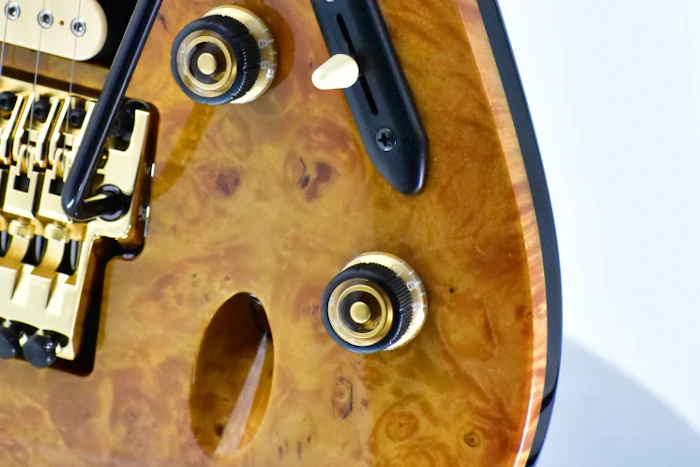

JCS21U KNOB
Sure Grip III knobs

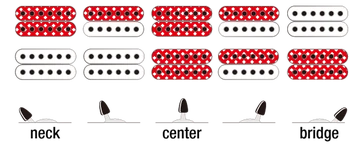

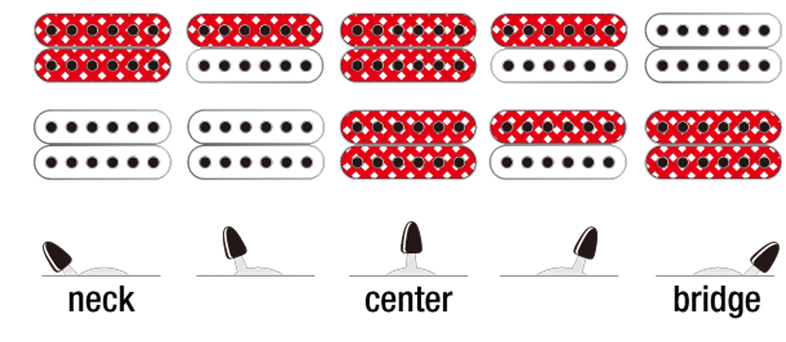

JCS21U-Switch R
Pickup switching
Controls VT5
Controls layout

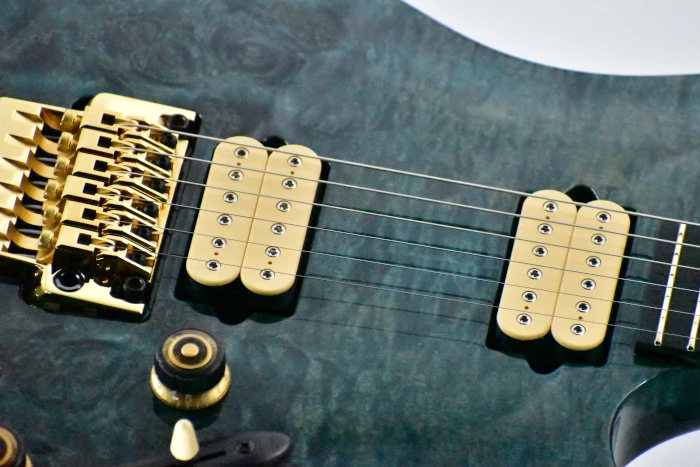

JCS21U TITAN
DiMarzio Titan pickups

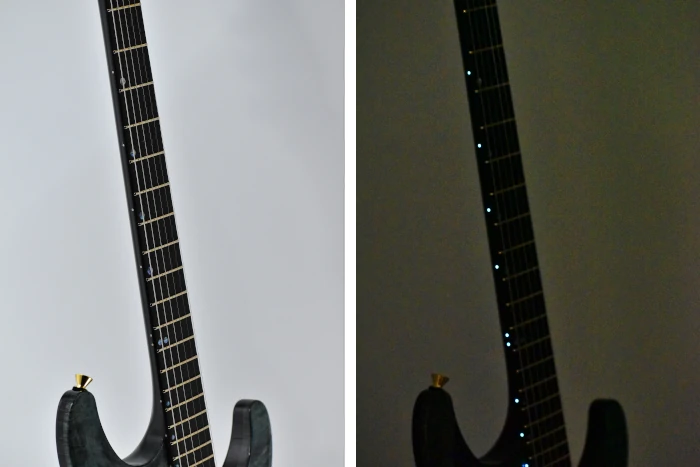

JCS21U INLAYS
Luminlay side dots

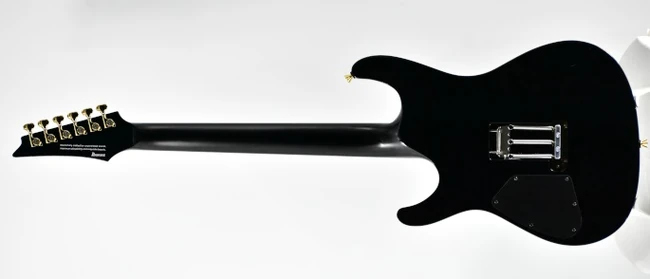

JCS21U Rear
2021 Ibanez JCS21U ( Rear : "Backplate-less" Honduras mahogany body, mated to a set-in 1-piece mahogany J.Custom Asymmetric Ultra neck & Gotoh SGi510 machine heads ) Red copyright sprite

Video[]

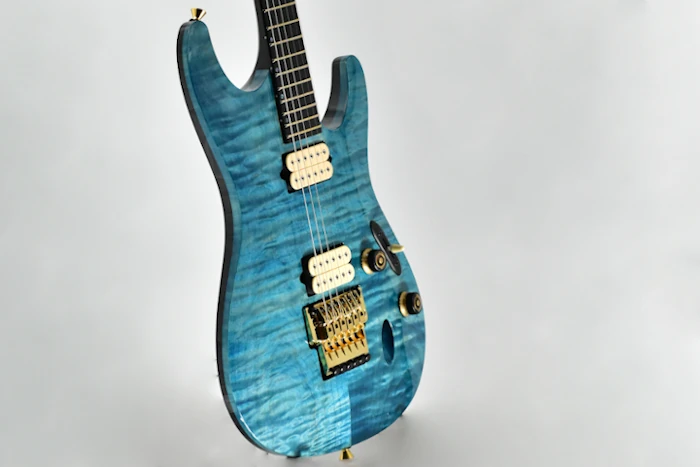

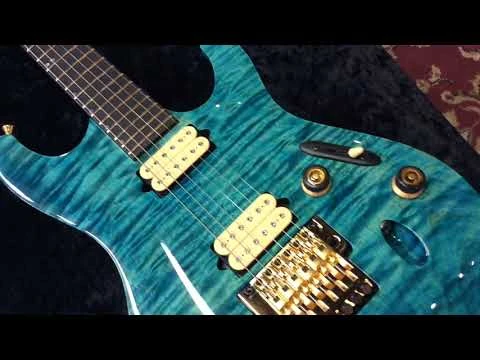

2021 Ibanez JCS21U Transparent Turquoise (TTE)
