JCS2103 (more images)

The JCS2103 is a limited edition S series solid body electric guitar model introduced by Ibanez for 2021. It was made in Japan by Sugi as part of the exclusive J Custom line. It was offered for sale only by the Japanese retailer Ikebe Gakki.

The JCS2102 features a buckeye burl top which has had its voids filled with crimson magma resin on an Honduras mahogany body mated to a set-in Honduras mahogany and purpleheart neck with a 22-fret ebony fingerboard with abalone, mother of pearl, and red resin Tree of Life inlay. The headstock features a buckeye burl veneer to match the body. Components include a pair of DiMarzio D Activator X humbucking pickups, a Lo-pro Edge double locking tremolo bridge, a locking nut, Gotoh tuning machines, African mahogany rear cavity covers, and Gotoh knurled metal knobs.

The JCS2101 & JCS2102 are related models.

The JCS2103 was produced only in 2021.

Specifications[]

Related content: J Custom series | S series |
Specifications for JCS2103
Model name: JCS2103
Year(s) offered: 2021
Sold in: Japan
Made in: Japan
Price: SMAP: ¥ 900,000 pre-tax (2022)[1]
Finish(es): Natural with "crimson magma" resin
Body
Body type:
Solid body
Body material:
Honduras mahogany (24.5mm) w/ resin-filled buckeye burl top (13.5mm)
Neck joint:
Set-in
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 (knurled metal dome)
Hardware color:
Gold
Neck
Neck type:
S J.Custom Asymmetric Ultra
Neck material:
3-piece Honduras mahogany/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Abalone & mother of pearl Tree of Life
Frets:
22 / Jescar FW55090 Jescar EVO Gold (J Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381 (non-locking)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
DiMarzio D Activator-X (H)
Neck pickup:
DiMarzio D Activator-X (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel angled face mount

Images[]

Additional details

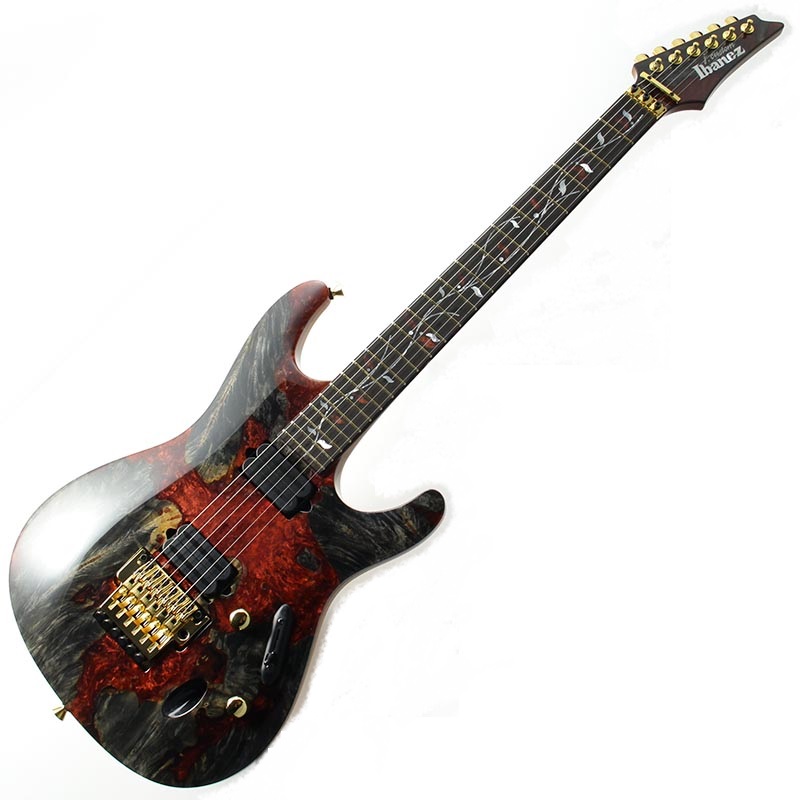

Full body

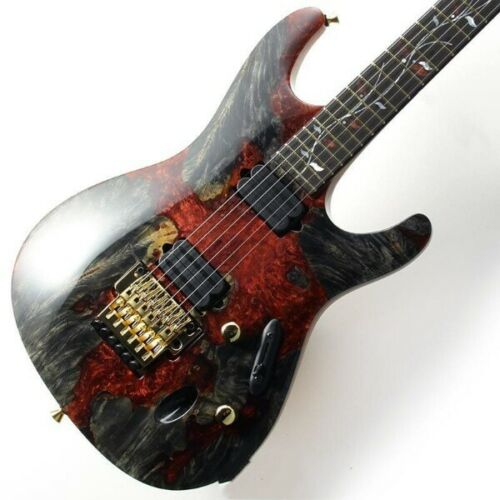

Front of body

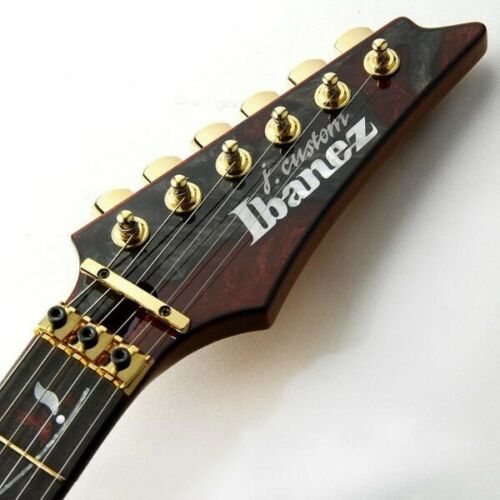

Headstock

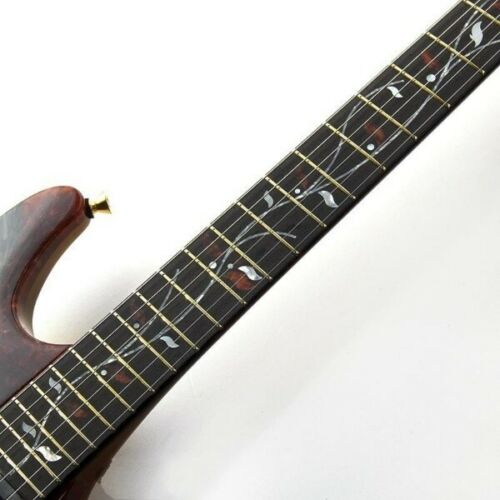

Ebony fretboard

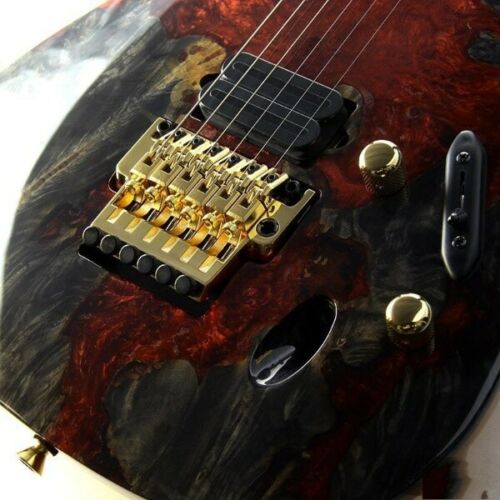

Gold hardware

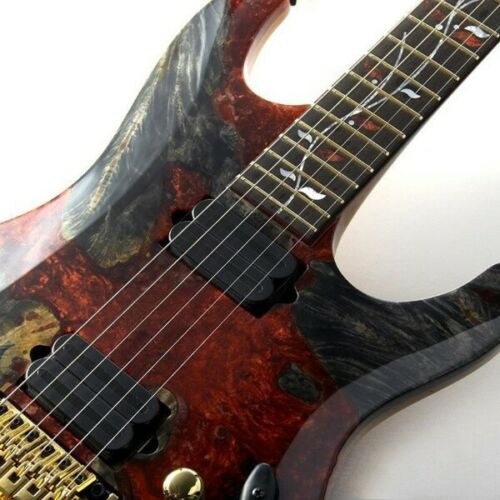

DiMarzio D Activator
Controls layout
Pickup switching

Sources[]

  1. JCS2103 product listing, Ikebe Gakki (Japanese retailer), archived June 2022
