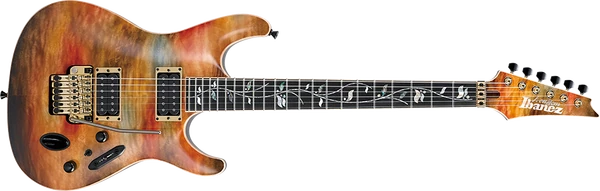

2016 JCS1601 SSK.png
JCS1601 Sunset Sky Red copyright sprite.png

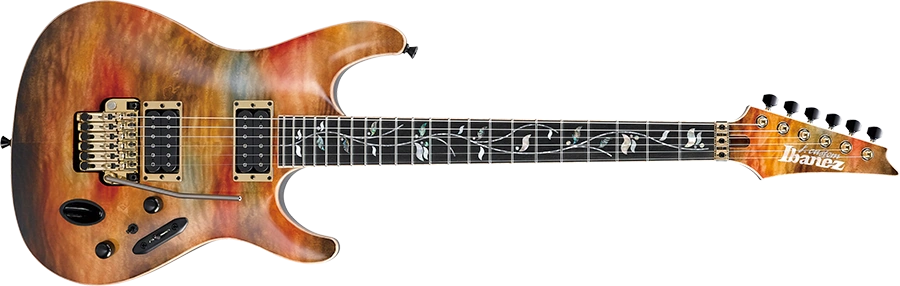

The JCS1601 is an S series solid body electric guitar model offered by Ibanez in 2016. It was made in Japan by Sugi as part of the high-end J Custom line.

The JCS1601 features an African mahogany body capped with an 18mm thick arched exotic maple top mated to a set-in satin finished mahogany and bubinga Wizard neck with a 24-fret ebony fingerboard with exotic maple binding and Tree of Life inlays. Components include dual DiMarzio Fusion humbucking pickups, an Edge Zero double locking tremolo bridge with a removable tuning stabilizer system, a locking nut, Gotoh locking strap pins and Gotoh tuning machines. Controls consist of a master volume, a 3-way pickup selector lever and a mini-toggle switch to coil-split the pickups.

The headstock has a 1.5mm thick exotic maple top with natural binding which is finished to match the body. The serial number is stamped both on the back of the headstock and on the fretboard past the 24th fret.

The JCRG1601 and JCRGA1601 are similar RG series and RGA series models.

The JCS1601 was offered only in 2016 and an extremely limited number (perhaps as few as three) were produced.


Specifications for JCS1601
Year(s) produced: 2016
Sold in: Japan
Made in: Japan
Finish(es): Sunset Sky (SSK)
Body type:
Solid body
Body material:
20mm African mahogany w/ 18mm exotic maple top
Neck joint:
Edge Zero tremolo w/ ZPS3 stabilizer
Strap buttons:
Gotoh Free Lock II
Hardware color:
Gold & black
Neck type:
Neck material:
5-piece mahogany/ bubinga w/ satin finish
Scale length:
648mm/ 25½"
Fingerboard material:
Selected ebony w/ exotic maple binding
Fingerboard inlays:
Tree of Life
24 / jumbo
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
Bridge pickup:
DiMarzio Fusion Edge (H)
Neck pickup:
DiMarzio Fusion Edge (H)
Master volume / master tone / 3-way lever pickup selector / coil split mini-toggle
String gauge (factory):
.009–.042 (D'Addario XL120)
