JCRGT02

JCRGT02 Blue (more images)

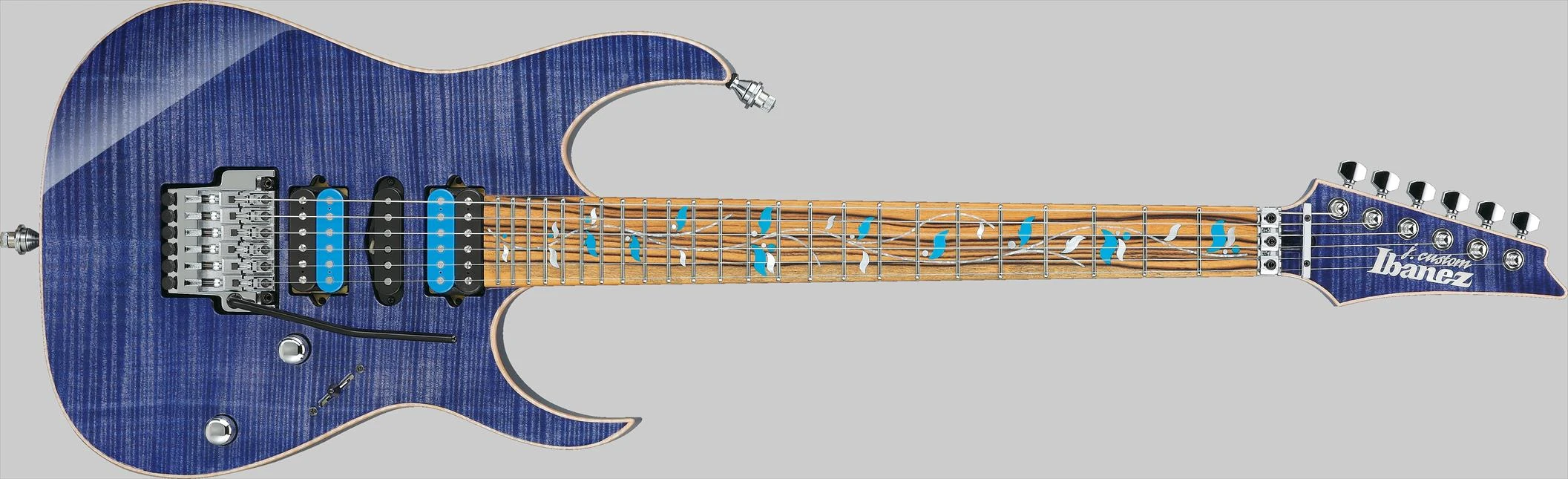

The JCRGT02 is an RG series solid body electric guitar model introduced by Ibanez for 2023. It was made in Japan as part of the high-end J Custom line.

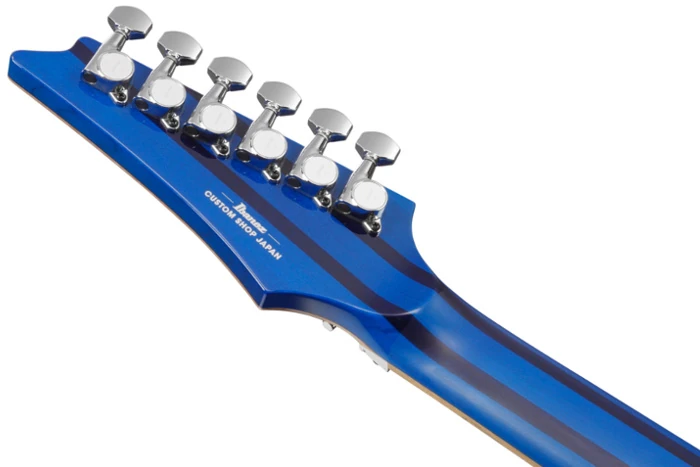

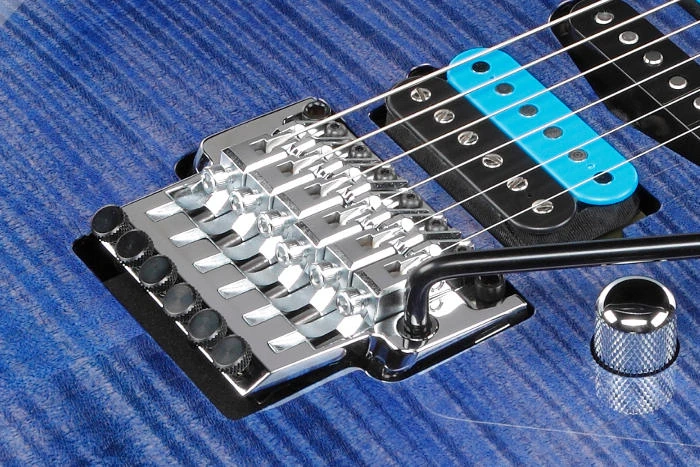

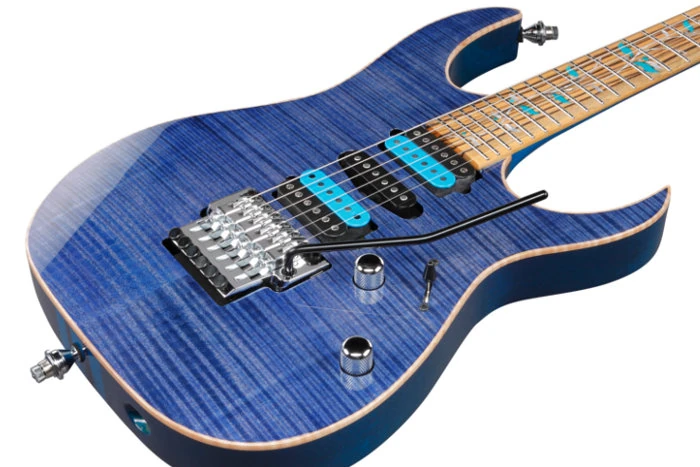

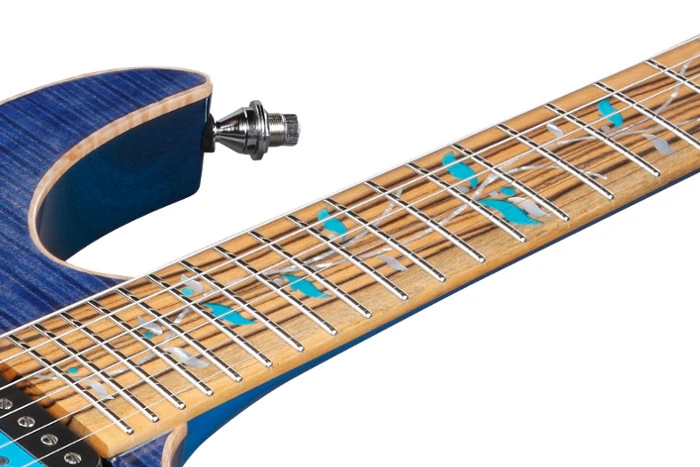

The JCRGT02 features a neck through body construction with mahogany wings body with (4mm) selected flamed maple top and natural binding mated to a maple and purple heart super wizard neck with a 24-fret white ebony fingerboard with a special tree of life inlay with side dots position markers. Components include DiMarzio pickups with Air Norton and Tone Zone humbuckers mounted directly to the body flanking a True Velvet single-coil, a Lo-Pro Edge double locking tremolo bridge, Gotoh machine heads, Gotoh Strap lock pins and chrome hardware.

Specifications[]

Related content: J Custom series | RG series |

Specifications for RJCRGT02

Model name: RJCRGT02

Year(s) offered: 2023

Sold in: Japan

Made in: Japan

Finish(es): Blue (BL)

Body

Body type:
Solid body

Body material:
Mahogany wings w/ (4mm) Selected Flamed Maple top with natural binding

Neck joint:
Neck-thru

Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)

Knob style:
Knurled metal dome

Hardware color:
Chrome

Neck

Neck type:
JCRG Super Wizard

Neck material:
5-piece maple/ purpleheart

Scale length:
648mm/ 25½"

Fingerboard material:
White Ebony (selected)

Fingerboard inlays:
Special Tree of life

Frets:
24 / jumbo Jescar "FW57110NS" (J Custom edge treatment)

Nut:
Top-Lok III

Machine heads:
Gotoh SG381

Electronics/ Strings

Pickup configuration:
HSH

Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico

Middle pickup:
DiMarzio True Velvet (S) passive/ alnico

Neck pickup:
DiMarzio Air Norton (H) passive/ alnico

Controls:
Master volume / master tone / 5-way lever pickup selector

String gauge (factory):
.009/.011/.016/.024/.032/.042

Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

About this table

Images[]

2023 Ibanez JCRGT02 Red ( Rear: Neck through body construction with Mahogany wings mated to a 5-piece maple/ purpleheart JCRG Super Wizard neck and Gotoh SG381 machine heads )

Additional details
