JCRGT01

JCRGT01 Red (more images)

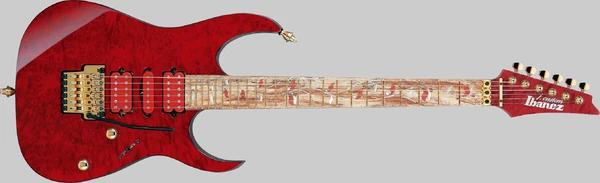

The JCRGT01 is an RG series solid body electric guitar model introduced by Ibanez for 2023. It was made in Japan as part of the high-end J Custom line.

The JCRGT01 features a neck through body construction with mahogany wings body with (4mm) selected exotic maple top and red tortoiseshell binding mated to a maple and purple heart super wizard neck with a 24-fret spolted maple fingerboard with a special tree of life inlay with side dots position markers. Components include DiMarzio pickups with Air Norton and Tone Zone humbuckers mounted directly to the body flanking a True Velvet single-coil, a Lo-Pro Edge double locking tremolo bridge, Gotoh machine heads, Gotoh Strap lock pins and gold hardware.

Specifications[]

Related content: J Custom series | RG series |

Specifications for RJCRGT01

Model name: RJCRGT01

Year(s) offered: 2023

Sold in: Japan

Made in: Japan

Price: SMAP: JP¥:1,081.300 (tax included)

Finish(es): Red (RD)

Body

Body type:
Solid body

Body material:
Mahogany wings w/ (4mm) Selected Exotic Maple top and red tortoiseshell binding

Neck joint:
Neck-thru

Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)

Knob style:
Knurled metal dome

Hardware color:
Gold

Neck

Neck type:
JCRG Super Wizard

Neck material:
5-piece maple/ purpleheart

Scale length:
648mm/ 25½"

Fingerboard material:
Spolted Maple (selected)

Fingerboard inlays:
Special Tree of life

Frets:
24 / jumbo Jescar EVO gold "FW57110" (J Custom edge treatment)

Nut:
Top-Lok III

Machine heads:
Gotoh SG381

String gauge (factory):
.009/.011/.016/.024/.032/.042

Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Electronics

Pickup configuration:
HSH

Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico

Middle pickup:
DiMarzio True Velvet (S) passive/ alnico

Neck pickup:
DiMarzio Air Norton (H) passive/ alnico

Controls:
Master volume / master tone / 5-way lever pickup selector

About this table

Images[]

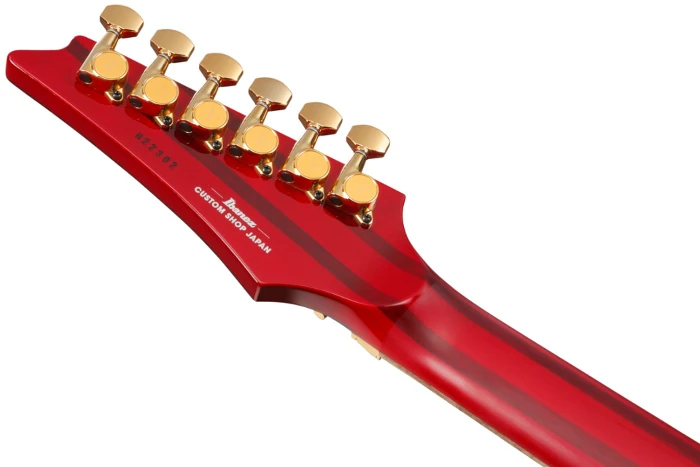

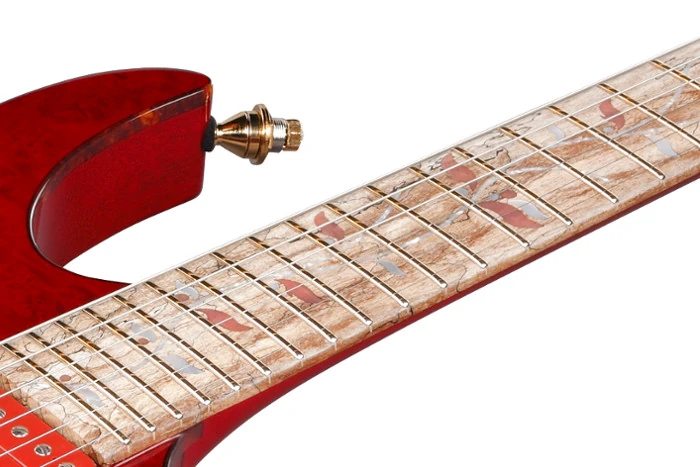

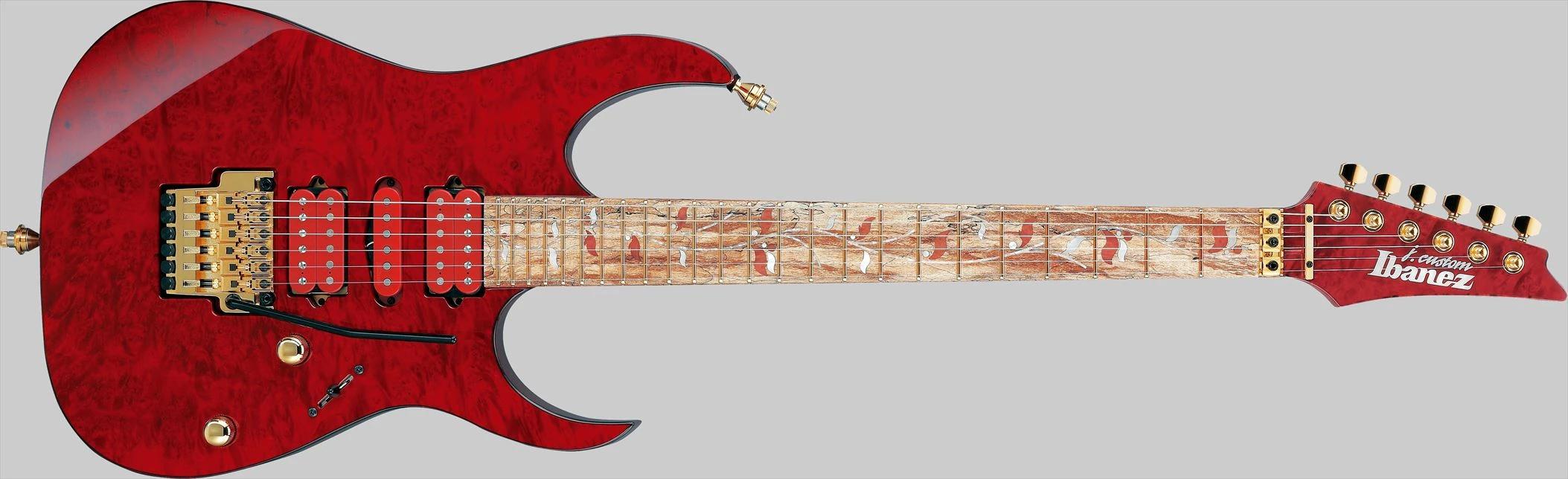

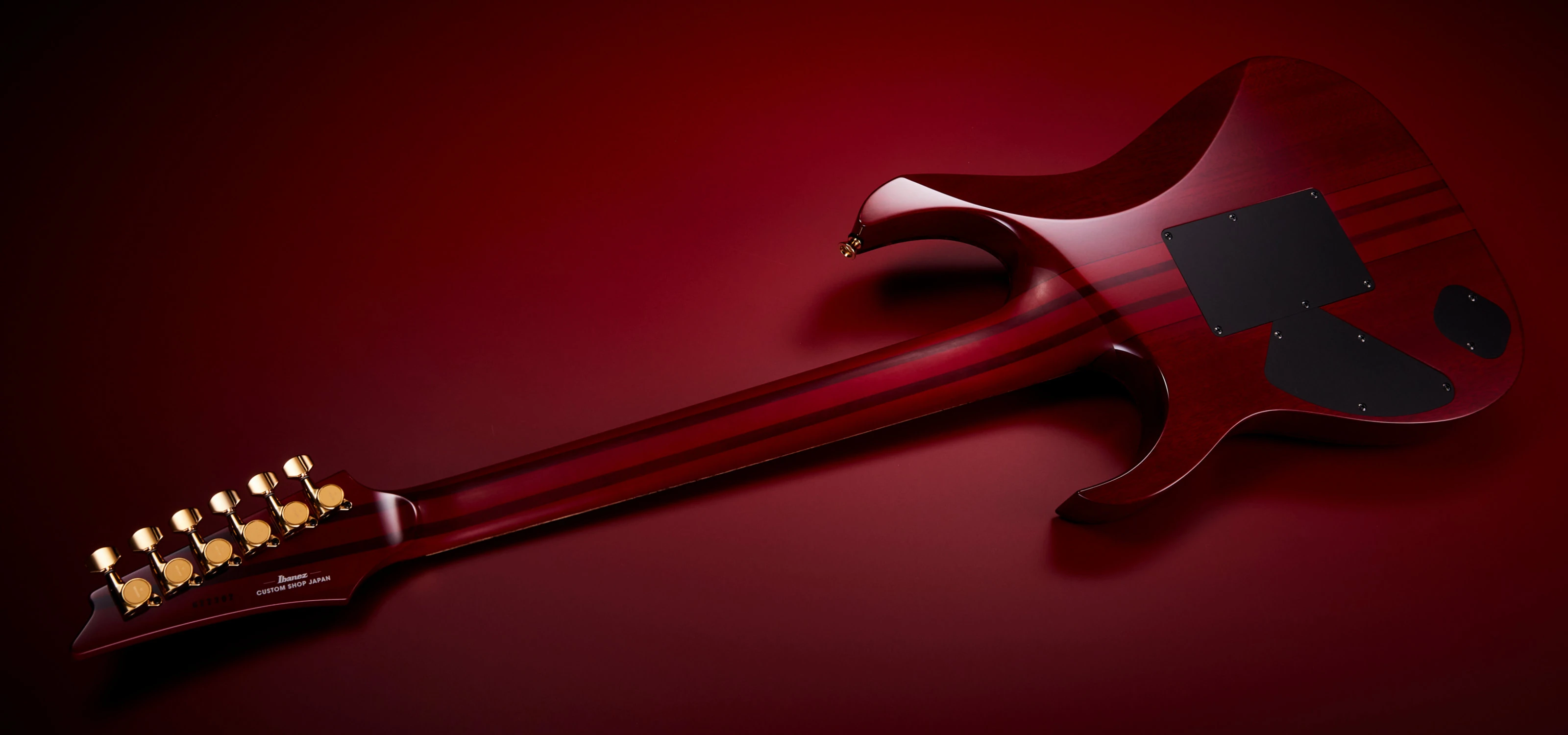

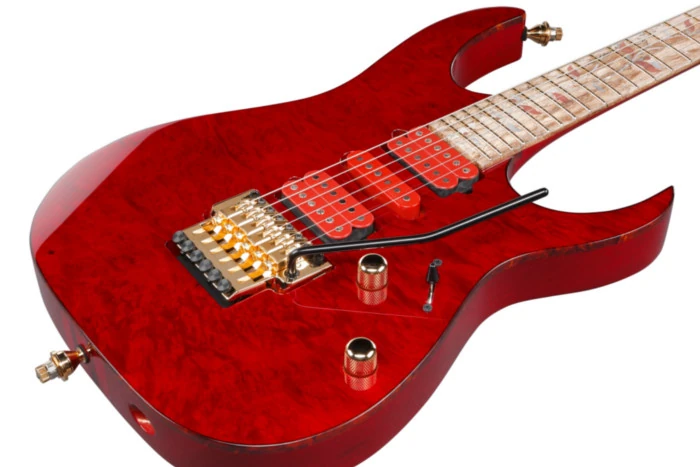

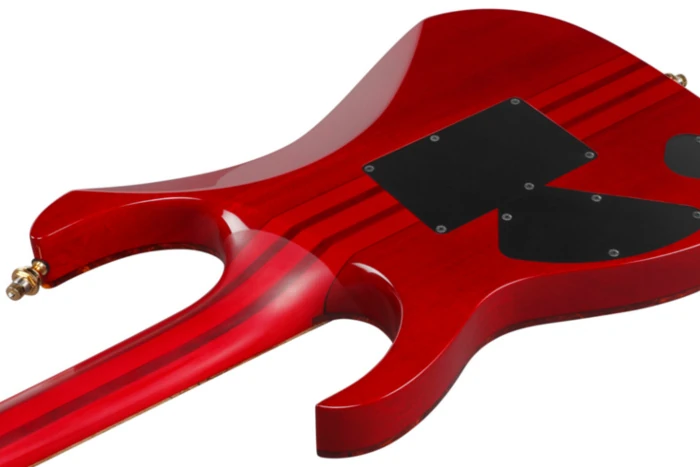

2023 Ibanez JCRGT01 Red ( Rear: Neck through body construction with Mahogany wings mated to a 5-piece maple/ purpleheart JCRG Super Wizard neck and Gotoh SG381 machine heads )
