JCRG25C02 (more images)

The JCRG25C02 is an RG series solid body electric guitar model introduced by Ibanez in 2025. It was crafted in Japan by Sugi as part of the high-end J Custom line and was offered for sale exclusively by Japanese retailer Kurosawa Gakki. The concept is a highly designed guitar with a "Geological Layer" motif.

The JCRG25C02 features ash body with burl maple & blue resin top bolted to a wenge and purpleheart neck with a 24-fret ebony fingerboard with abalone & mother of pearl tree of life inlays and luminlay side dots. Components include a set of DiMarzio's pickups, a Lo-Pro Edge tremolo, Gotoh SG381 machine heads, Gotoh strap lock pins and chrome hardware and includes a hardshell case and certificate of authenticity.

The JCRG25C01 is a related model with honduran mahogany with selected quilted maple top and gold hardware.

The JCRG25C02 was limited to two units.

Related content: J Custom series | RG series |
Specifications for JCRG25C02
Model name: JCRG25C02
Year(s) offered: 2025
Sold in: Japan
Made in: Japan
Price: MSRP: ¥1,320.000 (2025)
Finish(es): Geological Layer (motif)
Body
Body type:
Solid body
Body material:
Ash w/ Burl maple & blue resin top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8m string spacing)
Strap buttons:
Gotoh
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
Super Wizard
Neck material:
5-piece wenge/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Abalone & mother of pearl tree of life w/ purple resin and luminlay side dots
Frets:
24 / Jumbo / Jescar FW55090S stainless steel (J Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico
Middle pickup:
DiMarzio True Velvet (S) passive/ alnico
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled side mount)

Images[]

Additional details

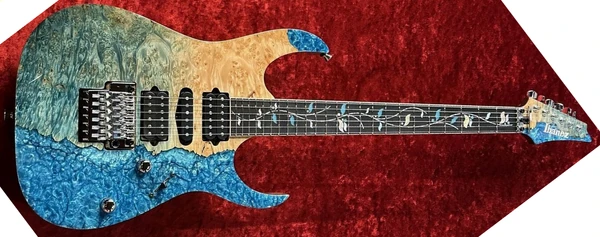

Body (front)

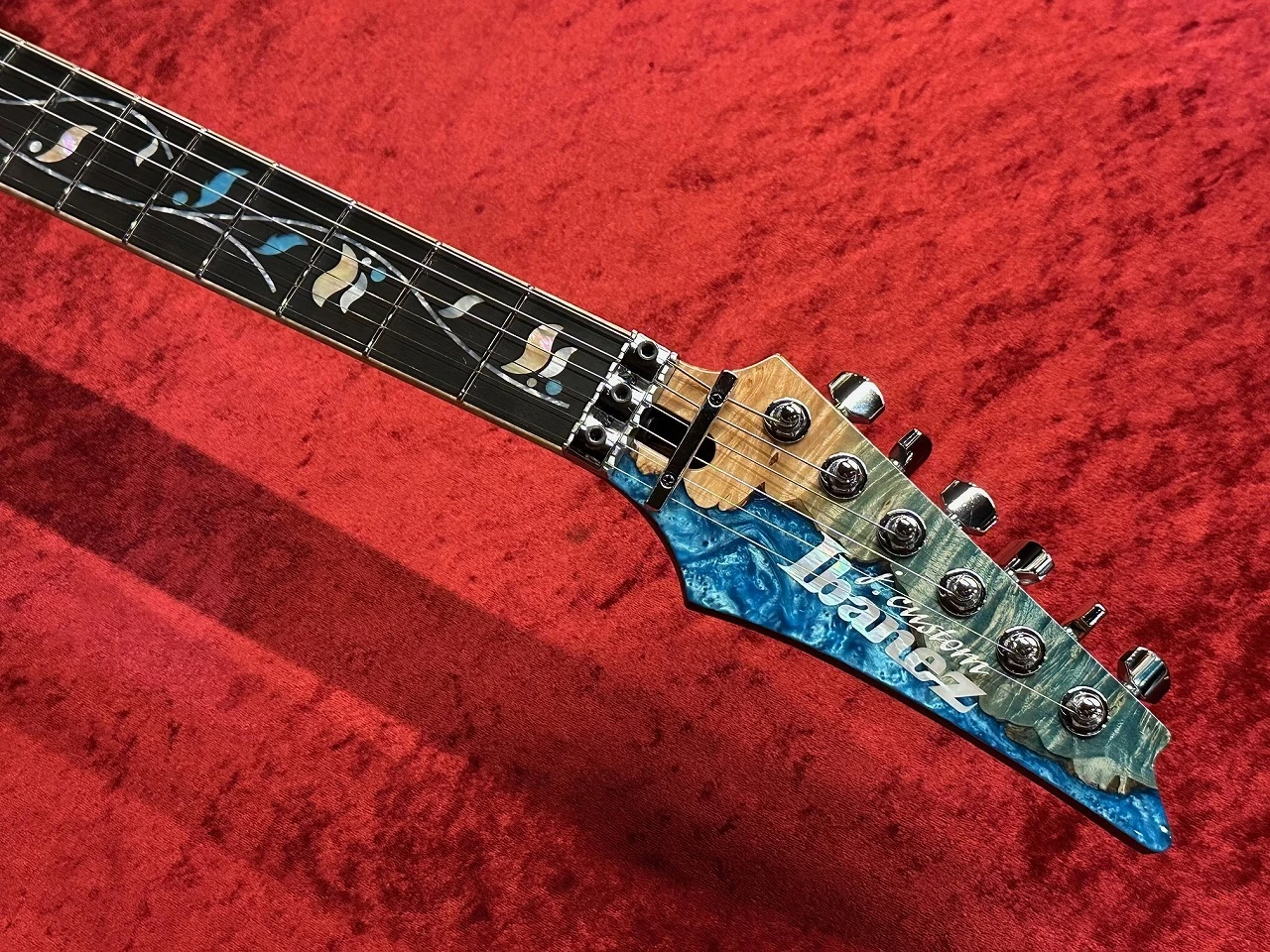

Fretboard & headstock

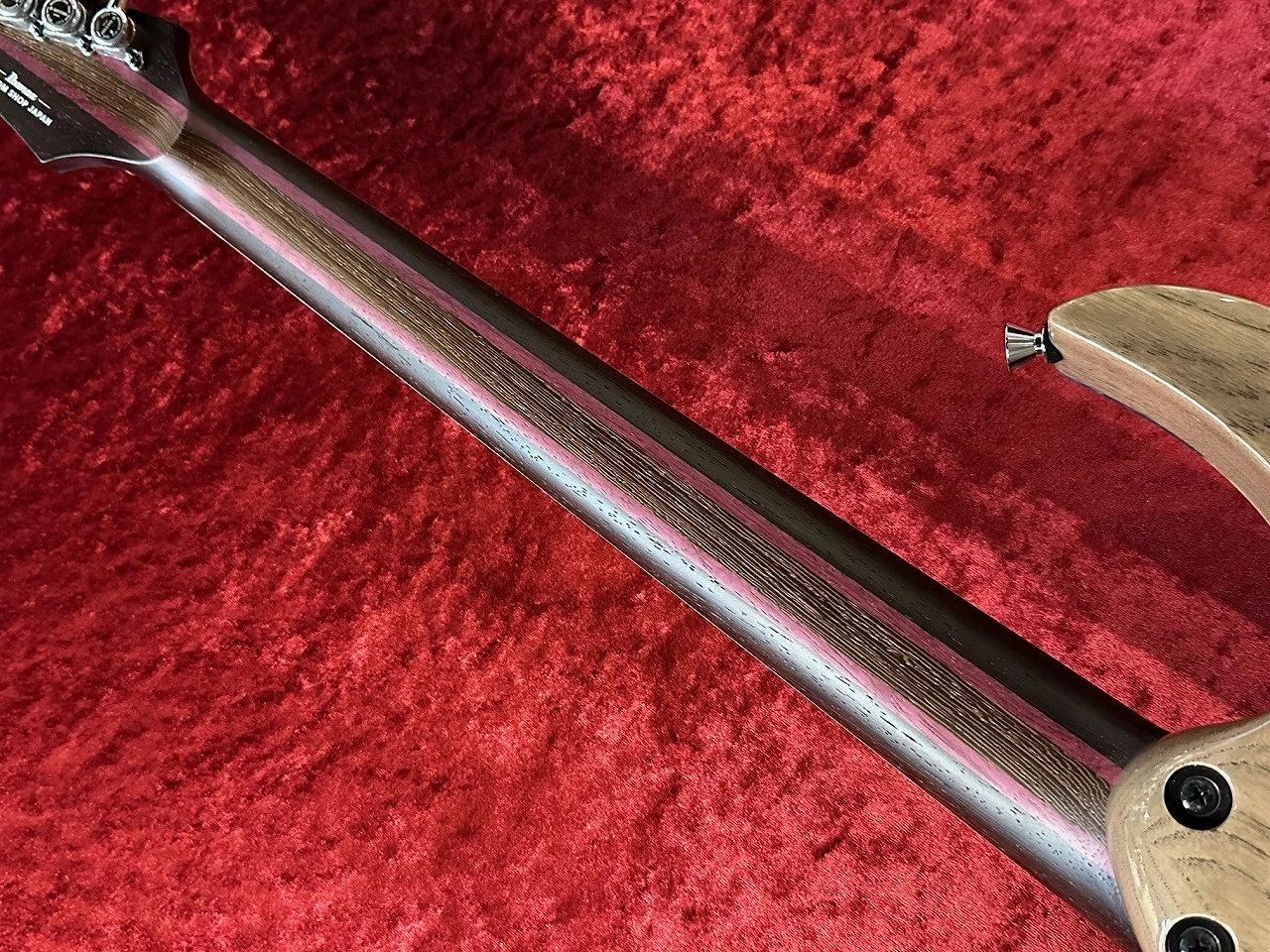

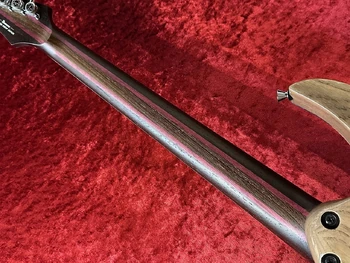

5-piece neck
Pickup switching diagram
Controls layout

Sources[]

  • JCRG25C02 product listing, Digimart, archived March 2025
