2023 JCRG2304BM-LLZ

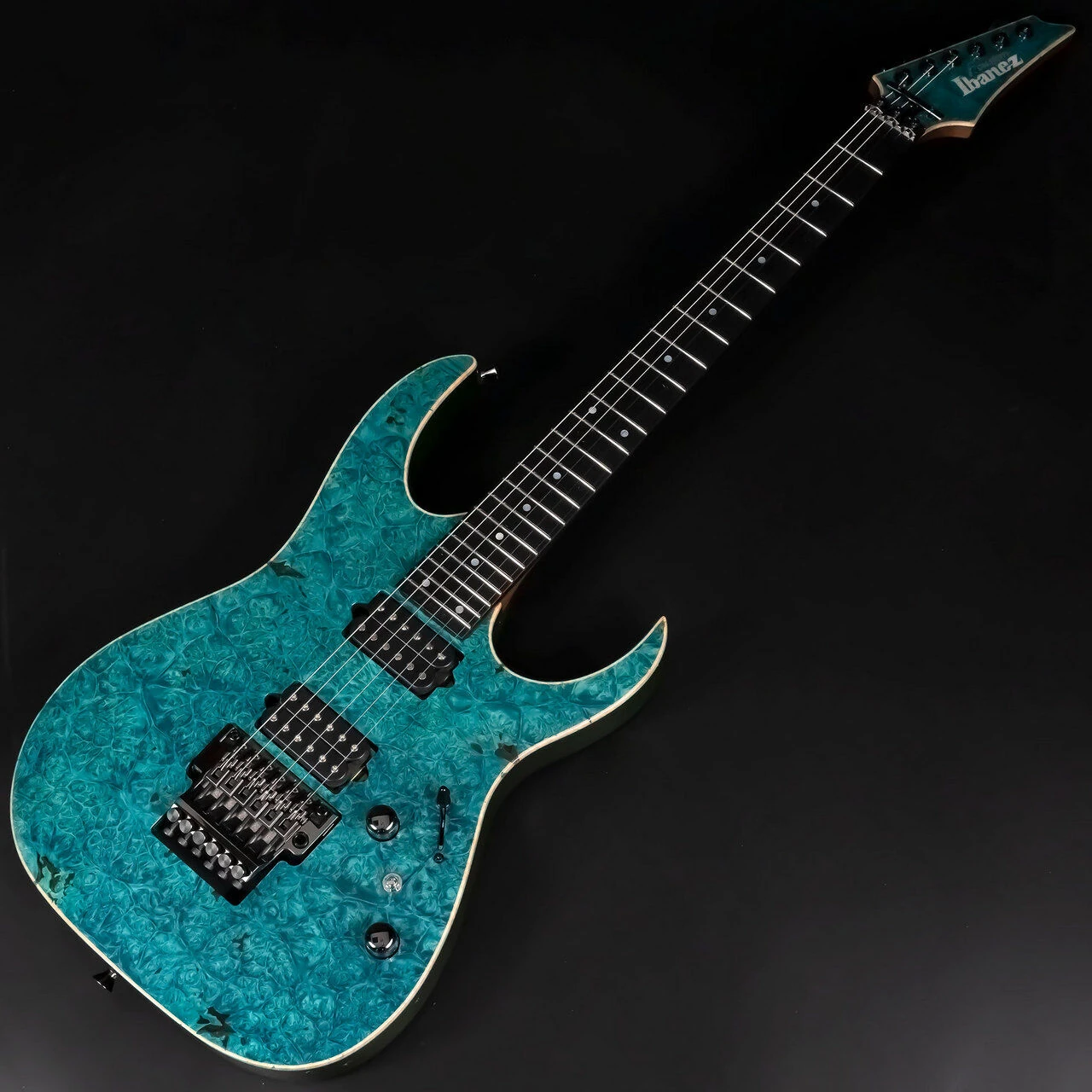

JCRG2304BM Lapiz Lazuli (more images) Red copyright sprite

The JCRG2304BM is an RG series solid body electric guitar model introduced by Ibanez for 2023. It was crafted in Japan by Sugi as part of the high-end J Custom line. It is a spot model Exhibited at Sound Messe in Osaka Japan 2023.

The JCRG2304BM design is different from the normal RG, with a 628mm scale neck and a slightly smaller body design. It features alder body with (4mm) Burl Maple top bolted to a roasted maple and bubinga RG J Custom Wizard neck with a 24-fret selected ebony fingerboard with mother of pearl dots inlays and luminlay side dots. Components include a set of DiMarzio's pickups, a dyna-MIX10 switching system enables a wide range of 10 types of sound control, including coil taps, an Edge tremolo, Gotoh SG381 MG-T locking machine heads, Gotoh Strap lock pins and cosmo black hardware and includes a hardshell case and certificate of authenticity.

On the back of the body the tremolo and electronic cavity covers are made of Burl Maple to match the top.

The JCRG2304QM is a similar model with quilted maple top and lapiz lazuli finish. The JCRG2304FM is a related model with flamed maple top and spider black finish. The JCRG2304SM is a similar model with spalted maple top and natural finish.

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG2304BM
Model name: JCRG2304BM
Year(s) offered: 2023
Sold in: Japan
Made in: Japan
Price: SMAP: JP¥:880,000 (tax included)
Finish(es): Black (BK) / Green (GRE) / Lapiz Lazuli (LLZ) / See Through Red (SRD)
Body
Body type:
Solid body
Body material:
Alder w/ (4mm) Burl Maple top
Neck joint:
AANJ
Bridge:
Edge tremolo (10.8m string spacing)
Strap buttons:
Gotoh Free Lock-II
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Cosmo Black
Neck
Neck type:
RG J Custom Wizard
Neck material:
5-piece roasted maple/ bubinga
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony (selected)
Fingerboard inlays:
Mother of pearl dots and luminlay side dots
Frets:
24 / Jumbo Jescar stainless steel (J Custom edge treatment)
Nut:
Top-Lok III (42mm)
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Steve's Special bridge (H)
Neck pickup:
DiMarzio Air Norton neck (H)
Controls:
Master volume / master tone / 5-way lever pickup selector / dyna MIX10 switching system w/Alter Switch
Output jack:
¼" stereo barrel (angled side mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other Available finishes

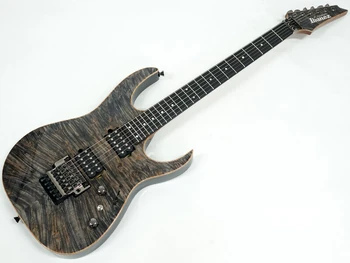

2023 JCRG2304BM-BK
Black (specialized)
2023 JCRG2304BM-GRE
Green

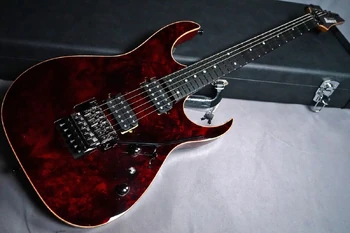

2023 JCRG2304BM-SRD
See Through Red
Additional details

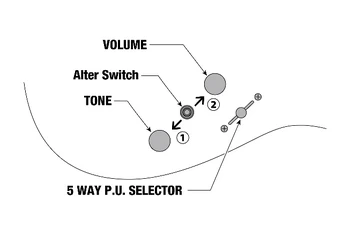

JCRG2304 Control layout
Control layout

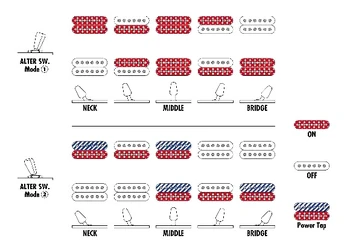

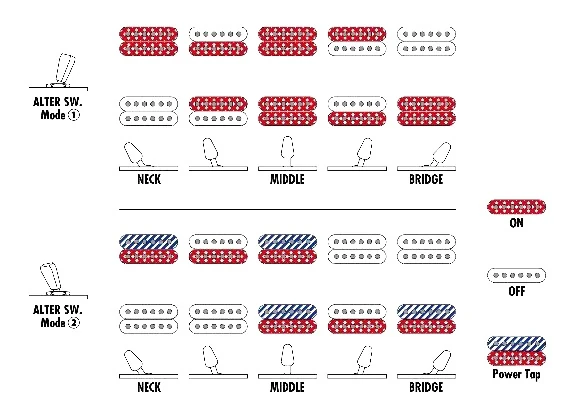

JCRG2304 SS
Pickup switching

Sources[]

Ibanez JCRG2304BM Watanabe (product page) June 2023
