JCRG22S10

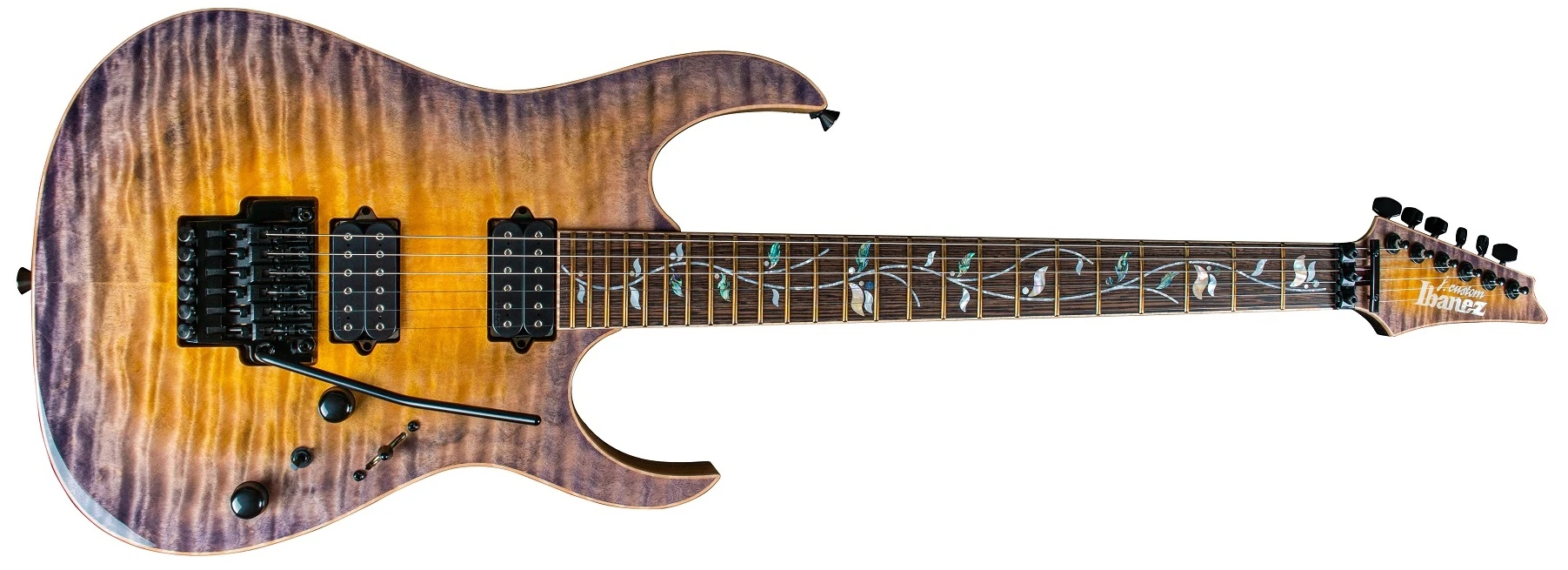

JCRG22S10 Gloss Polyurethane (more images) Red copyright sprite

The JCRG22S10 is a RG series solid body electric guitar model introduced by Ibanez for 2022. It was crafted in Japan by Sugi as part of the high-end J Custom line. It is a One-off model which is sold exclusively by select Japanese and European music retailers.

The JCRG22S10 features swamp ash body with (4mm) exotic maple top by bolted to a wenge and purpleheart asymmetric super wizard neck with a 24-fret wenge fingerboard with pearl and abalone Tree of life inlays and luminlay side dots. Components include a set of DiMarzio Fusion Edge humbucking pickups, a Lo-Pro Edge double locking tremolo bridge, Gotoh machine heads, Gotoh Strap lock pins and black hardware.

Only a single example was produced.

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG22S10
Model name: JCRG22S10
Year(s) offered: 2023 [1]
Sold in: Europe
Made in: Japan
Finish(es): Gloss Polyurethane
Body
Body type:
Solid body
Body material:
Swamp Ash w/ (4mm) exotic maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8m string spacing)
Knob style:
Knurled metal dome (black)
Hardware color:
Black
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
3-piece wenge/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Wenge
Fingerboard inlays:
Mother of Pearl Blocks and luminlay side dots
Frets:
24 / Jumbo Jescar EVO (gold) (J Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh 510
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Fusion Edge bridge (H) passive/ ceramic
Neck pickup:
DiMarzio Fusion Edge neck (H) passive/ ceramic
Controls:
Master volume / master tone / 3-way lever pickup selector, coil-tap switch
Output jack:
¼" stereo barrel (angled side mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

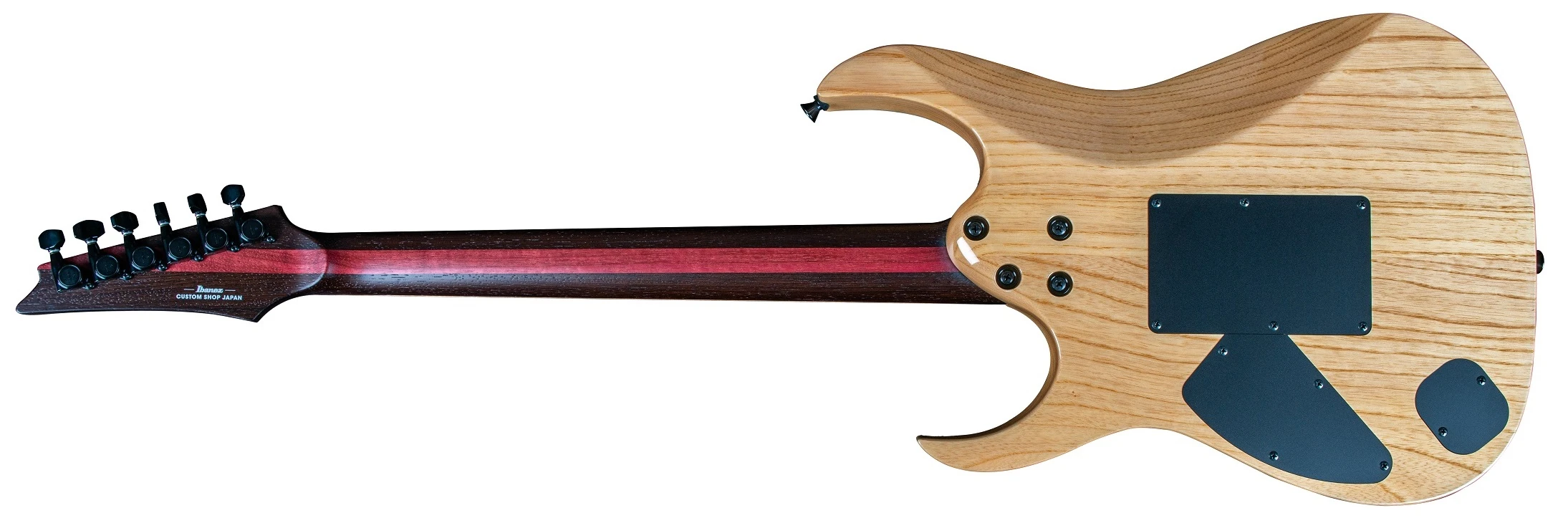

JCRG22S10 Rear
2022 Ibanez JCRG22S10 ( Rear: Swamp ash body bolted to a 3 piece wenge and purplehearth J.Custom Super Wizard neck and Gotoh 510 machine heads ) Red copyright sprite
Additional details

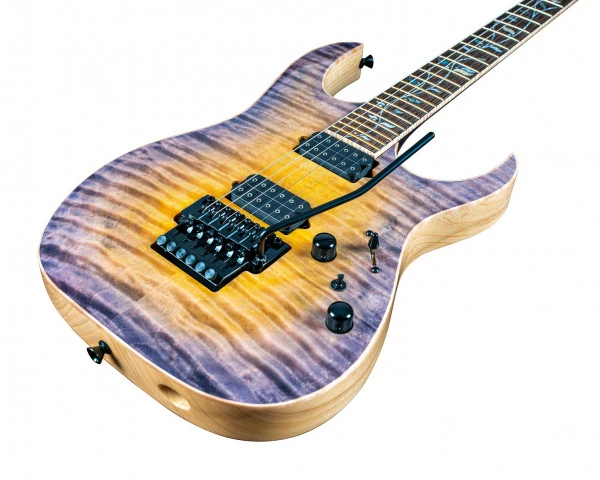

JCRG22S10 front
Body (front)

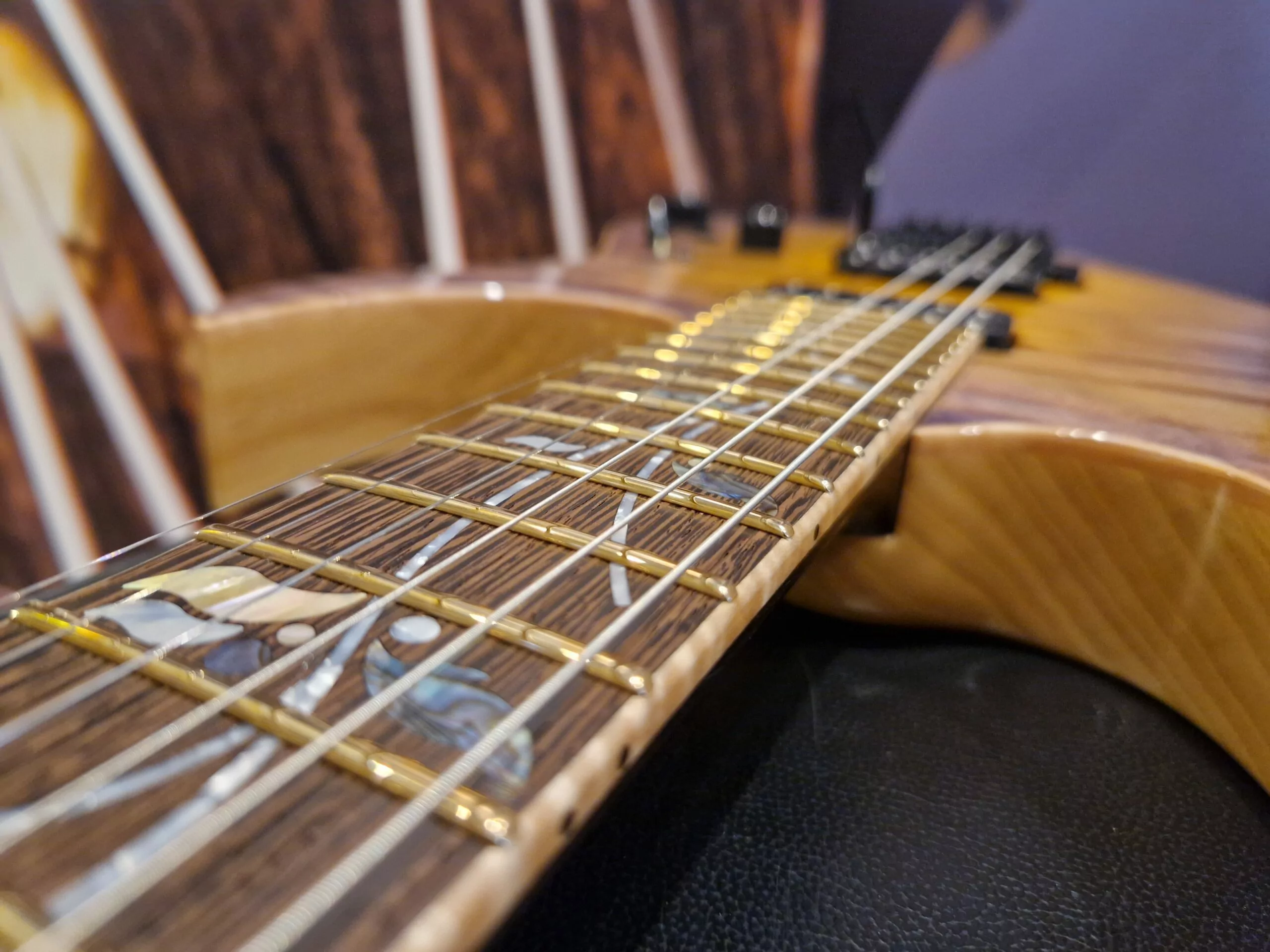

JCRG22S10 fretboard
Inlaid Wenge fretboard

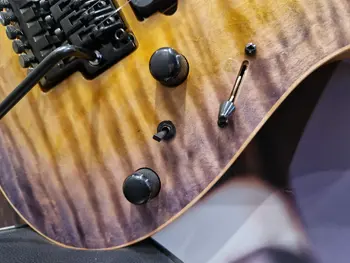

JCRG22S10 controls
Coil-tap switch
Controls VT3L coil-split-toggle
Controls layout
HH 3-way-toggle coil-split-toggle
Pickup switching

Sources[]

  1. Although this model was produced in 2022, it was shipped and sold in 2023.
