2022 JCRG22S05 TK

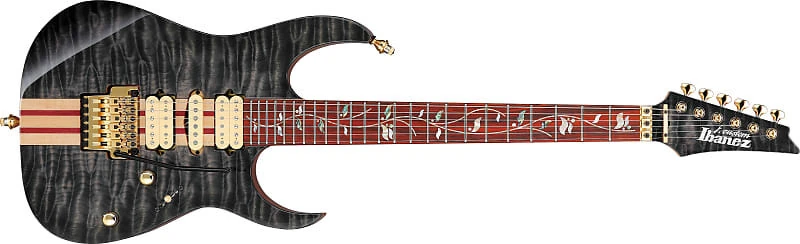

JCRG22S05 Transparent Black Red copyright sprite

The JCRG22S05 is an RG series solid body electric guitar model introduced by Ibanez in late 2022. It was crafted in Japan by Sugi as part of the high-end J Custom line.

The JCRG22S05 features neck through body construction with a quilted maple top and back on African Mahogany body wings mated to a maple and purpleheart neck with an cocobolo fingerboard with abalone and mother of pearl Tree of Life inlays, Luminlay side dots and 24 stainless steel frets. Components include DiMarzio pickups with Air Norton and The Tone Zone humbuckers flanking a True Velvet single-coil, a Lo-Pro Edge double locking tremolo bridge, Gotoh tuning machines and Gotoh locking strap pins.

The JCRG22S05 was offered only in 2022.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG22S05
Model name: JCRG22S05
Year(s) offered: 2022
Sold in: Europe
Made in: Japan
Price: SMAP: €8,158.33[1]
Finish(es): Transparent Black
Body
Body type:
Solid body
Body material:
African mahogany wings w/ quilted maple top & back
Neck joint:
Neck-thru
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Strap buttons:
Gotoh Strap Locker
Knob style:
Gotoh VK1-19
Hardware color:
Gold
Neck
Neck type:
RG J Custom Wizard
Neck material:
5-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Abalone & mother of pearl Tree of Life
Frets:
24 / jumbo stainless steel (J.Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico 5
Middle pickup:
DiMarzio True Velvet (S) passive/ alnico 5
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico 5
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled side mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

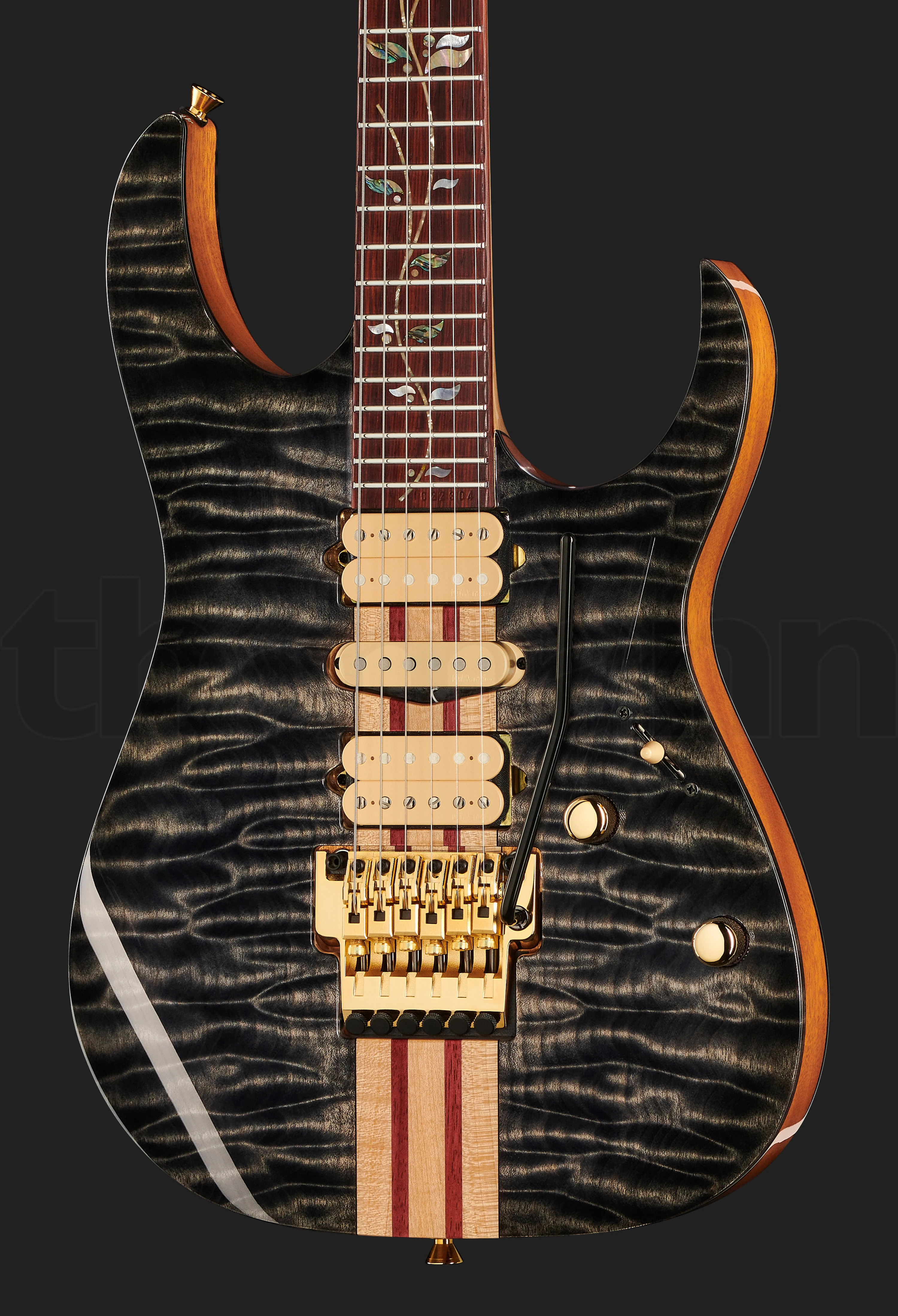

2022 JCRG22S05 top
Body top

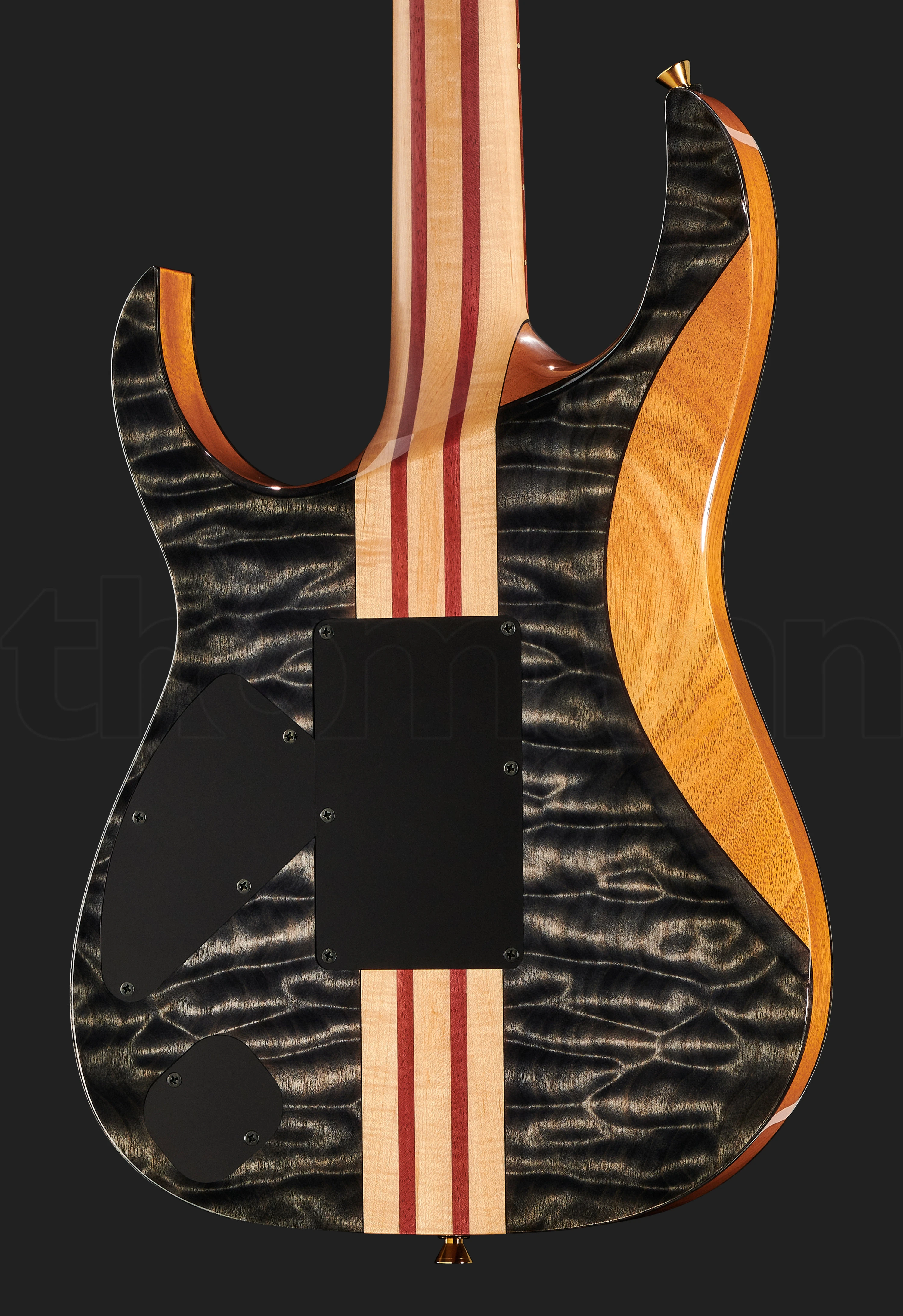

2022 JCRG22S05 back
Body back

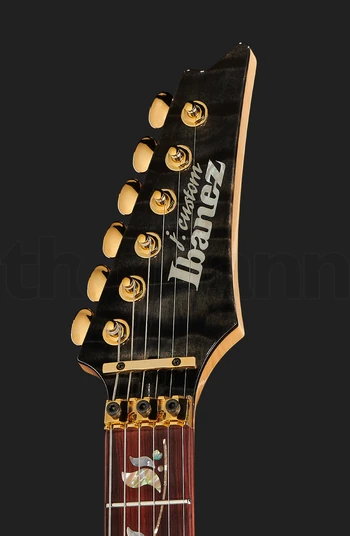

2022 JCRG22S05 headstock-front
Headstock front

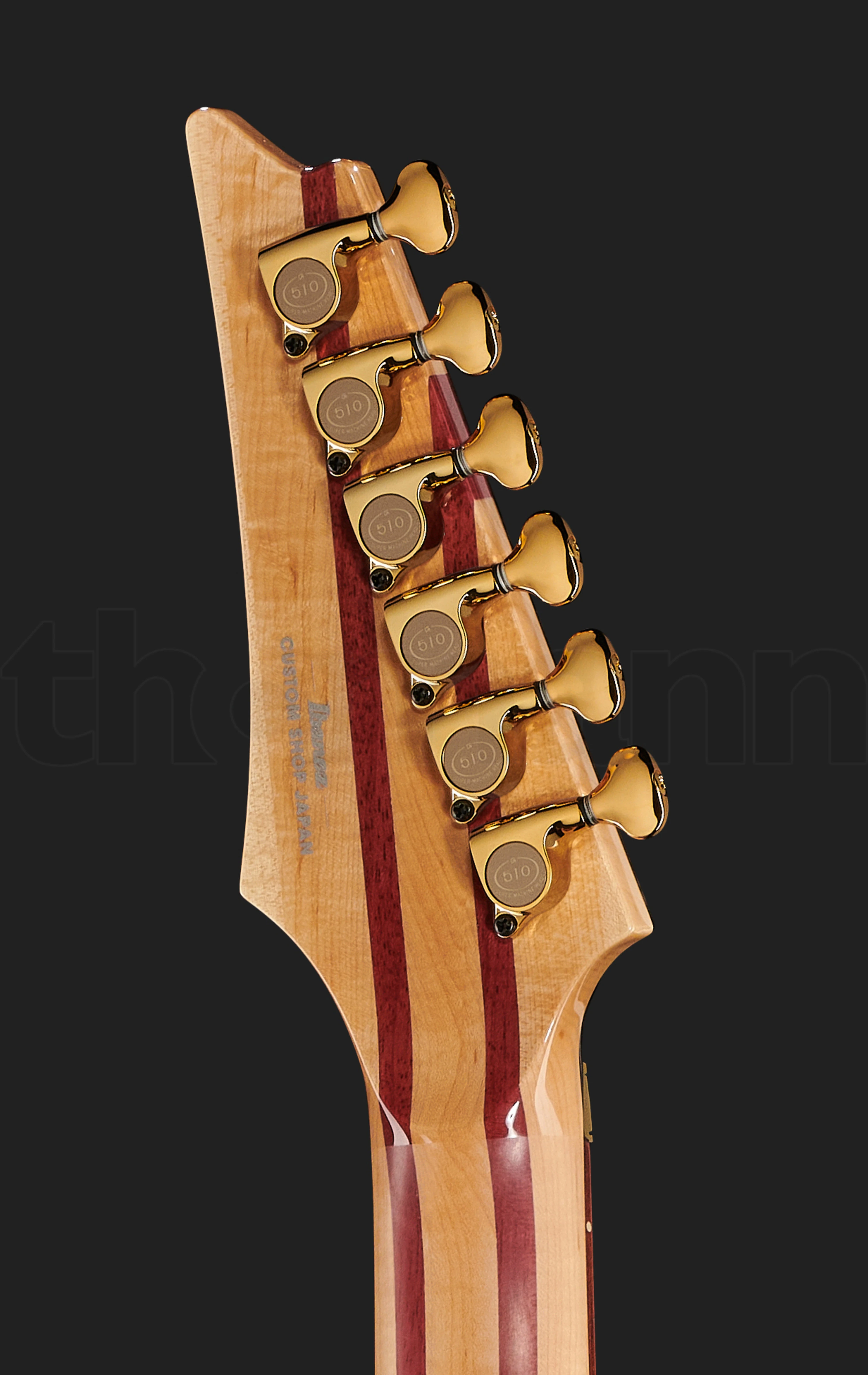

2022 JCRG22S05 headstock-back
Headstock back w/ Gotoh SG381 tuners
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
