The JCRG22S03 is an RG series solid body electric guitar model introduced by Ibanez in 2022. It was crafted in Japan by Sugi as part of the high-end J Custom line.

The JCRG22S03 features a Hawaiian koa and transparent resin body bolted to a wenge and maple neck with a 24-fret ebony fingerboard with mother of pearl dot position markers and Luminlay side dots. Components include a pair of Bare Knuckle Brute Force humbucking pickups, a Lo-Pro Edge double locking tremolo bridge, Gotoh tuning machines and Gotoh Strap lock pins.

The JCRG22S03 was offered only in 2022.

Specifications

Related content: J Custom series | RG series |

Specifications for JCRG22S03

Model name: JCRG22S03 Year(s) offered: 2022 Sold in: Europe Made in: Japan Price: SMAP: €5,999.17 Finish(es): Natural (NT)
Body Body type: Solid body Body material: Hawaiian koa and transparent resin body Neck joint: AANJ Bridge: Lo-Pro Edge tremolo (10.8mm string spacing) Knob style: Gotoh VK1-19 Hardware color: Gold	Neck Neck type: RG J Custom Wizard Neck material: 3-piece wenge/ maple Scale length: 648mm/ 25½" Fingerboard material: Ebony Fingerboard inlays: Mother of pearl dot Frets: 24 / jumbo Jescar EVOgold (J.Custom edge treatment) Nut: Top-Lok III (43mm) Machine heads: Gotoh SGS510Z String gauge (factory): .009/.011/.016/.024/.032/.042 (D'Addario EXL120) Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)	Electronics Pickup configuration: HH Bridge pickup: Bare Knuckle Brute Force (H) passive/ ceramic Neck pickup: Bare Knuckle Brute Force (H) passive/ ceramic Controls: Master volume / master tone / 5-way lever pickup selector Output jack: ¼" stereo barrel (angled side mount)

About this table

Images

Additional details

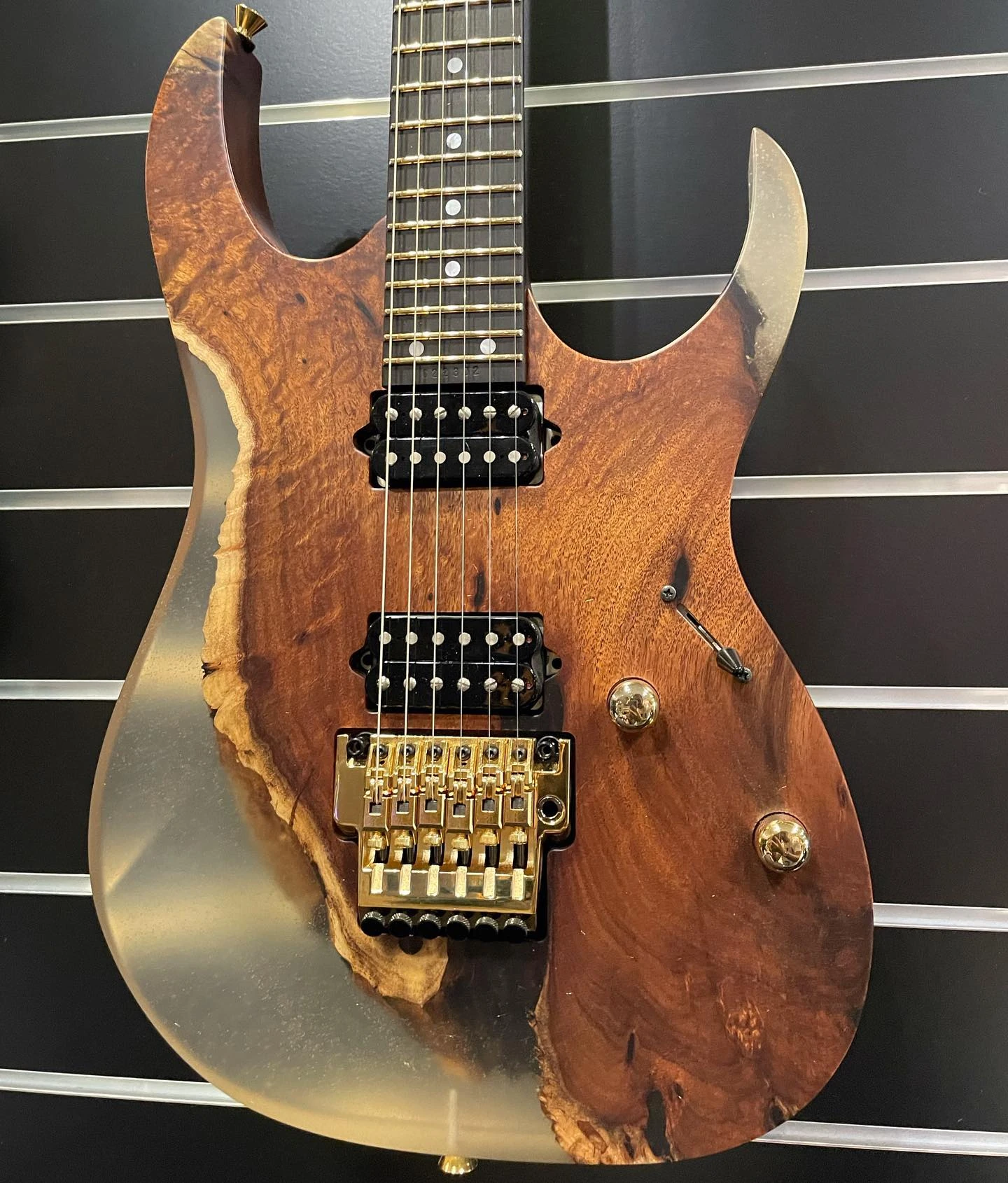

Body top

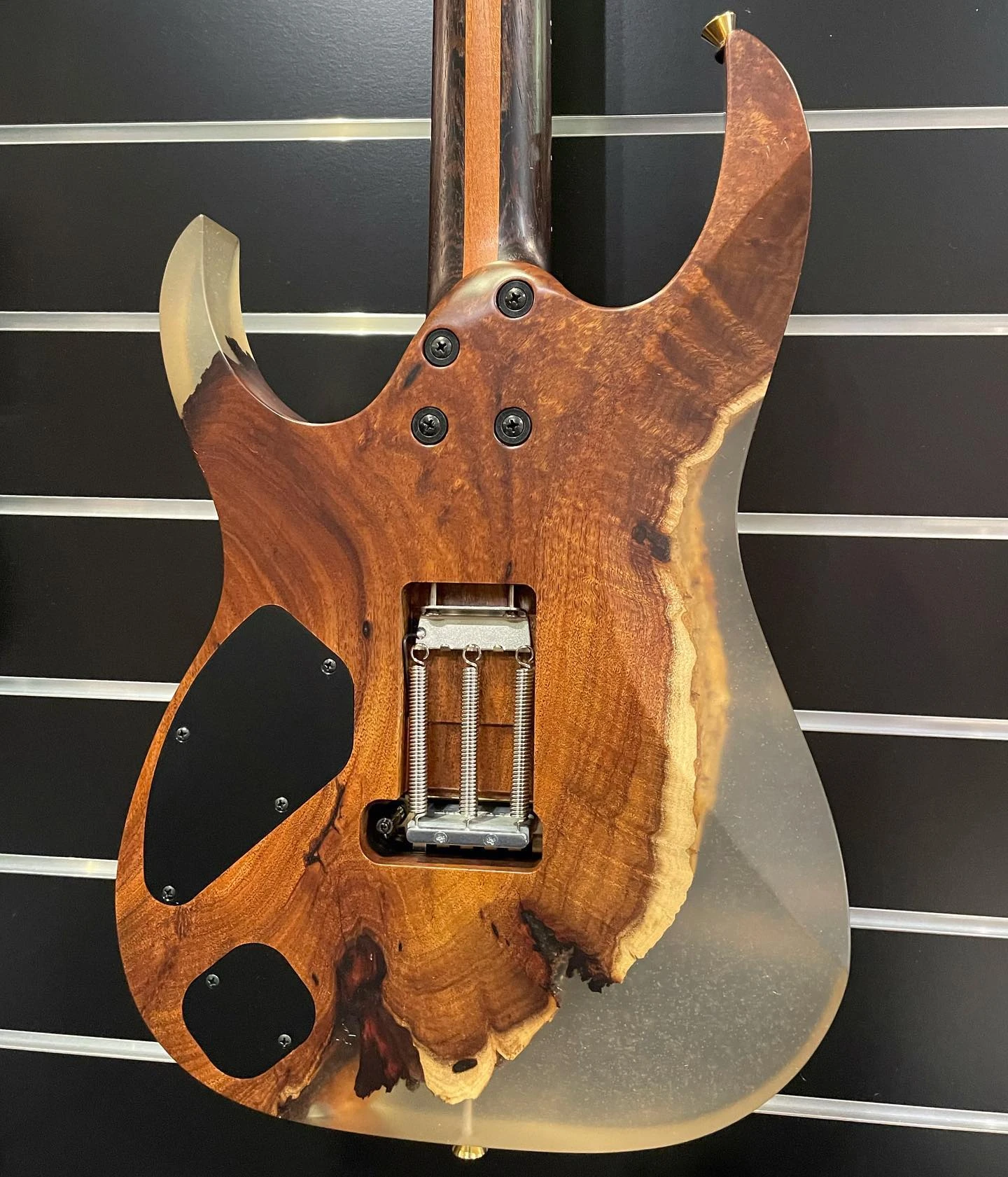

Body back

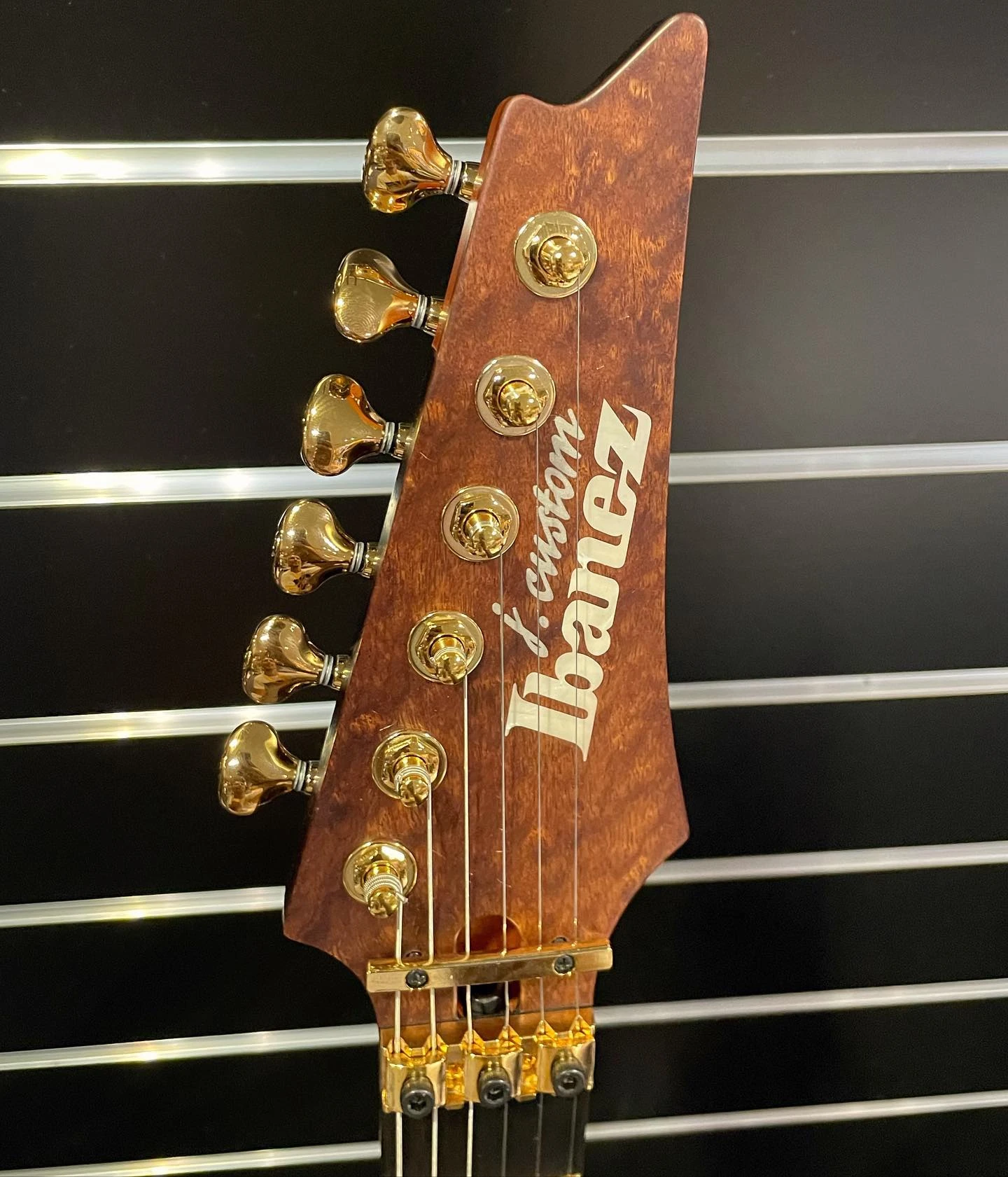

Headstock front

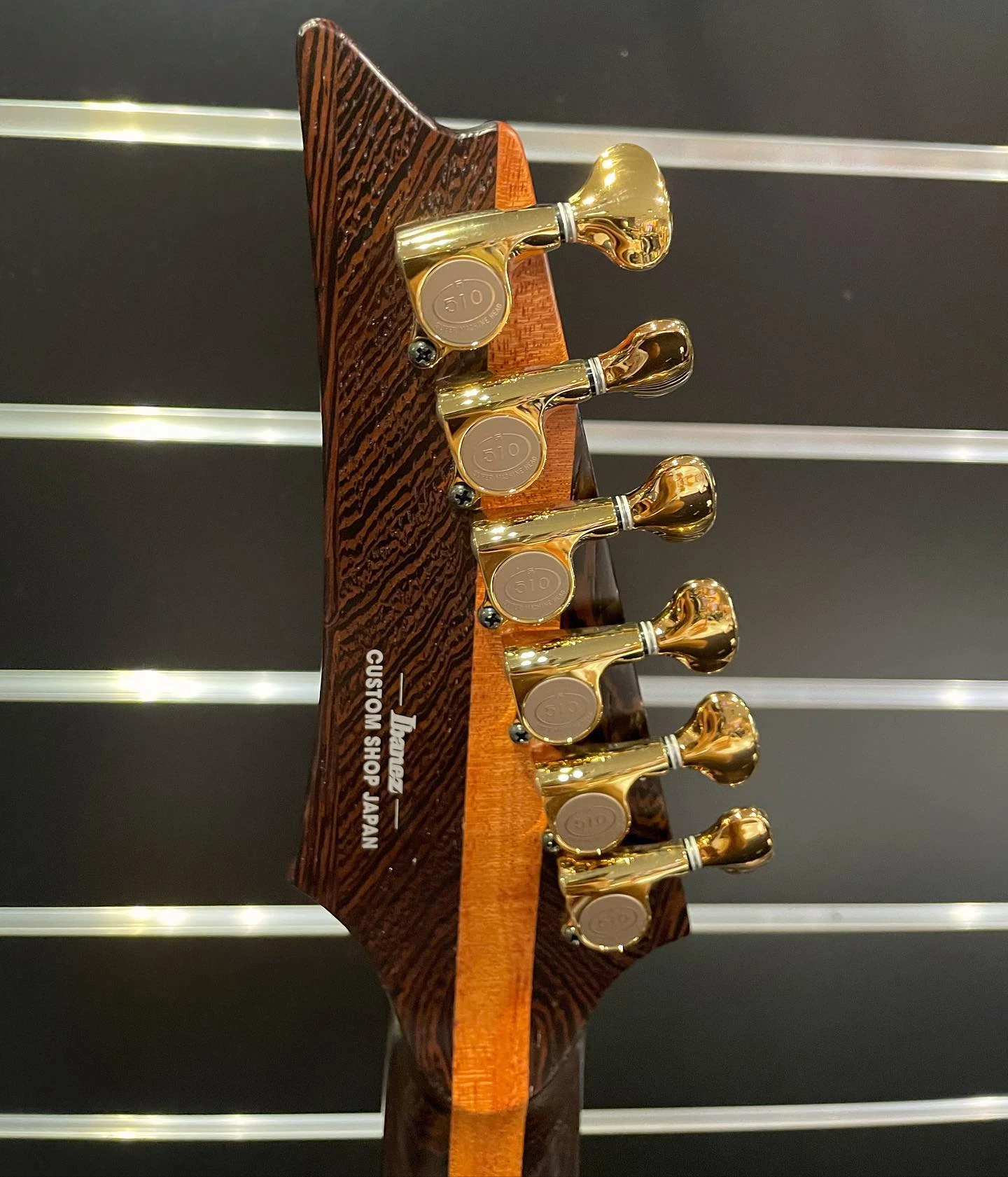

Headstock back w/ Gotoh SGS510Z tuners

Pickup switching diagram

Control layout
