JCRG22S01

JCRG22S01 (more images)

The JCRG22S01 is an RG series solid body electric guitar model introduced by Ibanez in 2022. It was crafted in Japan by Sugi as part of the high-end J Custom line.

The JCRG22S01 features a figured Japanese persimmon and green resin top on a mahogany body bolted to a wenge and maple neck with a 24-fret ebony fingerboard with mother of pearl dot position markers and Luminlay side dots. Components include a pair of Fishman Fluence humbucking pickups, a Lo-Pro Edge double locking tremolo bridge, Gotoh tuning machines and Gotoh Strap lock pins.

The JCRG22S01 was offered only in 2022.

Specifications

Related content: J Custom series | RG series |

Specifications for JCRG22S01

Model name: JCRG22S01 Year(s) offered: 2022 Sold in: Europe / Japan Made in: Japan Price: SMAP: £7,549.00 Finish(es): Natural
Body Body type: Solid body Body material: Mahogany body w/ figured Japanese persimmon & green resin top Neck joint: AANJ Bridge: Lo-Pro Edge tremolo (10.8mm string spacing) Knob style: Gotoh VK1-19 Hardware color: Gold	Neck Neck type: RG J Custom Wizard Neck material: 5-piece wenge/ maple Scale length: 648mm/ 25½" Fingerboard material: Ebony Fingerboard inlays: Mother of pearl dot Frets: 24 / jumbo Jescar EVOgold (J.Custom edge treatment) Nut: Top-Lok III (43mm) Machine heads: Gotoh SGS510Z String gauge (factory): .009/.011/.016/.024/.032/.042 (D'Addario EXL120) Factory tuning: 1E,2B,3G,4D,5A,6E (E Std.)	Electronics Pickup configuration: HH Bridge pickup: Fishman Fluence Modern Humbucker Ceramic (H) active/ ceramic 8 Neck pickup: Fishman Fluence Modern Humbucker Alnico (H) active/ alnico 5 Controls: Master volume / master tone / 3-way lever pickup selector / Fishman Fluence voicing toggle Output jack: ¼" stereo barrel (angled side mount)

About this table

Images

Additional details

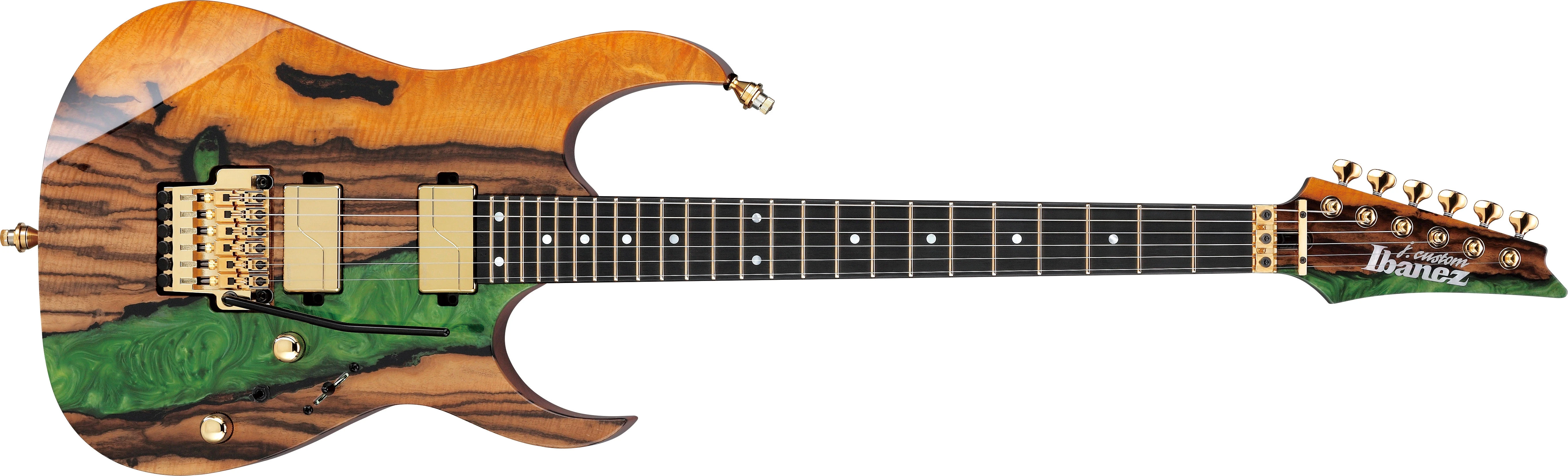

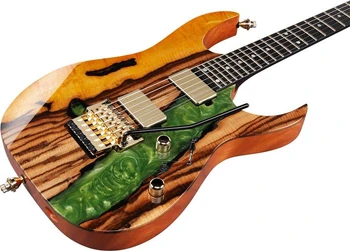

Body top

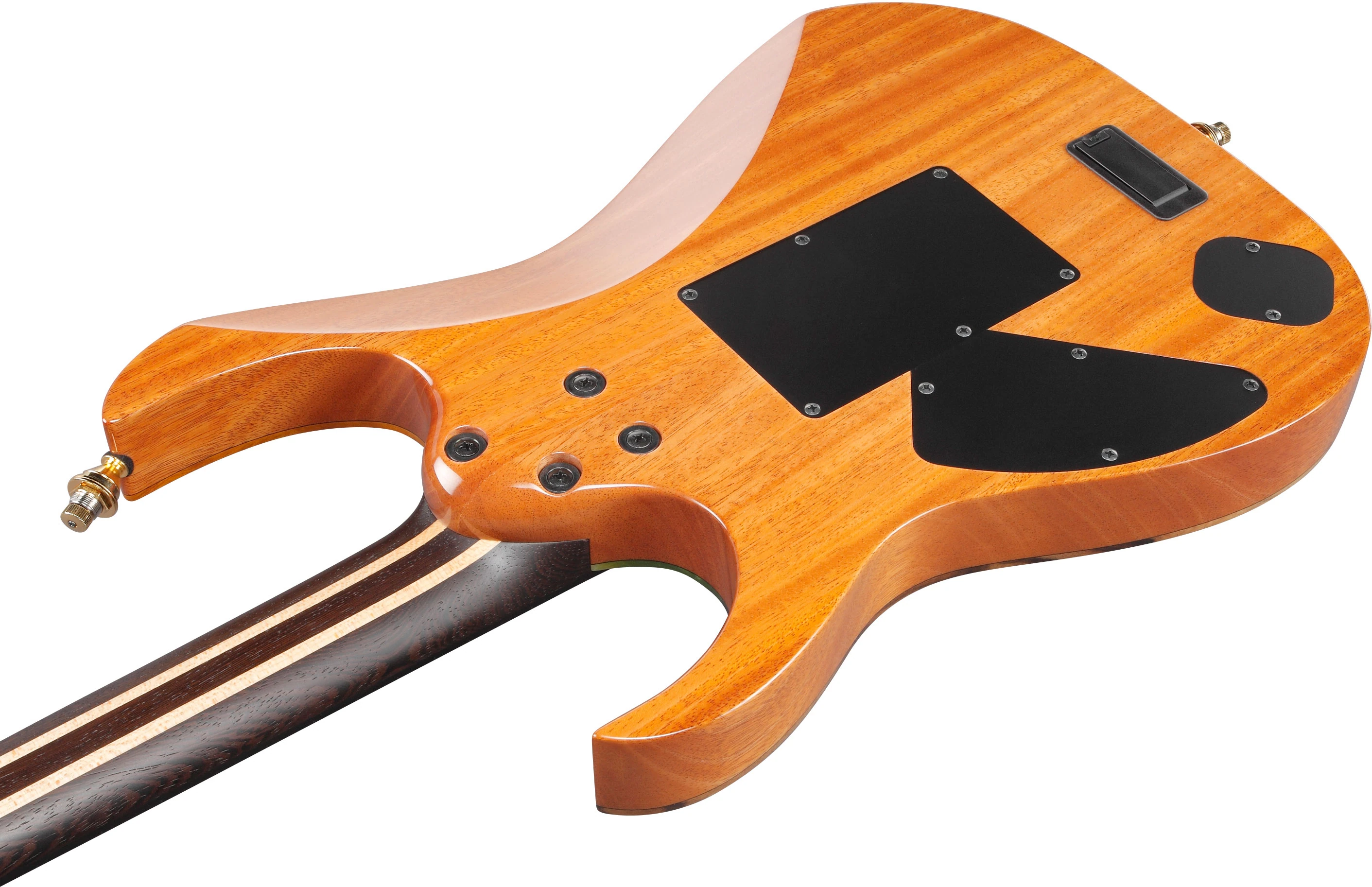

Body back

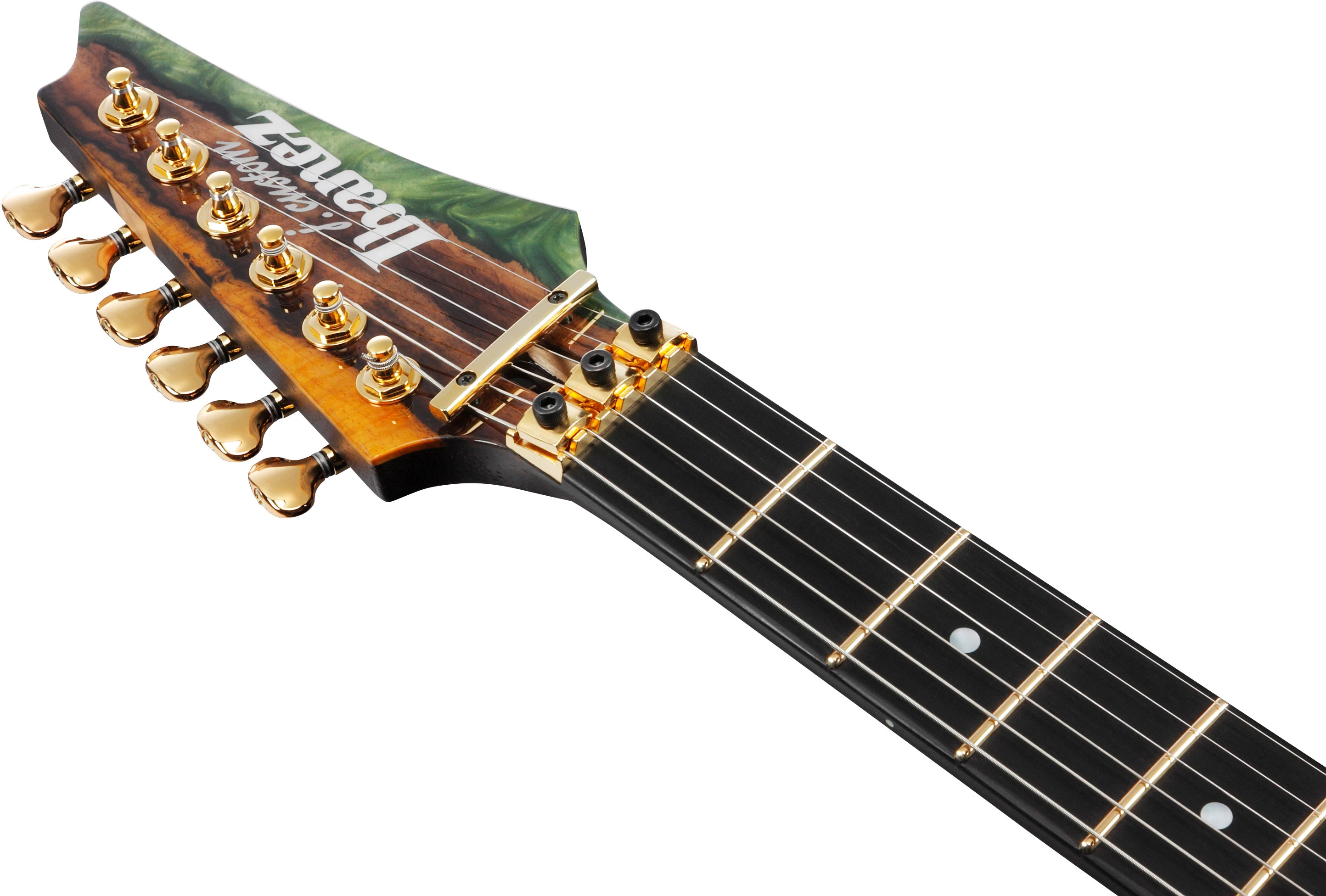

Headstock front

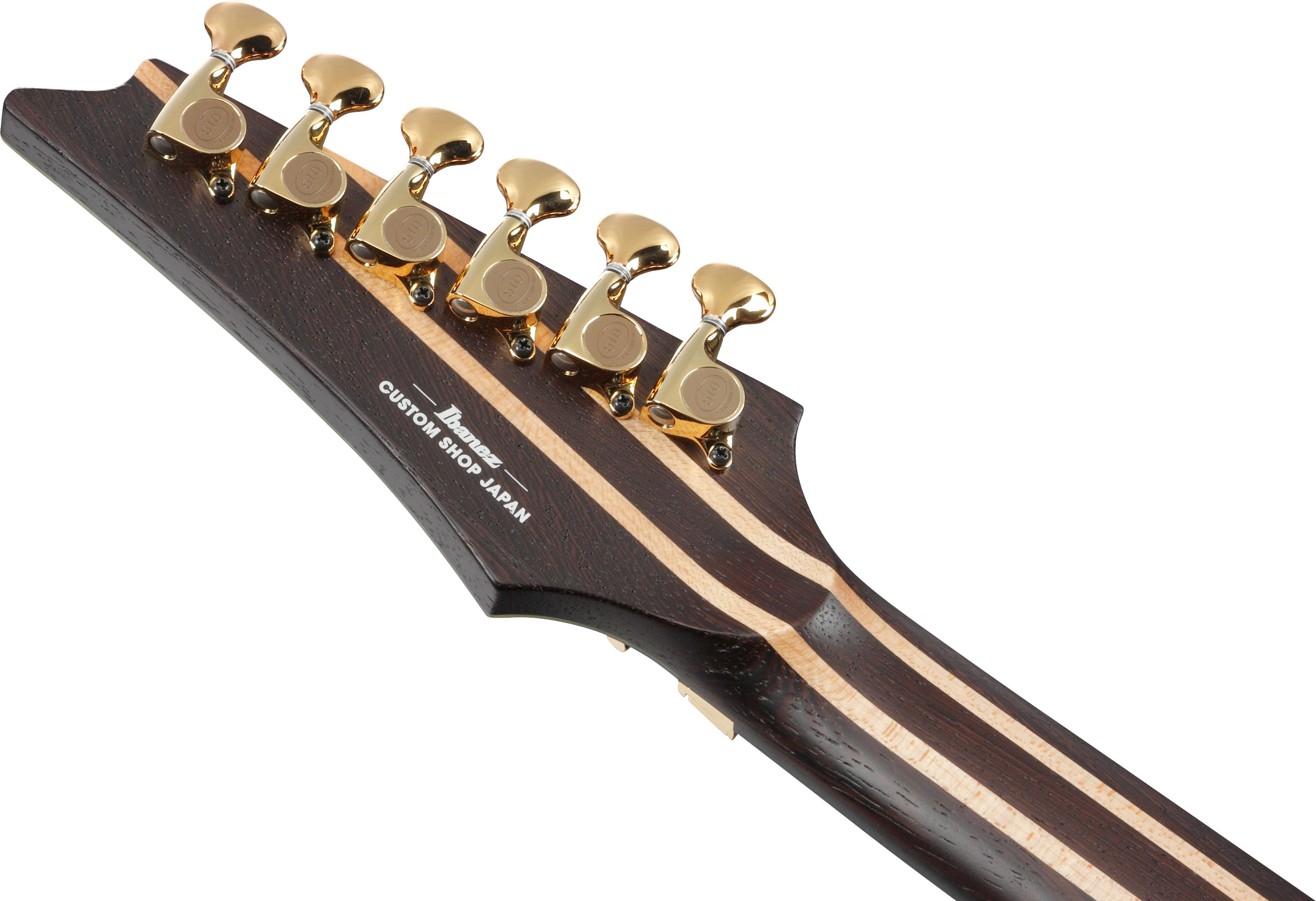

Headstock back

Pickup switching

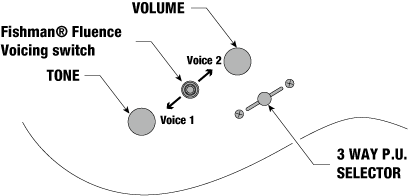

Controls layout
