JCRG22C02
JCRG22C02 Pink (more images) Red copyright sprite

The JCRG22C02 is an RG series solid body electric guitar model introduced by Ibanez in 2022. It was crafted in Japan by Sugi as part of the high-end J Custom line and was offered for sale exclusively by Japanese retailer Kurosawa Gakki.

The JCRG22C02 features a 5A quilted maple top on an African mahogany body bolted to a maple and purpleheart neck with a 24-fret ebony fingerboard with pink resin and abalone Tree of Life fretboard inlays and Luminlay side dots. Components include a pair of DiMarzio humbucking pickups with an Air Norton at the neck and The Tone Zone at the bridge both with chrome covers, a Lo-Pro Edge double locking tremolo bridge, Gotoh tuning machines and Gotoh Strap lock pins.

The JCRG22C01 is a similar model with a purple finish.

Production of this model is limited to perhaps as few as one single example.[1]

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG22C02
Model name: JCRG22C02
Year(s) offered: 2022
Sold in: Japan
Made in: Japan
Price: SMAP: ¥ 990,000 incl. 10% tax [1]
Finish(es): Pink
Body
Body type:
Solid body
Body material:
Mahogany body w/ AAAAA quilted maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19
Hardware color:
Chrome
Neck
Neck type:
RG J Custom Wizard
Neck material:
5-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Pink resin & abalone Tree of Life
Frets:
24 / jumbo stainless steel (J.Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SGS510Z
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico 5
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico 5
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled side mount)

Images[]

Additional details

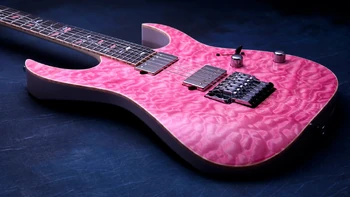

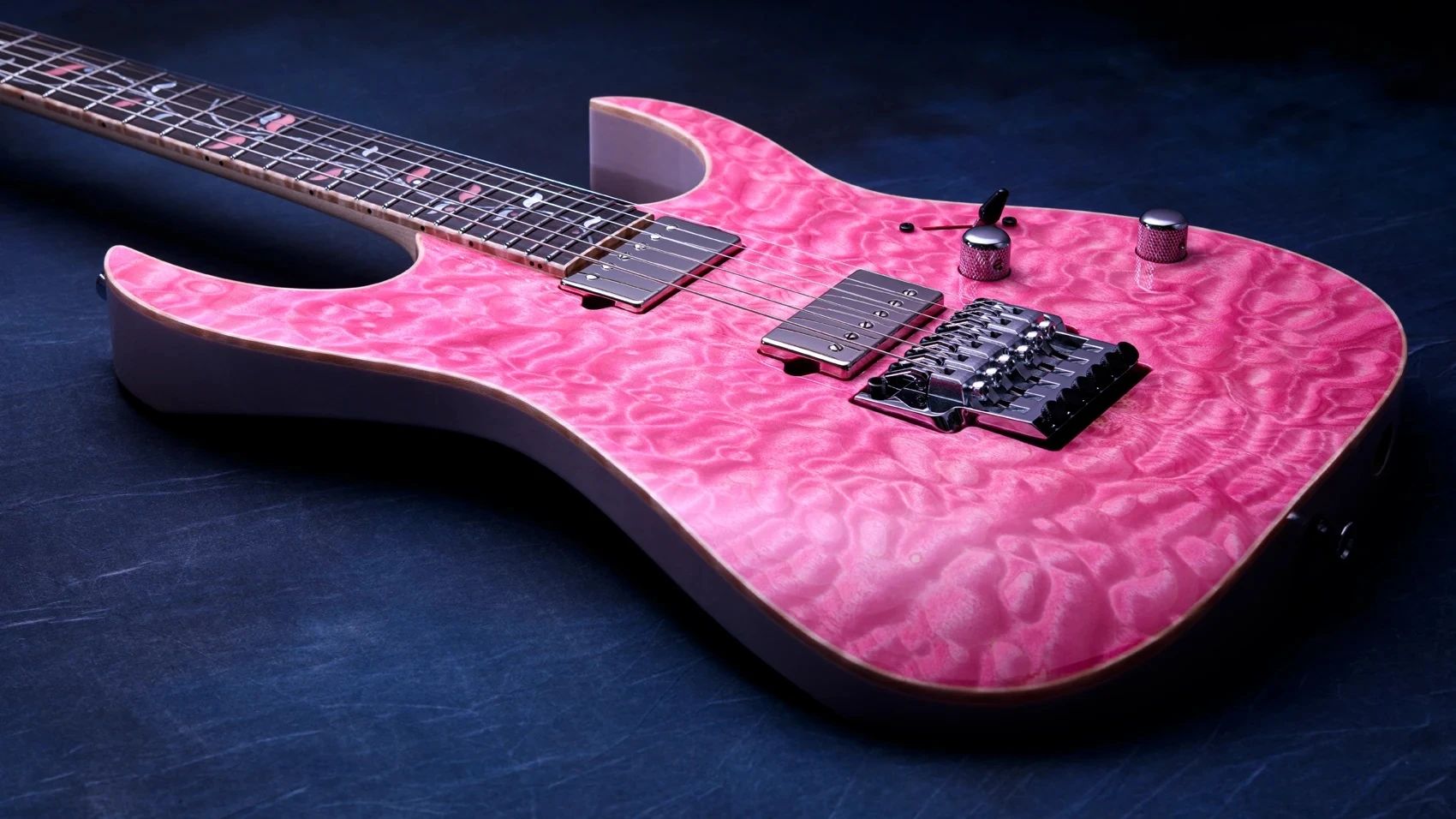

JCRG22C02 front
Body front

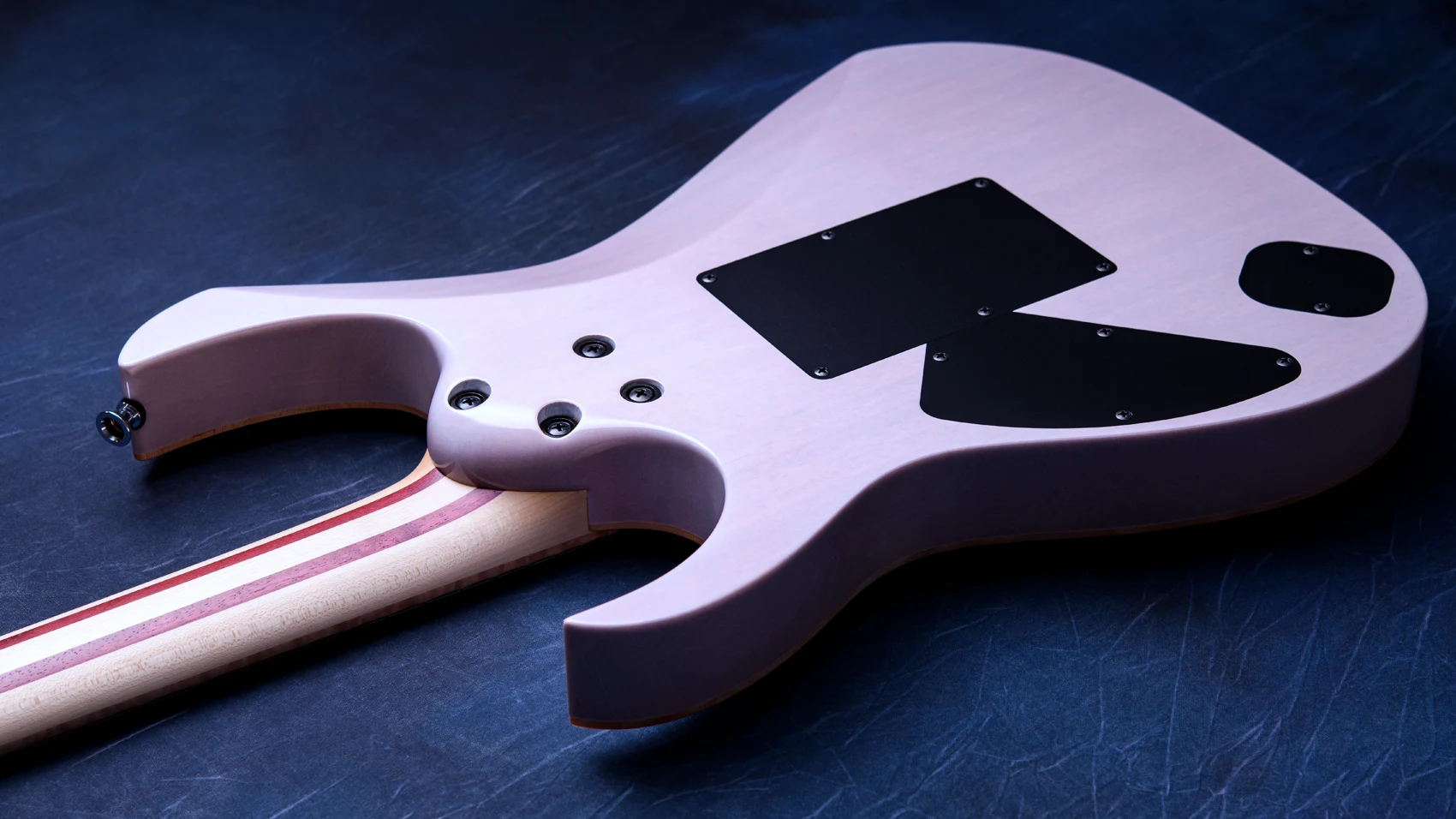

JCRG22C02 rear
Body rear

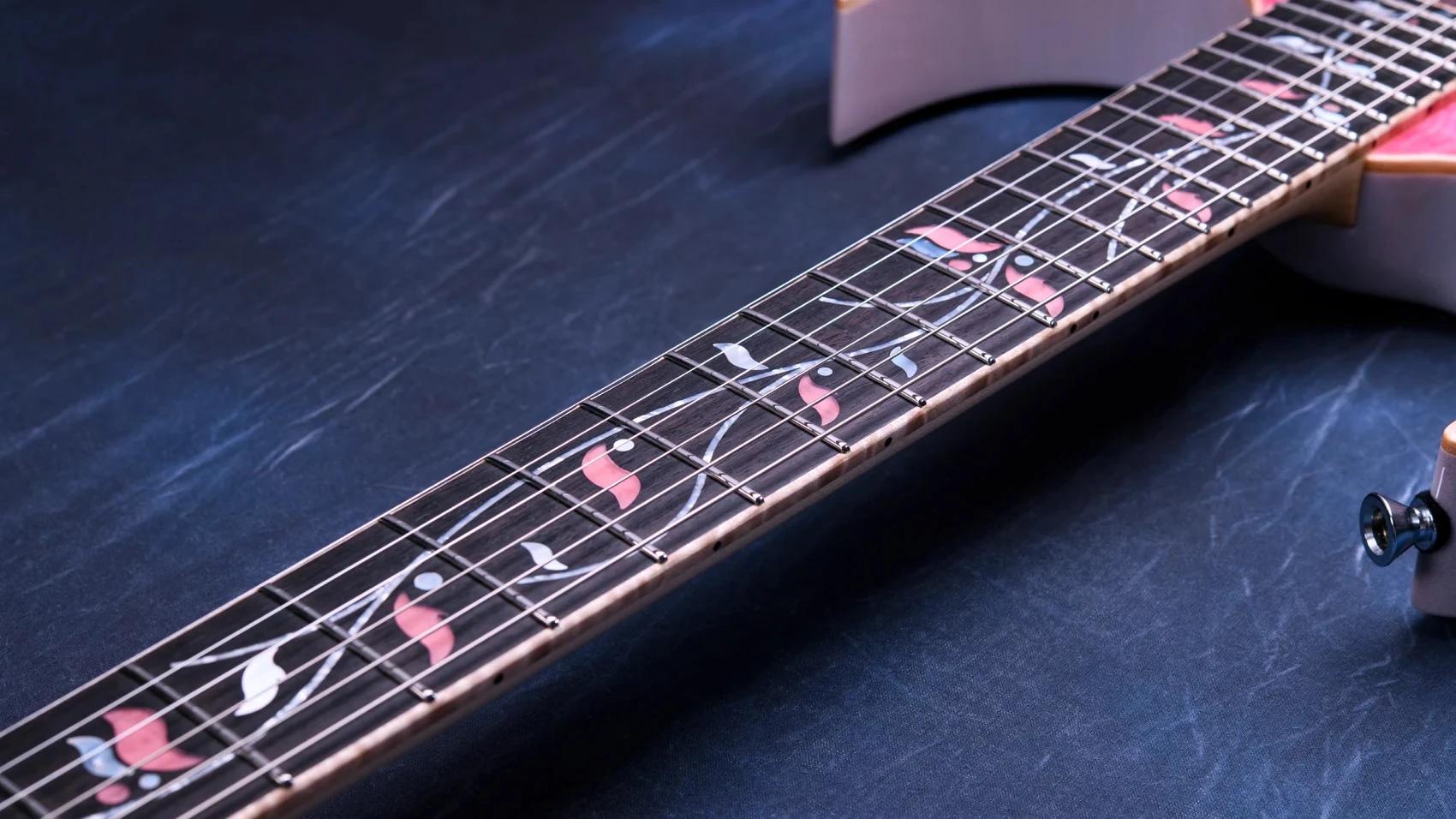

JCRG22C02 fretboard
Fretboard inlays

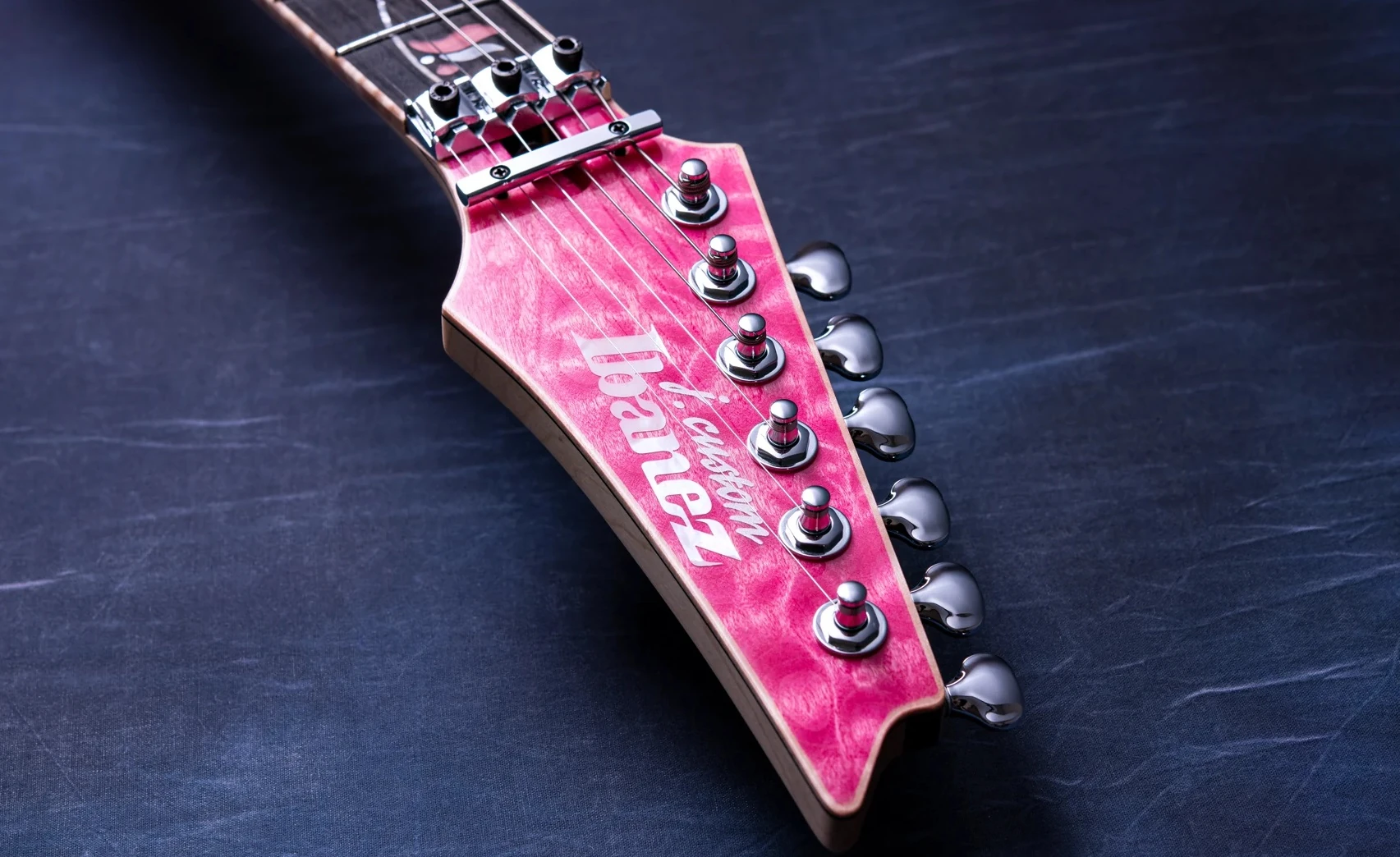

JCRG22C02 headstock
Headstock

Sources[]

  1. 1.0 1.1 Ibanez JCRG22C 02 Kurosawa Custom (PINK) product listing, Digimart, archived August 2022
  • JCRG22C02 product page, Kurosawa Musical Instruments, archived March 2025
