2019 JCRG20193
JCRG20193 Red copyright sprite

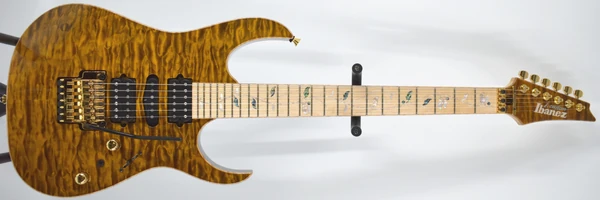

The JCRG20193 is an RG series solid body electric guitar model introduced by Ibanez in late 2019. It was crafted in Japan by Sugi as a limited production model in the high-end J Custom line.

The JCRG20193 features a 4mm thick 5A quilted maple top on a selected swamp ash body bolted to a maple and purpleheart asymmetric Super Wizard neck with a maple fingerboard with 24 nickel silver super jumbo frets with hemispherical fret end treatment and abalone and pearl Tree of Life vine position markers. The headstock has a matching quilted maple veneer. Components include DiMarzio pickups with Air Norton and The Tone Zone humbuckers flanking a True Velvet single-coil, a Lo-Pro Edge double locking tremolo bridge, recessed Easy Access control knobs, Gotoh tuning machines and Gotoh Free-Lock II strap pins.

The JCRG20191 is a similar model with a spalted maple top on an African mahogany body and an ebony fretboard. The JCRG20194 is a similar model with a poplar burl top on an alder body, an ebony fretboard and black hardware. The JCRG20192 is a related model with flamed maple top on an African mahogany body, a wenge fretboard, a dual humbucker pickup configuration and chrome hardware.

The JCRG20193 was produced only in 2019.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG20193
Year(s) offered: 2019
Sold in: Japan
Made in: Japan
Body
Body type:
Solid body
Body material:
Selected swamp ash body w/ 4mm 5A quilted maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock II
Knob style:
Recessed Gotoh VK1-19
Hardware color:
Gold
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Abalone/ pearl Tree of Life
Frets:
24 / JESCAR #57110 super jumbo nickel silver (j.custom edge treatment)
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Additional finishes/ details
HSH VT5 coil-split-toggle-alt
Pickup switching
Controls VT5 coil-split-toggle
Control layout

Sources[]
