2013 JCRG20138 BGA 00 01

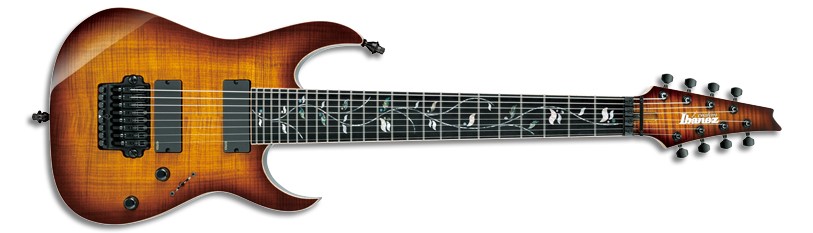

JCRG20138 Brown Garnet Shadow (more images) Red copyright sprite

The JCRG20138 is an eight-string RG series solid body electric guitar model introduced by Ibanez in mid 2013. It was made in Japan by FujiGen as part of the high-end J Custom line. It was also referred to as the JCRG813.

The JCRG20138 features an ash body with a AAA flamed maple top bolted to a titanium reinforced maple and wenge neck with a 24-fret flame maple bound rosewood fretboard with Tree of Life vine inlays. Components include dual active EMG humbucking pickups, an FX Edge III-8 hard-tail bridge, a locking nut, Gotoh tuning machines and Free Lock II strap locks.

The JCRG20138 was discontinued after 2013.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG20138 / JCRG813
Model name: JCRG20138 / JCRG813
Year(s) offered: 2013
Sold in: USA
Made in: Japan
Finish(es): Brown Garnet Shadow (BGA) / Black Opal (BOP)
Body
Body type:
Solid body
Body material:
Ash w/ 4mm AAA flamed maple top
Neck joint:
AANJ
Bridge:
FX Edge III-8 fixed
Strap buttons:
Gotoh Free Lock II
Hardware color:
Black
Neck
Neck type:
RG J Custom 8
Neck material:
5-piece maple/ wenge w/ KTS titanium rods
Scale length:
686mm/ 27"
Fingerboard material:
Selected rosewood w/ flamed maple binding
Fingerboard inlays:
Abalone and mother of pearl Tree of Life
Frets:
24 / jumbo
Nut:
Locking
Machine heads:
Gotoh SG381 (non-locking)
String gauge (factory):
.009–.065
Factory tuning:
D# A# F# C# G# D# A# F#
Electronics
Pickup configuration:
HH
Bridge pickup:
EMG 808 (H) active
Neck pickup:
EMG 808 (H) active
Controls:
Master volume / master tone / 3-way lever pickup selector

Images[]

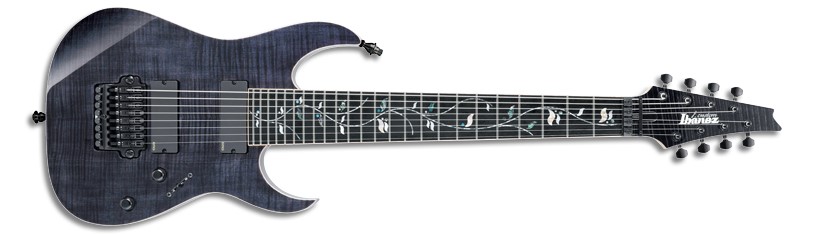

2013 JCRG20138 BOP 00 01
JCRG20138 Black Opal Red copyright sprite
