2013 JCRG20136 RBS 00 01

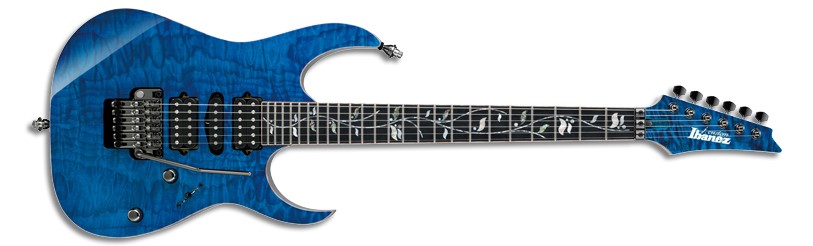

JCRG20136 Royal Blue Sapphire (more images) Red copyright sprite

The JCRG20136 is an RG series solid body electric guitar model introduced by Ibanez in mid 2013. It was made in Japan by FujiGen as part of the high-end J Custom line. It was also referred to as the JCRG613.

The JCRG20136 features an African mahogany body with a 4mm thick AAAA quilted maple top bolted to a titanium reinforced maple and walnut neck with a 24-fret flame maple bound ebony fretboard with Tree of Life vine inlays. Components include DiMarzio pickups with two humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge with a removable ZPS3 tuning stabilizer, a locking nut, recessed knobs, Gotoh tuning machines and Free Lock II strap locks.

The JCRG20136 was discontinued in 2014.

Specifications

Specifications for JCRG20136
Model name: JCRG20136 / JCRG613
Year(s) produced: 2013–2014
Sold in: USA
Made in: Japan
Finish(es): Brown Smoky Topaz (BSZ) / Royal Blue Sapphire (RBS)
Body
Body type:
Solid body
Body material:
African mahogany w/ 4mm AAAA quilted maple top
Neck joint:
AANJ

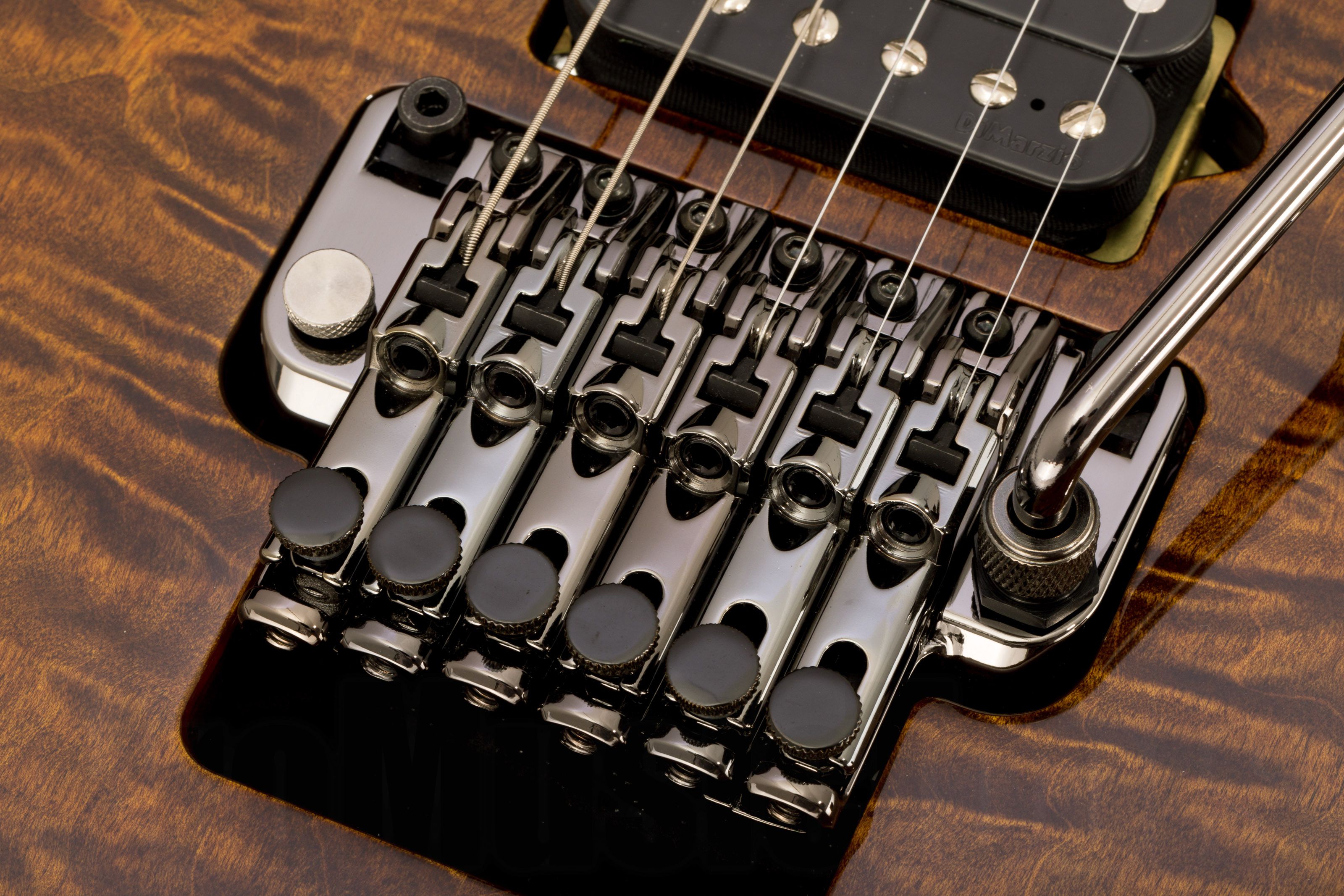

Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer
Strap buttons:
Gotoh Free Lock II
Hardware color:
Cosmo black
Neck
Neck type:
RG J Custom
Neck material:
5-piece maple/ walnut w/ KTS titanium rods
Scale length:
648mm/ 25½"

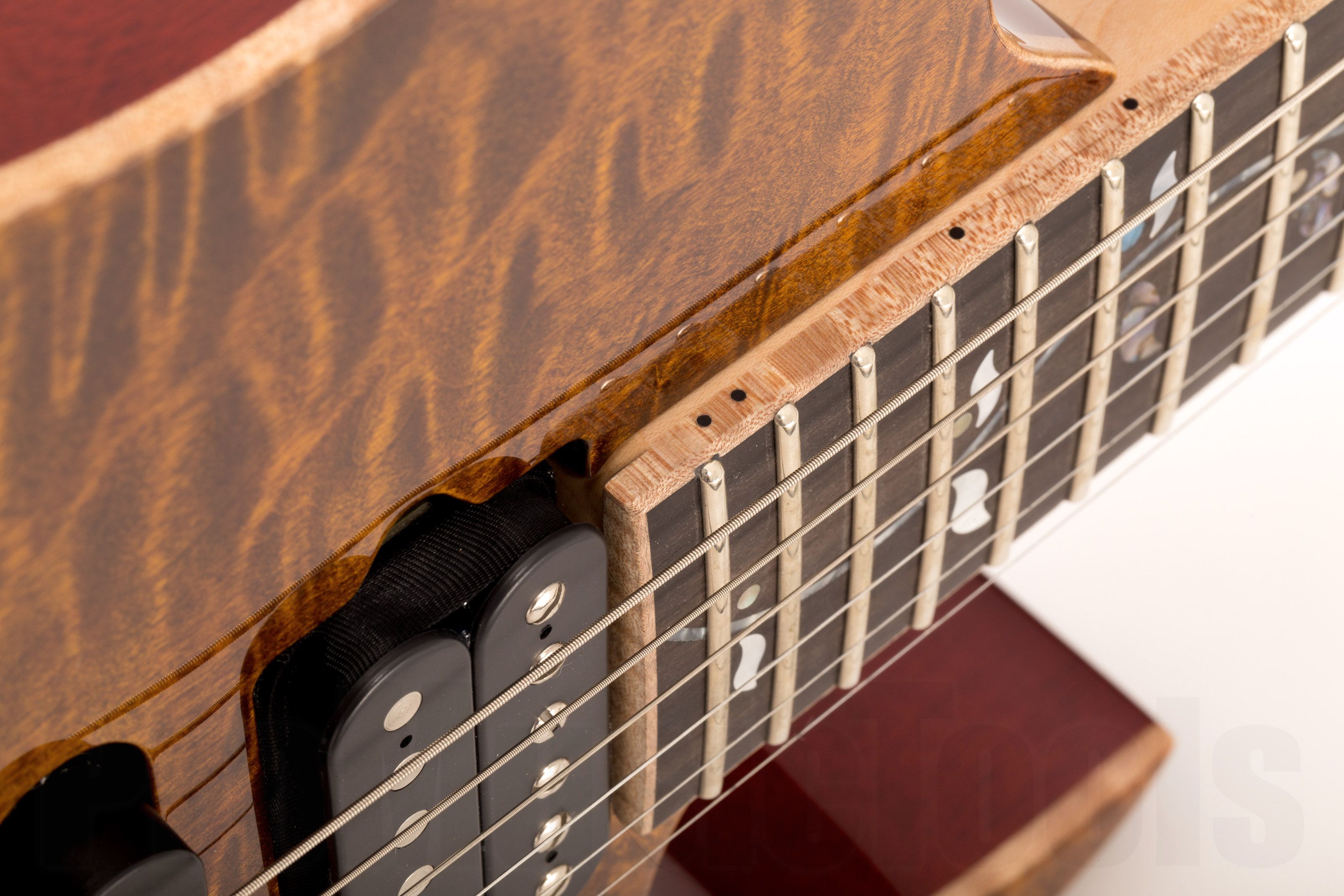

Fingerboard material:
Selected ebony w/ flamed maple binding
Fingerboard inlays:
Abalone and mother of pearl Tree of Life
Frets:
24 / jumbo
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381 (non-locking)
Electronics

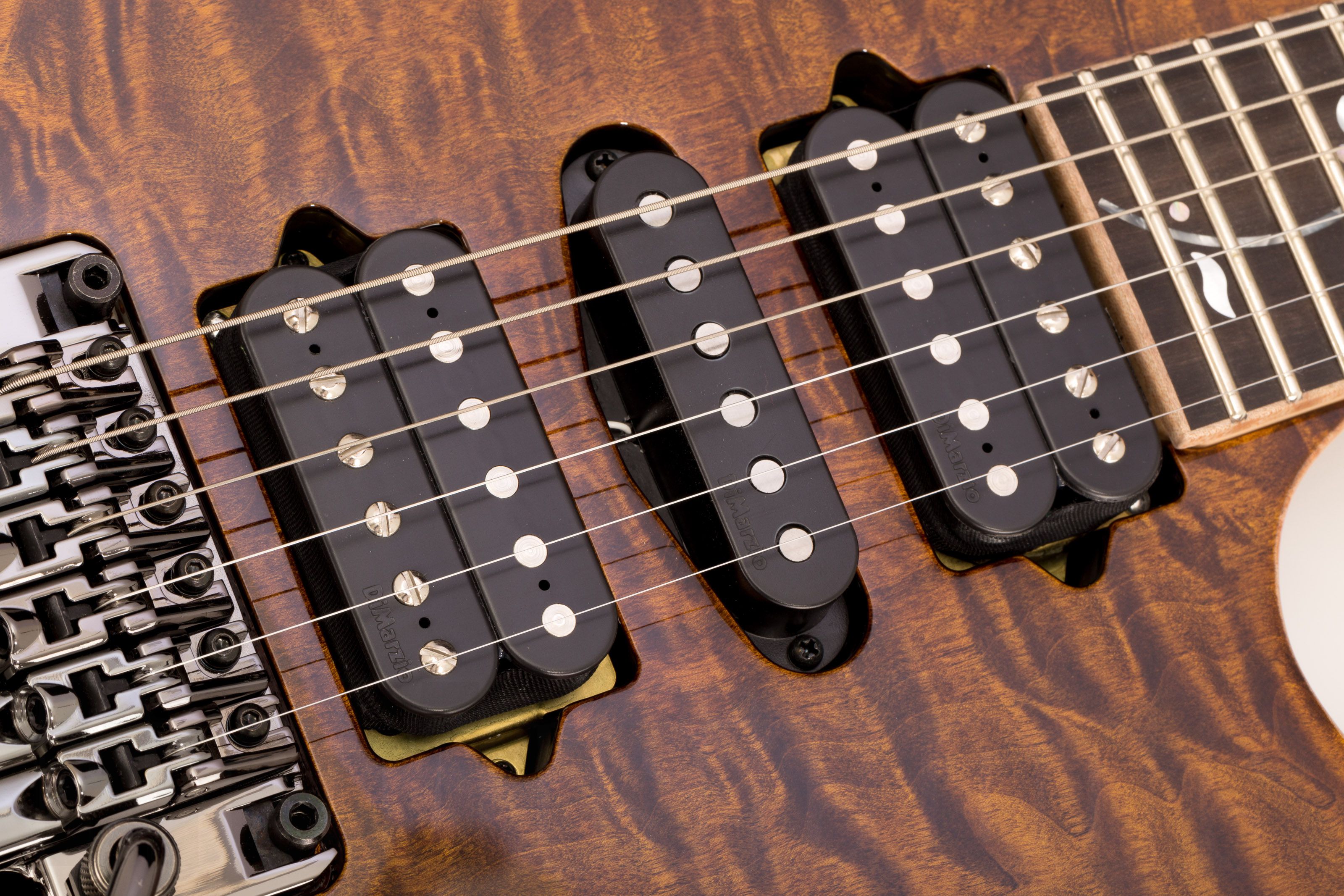

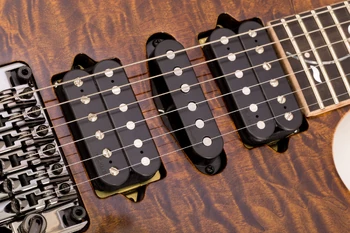

Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever

Images

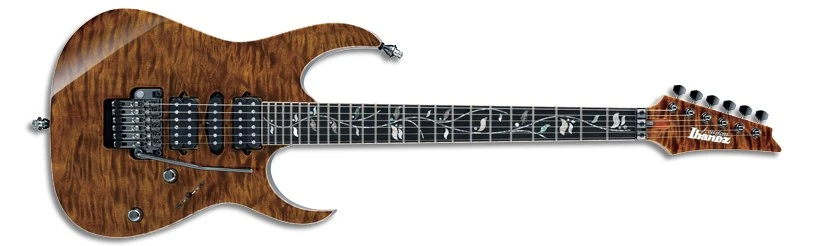

2013 JCRG20136 BSZ 00 01
JCRG20136 Brown Smoky Topaz Red copyright sprite
