JCRG2005S1
JCRG2005S1 (more images) Red copyright sprite

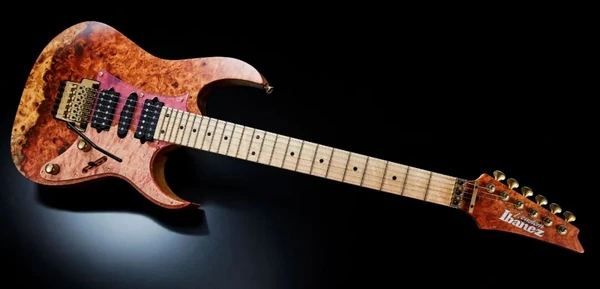

The JCRG2005S1 is an RG series solid body electric guitar model introduced by Ibanez in late 2020. It was made in Japan by Sugi as part of the high-end J Custom line. It was sold only in China

The JCRG2005S1 features an exotic texture rosewood top on a limba body bolted to a maple and purpleheart neck with a 24-fret birdseye maple fingerboard with black position markers with luminous side dots. Components include DiMarzio pickups with a pair of humbuckers flanking a single-coil, a Lo-Pro Edge double locking tremolo bridge, frosted gold hardware and Gotoh tuning machines.

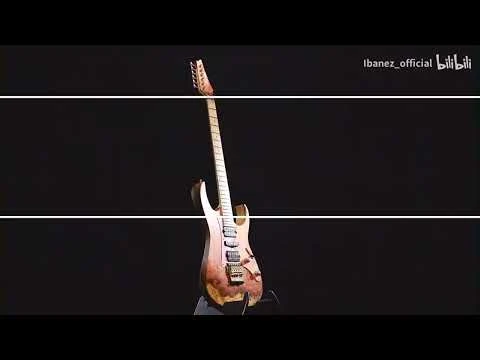

The JCRG2005S1 was revealed in a live broadcast press conference on November 8th of 2020 as part of the "China-limited JCRG series". Only a single example of this model was produced although 4 other one-off models, each with different specs which were introduced concurrently: JCRG2004S (DRB), JCRG2005, JCRG2005S2 & JCRG2008.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG2005S1
Model name: JCRG2005S1
Year(s) offered: 2020
Sold in: China
Made in: Japan
Body
Body type:
Solid body
Body material:
Limba
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Pickguard:
Olive wood and clear resin
Strap buttons:
Gotoh Strap Locks
Hardware color:
Frosted gold
Neck
Neck type:
RG J Custom Wizard
Neck material:
3-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Birdseye maple
Fingerboard inlays:
Black dot/
Luminlay side dots
Frets:
24 / jumbo Jescar EVO Gold ribbon (J Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SGS510
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico5
Middle pickup:
DiMarzio True Velvet (S) passive/ alnico5
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico5
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

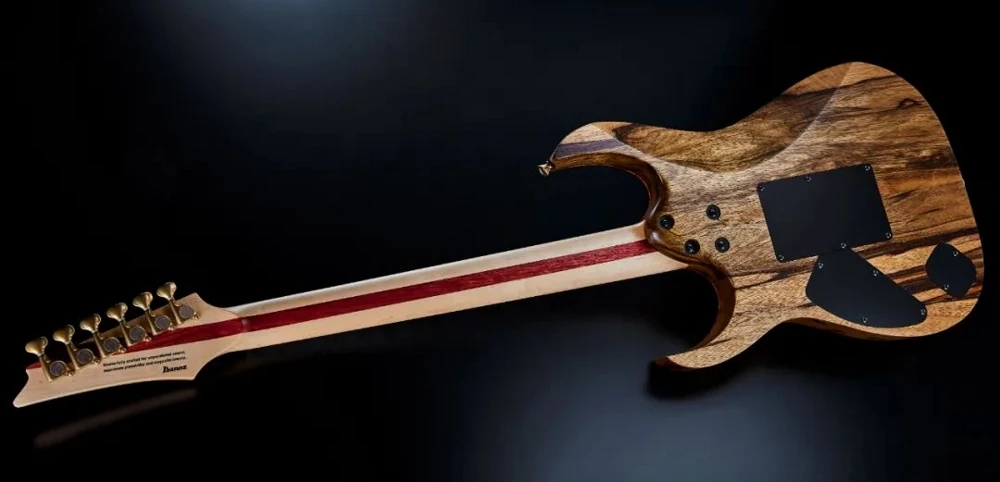

JCRG2005S1 Rear
2020 Ibanez JCRG2005S1 ( Rear: Limba body, bolted to a 3pc maple / purple core hematoxylin RG J Custom Super Wizard neck, with Gotoh SGS510 machine heads ) Red copyright sprite
JCRG2005S1 Ad
2020 Ibanez JCRG2005S1 ( "J Custom - Luthier´s special" Advertisement ) Red copyright sprite
Additional details
JCRG China LTD Series
2020 China Limited JCRG series
Controls VT5
Control layout
HSH 5-way both-splits
Pickup switching
