JCRG2005 (more images)

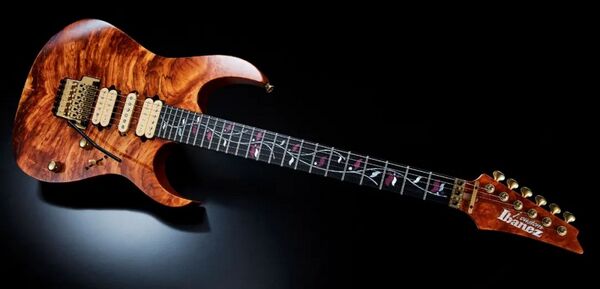

The JCRG2005 is an RG series solid body electric guitar model introduced by Ibanez in late 2020. It was made in Japan by Sugi as part of the high-end J Custom line. It was sold only in China

The JCRG2005 features an exotic-grain rosewood top on an African mahogany body bolted to a maple and purpleheart neck, a 24-fret ebony fingerboard with special Tree of Life inlays with luminous side dots. Components include DiMarzio pickups with a pair of humbuckers flanking a single-coil, a Lo-Pro Edge double locking tremolo bridge, and Gotoh tuning machines.

The JCRG2005 was revealed in a live broadcast press conference on November 8, 2020, as part of the "China-limited JCRG series". Only a single example of this model was produced although 4 other one-off models, each with different specs, were released concurrently: JCRG2004S (DRB), JCRG2005S1, JCRG2005S2 and JCRG2008.

Specifications[]

Related content: J Custom series | RG series |
Specifications for JCRG2005
Model name: JCRG2005
Year(s) offered: 2020
Sold in: China
Made in: Japan
Body
Body type:
Solid body
Body material:
African mahogany w/ exotic-grain rosewood top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Strap buttons:
Gotoh Strap Lock
Hardware color:
Matte gold
Neck
Neck type:
RG J Custom Wizard
Neck material:
5-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Special Tree of Life/
Luminlay side dots
Frets:
24 / jumbo Jescar FW57110-NS (J.Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SGS510
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H) passive/ alnico5
Middle pickup:
DiMarzio True Velvet (S) passive/ alnico5
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico5
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled side mount)

Images[]

2020 Ibanez JCRG2005 ( Rear : African mahogany body, bolted to a 5pc Maple/Purple Hematoxylin Wizard neck with Gotoh SGS510 machine heads )

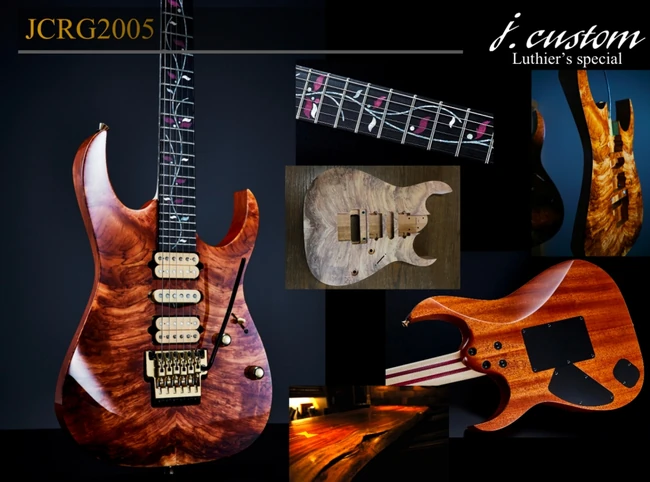

2020 Ibanez JCRG2005 ( "J Custom - Luthier´s special" Advertisement )
Additional details
2020 China Limited JCRG series
Control layout
Pickup switching

Video[]

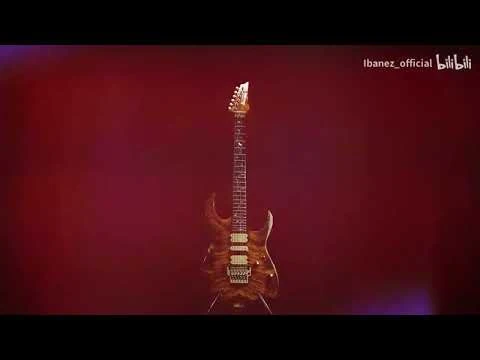

2020_Ibanez_JCRG2005
Ibanez JCRG2005 "China-limited JCRG series"
