JCRG2004S-SN
JCRG2004S Stormy Night (more images) Red copyright sprite

The JCRG2004S is an RG series solid body electric guitar model introduced by Ibanez in late 2020. It was made in Japan by FujiGen as part of the high-end J Custom line.

The JCRG2004S features an exotic maple textured maple top with resin fill on a lightweight swamp ash body bolted a wenge and maple neck with an asymmetric profile and a 24-fret ebony fingerboard. Components include DiMarzio pickups with a pair of humbuckers flanking a single-coil, a Lo-Pro Edge double locking tremolo bridge, and Gotoh tuning machines.

The JCR2004S was offered in two finishes: the Stormy Night version has a blue resin-filled top and was offered exclusively by select Japanese and European music retailers while the Dragon Breath version has a red resin-filled top was sold in China.

The JCRG2004S was offered in 2020 and it's believed that as few as a single example of each finish was produced.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG2004S
Model name: JCRG2004S
Year(s) offered: 2020
Sold in: Europe / China / Japan
Made in: Japan
Finish(es): Dragon Breath (DRB) China / Stormy Night (SN) Japan/ Europe
Body
Body type:
Solid body
Body material:
Swamp ash w/ exotic textured maple top with blue (SN) or red (DRB) resin fill
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 knurled metal dome (Gold)
Hardware color:
Gold
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
3-piece wenge/ maple
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Mother of pearl dot
Frets:
24 / jumbo Jescar EVO Gold (J Custom edge treatment)
Nut:
Top-Lok III (43mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H) passive/ alnico5
Middle pickup:
DiMarzio True Velvet (S) passive/ alnico5
Neck pickup:
DiMarzio Air Norton (H) passive/ alnico5
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (angled side mount)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

JCRG2004S-DRB Ad
The JCRG2004S-DRB is part of the 2020 China Limited JCRG series Red copyright sprite

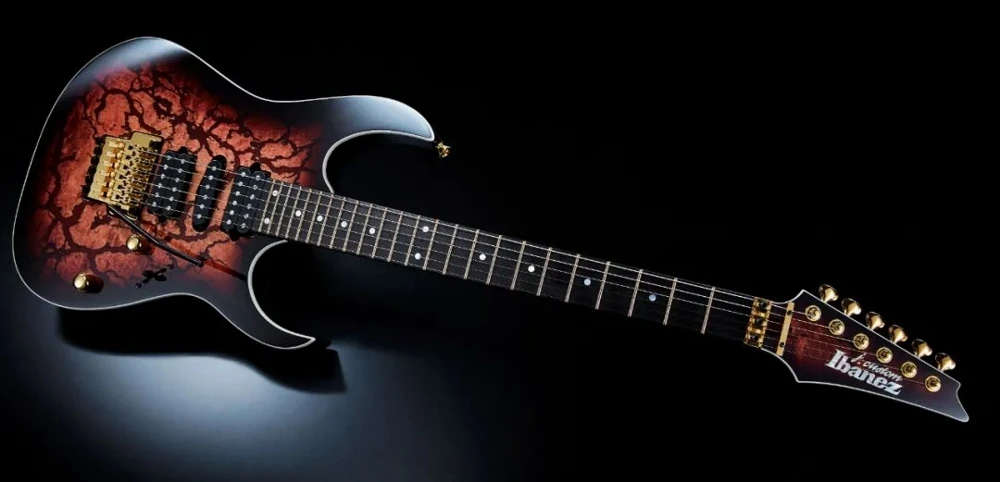

JCRG2004S-DRB
JCRG2004S-DRB
Front of body

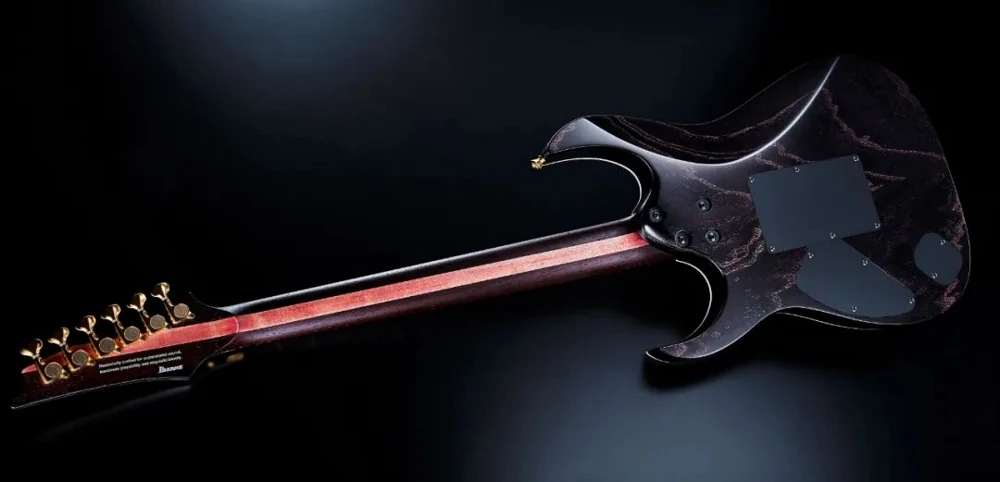

JCRG2004S-DRB Rear
Rear of body
JCRG China LTD Series
2020 China Limited JCRG series
Additional details

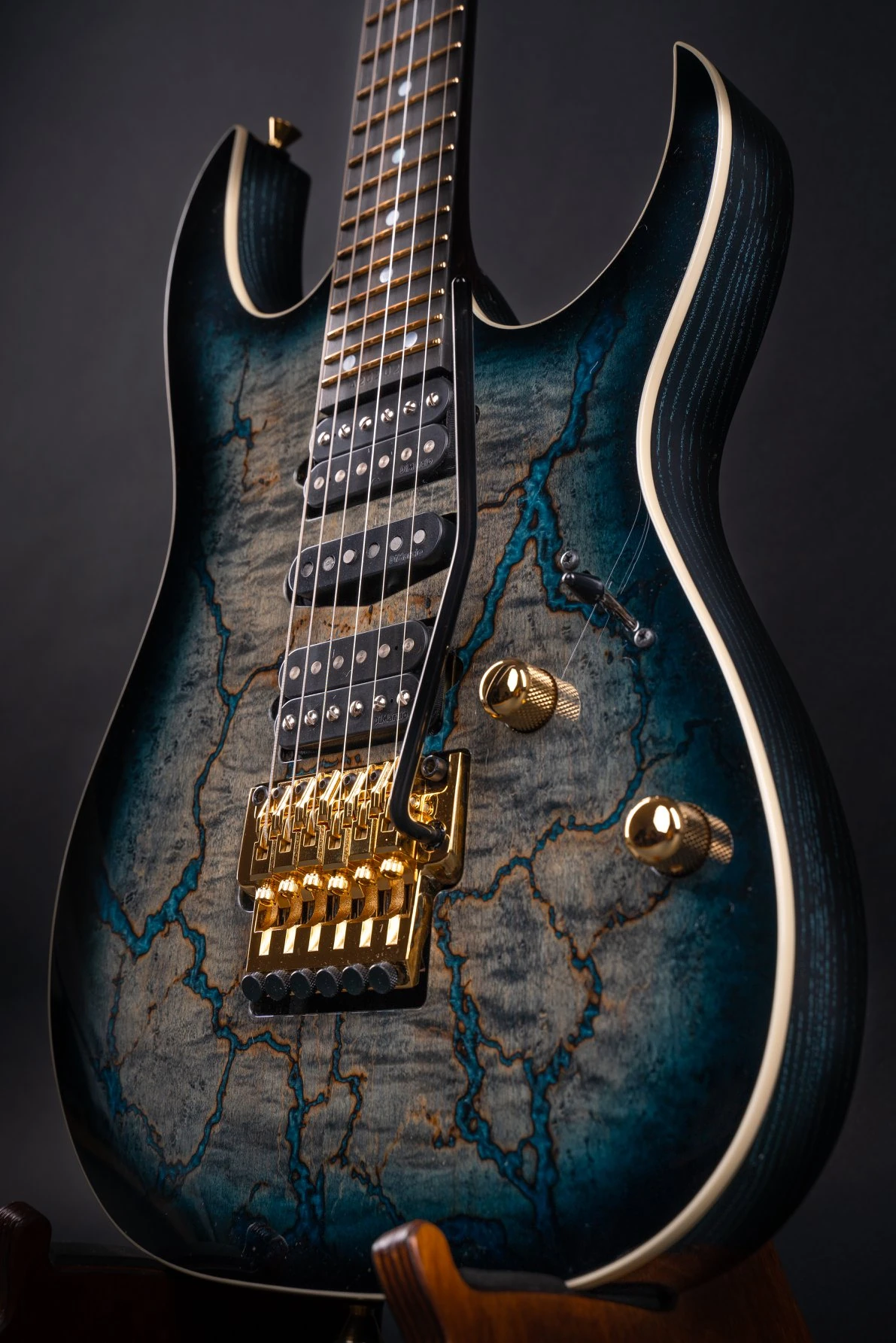

2020 - JCRG2004-S SN Body
Front of body (SN)

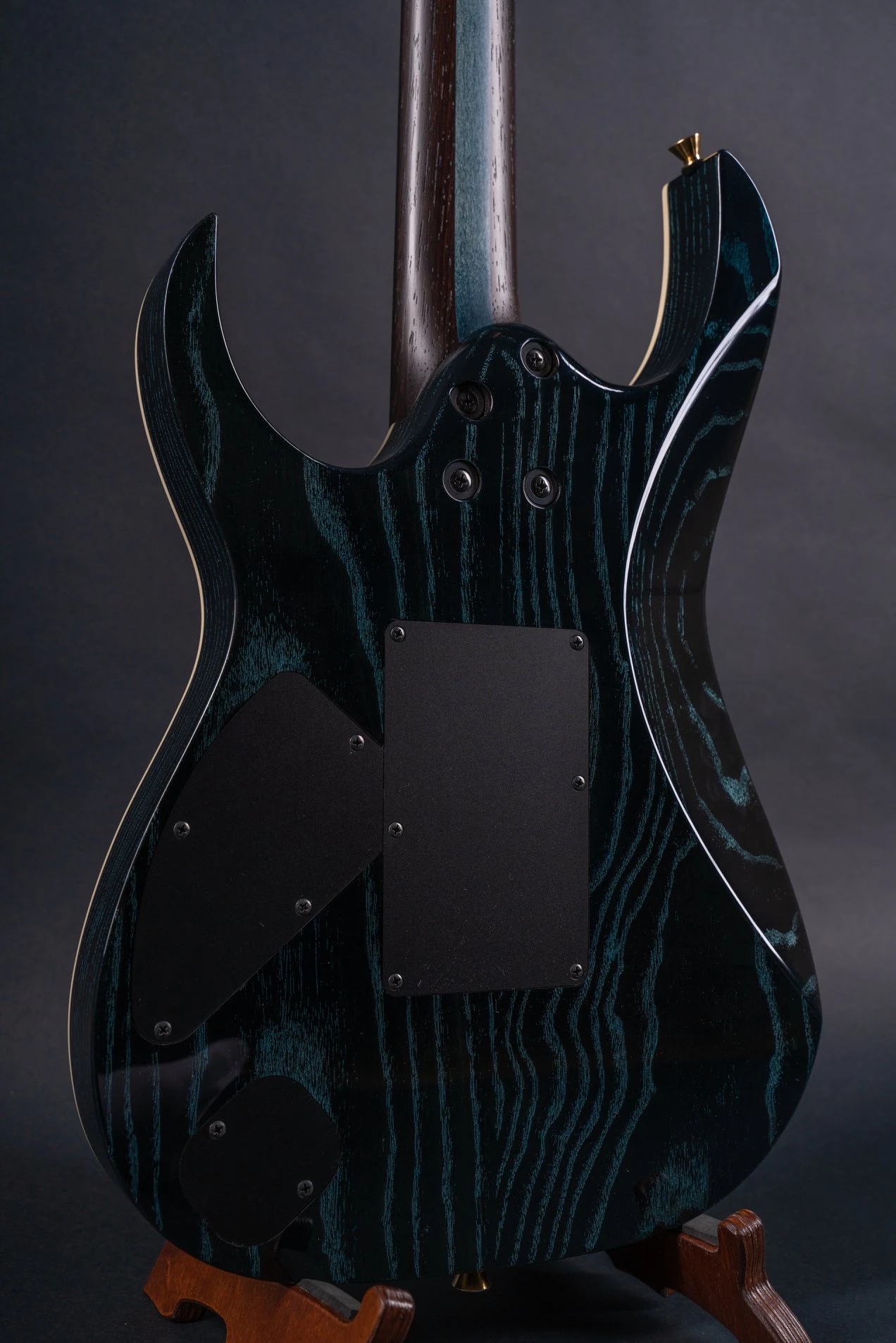

2020 - JCRG2004-S SN Rear
Rear of body (SN)

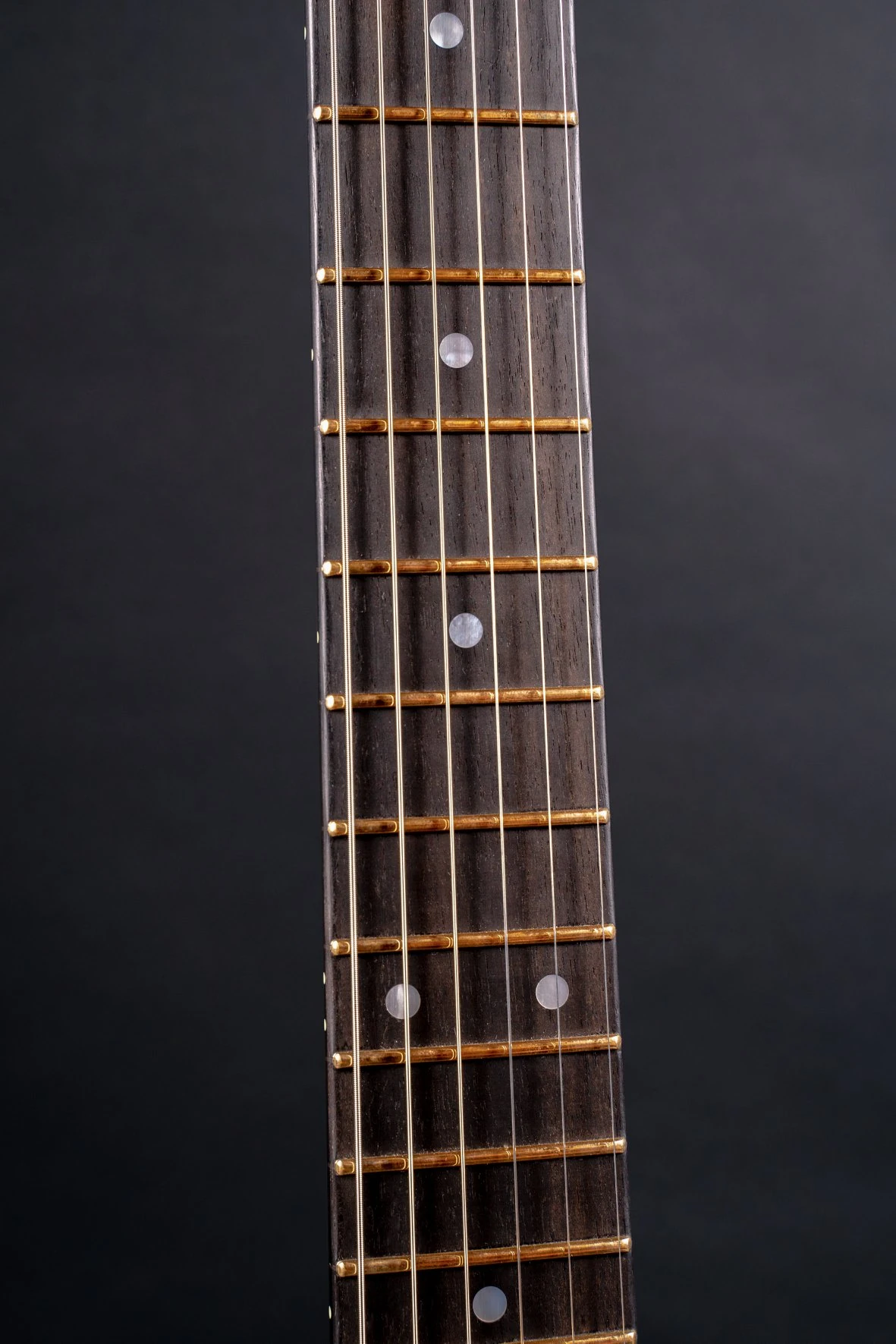

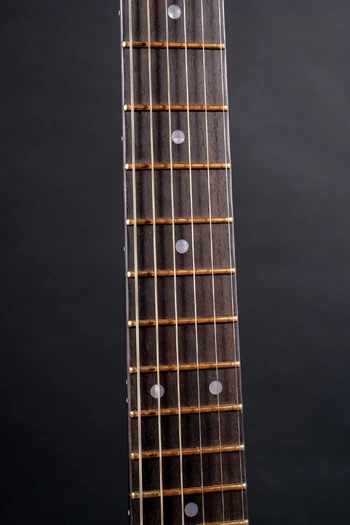

2020 - JCRG2004-S SN frets
Ebony fretboard

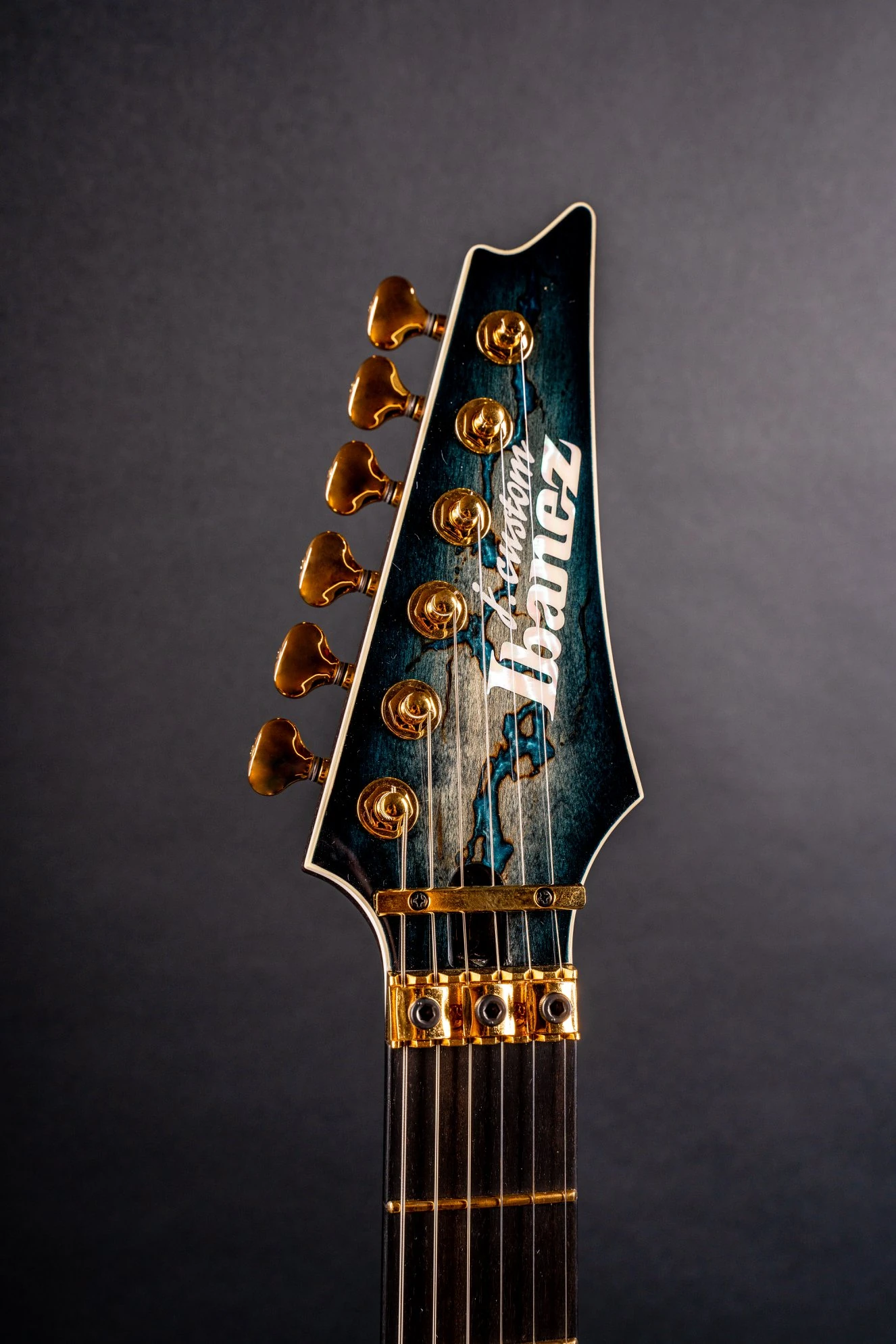

2020 - JCRG2004-S SN Headstock
Headstock
Controls VT5
Control layout
HSH 5-way both-splits
Pickup switching
