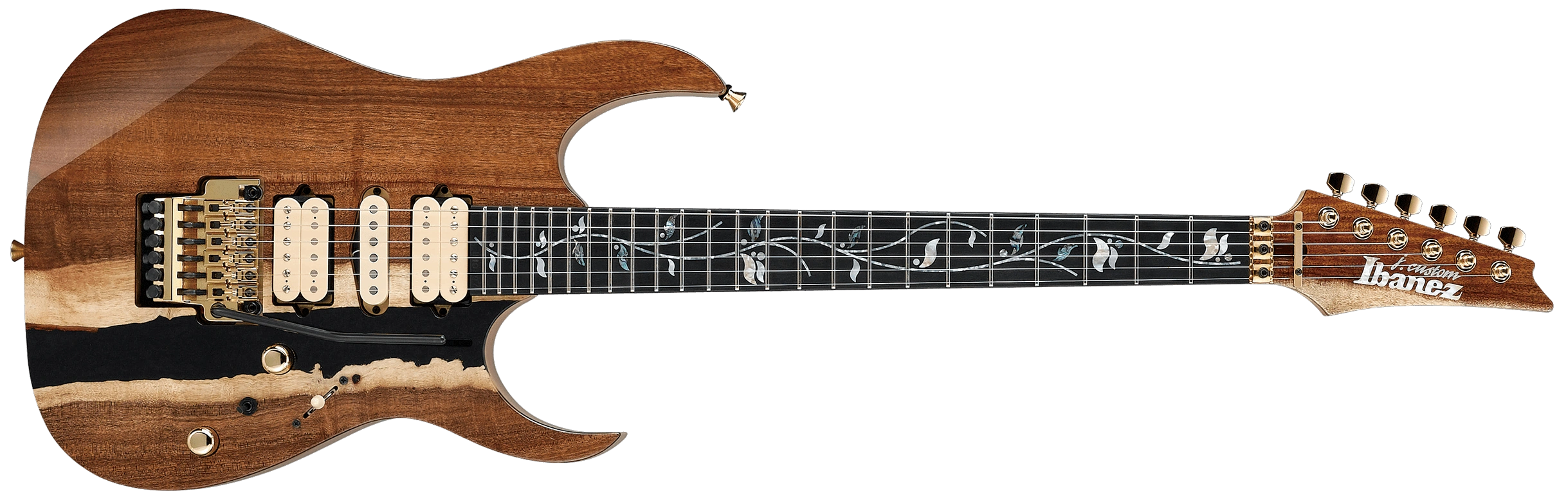

2020 JCRG2003 NT 33 01
JCRG2003 Natural (more images) Red copyright sprite

The JCRG2003 is an RG series solid body electric guitar model introduced by Ibanez for 2020. It is crafted in Japan by Sugi as part of the high-end J Custom line.

The JCRG2003 features a Hawaiian koa top on an alder body bolted to a maple and wenge with an ebony fingerboard with 24 frets with hemispherical fret end treatment and Tree of Life vine inlays. The headstock has a matching Hawaiian koa veneer. Components include DiMarzio pickups with a pair of humbuckers flanking a single-coil all with cream covers, an Edge double locking tremolo bridge, recessed Easy Access control knobs, Gotoh tuning machines and Gotoh Free-Lock II strap pins.

The JCRG2001 is a similar model with an alder body, a maple and purpleheart neck, chrome hardware and dot position markers. The JCRG2002 is a similar model with an exotic Maple top on an African mahogany body, a wenge and purpleheart neck and dot position markers.


Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG2003
Model name: JCRG2003
Year(s) offered: 2020
Sold in: Europe
Made in: Japan
Finish(es): Natural (NT)
Body
Body type:
Solid body
Body material:
Alder body w/ Hawaiian koa top
Neck joint:
AANJ
Bridge:
Edge tremolo
Strap buttons:
Gotoh Free Lock II
Knob style:
Gotoh VK1-19 knurled metal dome
Hardware color:
Gold
Neck
Neck type:
RG J Custom Wizard
Neck material:
5-piece maple/ wenge
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Abalone & mother of pearl Tree of Life
Frets:
24 / jumbo (J. Custom edge treatment)
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector / coil-split switch
Output jack:
¼" stereo barrel angled side mount
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

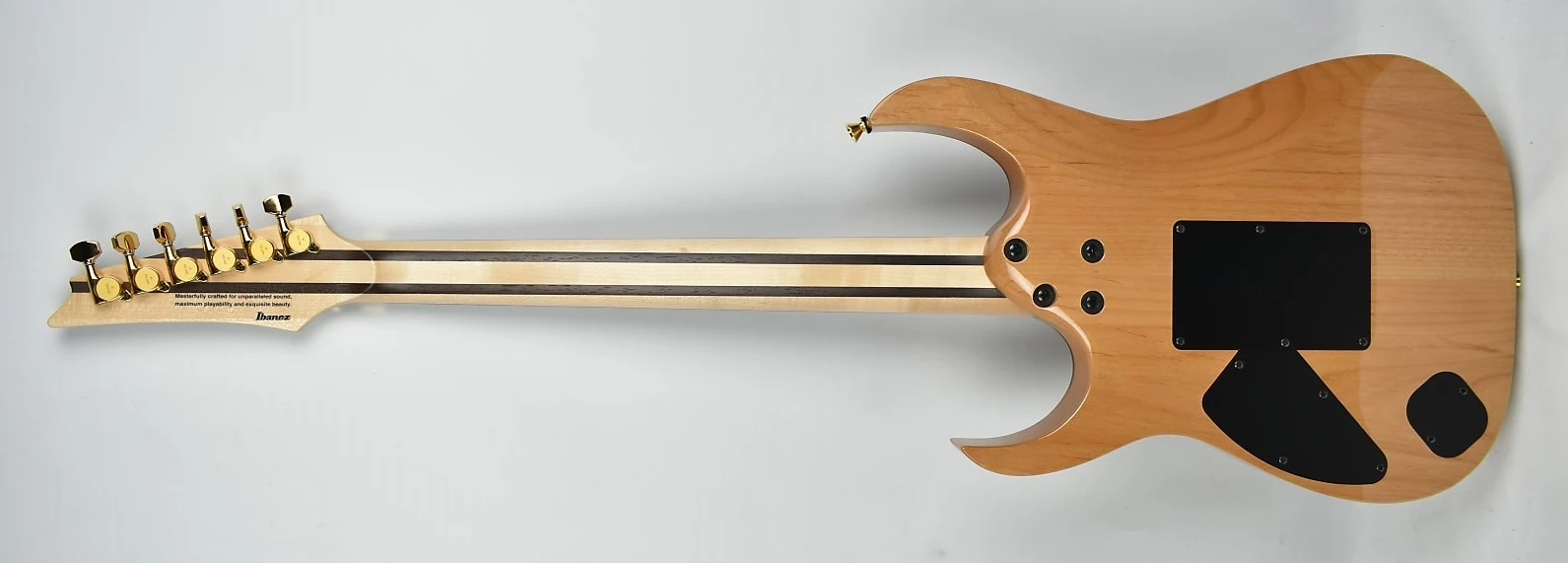

JCRG2003 back
2020 Ibanez JCRG2003 ( Rear: Alder body, AANJ with a 5-piece maple/ wenge RG J Custom Wizard neck & Gotoh SG381 machine heads ) Red copyright sprite
Additional details

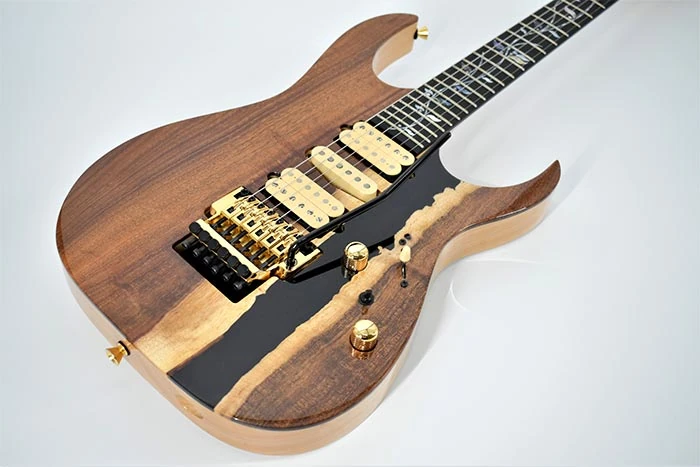

2020 JCRG2003 sub 1
Front of body

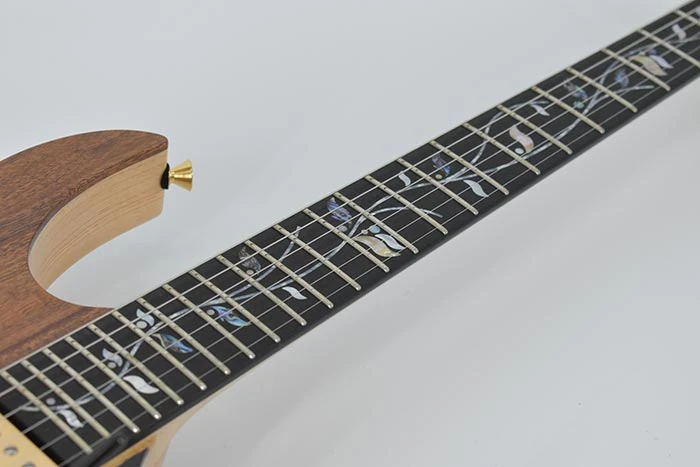

2020 JCRG2003 sub 2
Fretboard detail

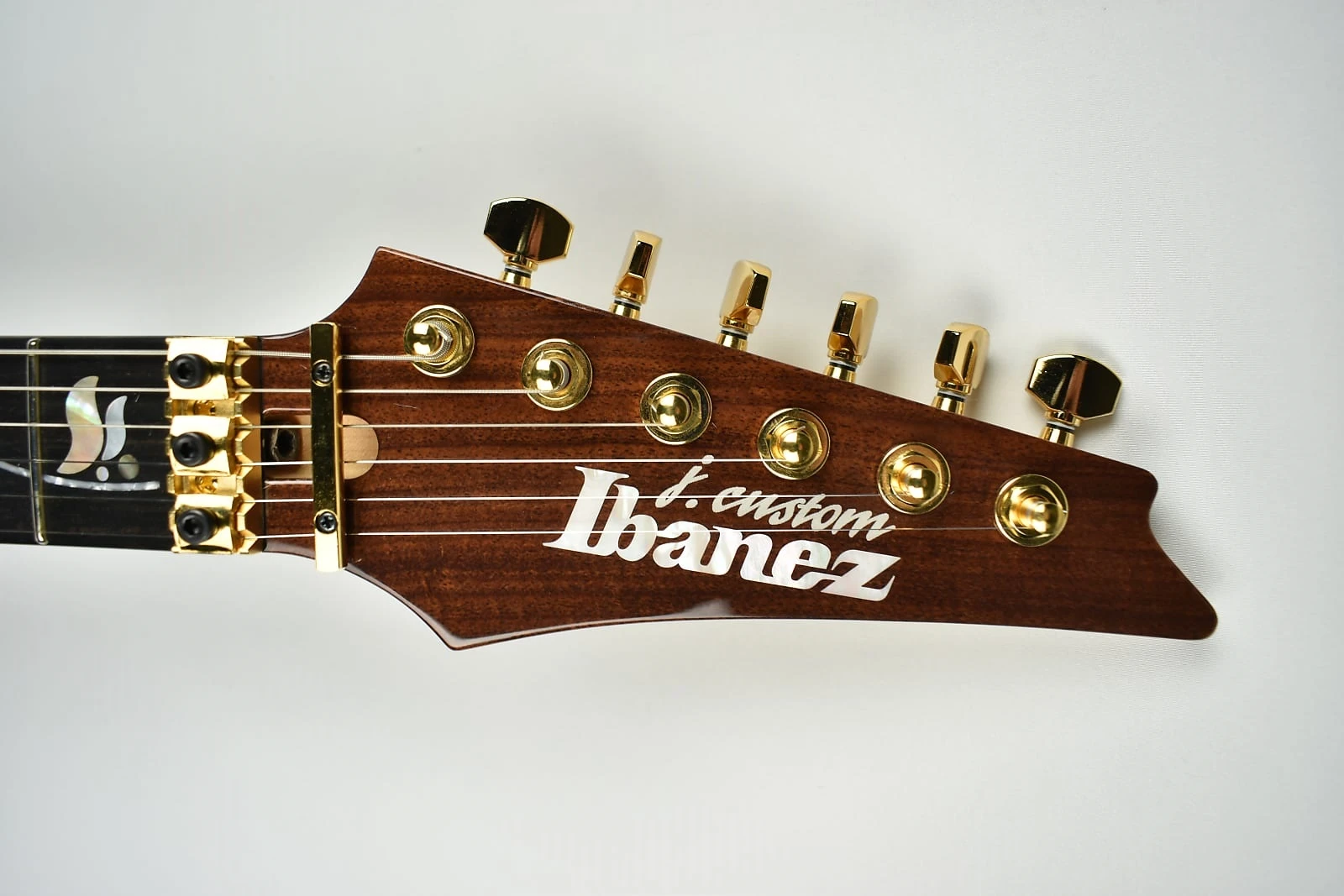

JCRG2003 headstock
Headstock
Controls VT5 coil-split-toggle
Control layout
HSH 5-way coil-split-toggle
Pickup switching

Video[]

2020 Ibanez JCRG2003 ( Demo at the "HangszerPláza" Budapest )
