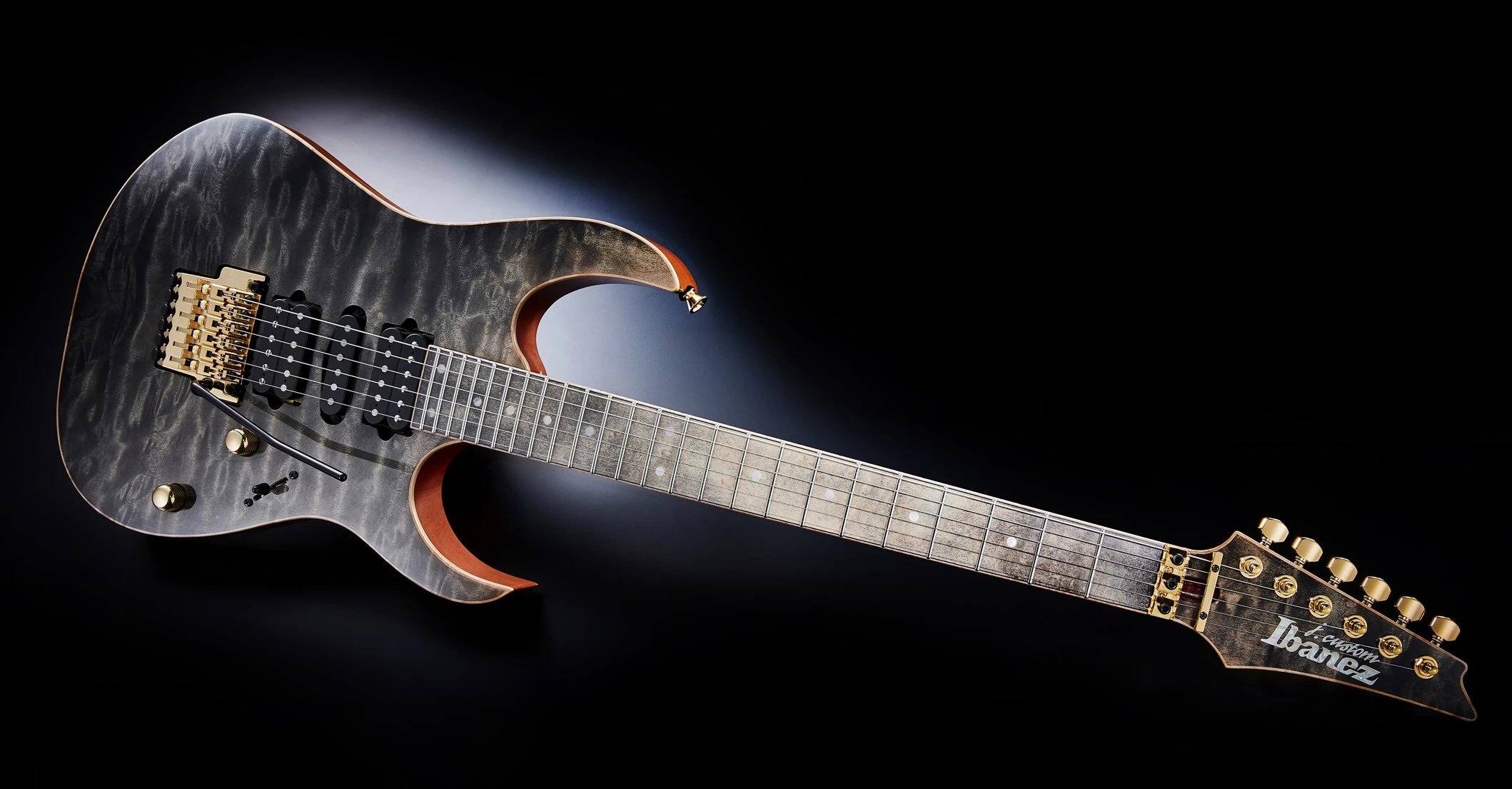

JCRG2002-GNM - Gnome.jpg
JCRG2002 Gnome (more images) Red copyright sprite.png

The JCRG2002 is an RG series solid body electric guitar model introduced by Ibanez for 2020. It is crafted in Japan by Sugi as part of the high-end J Custom line. The JCR2002 is a spot model which is sold exclusively by select Japanese and European music retailers.

The JCRG2002 features a 4mm thick exotic maple top on an African mahogany body bolted to a wenge and purpleheart neck with a birdseye maple fingerboard with 24 frets with hemispherical fret end treatment and mother of pearl dot position markers. The headstock has the same exotic maple veneer as the top. Components include DiMarzio pickups with a pair of humbuckers flanking a single-coil, a Lo-Pro Edge double locking tremolo bridge, recessed Easy Access control knobs, Gotoh tuning machines and Gotoh Free-Lock II strap pins.

This model is available in two gradient finishes – a grey finish that evokes a powerful and endless earth inspired by the spirit that controls the earth "Gnome" and a gold finish inspired by the wind-controlling spirit "Sylph" which calls to mind a gentle enveloping wind. In each case the gradient of the finish is extended onto the fretboard with a dye. Just two examples of each finish are being produced.[1][2]

The JCRG2001 is a similar model with an alder body, a maple and purpleheart neck, and chrome hardware. The JCRG2003 is a similar model with a Hawaiian Koa top.

Specifications

Specifications for JCRG2002
Year(s) produced: 2020
Sold in: Japan / Europe
Made in: Japan
Finish(es): Gnome (GNM) / Sylph (SLH)
Body
Body type:
Solid body
Body material:
African mahogany body w/ 4mm exotic maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo
Strap buttons:
Gotoh Free Lock II
Knob style:
Gotoh VK1-19 (knurled metal dome)
Hardware color:
Gold
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
3-piece wenge/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Birdseye maple w/ flamed maple binding
Fingerboard inlays:
Mother of pearl dot
Frets:
24 / jumbo (J. Custom edge treatment)
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel angled side mount
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

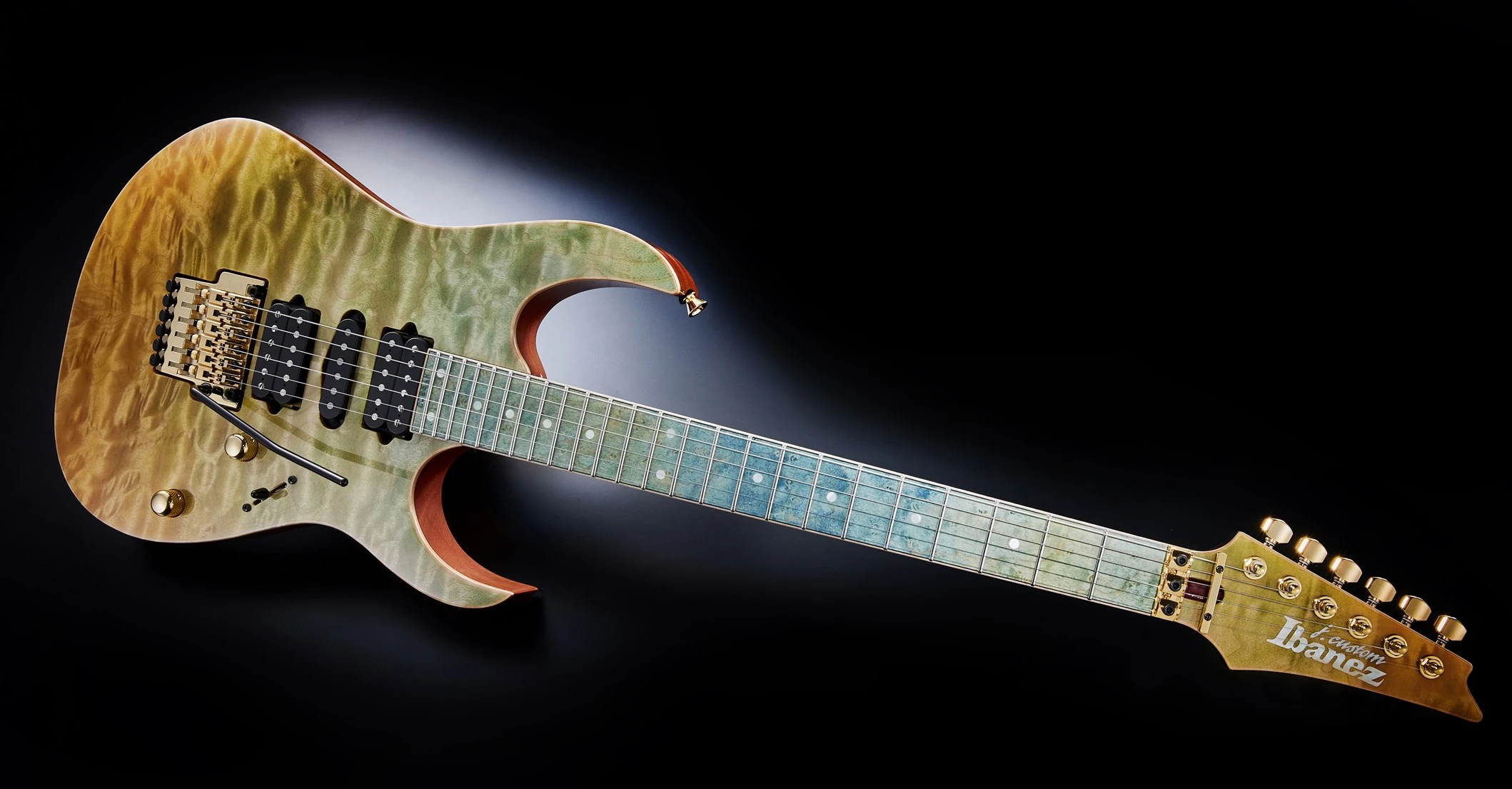

JCRG2002 - SLHSylph.jpg
2020 Ibanez JCRG2002-SLH "Sylph" Red copyright sprite.png
Additional details

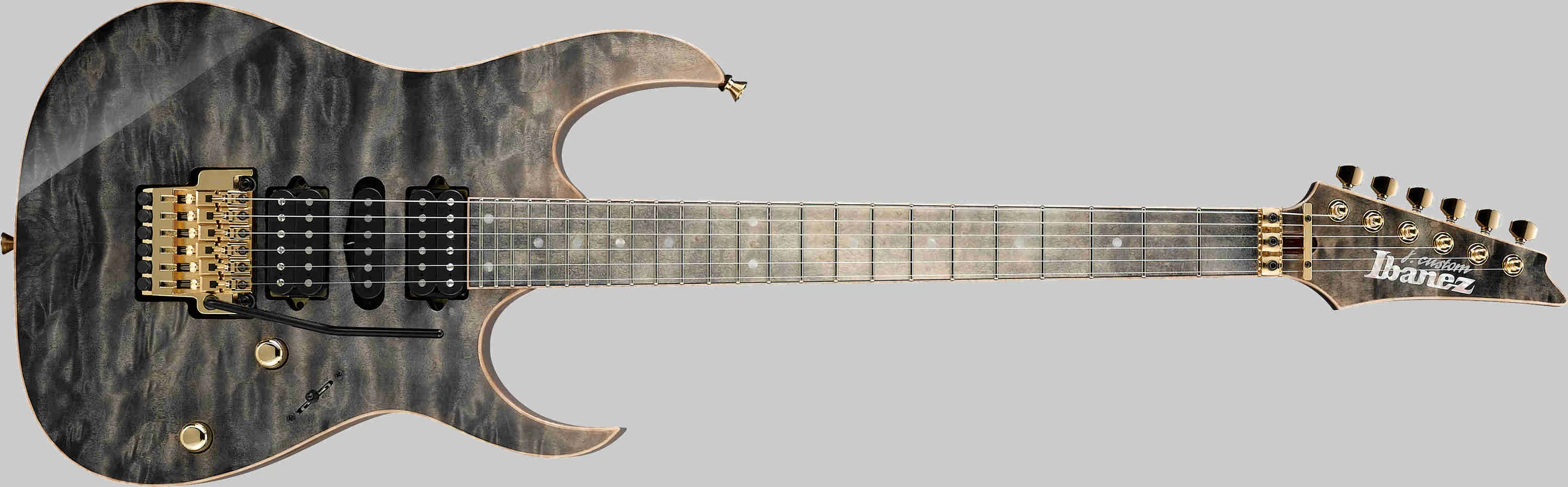

JCRG2002-GNM R.jpg
Gnome "GNM"

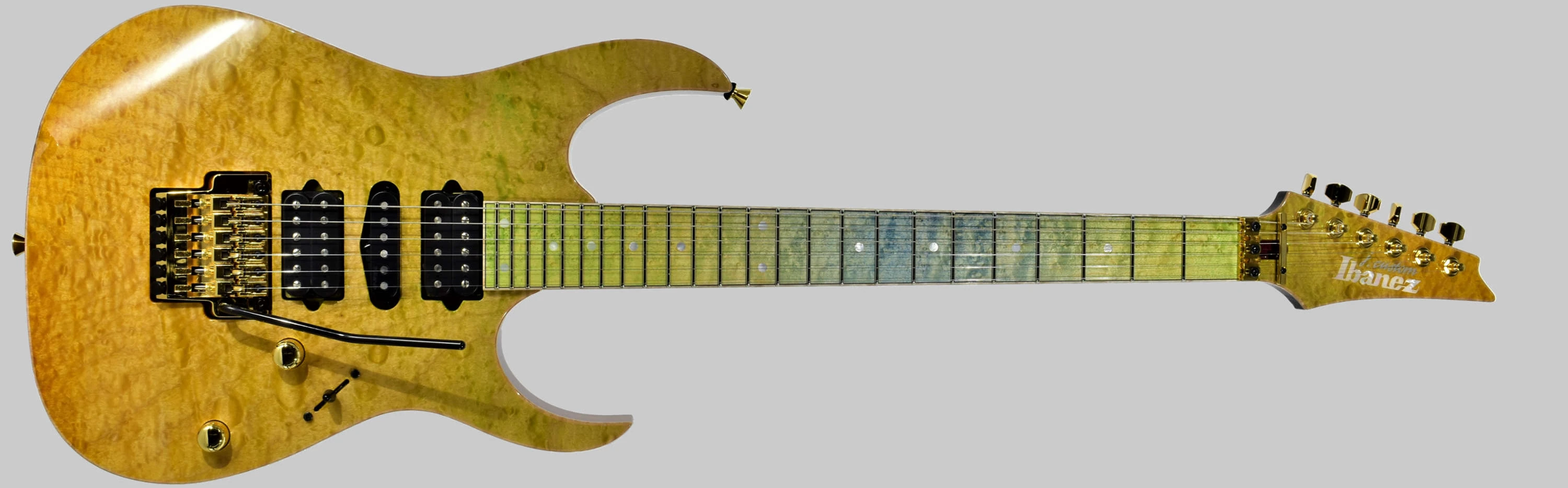

JCRG2002-SLH R.jpg
Sylph "SLH"
HSH 5-way both-splits.png
Pickup switching
Controls VT5.png
Control layout

Sources

  1. JCRG2002 Gnome, Ikebe Gakki (Japanese retailer), archived May 2020
  2. JCRG2002 Sylph, Ishibashi (Japanese retailer), archived May 2020
