JCRG1902 Natural (more images)

The JCRG1902 is an RG series solid body electric guitar model introduced by Ibanez for 2019. It was crafted in Japan by Sugi as part of the high-end J Custom line. The JCRG1902 is a spot model which is sold exclusively by select Japanese music retailers.

The JCRG1902 features a 4mm thick Hawaiian koa top filled with blue resin on a slightly smaller (98% normal size) RG body of African mahogany bolted to a roasted maple and African mahogany neck with Velvetouch finish which is also slightly shorter than the typical RG neck with a 24¾" scale. The neck has a selected figured maple fingerboard with 24 nickel silver frets with hemispherical fret end treatment and abalone dot position markers. The headstock has the same Hawaiian koa veneer. Components include a pair of EMG active humbucking pickups with chrome covers, a Gotoh tune-o-matic style bridge with custom chrome and Hawaiian koa tailpiece, recessed Easy Access control knobs, Gotoh tuning machines with matte black buttons and Gotoh Free-Lock II strap pins.

Previous similarly downsized RG models include the JCRG11M, JCRG11R, JCRG16C01 and JCRG1701 — all of these models have tremolos. The JCRG1403 is a downsized model with a similar tune-o-matic bridge and tailpiece.

The JCRG1901 is another downsized, limited J Custom released in 2019, but it has a tremolo bridge and doesn't have the resin filled top. The JCRG1903 is a related, full-sized, limited, J Custom RG model offered in 2019.

The JCRG1902 was produced only in 2019.

Specifications[]

Related content: J Custom series | RG series |
Specifications for JCRG1902
Year(s) offered: 2019
Sold in: Japan
Made in: Japan
Finish(es): Natural (NT)
Body
Body type:
Solid body
Body material:
African mahogany body w/ 4mm Hawaiian koa top filled with blue resin
Neck joint:
AANJ
Bridge:
Gotoh GE103B-T
Tailpiece:
Original chrome and Hawaiian koa
Strap buttons:
Gotoh Free Lock II
Knob style:
Recessed knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
JCRG19 Wizard
Neck material:
3-piece roasted maple/ African mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Selected figured maple
Fingerboard inlays:
Abalone dot
Frets:
24 / JESCAR #55090 medium/jumbo nickel silver (J. Custom edge treatment)
Nut:
Bone
Machine heads:
Gotoh SG381 w/ matte black buttons
String gauge (factory):
.010/.013/.017/.026/.036/.046
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
EMG 57 (H) active w/ chrome cover
Neck pickup:
EMG 65 (H) active w/ chrome cover
Controls:
Master volume / master tone / 3-way lever pickup selector

Images[]

Additional details

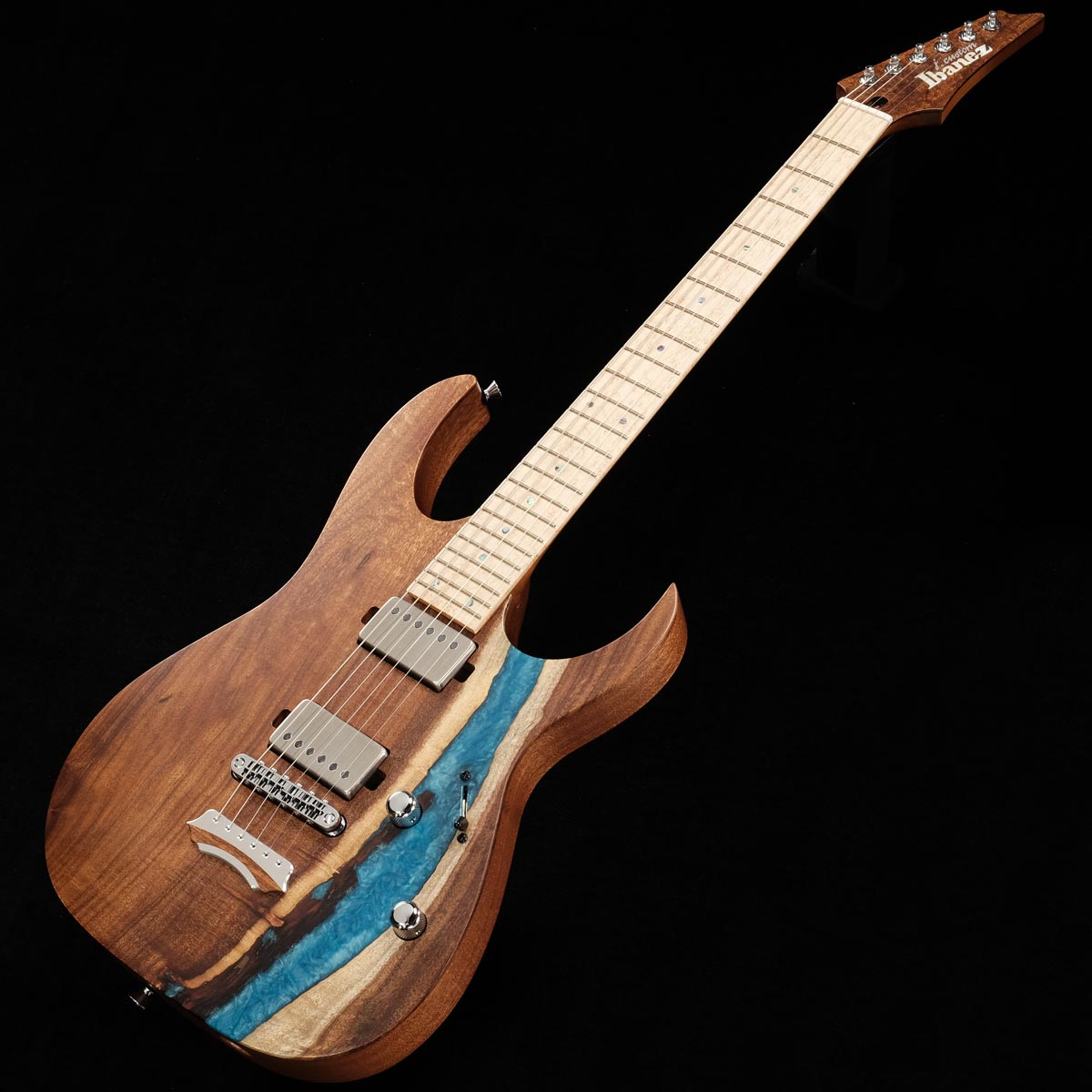

Front of body

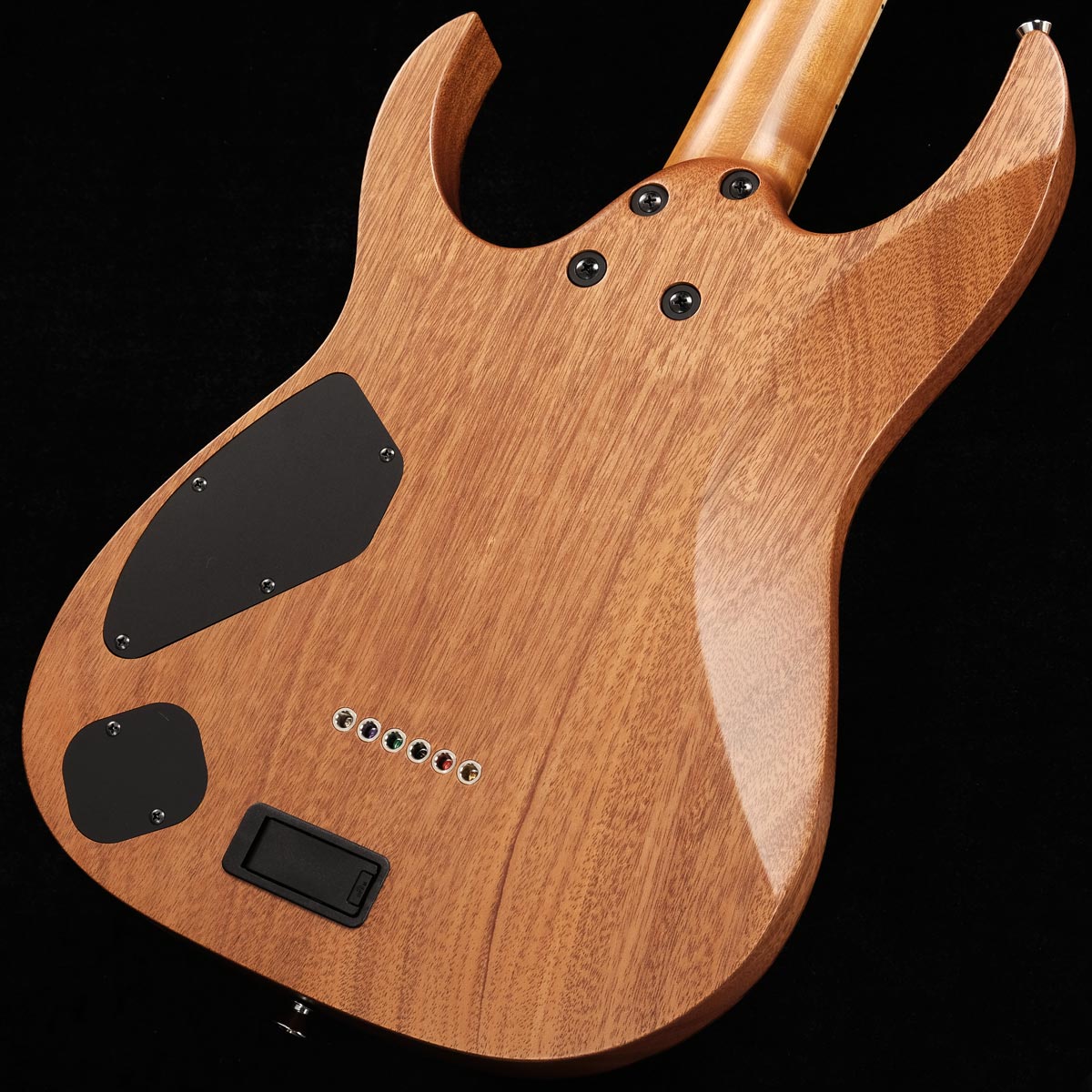

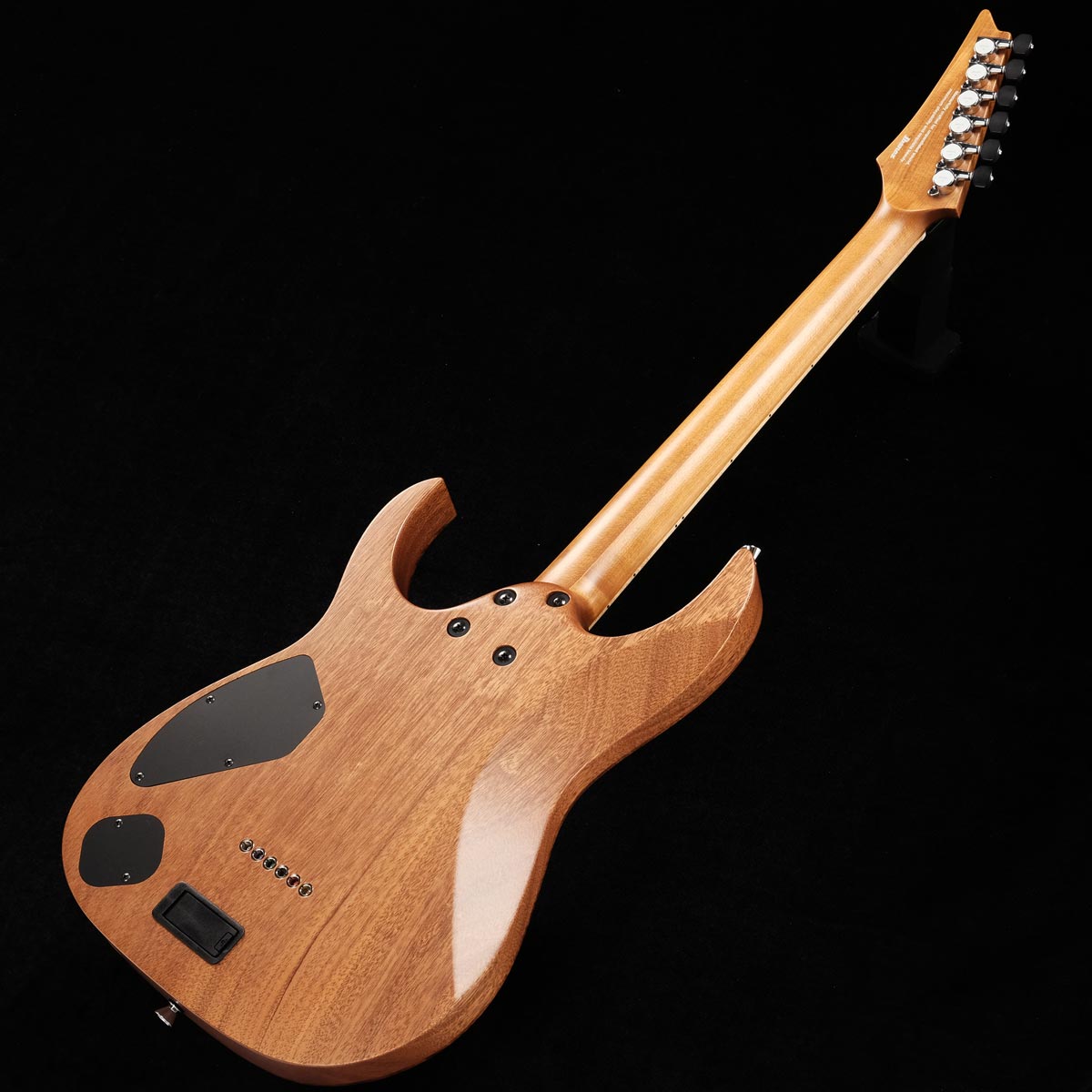

Rear of body

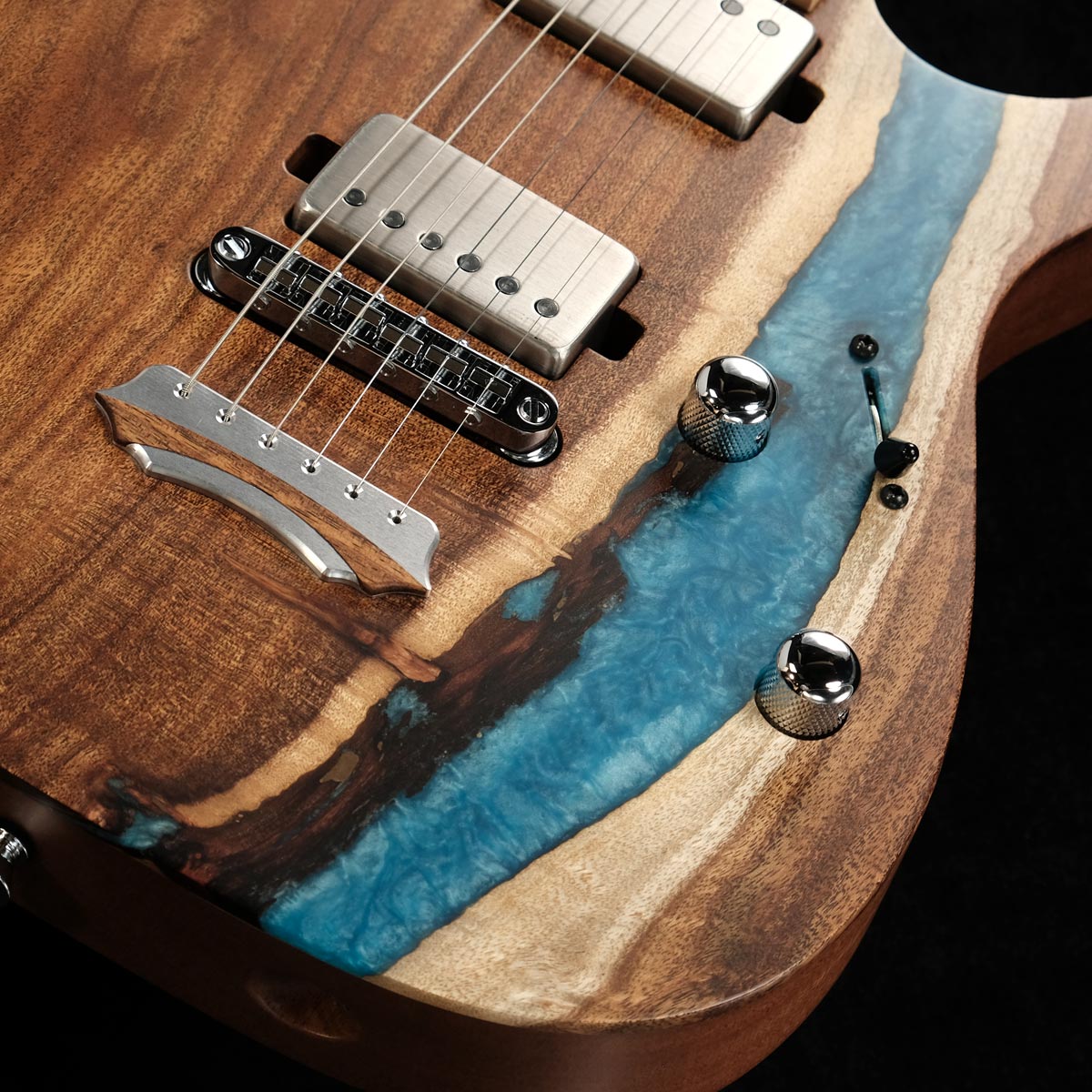

Front Up close
Controls
Rear Up close

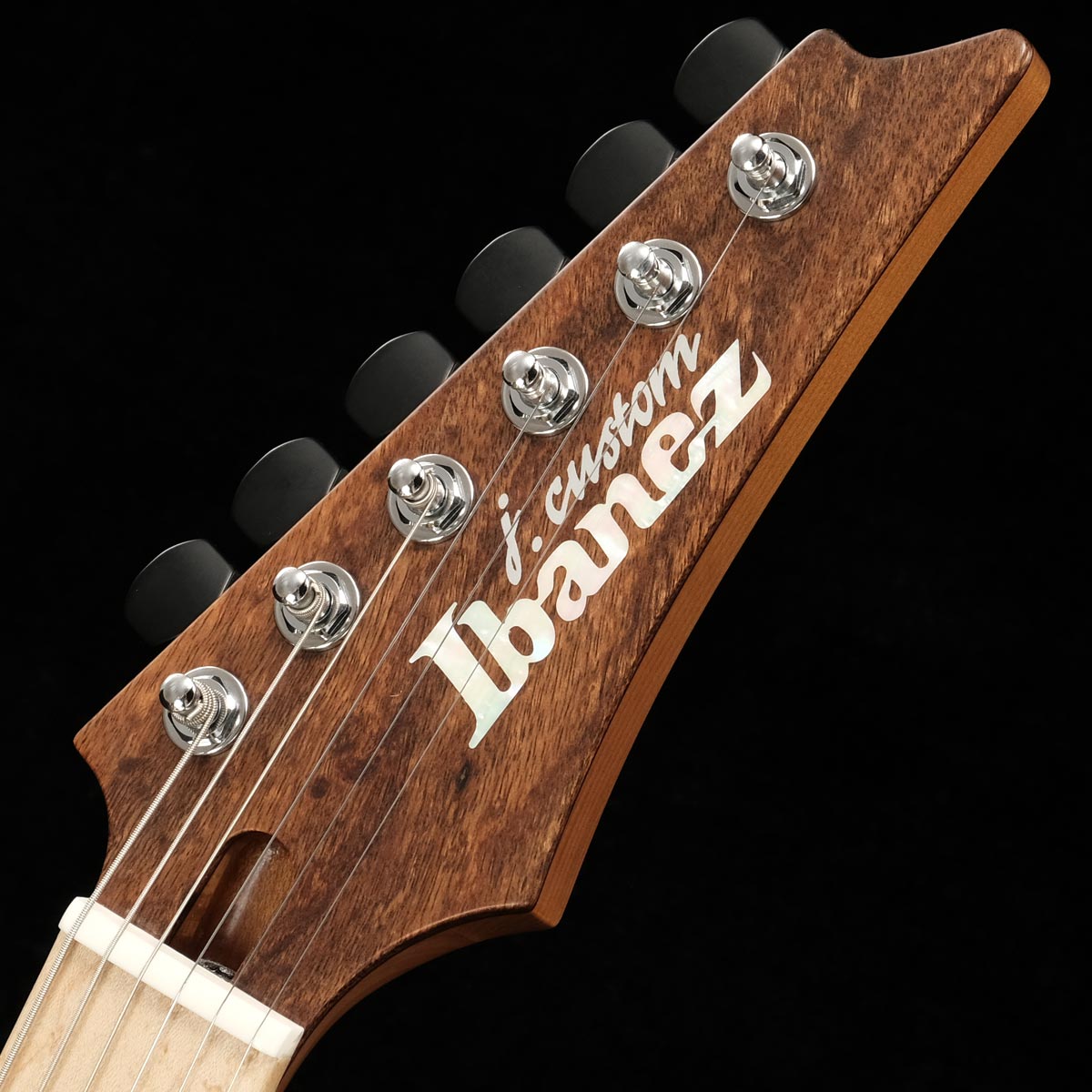

Headstock
Control layout
Pickup switching
