2015 JCRG1505

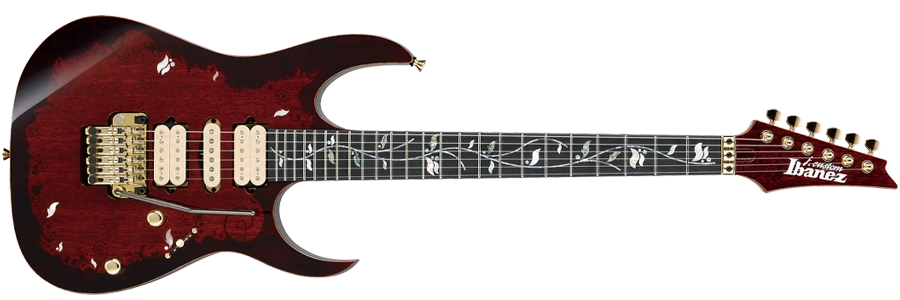

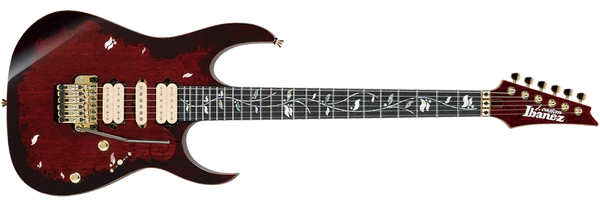

JCRG1505 front (more images) Red copyright sprite

The JCRG1505 is an RG series solid body electric guitar model offered by Ibanez in 2015. It was made in Japan by Sugi as part of the high-end J Custom line.

The JCRG1505 features a two-piece African mahogany body topped with a 4mm thick mahogany top bolted to an asymmetric maple and bubinga neck with a 24-fret ebony fingerboard with Tree of Life inlays. Components include DiMarzio pickups with two humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge with a removable tuning stabilizer system, a locking nut, Gotoh locking strap pins, and Gotoh tuning machines.

The body is finished in a wine stain with a red maroon burst-style edge design inspired by the Tree of Life fretboard inlays which incorporates some abalone inlays in the top itself. The back and sides of the body are finished in transparent black. The headstock has a 2mm mahogany top which is finished to match the body. The serial number is stamped both on the back of the headstock and on the fretboard past the 24th fret.

The JCRG1501 and JCRG1502 are related models with ash bodies in natural and sapphire finishes, respectively. The JCRG1503 is a similar model with a poplar burl top and viridian finish. The JCRG1504 is a similar model with an exotic maple top.

The JCRG1505 was offered only in 2015.

Specifications

Specifications for JCRG1505
Model name: JCRG1505
Year(s) produced: 2015
Sold in: Japan
Made in: Japan
Finish(es): Wine (top center) / Red Maroon (top edge) / Transparent Black (back and sides)
Body
Body type:
Solid body
Body material:
40mm thick two-piece African mahogany body w/ 4mm mahogany top
Neck joint:
Tilt Joint w/ stainless plate
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer
Strap buttons:
Gotoh Free Lock II
Hardware color:
Cosmo black
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Tree of Life
Frets:
24 / JESCAR #57110
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.009–.042 (D'Addario XL120)

Images

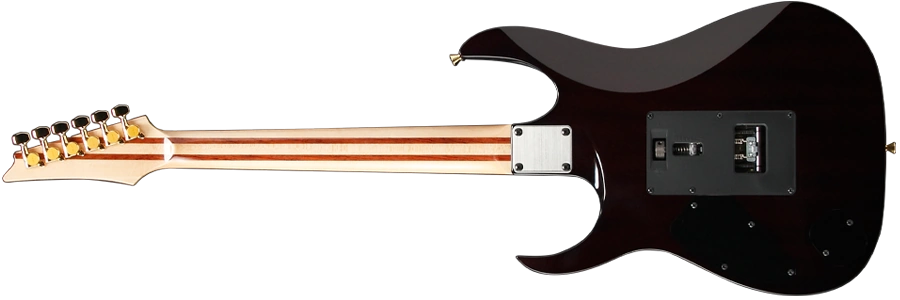

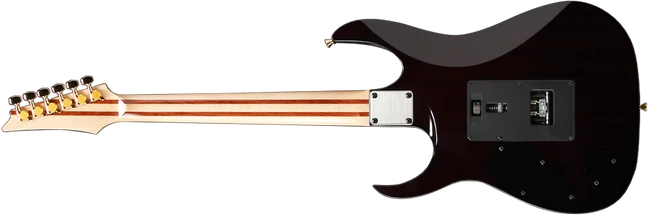

2015 JCRG1505 back
JCRG1505 (back) Red copyright sprite
