2015 JCRG1504
JCRG1504 (more images) Red copyright sprite

The JCRG1504 is an RG series solid body electric guitar model offered by Ibanez in 2015. It was made in Japan by Sugi as part of the high-end J Custom line.

The JCRG1504 features a two-piece African mahogany body topped with a 4mm thick exotic maple top bolted to an asymmetric maple and bubinga neck with a 24-fret ebony fingerboard with Tree of Life inlays. Components include DiMarzio pickups with two humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge with a removable tuning stabilizer system, a locking nut, Gotoh locking strap pins and Gotoh tuning machines.

The body is finished in a aquamarine stain with a midnight burst-style edge design inspired by the Tree of Life fretboard inlays. The back and sides of the body are finished in transparent black. The headstock has a 2mm exotic maple top which is finished to match the body. The serial number is stamped both on the back of the headstock and on the fretboard past the 24th fret.

The JCRG1501 and JCRG1502 are related models with ash bodies in natural and sapphire finishes, respectively. The JCRG1503 is a similar model with a poplar burl top and viridian finish. The JCRG1505 is a similar model with a mahogany top.

The JCRG1504 was offered only in 2015. It is believed that as few as three examples were produced.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG1504
Model name: JCRG1504
Year(s) offered: 2015
Sold in: Japan
Made in: Japan
Finish(es): Aquamarine (top center) / Midnight (top edge) / Transparent Black (back and sides)
Body
Body type:
Solid body
Body material:
40mm thick two-piece African mahogany body w/ 4mm exotic maple top
Neck joint:
Tilt Joint w/ stainless plate
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer
Strap buttons:
Gotoh Free Lock II
Hardware color:
Cosmo black
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Tree of Life
Frets:
24 / JESCAR #57110
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009–.042 (D'Addario XL120)

Images[]

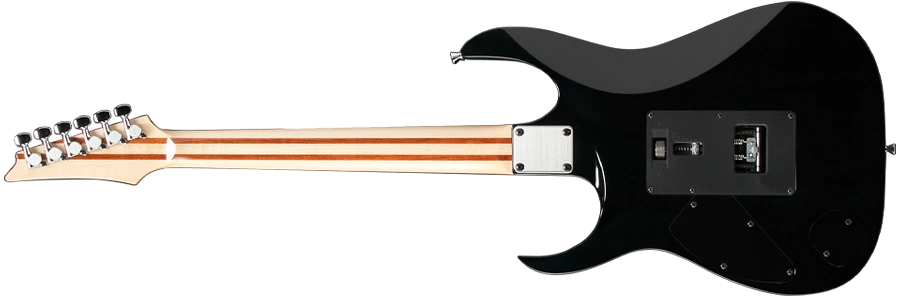

2015 JCRG1504 back
2015 Ibanez JCRG1504 ( Rear : African mahogany body bolted to a 5-piece maple/ bubinga JCRG Asymmetric Super Wizard neck & Gotoh SG381 machine heads ) Red copyright sprite
