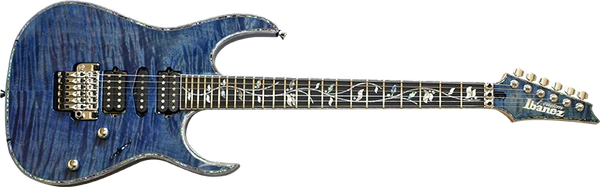

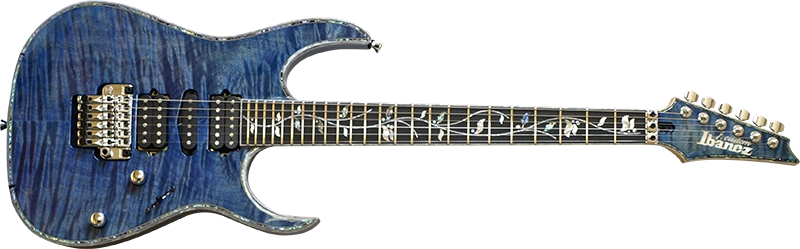

2014 JCRG14C01-BLE
JCRG14C01 Bluish-purple Hauyne (more images) Red copyright sprite

The JCRG14C01 is an RG series solid body electric guitar model offered by Ibanez in 2014. It was made in Japan by Sugi as part of the high-end J Custom line. It was a spot model sold only through Ikebe Gakki in Japan.

The JCRG14C01 features a neck-through-body construction with African mahogany wings topped with a 4mm thick piece of exotic maple mated to a maple and bubinga neck with a 24-fret pearloid bound ebony fingerboard with Tree of Life inlays. Components include DiMarzio pickups with two humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge with a removable tuning stabilizer, a locking nut, Gotoh locking strap pins and Gotoh tuning machines.

The headstock is capped and finished to match the body. The serial number is hand printed on the back of the headstock.

The JCRG14C01 was offered only in 2014.

Specifications

Specifications for JCRG14C01
Year(s) produced: 2014
Sold in: Japan
Made in: Japan
Finish(es): Bluish-purple Hauyne (BLE) / Natural (NT)
Body
Body type:
Solid body
Body material:
African mahogany wings (40mm thick) w/ 4mm exotic maple top & pearloid binding with abalone purfling
Neck joint:
Neck-thru
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer
Strap buttons:
Gotoh Free Lock II
Hardware color:
BLE finish: Cosmo black
NT finish: Gold
Neck
Neck type:
JCRG Super Wizard
Neck material:
5-piece maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony w/ pearloid binding
Fingerboard inlays:
Tree of Life
Frets:
24 / JESCAR #57110
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.009–.042 (D'Addario XL120)

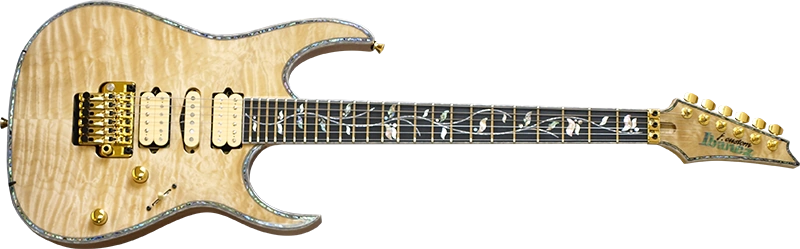

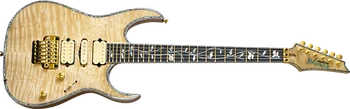

2014 JCRG14C01-NT
JCRG14C01 Natural Red copyright sprite
