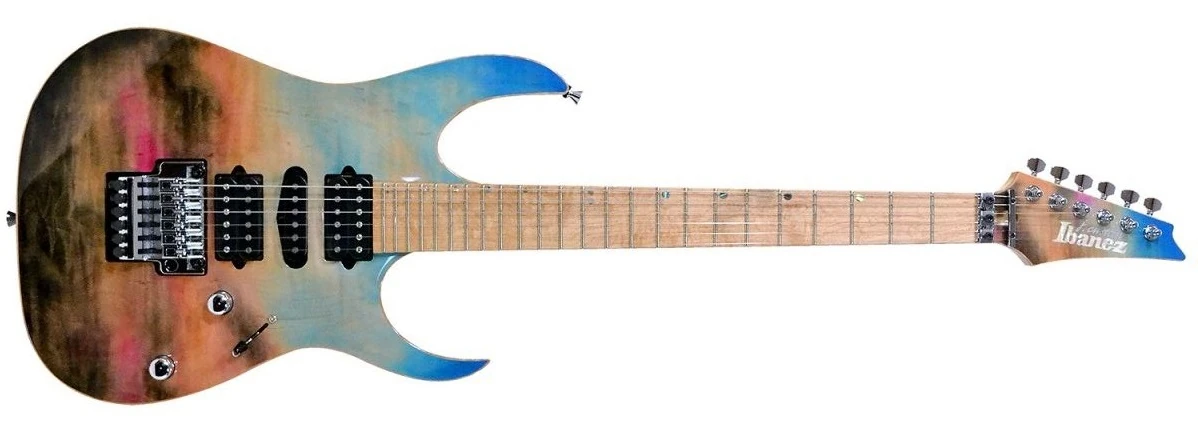

JCRG1404 Sky (more images)

The JCRG1404 is an RG series solid body electric guitar model offered by Ibanez in 2014. It was made in Japan by Sugi as part of the high-end J Custom line. It was introduced at the 2014 Gakki Fair.

The JCRG1404 features an African mahogany body with an exotic maple top bolted to a maple and bubinga neck with a 24-fret maple fingerboard with offset abalone dot position markers. Components include DiMarzio pickups with two humbuckers flanking a single-coil, an original Edge double locking tremolo bridge, a locking nut, Gotoh locking strap pins and Gotoh tuning machines.

The neck is attached to the body with a retro-style tilt-joint with a stainless steel plate. The headstock has a 2mm thick exotic maple top which is finished to match the body. The serial number is hand printed on the back of the headstock.

The JCRG1404 was offered only in 2014 with only a small number of each finish (likely 12 or fewer of each) was produced.

Specifications[]

Related content: J Custom series | RG series |
Specifications for JCRG1404
Model name: JCRG1404
Year(s) offered: 2014
Sold in: Japan
Made in: Japan
Finish(es): Aurora (AUR) / Sky (SKY)
Body
Body type:
Solid body
Body material:
40mm thick African mahogany body w/ 4mm exotic maple top
Neck joint:
Tilt Joint
Bridge:
Edge tremolo
Strap buttons:
Gotoh Free Lock II
Hardware color:
Chrome
Neck
Neck type:
JCRG Super Wizard
Neck material:
5-piece maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Maple (Radius: 17")
Fingerboard inlays:
Abalone offset dot
Frets:
24 / JESCAR #57110
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
String gauge (factory):
.009–.042 (D'Addario XL120)
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

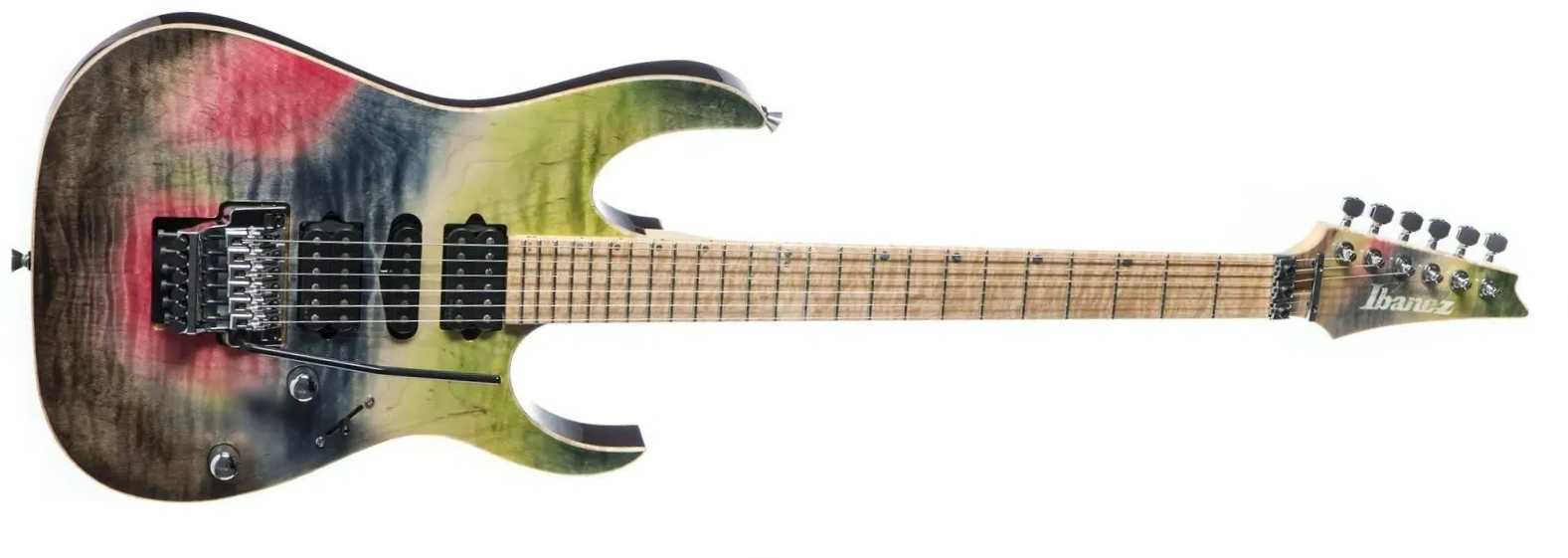

2014 Ibanez JCRG1404 Aurora
Additional details for the JCRG1404 SKY

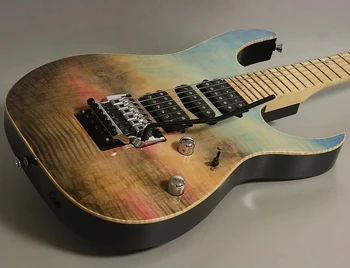

Front of body [1]

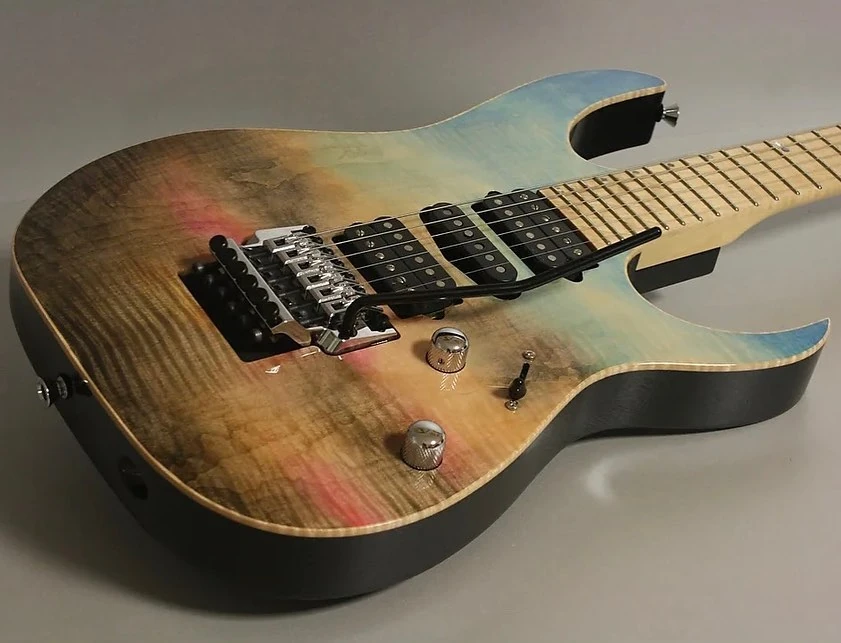

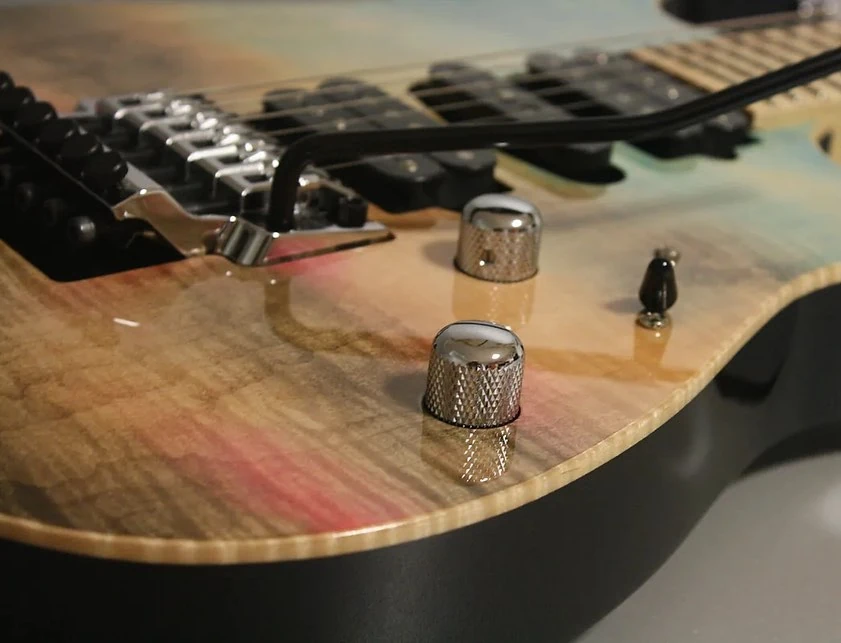

Chrome hardware [1]

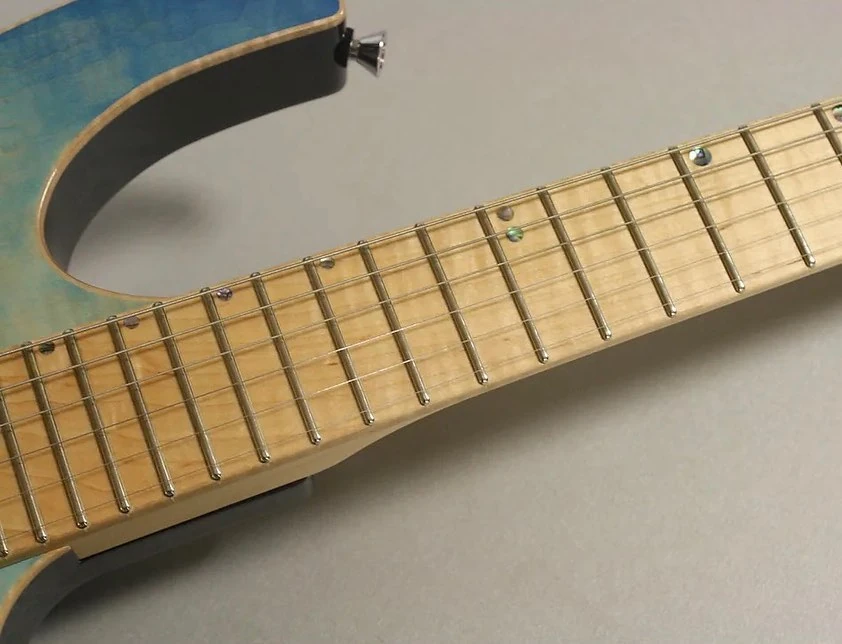

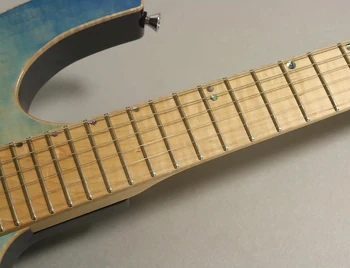

Abalone offset dots [1]

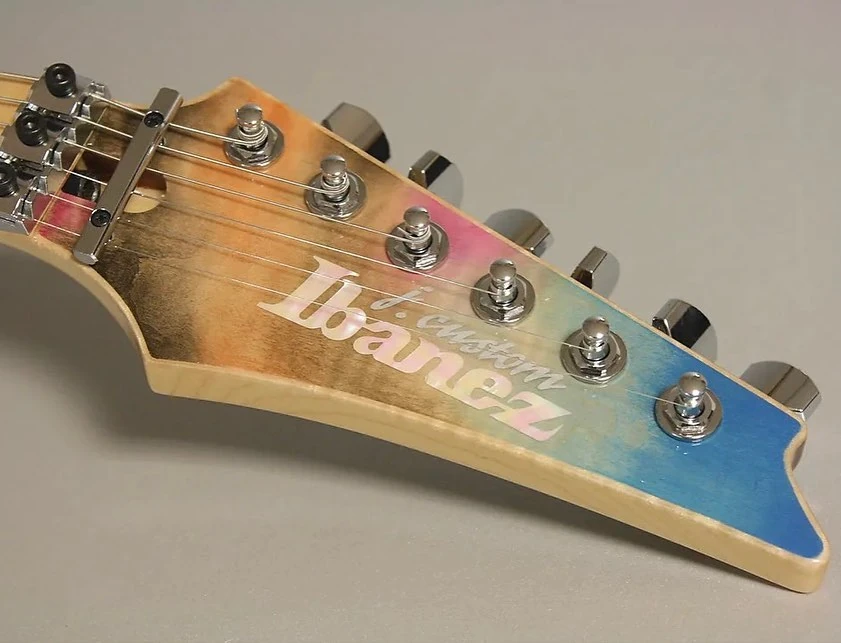

Headstock [1]

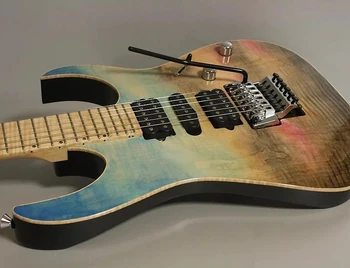

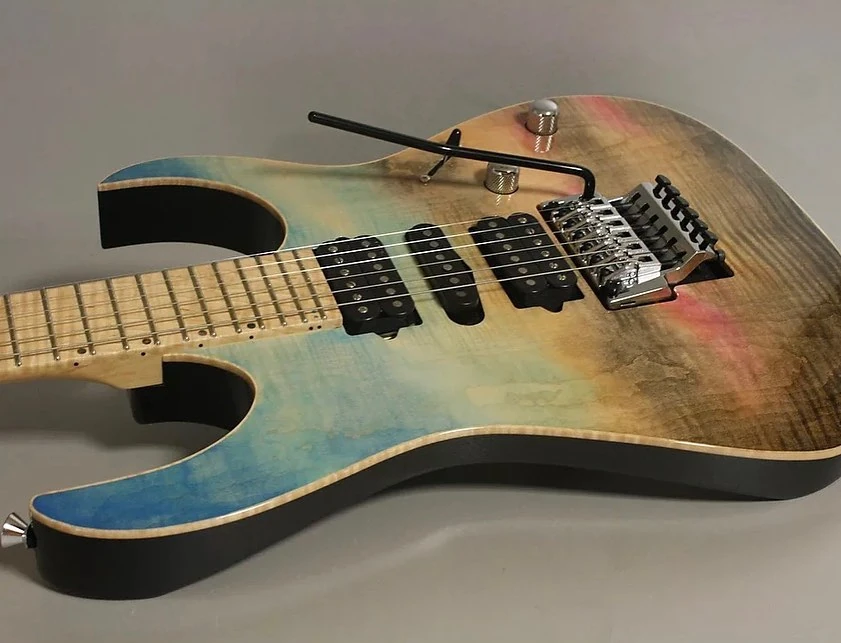

DiMarzio pickups [1]

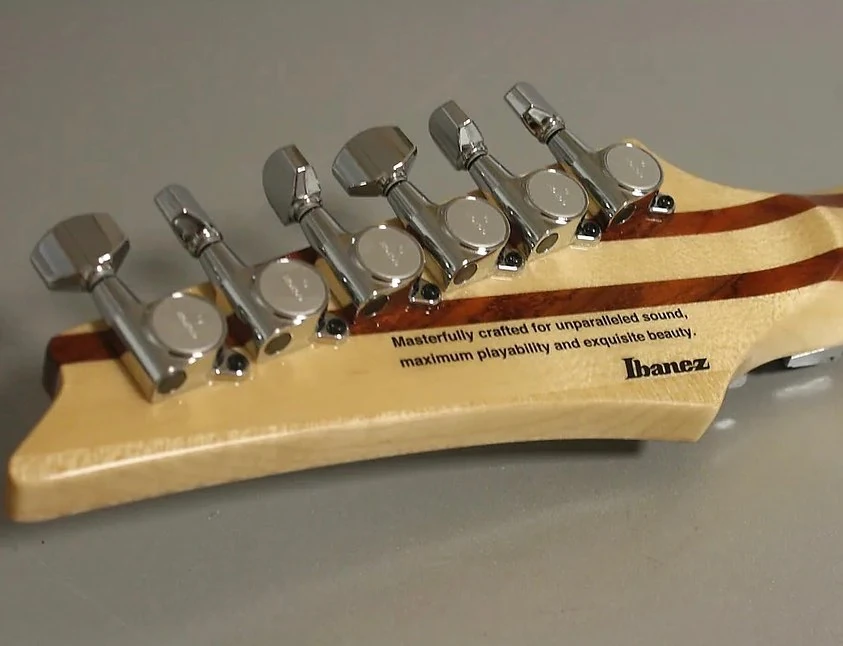

Gotoh SG381 [1]

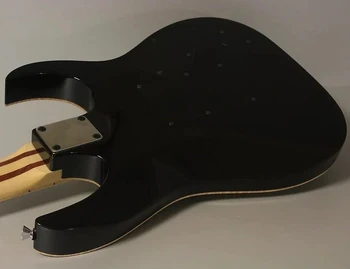

Rear of body [1]
