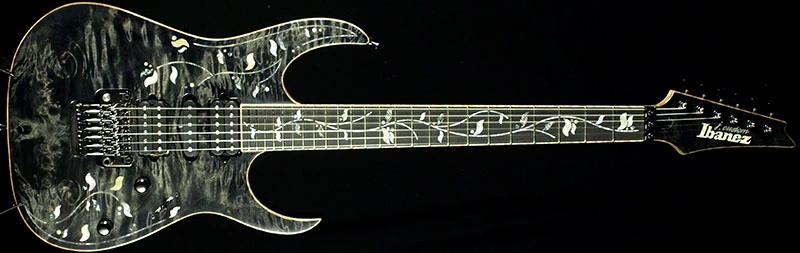

The JCRG1402 is an RG series solid body electric guitar model offered by Ibanez in 2014. It was made in Japan by Sugi as part of the high-end J Custom line. It is very similar to the RG9670Z from 2009.

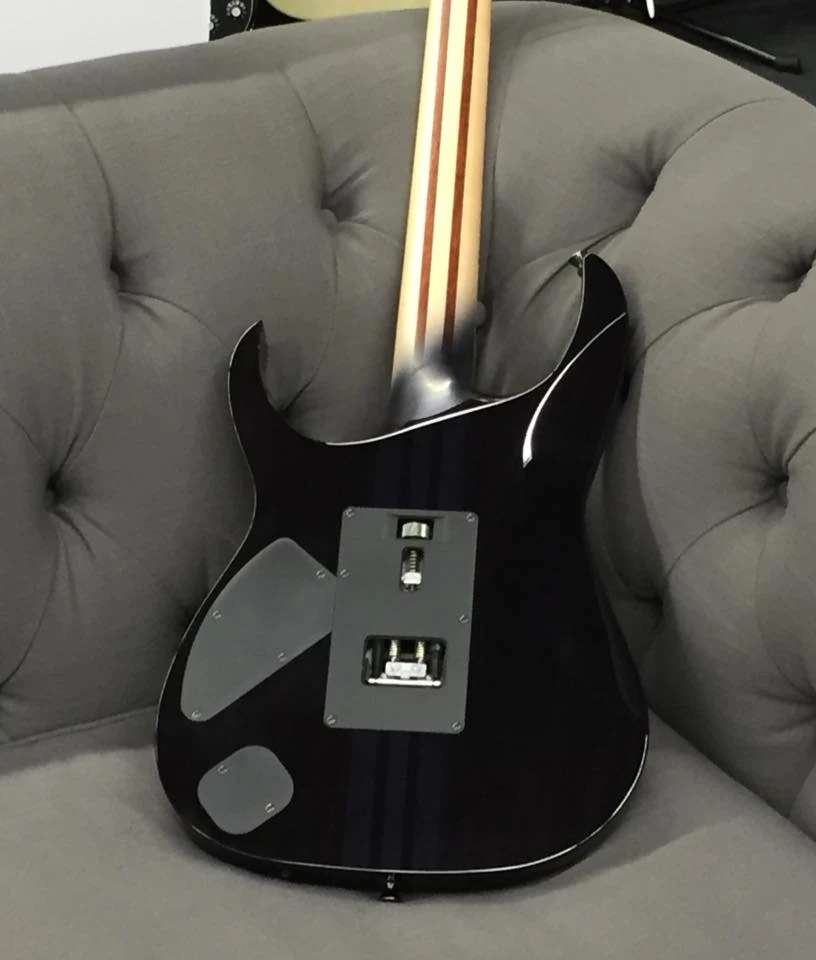

The JCRG1402 features neck-through-body construction with African mahogany wings topped with exotic maple mated to a maple and bubinga neck with a 24-fret maple bound ebony fingerboard with mother of pearl dot position markers. Components include DiMarzio pickups with two humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge, a locking nut, Gotoh Free Lock II strap pins and Gotoh tuning machines.

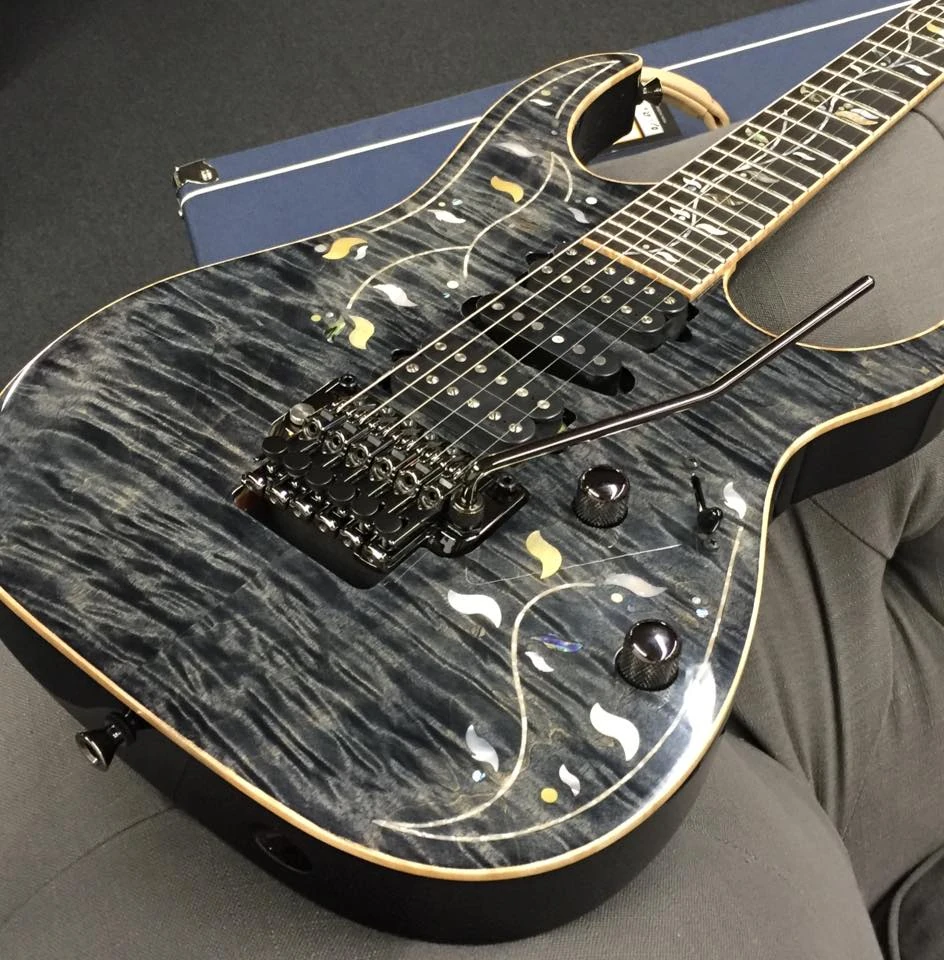

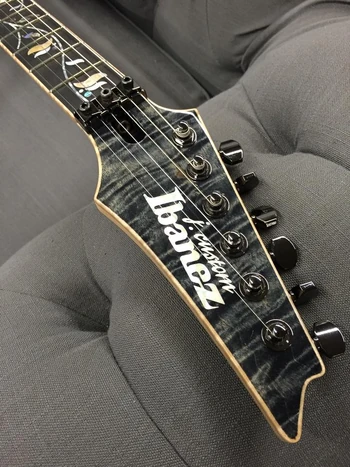

The most striking feature of the JCRG1402 is the vine body inlay matching the inlay on the fingerboard. The headstock has a 2mm thick exotic maple top which is finished to match the body. The serial number is hand printed on the back of the headstock.

The JCRG1402 was offered only in 2014.

Specifications

Specifications for JCRG1402
Year(s) produced: 2014
Sold in: Japan
Made in: Japan
Finish(es): Morion Black (MBK)
Body
Body type:
Solid body
Body material:
40mm thick African mahogany wings w/ 4mm exotic maple top & binding
Neck joint:
Neck-thru
Bridge:
Edge Zero tremolo (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock II
Hardware color:
Cosmo black
Neck
Neck type:
JCRG Super Wizard
Neck material:
5-piece maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony w/ maple binding
Fingerboard inlays:
Tree of Life
Frets:
24 / JESCAR #57110
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
