2013 JCRG13EM-TB

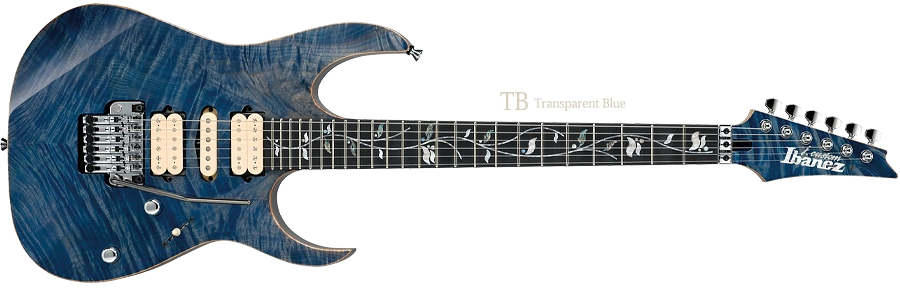

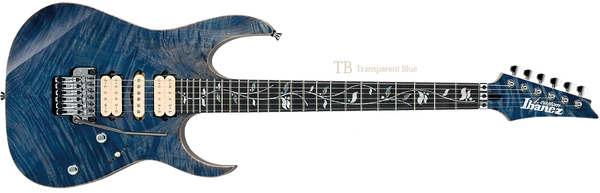

JCRG13EM Transparent Blue (more images) Red copyright sprite

The JCRG13EM is an RG series solid body electric guitar model offered by Ibanez in 2013. It was made in Japan by Sugi as part of the high-end J Custom line.

The JCRG13EM features an African mahogany body topped with an exotic maple top bolted to an asymmetric maple and bubinga neck with a 24-fret ebony fingerboard with Tree of Life inlays. Components include cream-colored DiMarzio pickups with two humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge, a locking nut, Gotoh locking strap pins and Gotoh tuning machines. The neck humbucker is an Air Classic which is wound for the bridge position, but installed reversed for the neck.

The headstock has an exotic maple top which is finished to match the body. The neck is attached with a traditional tilt joint with a stainless steel plate. The serial number is hand printed on the back of the headstock in Sterling silver ink.

The JCRG13BP is a similar model with a burl poplar top. The JCRG13BEM is a similar model with a birds eye maple top. The JCRG13MY is a similar model with a myrtle top.

The JCRG13EM was offered only in 2013.

Specifications

Specifications for JCRG13EM
Model name: JCRG13EM
Year(s) produced: 2013
Sold in: Japan
Made in: Japan
Finish(es): TB (Transparent Blue) / TR (Transparent Red)
Body
Body type:
Solid body
Body material:
40mm thick two-piece African mahogany w/ 4mm exotic maple top
Neck joint:
Tilt Joint
Bridge:
Edge Zero tremolo
Strap buttons:
Gotoh Free Lock II
Hardware color:
Cosmo black
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece maple/ bubinga
Fingerboard material:
Ebony
Fingerboard inlays:
Tree of life
Frets:
24 / JESCAR #57110
Nut:
Barless Top-Lok
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio PAF 36th Anniversary (H)
Middle pickup:
DiMarzio Red Velvet (S)
Neck pickup:
DiMarzio Air Classic bridge (H)
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.009–.042 (D'Addario XL120)
Other available finishes

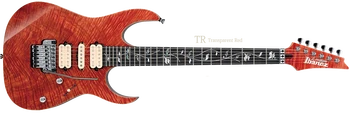

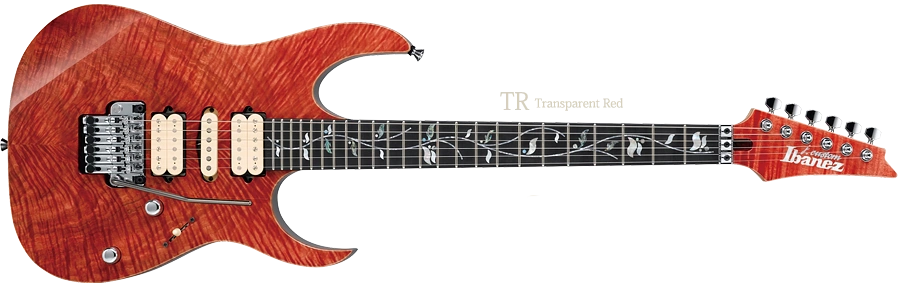

2013 JCRG13EM-TR
Transparent Red

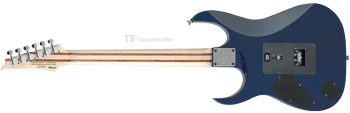

2013 JCRG13EM-TB back
Transparent Blue (back)

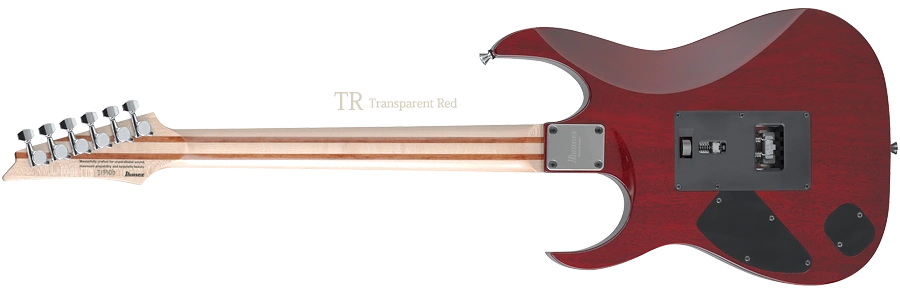

2013 JCRG13EM-TR back
Transparent Red (back)

Sources
