JCRG10-04

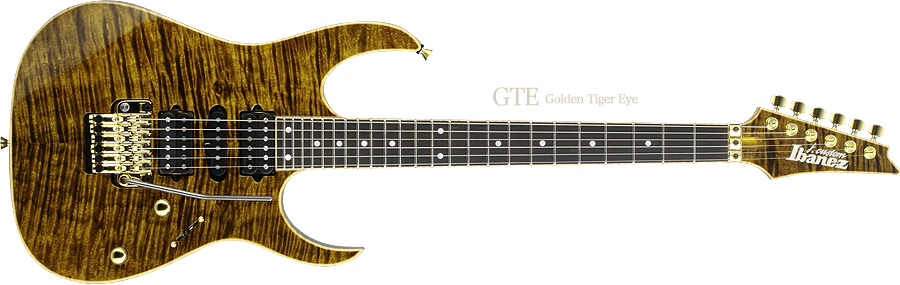

JCRG10-04 Golden Tiger Eye Red copyright sprite

The JCRG10-04 is an RG series solid body electric guitar model offered by Ibanez in 2010. It was made in Japan by Sugi as one of six special models introduced in 2010 in the high-end J Custom line.

The JCRG10-04 features neck-through-body construction with African mahogany wings and an exotic curly maple top mated to a maple and bubinga neck with an asymmetric profile and a 24-fret maple-bound ebony fingerboard with mother of pearl dot position markers. Components include DiMarzio pickups with two humbuckers flanking a single-coil, an Edge Zero double locking tremolo bridge with a removable zero-point system tuning stabilizer, a locking nut, Free Lock II strap pins and Gotoh tuning machines.

The headstock has a 2mm thick exotic quilted maple top which is finished to match the body. The serial number is hand-written on the back of the headstock using pure gold/ sterling silver ink.

The JCRG10-01 and JCRG10-02 are related models with Eastern curly maple tops and, respectively, chrome or gold hardware. The JCRG10-03 is a related model with a AAAAA quilted maple top and cosmo black hardware. The JCRG10-05 and JCRG10-06 are related models with exotic quilted maple tops and gold or chrome hardware, respectively.

The JCRG10-04 was offered only in 2010.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG10-04
Model name: JCRG10-04
Year(s) offered: 2010
Sold in: Japan
Made in: Japan
Price: MSRP: ¥600,000
Finish(es): Golden Tiger Eye (GTE)
Body
Body type:
Solid body
Body material:
40mm thick African mahogany wings w/ 4mm exotic curly maple top & binding
Neck joint:
Neck-thru
Bridge:
Edge Zero tremolo w/ ZPS3 stabilizer (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock II
Hardware color:
Gold
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony w/ maple binding
Fingerboard inlays:
Mother of pearl dot
Frets:
24 / Jim Dunlop #6100 nickel silver
Nut:
Barless Top-Lok (43mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)

Sources[]

  • JCRG10-04 product page, Ibanez Japan, archived February 2012
