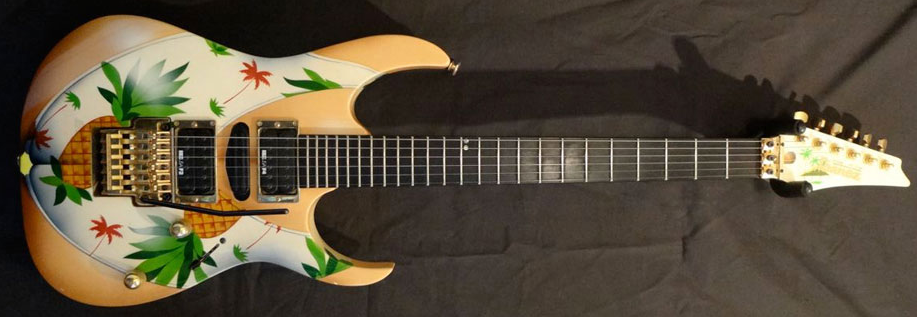

1997 JCRG-SS 1
JCRG-SS (more images) Red copyright sprite

The JCRG-SS is an RG series solid body electric guitar model introduced by Ibanez in 1997. It was made in Japan by FujiGen as part of the high end J Custom line. The JCRG-SS was a spot model available only through select Japanese retailers. It is also known as the JCRG-Swimsuit or just the RG-Swimsuit.

The most striking feature of the JCRG-SS is the painted swimsuit design which wraps around the entire guitar. There are six or seven swimsuit designs each with just one or two examples produced.

The JCRG-SS utilizes a neck through body construction with mahogany wings attached to a maple neck with a 24-fret ebony fingerboard with offset abalone dot position markers at the twelfth fret. Components include DiMarzio pickups with a pair of humbuckers flanking a single-coil, a Lo-Pro Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

The JCRG-SS was produced only in 1997.

Specifications

Specifications for JCRG-SS
Model name: JCRG-SS
Year(s) produced: 1997
Sold in: Japan
Made in: Japan
Body
Body type:
Solid body
Body material:
Mahogany (?) wings
Neck joint:
Neck-thru
Bridge:
Lo-Pro Edge tremolo
Hardware color:
Gold
Neck
Neck type:
RG J Custom
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Offset abalone dots at 12th fret
Frets:
24 / jumbo (SBB216-195)
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HSH
Bridge pickup:
IBZ/USA F4 (H)
Middle pickup:
unidentified rails type humbucker
Neck pickup:
IBZ/USA F2 (H)
Controls:
Master volume / master tone / 5-way lever

Images

Additional images

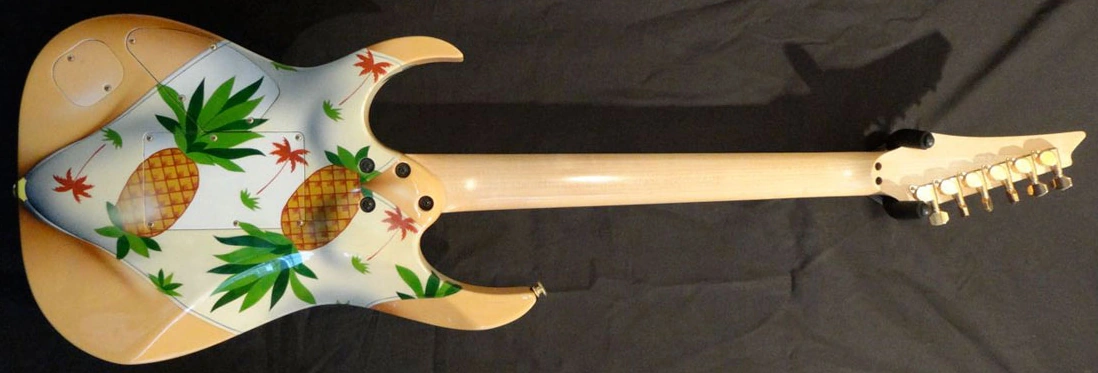

1997 JCRG-SS 1 rear
Back of guitar
Wimage An image for this article is missing!
An image of the JCRG-SS (mulitple designs) is wanted for this article. You can help by finding, uploading and adding it!
