2000 JCRG-5 VV
JCRG-5 Vintage Violin Red copyright sprite

The JCRG-5 is an RG series solid body electric guitar introduced by Ibanez in 2000. It was made in Japan by FujiGen as part of the J Custom series.

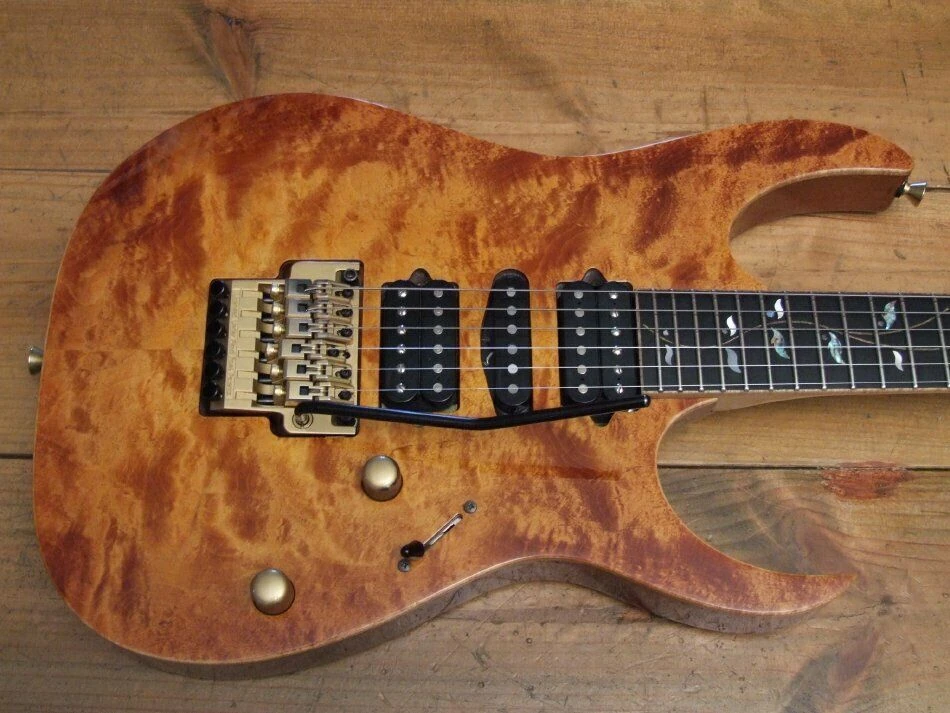

The JCRG-5 features a mahogany body with a AAA flame maple top bolted to a maple and bubinga neck with a 24-fret ebony fingerboard with white binding and abalone Tree of Life inlays. Components include DiMarzio pickups with a pair of humbuckers flanking a single-coil, a Lo-Pro Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines.

The JCRG-5 was discontinued after 2001.

Specifications

Specifications for JCRG-5
Year(s) produced: 2000–2001
Sold in: Japan
Made in: Japan
Finish(es): Vintage Violin (VV)
Body
Body type:
Solid body
Body material:
Mahogany w/ AAA flame maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo
Hardware color:
Cosmo gold
Neck
Neck type:
Super Wizard
Neck material:
5-piece maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony w/ white binding
Fingerboard inlays:
Abalone Tree of Life
Frets:
24 / custom jumbo (SBB216-195)
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Tone Zone (H)
Middle pickup:
DiMarzio Blue Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever

Sources

  • JCRG-5, Ibanez Register (website), archived July 2007
