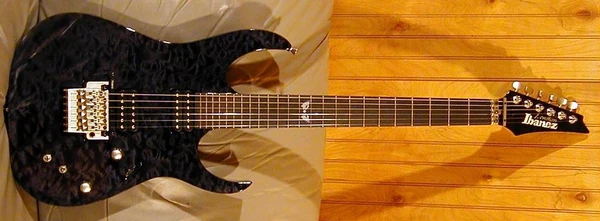

2001 JCRG-21A TK
JCRG-21A Transparent Black (more images) Red copyright sprite

The JCRG-21A is an RG series solid body electric guitar introduced by Ibanez in 2001. It was made in Japan by FujiGen as part of the high end J Custom line.

The JCRG-21A features neck-through construction with mahogany body wings with a quilted maple top attached to a maple and bubinga neck with a 24-fret ebony fingerboard with a special diamond with wings (or two birds kissing?) inlay at the twelfth fret. Components include a pair of DiMarzio PAF Pro humbucking pickups, a Roland GK synth Divided Pickup, a Lo-Pro Edge double locking tremolo bridge with a locking nut and Gotoh tuning machines. It has both standard ¼" and Roland 13-pin outputs.

The JCRG-21B is a model with similar specs but with a chambered bubinga body with spruce top.

The JCRG-21A was discontinued after just one year in production.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for JCRG-21A
Model name: JCRG-21A
Year(s) offered: 2001
Sold in: Japan
Made in: Japan
Finish(es): Transparent Black (TK) ?
Body
Body type:
Solid body
Body material:
Mahogany wings w/ quilted maple top
Neck joint:
Neck-thru
Bridge:
Lo-Pro Edge tremolo
Hardware color:
Cosmo white
Neck
Neck type:
Super Wizard
Neck material:
5-piece maple/ bubinga
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Special inlay at 12th fret
Frets:
24 / jumbo (SBB216-195)
Nut:
Top-Lok III
Machine heads:
Gotoh SG38
Electronics
Pickup configuration:
HH + Roland GK synth
Bridge pickup:
DiMarzio PAF Pro (H)
Neck pickup:
DiMarzio PAF Pro (H)
Controls:
Master volume (magnetic & synth) / master tone (magnetic) / 5-way lever pickup selector (magnetic) / 3-way toggle output selector (magnetic/ mix/ synth) / Synth program bank up/down switch

Images[]

Additional details

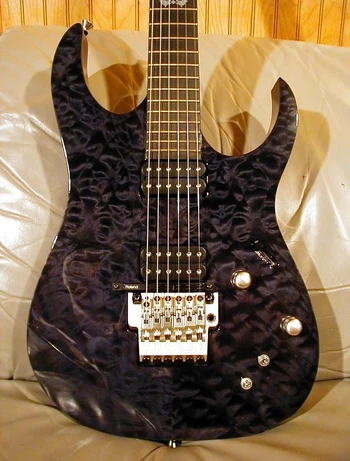

JCRG-21A front
Front of body

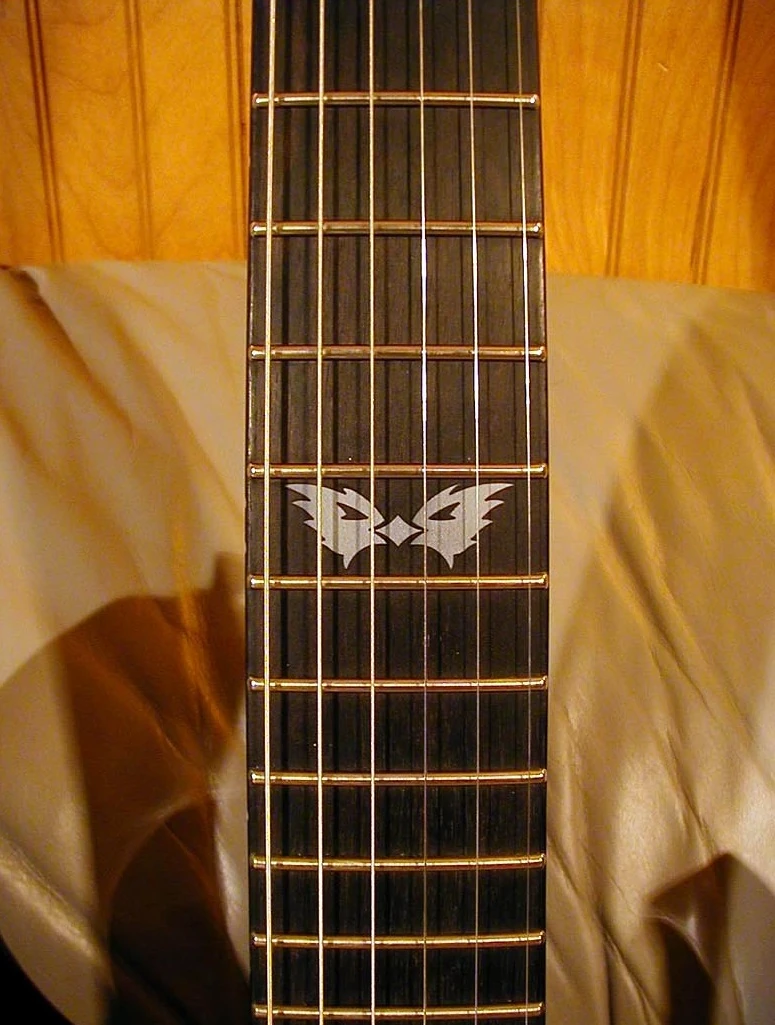

JCRG-21A inlay
12th fret inlay

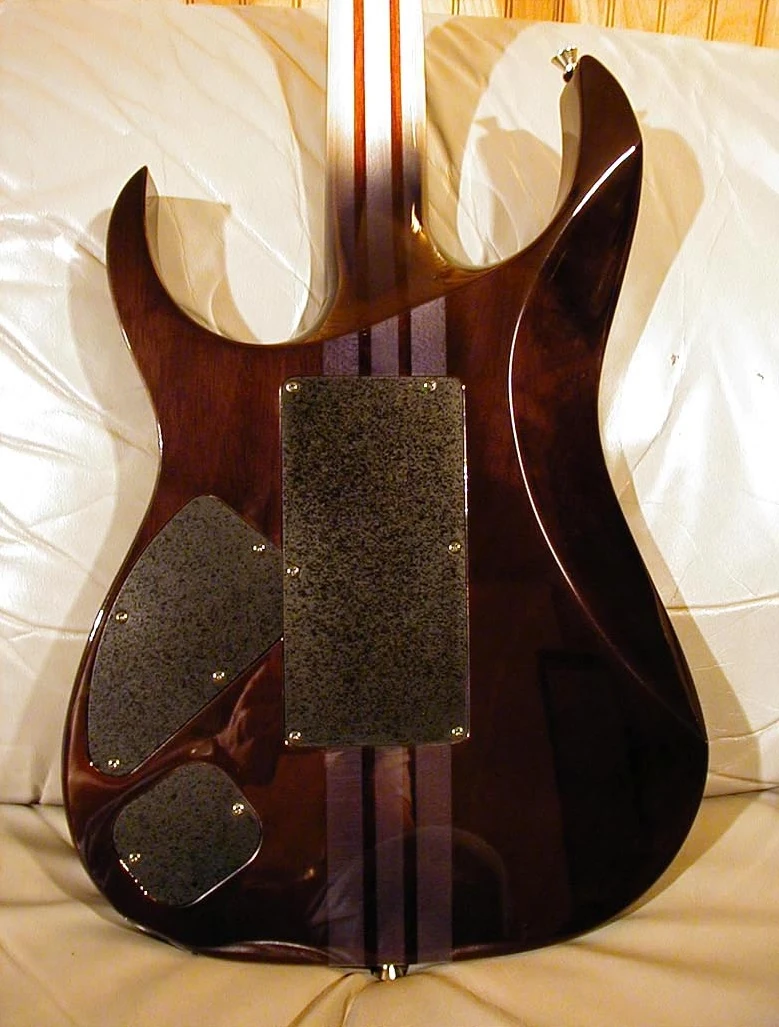

JCRG-21A rear
Rear of body

Sources[]

  • JCRG-21A, J-Custom Fan (website), archived August 2011
