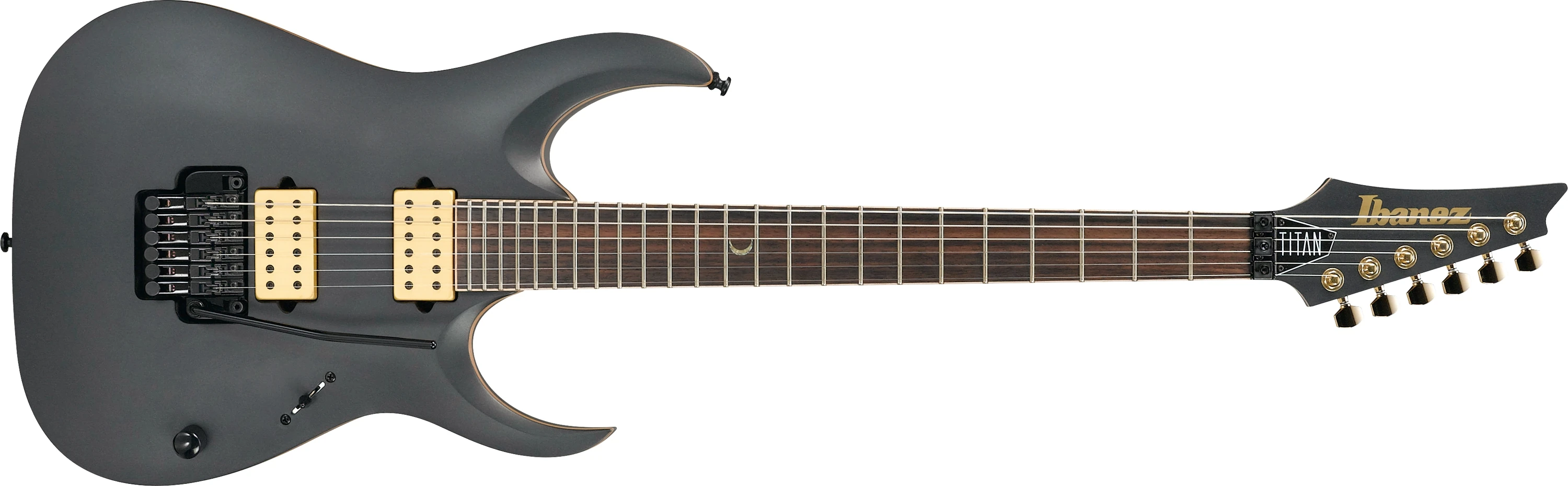

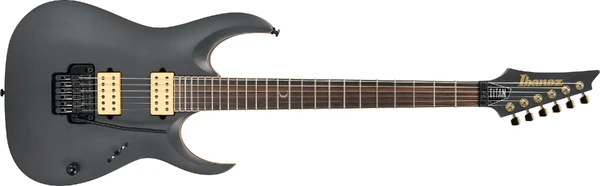

The JBM20 is a solid body electric guitar introduced by Ibanez in 2016. It is a Signature guitar of Jake Bowen of the American progressive metal band Periphery. The JBM20 was made in Indonesia and is based on the RGA series.

It is as a mass-market version of Bowen's original signature guitar, the Prestige JBM100.

The JBM20 features a mahogany body with a maple top bolted to a maple Wizard III neck with a 24-fret rosewood fingerboard with binding and a special crescent moon inlay at the 12th fret. Components include an Edge II double locking tremolo bridge, dual DiMarzio Titan humbucking pickups controlled by a 5-way selector, a locking nut and locking Gotoh machineheads.

Differences from the JBM100 include the bridge, neck and fingerboard wood species and tuning machines, but the body style with reversed headstock, finish and signature DiMarzio pickups are retained.

The JBM27 is a seven-string version of this guitar.

The JBM20 was discontinued after 2017.


Specifications for JBM20
Model name: JBM20
Year(s) produced: 2016–2017
Sold in: Worldwide
Made in: Indonesia
Finish(es): Metallic matte
Body type:
Solid body
Body material:
Mahogany w/ maple top
Neck joint:
Edge Zero II tremolo
Hardware color:
Black (gold machineheads)
Neck type:
Wizard III
Neck material:
3-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood w/ binding
Fingerboard inlays:
Special crescent moon inlay on 12th fret
24 / jumbo
Barless Top-Lok
Machine heads:
Gotoh SG381 MG-T locking
Electronics/ Strings
Pickup configuration:
Bridge pickup:
DiMarzio Titan (H) passive/ ceramic
Neck pickup:
DiMarzio Titan (H) passive/ ceramic
Master volume / 5-way lever pickup selector
String gauge (factory):
Factory tuning:
1D 2A 3F 4C 5G 6C (Drop C)
