JBM100
JBM100 Red copyright sprite

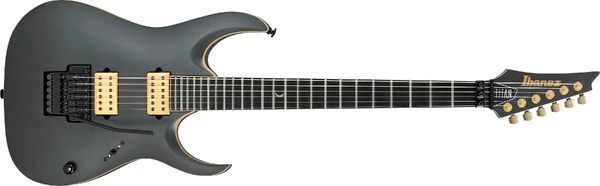

The JBM100 is a solid body electric guitar introduced by Ibanez in 2014. It is a Signature guitar of Jake Bowen of the American progressive metal band Periphery. The JBM100 was made in Japan by FujiGen and is based on the RGA series.

The JBM100 features a mahogany body with maple top bolted to a custom neck with a reversed headstock and a 24-fret ebony fingerboard with binding and a special crescent moon inlay at the 12th fret. Components include dual custom DiMarzio humbucking pickups, a Lo-Pro Edge double locking tremolo bridge, a locking nut and Sperzel locking tuning machines.

In mid-2015 the three-piece maple and bubinga neck was replaced by a five-piece maple and walnut construction. For 2019 the body material was clarified to be African mahogany.

The JBM100 was joined in 2016 by two new Jake Bowen signature models: the JBM20 and the seven-string JBM27, both of which are produced in Indonesia.

The JBM100 was discontinued after 2020. Another Japanese-made model for Bowen, the JBM9999 was introduced in mid-2000.

Specifications[]

Specifications for JBM100
Model name: JBM100
Year(s) offered: 2014–2020
Sold in: Worldwide
Made in: Japan
Finish(es): Gray
Body
Body type:
Solid body
Body material:
2014–2018: Mahogany w/ maple top
2019–2020: African mahogany w/ maple top
Neck joint:
AANJ
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 knurled metal dome (black)
Hardware color:
Black (gold machine heads)
Neck
Neck type:
JBM
Neck material:
2014–2015: 3-piece maple/ bubinga
2015–2020: 5-piece maple/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Special JBM inlay at 12th fret
Frets:
24 / jumbo (Prestige edge treatment)
Nut:
Top-Lok III
Machine heads:
Sperzel Trim-Lok
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
DiMarzio Titan (H) passive/ ceramic
Neck pickup:
DiMarzio Titan (H) passive/ ceramic
Controls:
Master volume / 5-way lever pickup selector
String gauge (factory):
.011/.014/.019/.032/.044/.056
Factory tuning:
1D,2A,3F,4C,5G,6C (Drop C)

Images[]

Additional information/ details
201412 JakeBowen JBM100 ad
JBM100 print advertisement
2020 JBM100 00 03 back
Rear of body
2-Hum 5-way parallel-neck
Pickup switching
Controls V5
Controls layout
