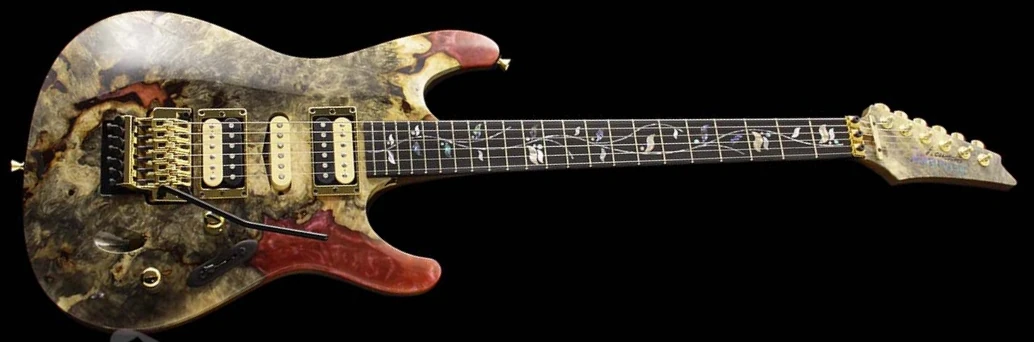

2020 IKJCS45th RedResin.jpg
IKJCS45th Natural/ Red Resin (more images) Red copyright sprite.png

The IKJCS45th is an S series solid body electric guitar model introduced by Ibanez for 2020. It is a J Custom model made in Japan by Sugi as a spot model to commemorate the 45th anniversary of Japanese retailer Ikebe Gakki.

The IKJCS45th features a buckeye burl top which has had its voids filled with either red or blue resin on an African mahogany body mated to a set-in African mahogany neck with a 22-fret ebony fingerboard with abalone and mother of pearl Tree of Life inlay. The headstock features the same buckeye burl as the body and has an abalone logo and the neck shares the slightly thicker profile of the AT100 (Andy Timmons signature). Components include DiMarzio pickups with pair of black & cream zebra humbuckers flanking a single-coil, an Edge double locking tremolo bridge with a locking nut, Gotoh tuning machines, African mahogany rear cavity covers, and Gotoh knurled metal knobs.

Specifications

Specifications for IKJCS45th
Model name: IKJCS45th
Year(s) produced: 2020
Sold in: Japan
Made in: Japan
Finish(es): Natural w/ blue resin / Natural w/ red resin
Body
Body type:
Solid body
Body material:
African mahogany w/ resin-filled buckeye burl top
Neck joint:
Set-in
Bridge:
Edge tremolo (10.8mm string spacing)
Knob style:
Gotoh VK1-19 (knurled metal dome)
Hardware color:
Gold
Neck
Neck type:
AT100 profile
Neck material:
1-piece African mahogany
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony w/ binding
Fingerboard inlays:
Abalone & mother of pearl Tree of Life
Frets:
22 / Jescar FW55090 (J Custom edge treatment)
Nut:
Top-Lok III
Machine heads:
Gotoh SG381 (non-locking)
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Air Zone (H)
Middle pickup:
DiMarzio Area '67 (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel angled face mount
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

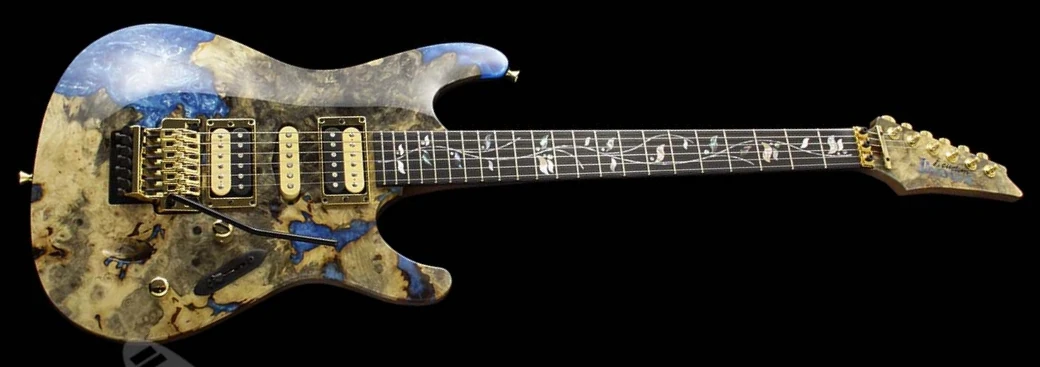

2020 IKJCS45th BlueResin.jpg
2020 Ibanez IKJCS45th Natural w/ blue resin Red copyright sprite.png
Additional details
IKJCS45th rear.jpg

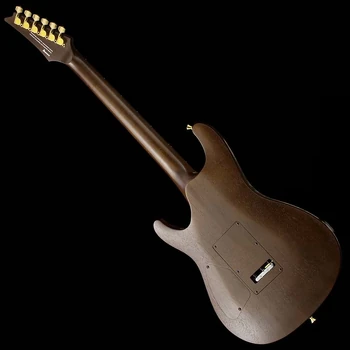

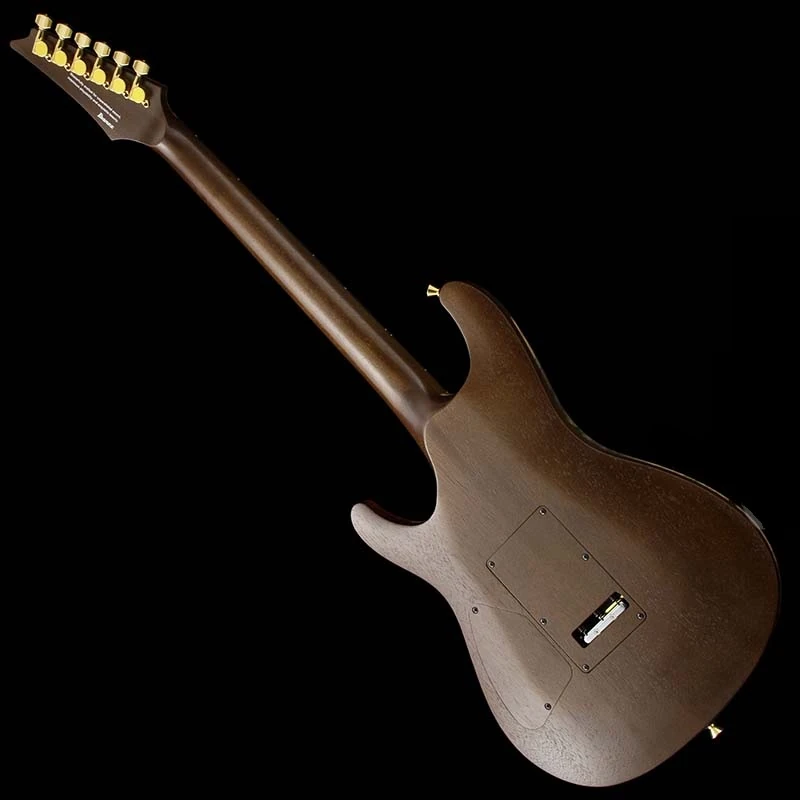

Rear of body
IKJCS45th headstock.jpg

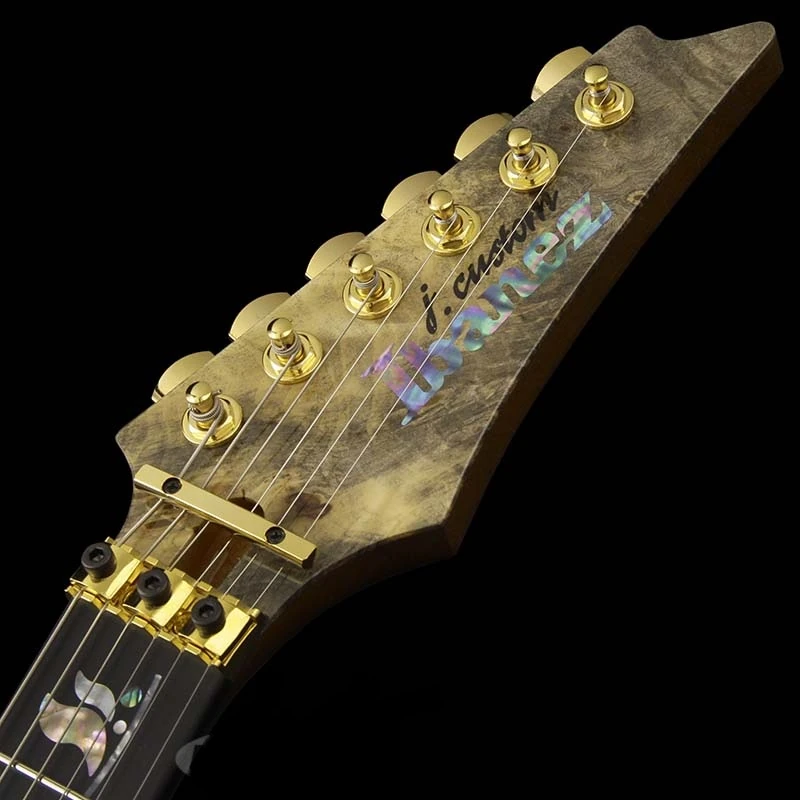

Headstock
HSH 5-way both-splits.png
Pickup switching
Controls VT5.png
Control layout
