2019 IJV30 NT 3U 05

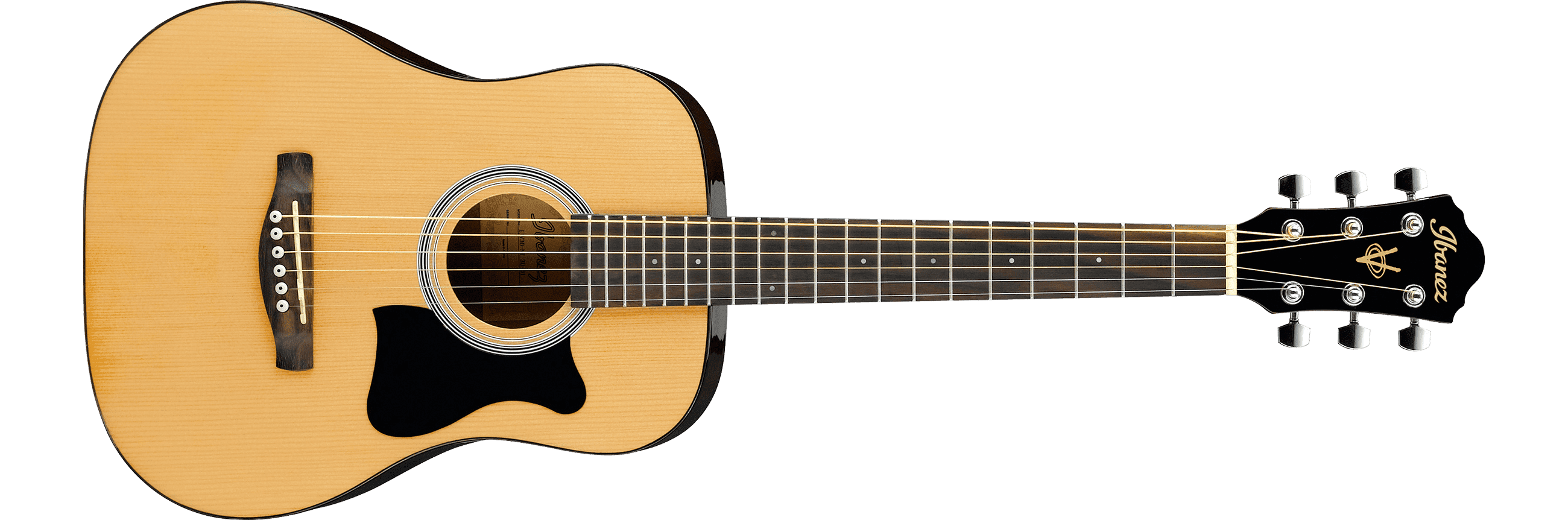

IJV30 Natural High Gloss (more images) Red copyright sprite

The IJV30 is a Jampack series ¾-sized acoustic guitar kit introduced by Ibanez in mid 2010. It is made in China. It includes a V30 guitar along with a gig bag, strap, chromatic tuner, accessory pouch and plectrums.

The V30 features a ¾ dreadnought body with a laminated spruce top on agathis back and sides. The round soundhole has a black and white decal rosette and a black pickguard. The mahogany neck has a 20-fret rosewood fingerboard with white dot position markers. Components include a compensated Ivorex II saddle in a rosewood bridge with ivory Ibanez Advantage bridge pins, an Ivorex II nut, a black pickguard, and chrome Ibanez covered tuning machines.

For 2013 the Ivorex II nut and saddle were replaced with plastic. For 2016 the body size was changed. For 2018 the rosewood fretboard and bridge were replaced with nandu wood. For 2019 the neck was changed from mahogany to nyatoh.

The IJV50 is a similar full-sized model. The IJC30 is a similar model with a grand concert body.

Specifications

Specifications for IJV30
Name: IJV30 / V30
Years: 2010–2020
Sold in: USA
Made in: China
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
¾ dreadnought
Dimensions:
  Length: 2010–2015: 445mm/ 17½"
                2016–2020: 394mm/ 15½"
  Width: 2010–2015: 349mm/ 13¾"
                2016–2020: 321mm/ 12⅝"
  Depth: 2010–2015: 83mm/ 3¼"
                2016–2020: 105mm/ 4⅛"
Top:

  Material: Spruce (laminated)
  Bracing: X
  Finish: Gloss
  Binding: Black

Back/sides:

  Material: 2010–2019: Agathis
2020: Meranti
  Finish: Gloss

Soundhole shape:
Round
Soundhole rosette:
Black & white water slide decal
Neck
Neck profile:
Neck material:
2010–2018: 1-piece mahogany
2019–2020: 1-piece nyatoh
Scale length:
579mm/ 22.8"
Fingerboard:
2010–2017: Rosewood
2018–2020: Nandu wood
Inlays:
White dot
Frets:
20
Nut:
2010–2012: Ivorex II
2013–2020: Plastic (43mm)
Machine heads:
Ibanez covered
Components
Bridge:
2010–2017: Rosewood
2018–2020: Nandu wood (11mm string spacing)
Bridge pins:
Ibanez Advantage (ivory w/ black dot)
Saddle:
2010–2012: Ivorex II compensated
2013–2020: Plastic compensated
Hardware color:
Chrome
Pickguard:
Black
Strings (factory):
.012/.016/.024/.032/.042/.053
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

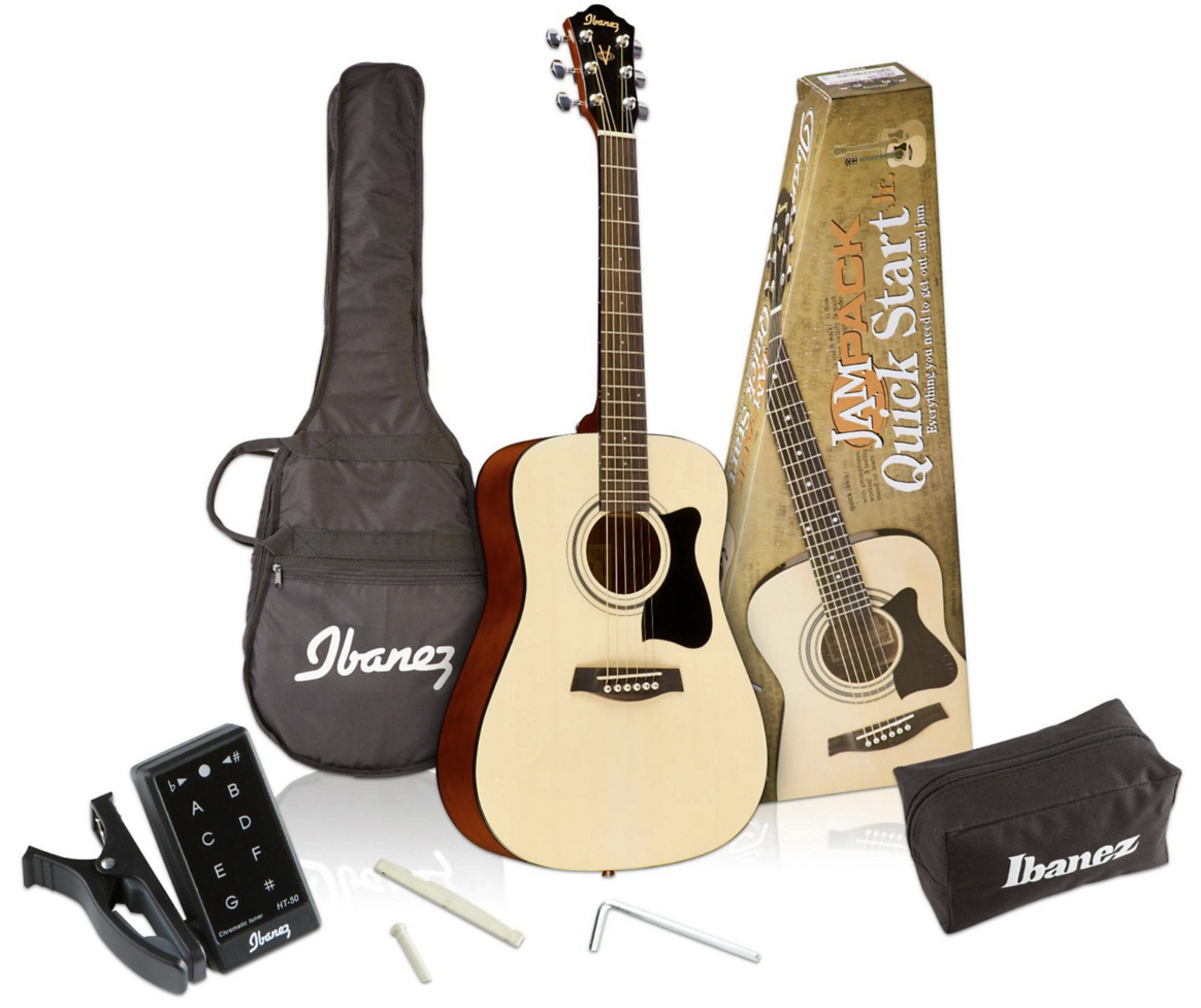

2019 IJV30 package
Jampack contents Red copyright sprite

Sources
