2021 IJSR190N MLB 5Y 01.png

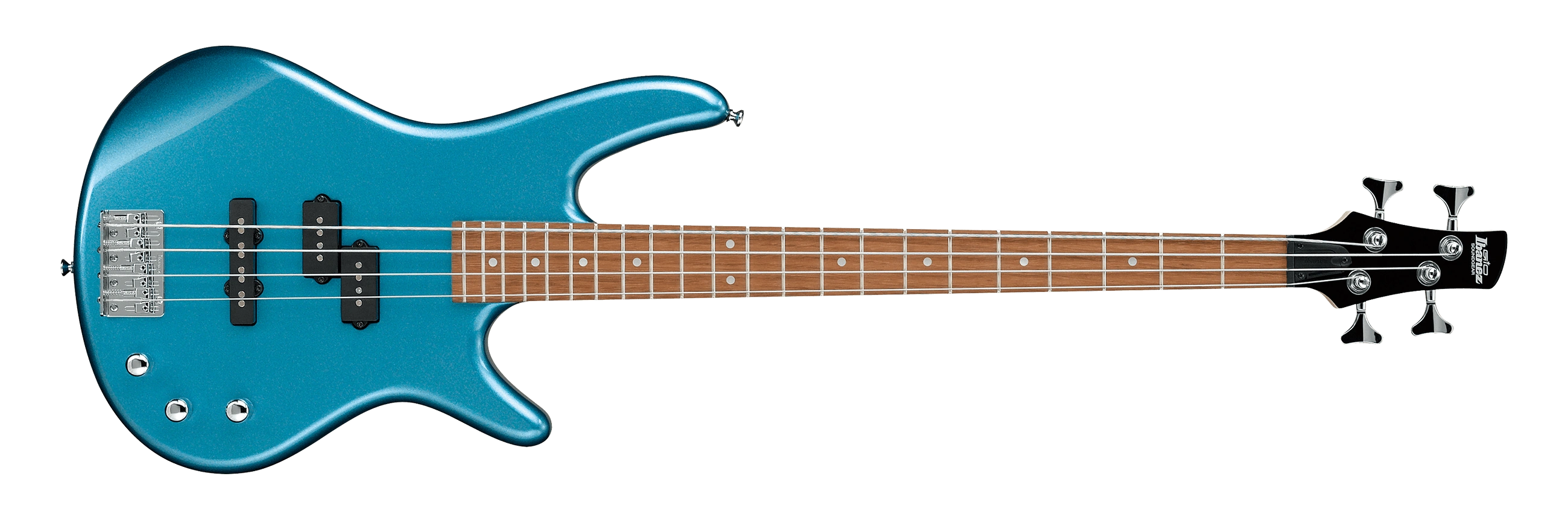

IJSR190N Metallic Light Blue (more images) Red copyright sprite.png

The IJSR190N is a Soundgear series solid body electric bass package including a GSR190 bass which was introduced by Ibanez for 2021. It is made in China as part of the GIO line.

The GSR190 features a double-cutaway poplar body bolted to a maple neck with a 22-fret jatoba fingerboard with white dot position markers. Components include a pair of Ibanez Dynamix passive pickups with a Jazz pickup at the bridge and a Precision pickup at the neck, a B10 bridge with 19mm string spacing, a plastic nut and Ibanez tuning machines.

The IJSR190 is a similar model sold in other markets.

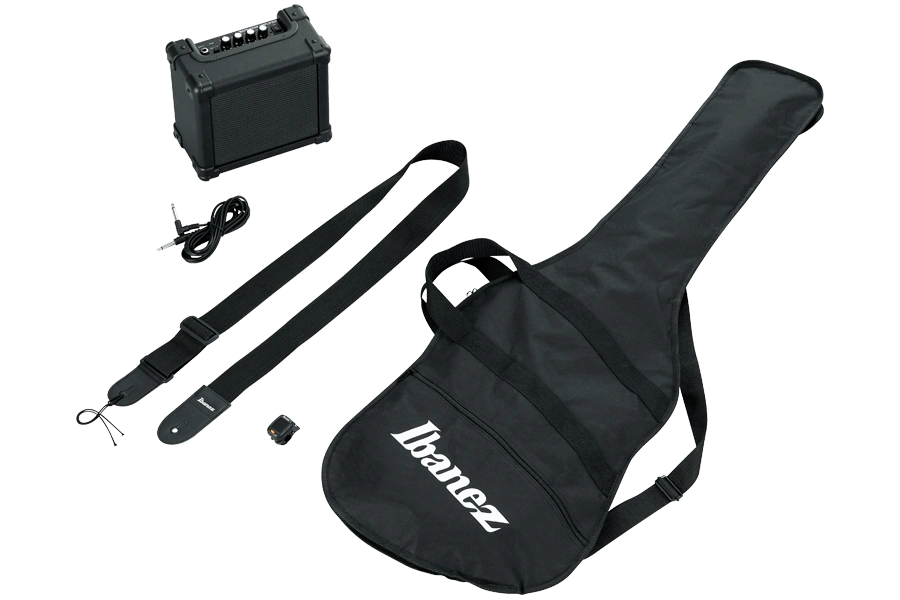

In addition to the GSR190 bass, the package also includes a small 10 watt combo amp, a gig bag, a strap and a few other pieces.

Specifications

Specifications for IJSR190N
Model name: IJSR190N
Year(s) produced: 2021
Sold in: USA
Made in: China
Finish(es): Black Night (BKN) / Metallic Light Blue (MBL) / Red (RD) / Walnut Sunburst (WNS)
Body
Body type:
Solid body
Body material:
Poplar
Neck joint:
AANJ
Bridge:
B10 (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
GSR4
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Jatoba
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Plastic (41mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Dynamix J bridge (J) passive
Neck pickup:
Ibanez Dynamix P neck (P) passive
Controls:
Two volumes / Master tone
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)
Portal: GIO series | SR series | Bass models Models-icon.png

Images

Additional finishes/ details
2021 IJSR190N BKN 5Y 01.png

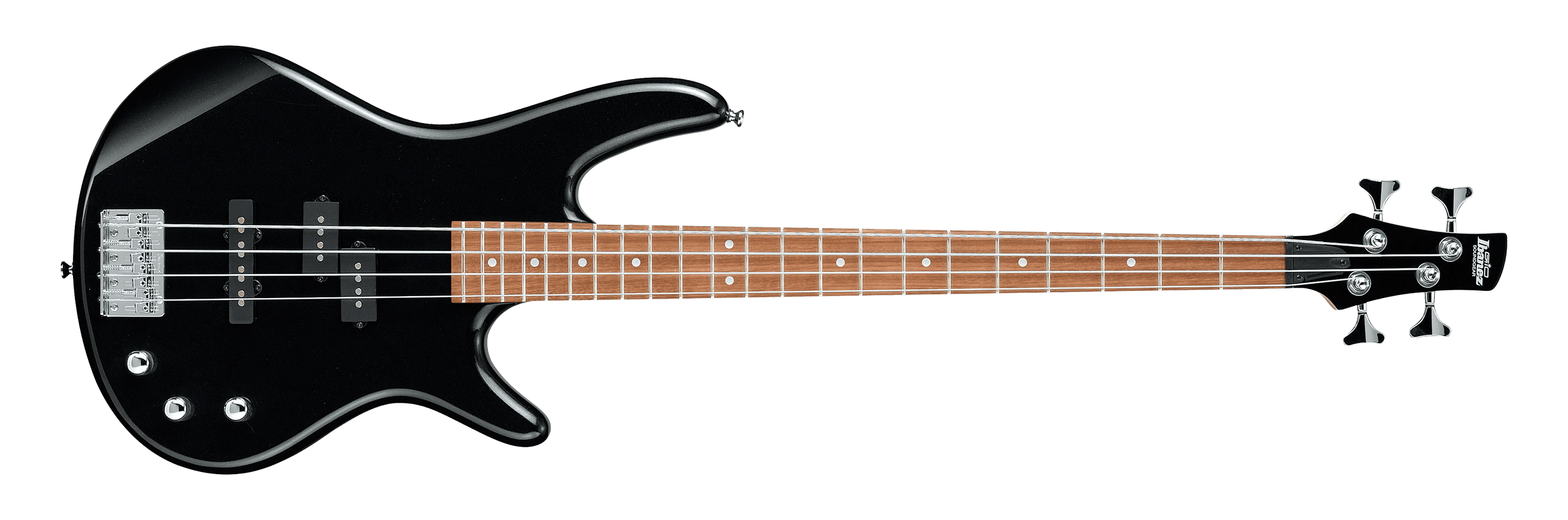

Black Night
2021 IJSR190N RD 5Y 01.png

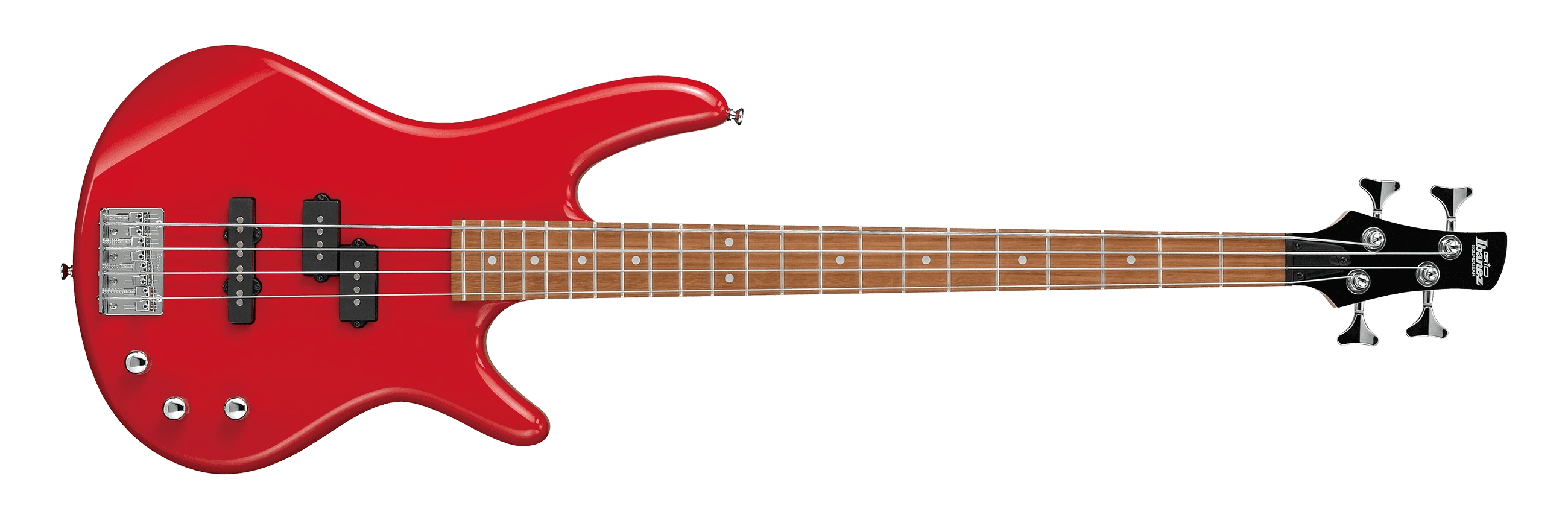

Red
2021 IJSR190N WNS 5Y 01.png

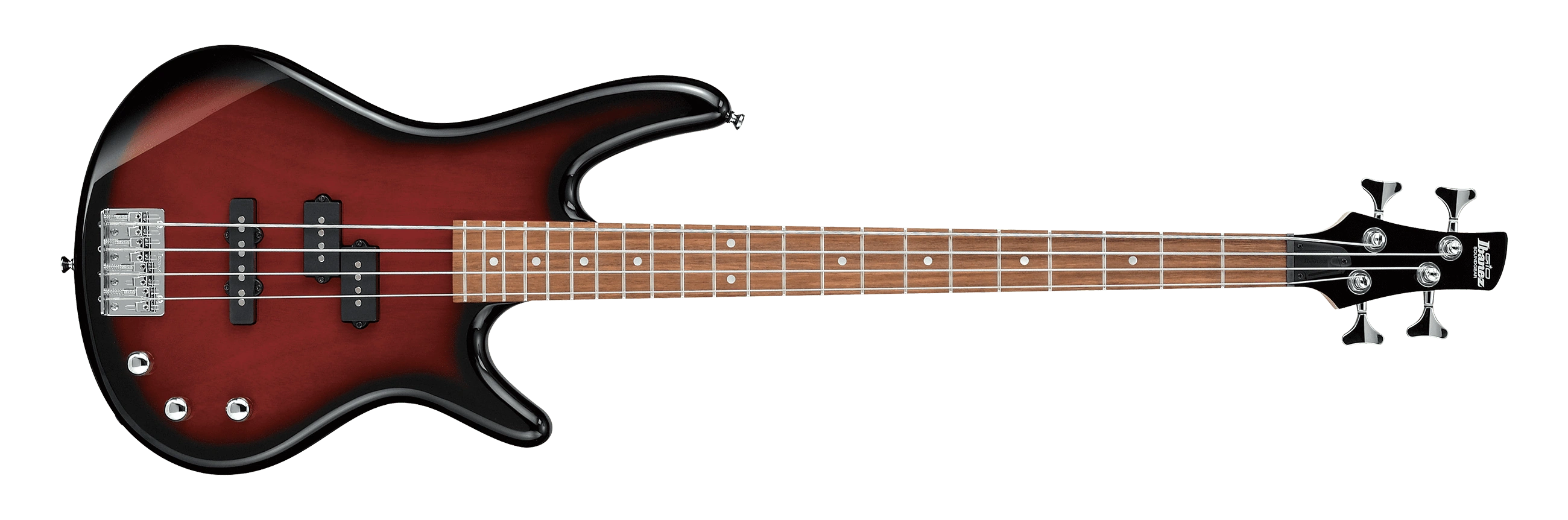

Walnut Sunburst
2021 IJSR190N kit contents.png

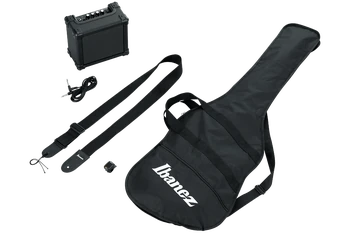

Contents of kit
Controls 2VT GSR.jpg
Controls layout
