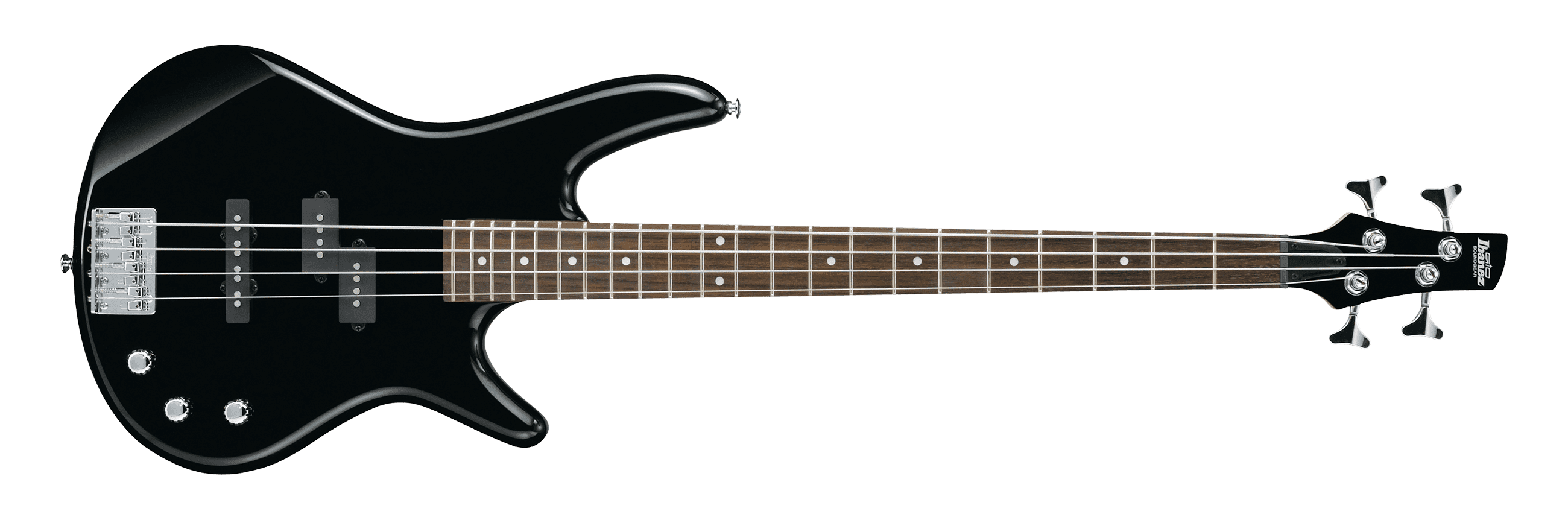

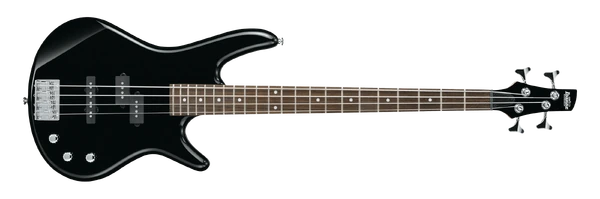

2019 IJSR190U BK 2Y 05
IJSR190 Black (more images) Red copyright sprite

The IJSR190 (known in the US market as the IJXB150B) is a Soundgear series solid body electric bass package including a GSR190 bass which was introduced by Ibanez in 2013. It is made in China as part of the GIO line. It is also referred to as the IJSR190E or IJSR190U.

The GSR190 features a double-cutaway poplar body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers. Components include a pair of Ibanez standard passive pickups with a Jazz pickup at the bridge and a Precision pickup at the neck, a B10 bridge with 19mm string spacing, a plastic nut and Ibanez tuning machines.

For 2018 the rosewood fingerboard was replaced with treated New Zealand pine.

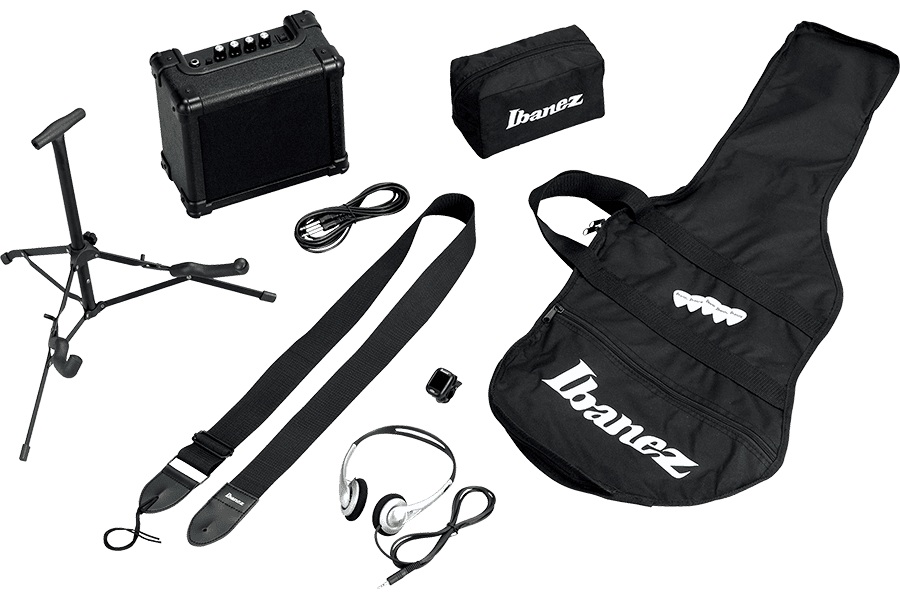

In addition to the GSR190 bass, the package also includes a small 10 watt combo amp, an instrument stand, a gig bag, a strap and a few other pieces.

Specifications

Specifications for IJSR190
Model name: IJSR190 / IIJSR190E / IIJSR190U / IJXB150B / GSR190
Year(s) produced: 2013–2020
Sold in: Asia / China / Europe / North & South America and Oceania 2013 / USA
Made in: China
Finish(es): Black (BK) / Metallic Purple (MPL) 2013 / Red (RD) 2013–2017 / Silver (SV) 2013 / Starlight Blue (SLB) 2013–2017 / Walnut Sunburst (WNS) 2015–2020
Body
Body type:
Solid body
Body material:
Poplar
Neck joint:
AANJ
Bridge:
B10 fixed (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
IJXB4
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
2013–2017: Rosewood
2018–2020: Treated New Zealand pine
Fingerboard inlays:
White dot
Frets:
22 / medium
Nut:
Plastic (41mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Standard J (J) passive
Neck pickup:
Ibanez Standard P (P) passive
Controls:
2 volume / 1 tone
Battery:
9V
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E

Images

Additional finishes/ details

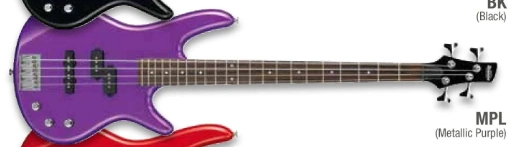

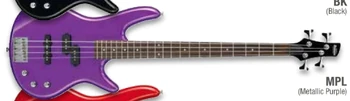

2013 IJXB150B MPL
Metallic Purple

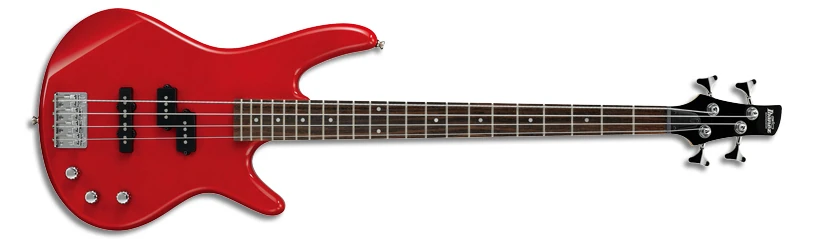

2013 GSR190 RD 4H 01
Red
2013 IJXB150B SV
Silver
2013 IJXB150B SLB
Starlight Blue

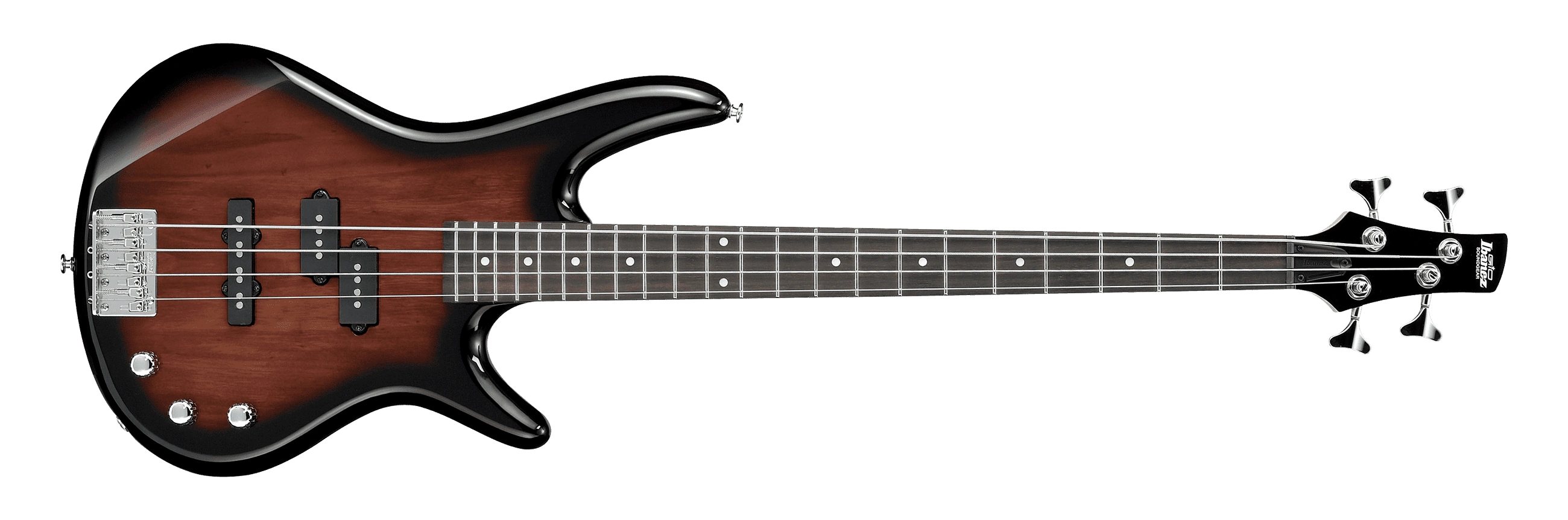

2019 IJSR190U WNS 2Y 05
Walnut Sunburst

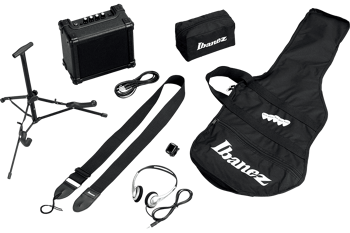

2019 IJSR190 kit
Contents of kit
Controls 2VT GSR
Controls layout
