2002 GSR190-TR

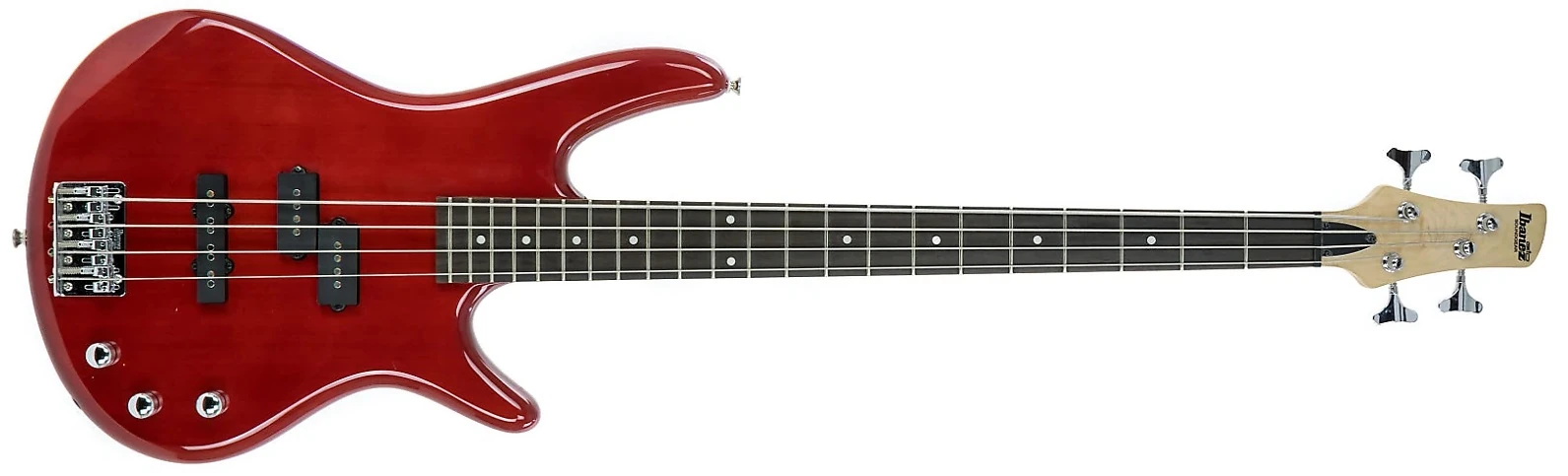

IJSB190 Transparent Red (more images) Red copyright sprite

The IJSB190 is a Soundgear series solid body electric bass package including a GSR190 bass which was introduced by Ibanez for 2000. It was produced in Indonesia by Cor-Tek as part of the GIO line. It is also referred to as the GSR190J.

The GSR190 features a double-cutaway nato body bolted to a maple neck with a 22-fret rosewood fingerboard with white dot position markers and a natural wood headstock. Components include a pair of Ibanez standard passive pickups with a Jazz pickup at the bridge and a Precision pickup at the neck, a B10 bridge with 19mm string spacing, a plastic nut and Ibanez tuning machines.

In addition to the GSR190 bass, the package also includes a small IBZ10B 10-watt or a IBZ15B (2007) 15-watt bass amp, headphones an instructional DVD with Gerald Veasley, an electronic tuner, a gig bag, a bass guitar strap, picks and a few other pieces.

Since 2007 the headstock of the GSR190 has been changed to a black color

The IJSB190 was discontinued after 2012.

Specifications[]

Related content: GIO series | Soundgear series | Models-icon
Specifications for IJSB190 / GSR190J
Model name: IJSB190 / GSR190J
Year(s) offered: 2000-2012
Sold in: Asia & South America 2004-2007 / Europe 2004-2012 / North America 2006-2009 / USA 2000-2007
Made in: Indonesia
Price: MSRP: US$ 459.99 (2000-2001)
Finish(es): Black (BK) / Jewel Blue (JB) 2007 USA / Transparent Red (TR)
Body
Body type:
Solid body
Body material:
Nato
2007-2012: Mahogany (USA)
Neck joint:
AANJ
Bridge:
B10 (19mm string spacing)
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
GSR4
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
22 / medium nickel silver
Nut:
Plastic (41mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
JP
Bridge pickup:
Ibanez Standard J bridge (J) passive
Neck pickup:
Ibanez Standard P neck (P) passive
Controls:
Two volumes / Master tone
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.045/.065/.085/.105
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Other finishes

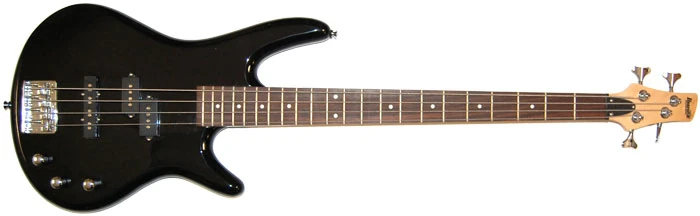

GSR190-BK
Black
Additional details

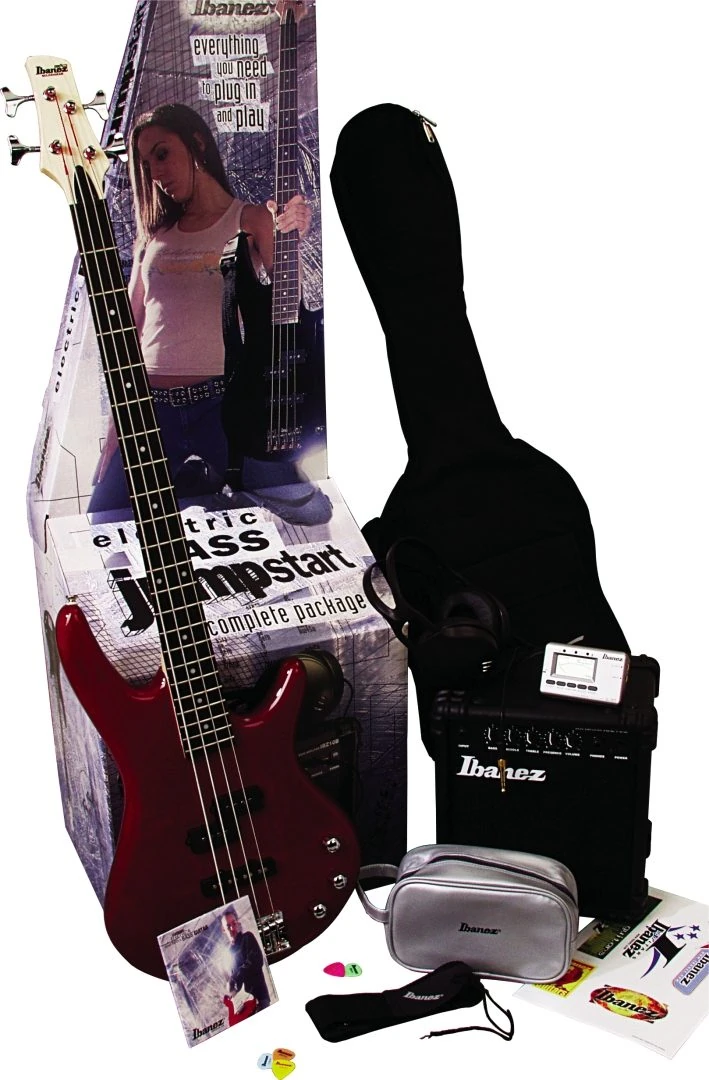

IJSB190 Pack
IJSB190 (2000-2006)

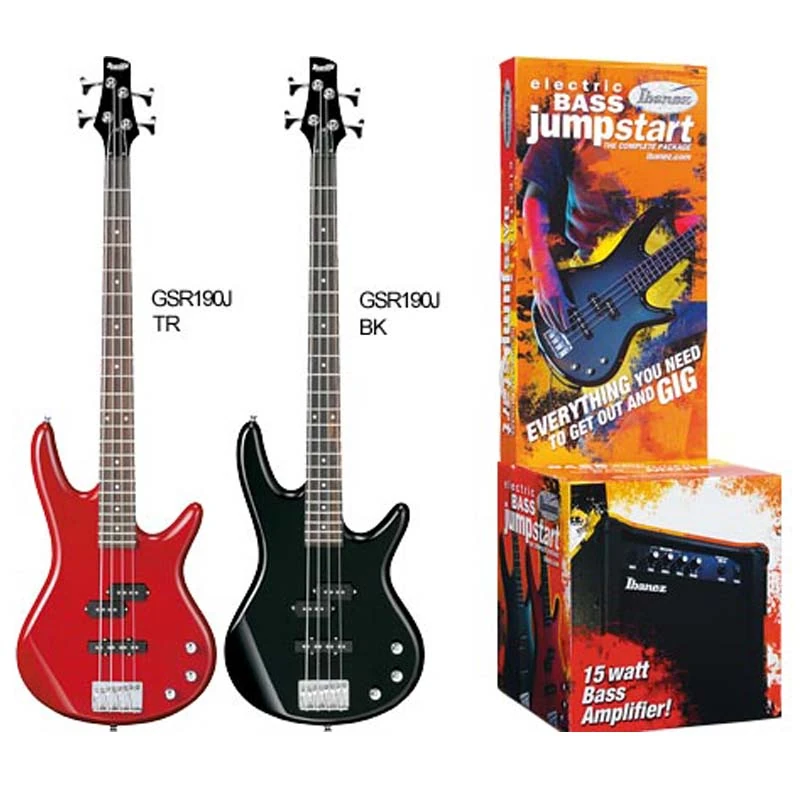

GSR190J pack 2007-2012
IJSB190 (2007-2012)
Controls 2VT GSR
Controls layout
