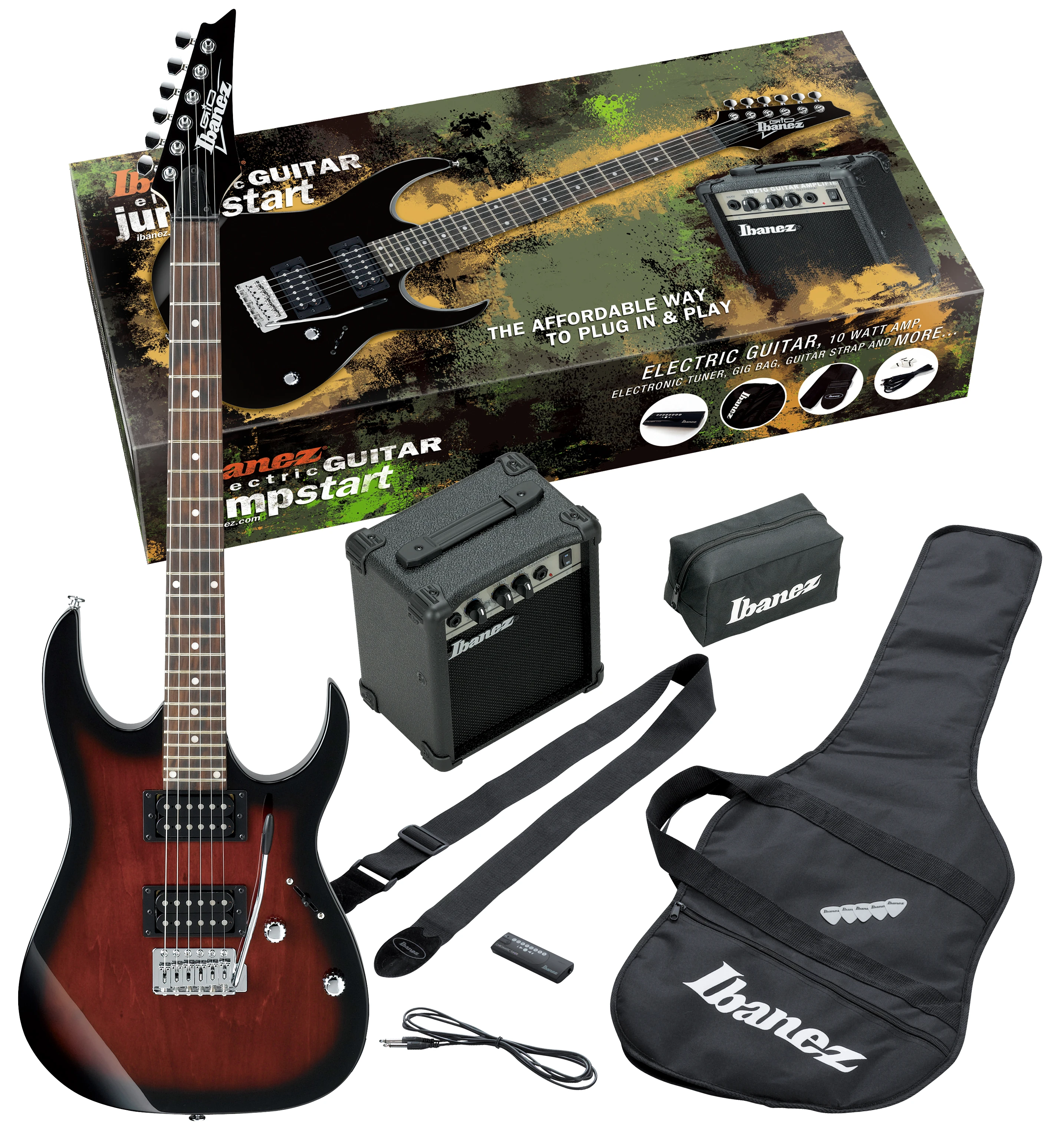

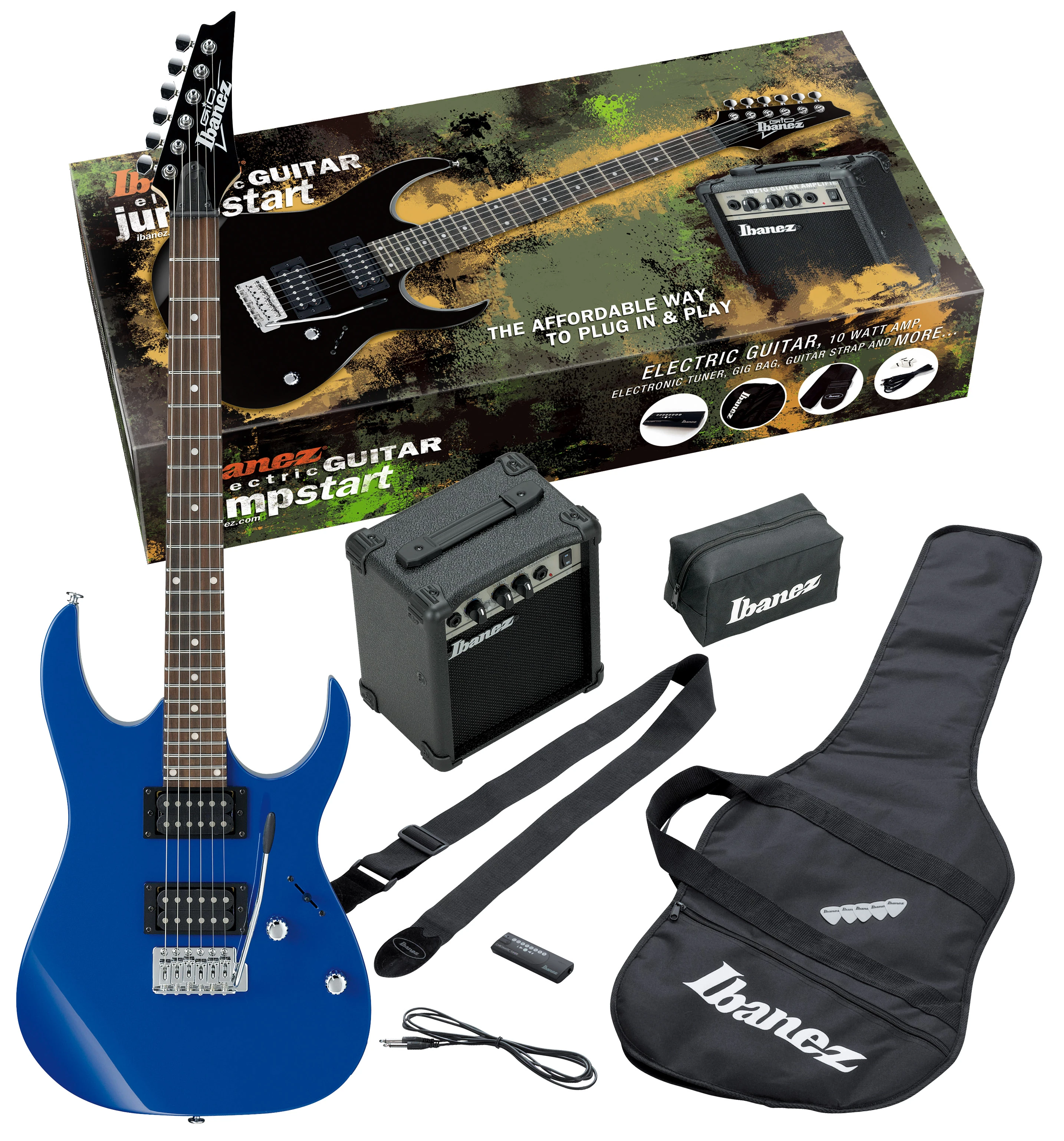

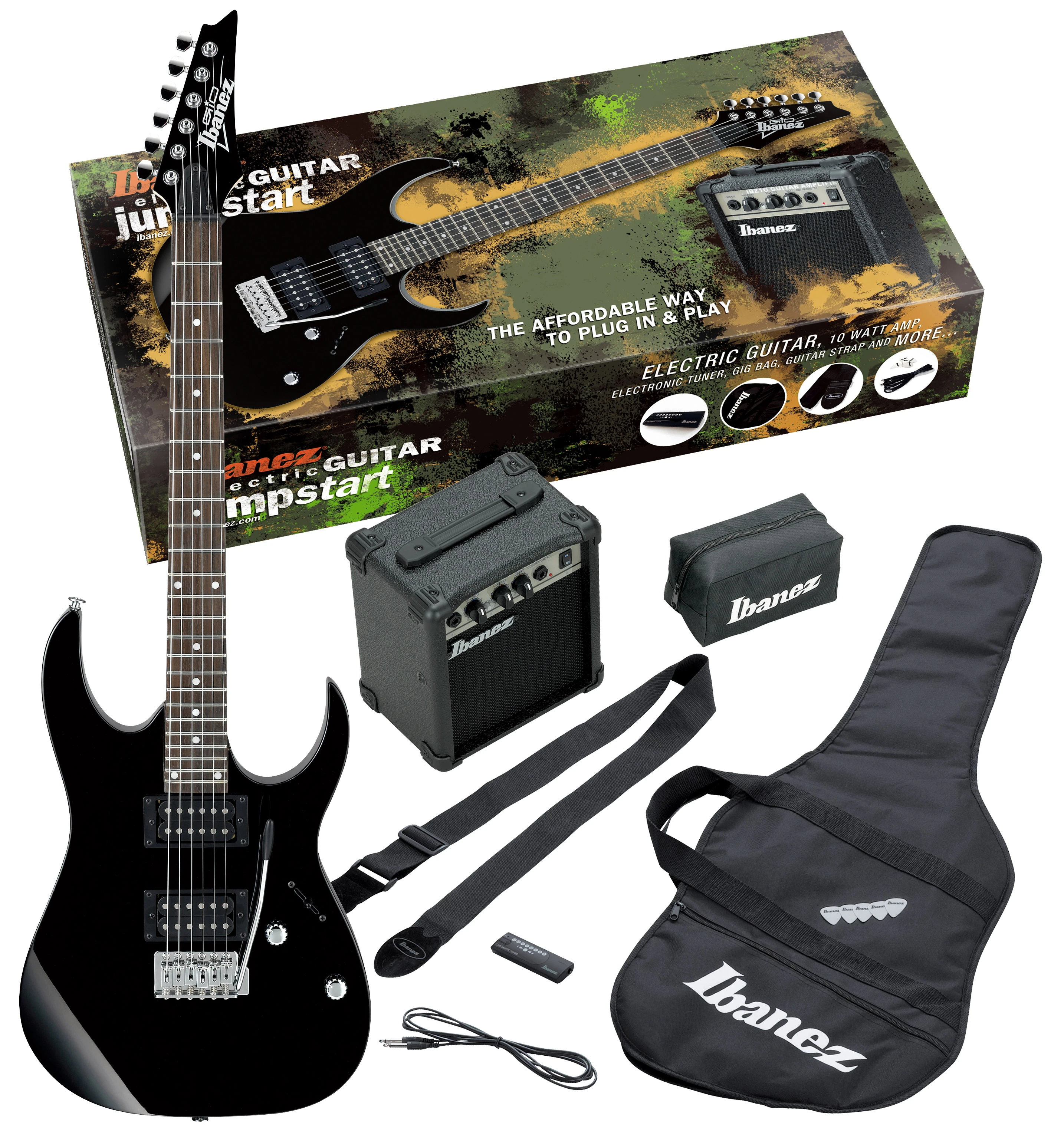

2016 IJRG220Z package

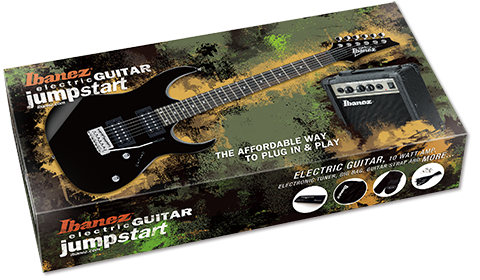

IJRG220Z retail packaging (more images) Red copyright sprite

The IJRG220Z is a Jumpstart package including a GIO RG series solid body guitar which was introduced by Ibanez in late 2014. It was produced in China.

The included guitar is a GRG20Z, although it is described in Ibanez's marketing materials only as a "GRG series guitar", and little detail about its precise specifications is provided. For 2019 the standard tremolo was swapped for the T102 and the 3-way pickup selector was swapped for a 5-way.

Along with the guitar the package includes a 10-watt amp, cable, tuner, gig bag, picks, strap and an accessory pouch. A similar kit (which adds headphones) is sold in other markets as the IJRG200. This package replaced the IJX200 which was similar except that it also included headphones.

The IJRG220Z was discontinued after 2019.

Specifications

Specifications for GRG20Z guitar incl. in IJRG220Z kit
Model name: IJRG220Z (Jumpstart kit)
Year(s) produced: 2014–2019
Sold in: USA
Made in: China
Finish(es): Black (BK) / Blue (BL) 2014–2018 / Red (RD) 2014–2015 / Silver (SV) 2016–2017 / Vivid Red (VRD) 2017 / Walnut Sunburst (WNS) 2016
Body
Body type:
Solid body
Body material:
Poplar
Neck joint:
AANJ
Bridge:
2014–2018: Standard tremolo
2019: T102 tremolo
Hardware color:
Chrome
Neck
Neck type:
GRG
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Rosewood
Fingerboard inlays:
White dot
Frets:
24 / medium
Nut:
Black plastic
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Infinity R (H)
Neck pickup:
Ibanez Infinity R (H)
Controls:
Master volume / master tone / 3-way lever
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

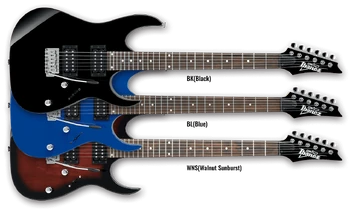

2016 IJRG220Z guitars
Available finishes (2016)

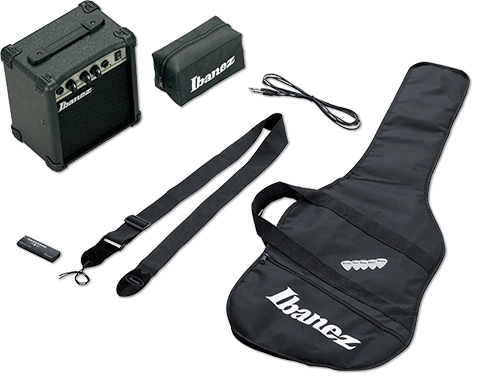

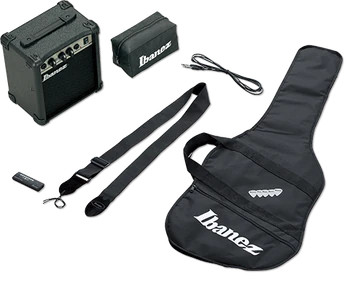

2016 IJRG220Z components
Complete package contents (minus guitar)
2016 IJRG220Z BKN
Black
2016 IJRG220Z BL
Blue

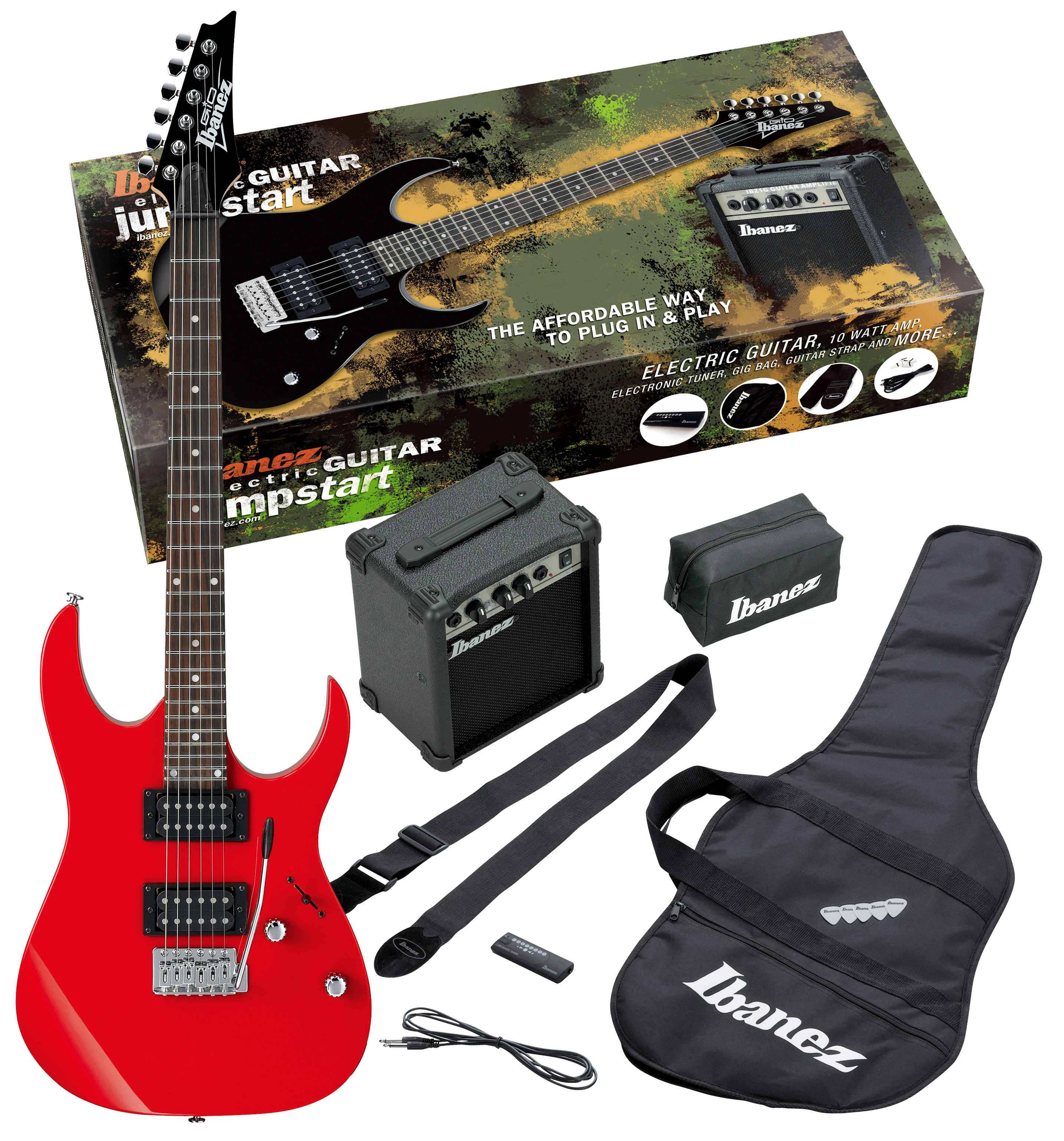

2016 IJRG220Z RD
Red

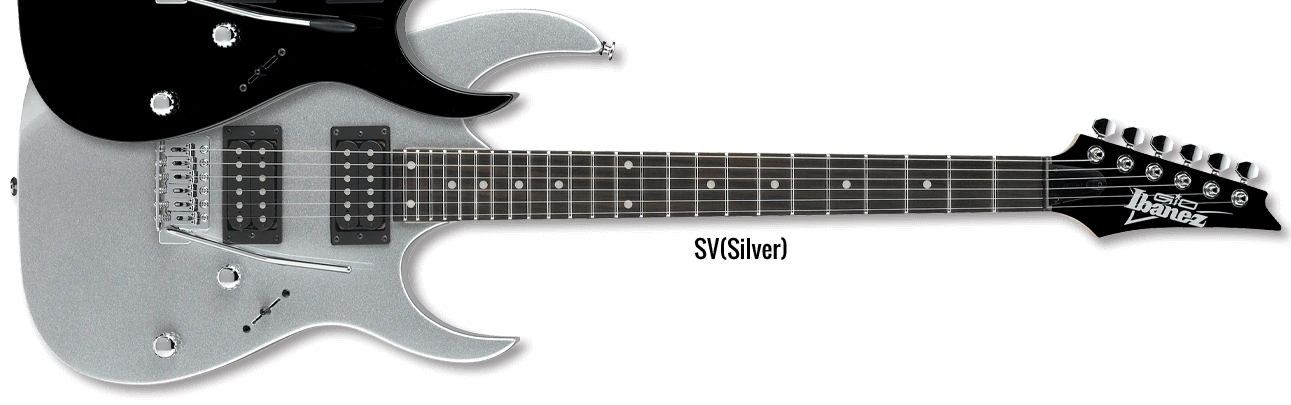

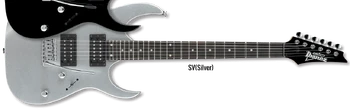

2017 IJRG220Z SV
Silver

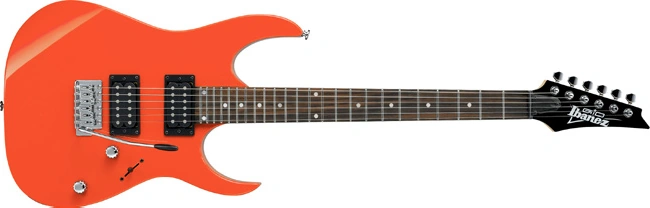

2017 IJRG220Z VRD
Vivid Red
2016 IJRG220Z WNS
Walnut Sunburst
HH 3-way toggle
Pickup switching diagram (2014–2018)
Controls VT3L
Control layout (2014–2018)
HH 5-way single-split
Pickup switching diagram (2019)
Controls VT5
Control layout (2019)
