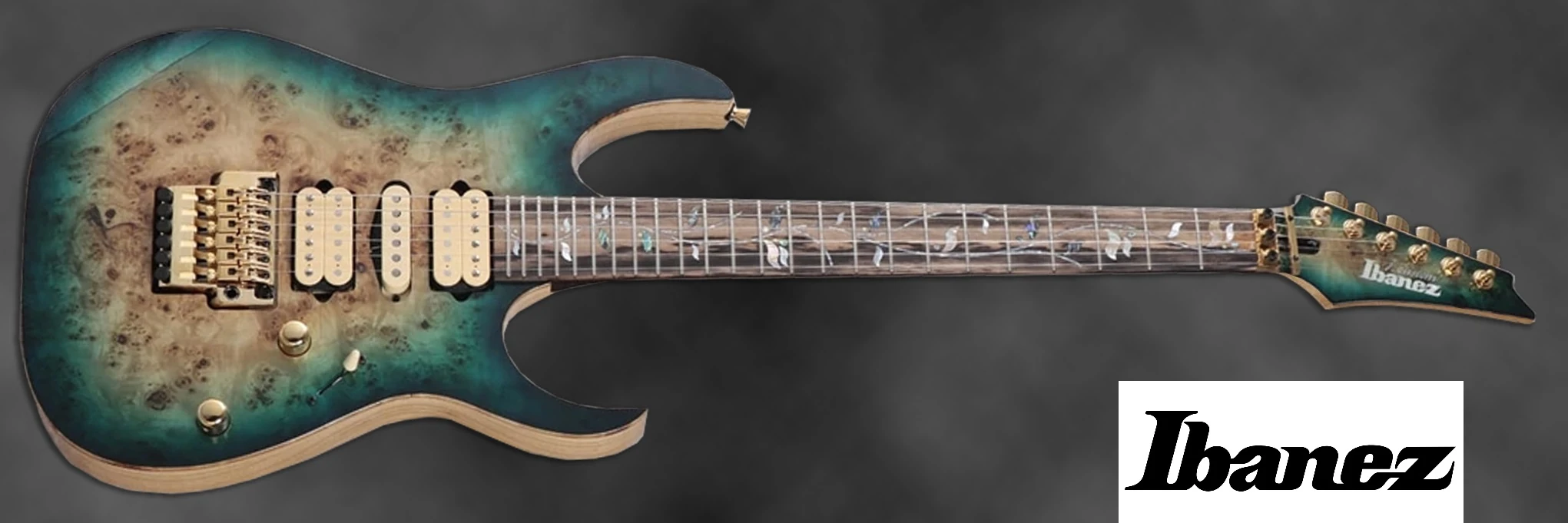

IJCRG80th5 Blue Malacite (more images) Red copyright sprite.png

The IJCRG80th5 is an RG series solid body electric guitar model introduced by Ibanez in late 2019. It is made in Japan by FujiGen as part of the high-end J Custom line. This is one of five distinct J Custom spot models produced to commemorate the 80th anniversary of Japanese retailer Ishibashi Music.

The IJCRG80th5 features a poplar burl top with faux binding on an ash body bolted to a wenge and walnut Super Wizard neck with a Velvetouch finish and a 24-fret selected striped ebony fingerboard with pearl and abalone Tree of Life vine inlays . Components include a Lo-Pro Edge double locking tremolo bridge, DiMarzio pickups with Air Norton and The Tone Zone humbuckers flanking a True Velvet single-coil, recessed Easy Access control knobs, Gotoh locking strap buttons and Gotoh tuning machines.

The IJCRG80th1 is a similar model with a tochu top which is also made by FujiGen. The other three models in the collection were made by Sugi — the IJCRG80th2 has blue resin in the top and different pickups; the IJCRG80th3 has a buckeye burl top, white ebony fretboard and different pickups; and the IJCRG80th4 has a burl maple top neck through body construction.

A certificate of authenticity is included with each guitar. Production was limited to 6 examples.

Specifications

'
Year(s) produced: 2019
Sold in: Japan
Made in: Japan
Finish(es): Blue Malacite
Body
Body type:
Solid body
Body material:
Ash w/ 4mm poplar burl top
Neck joint:
All Access Neck Joint
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock II
Knob style:
Gotoh VK1-19 recessed
Hardware color:
Gold
Neck
Neck type:
RG J Custom Super Wizard
Neck material:
5-piece wenge/ walnut
Scale length:
648mm/ 25½"
Fingerboard material:
Selected stripe ebony
Fingerboard inlays:
Tree of life
Frets:
24 / jumbo (J Custom edge treatment)
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Ibanez IJCRG80TH5 Red copyright sprite.png
Additional details

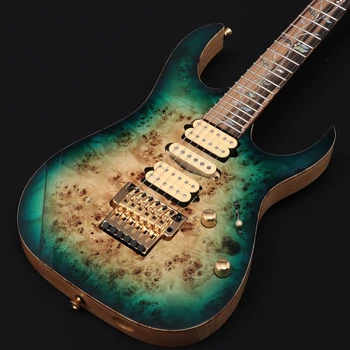

IJCRG80TH5 body.jpg
Front of body

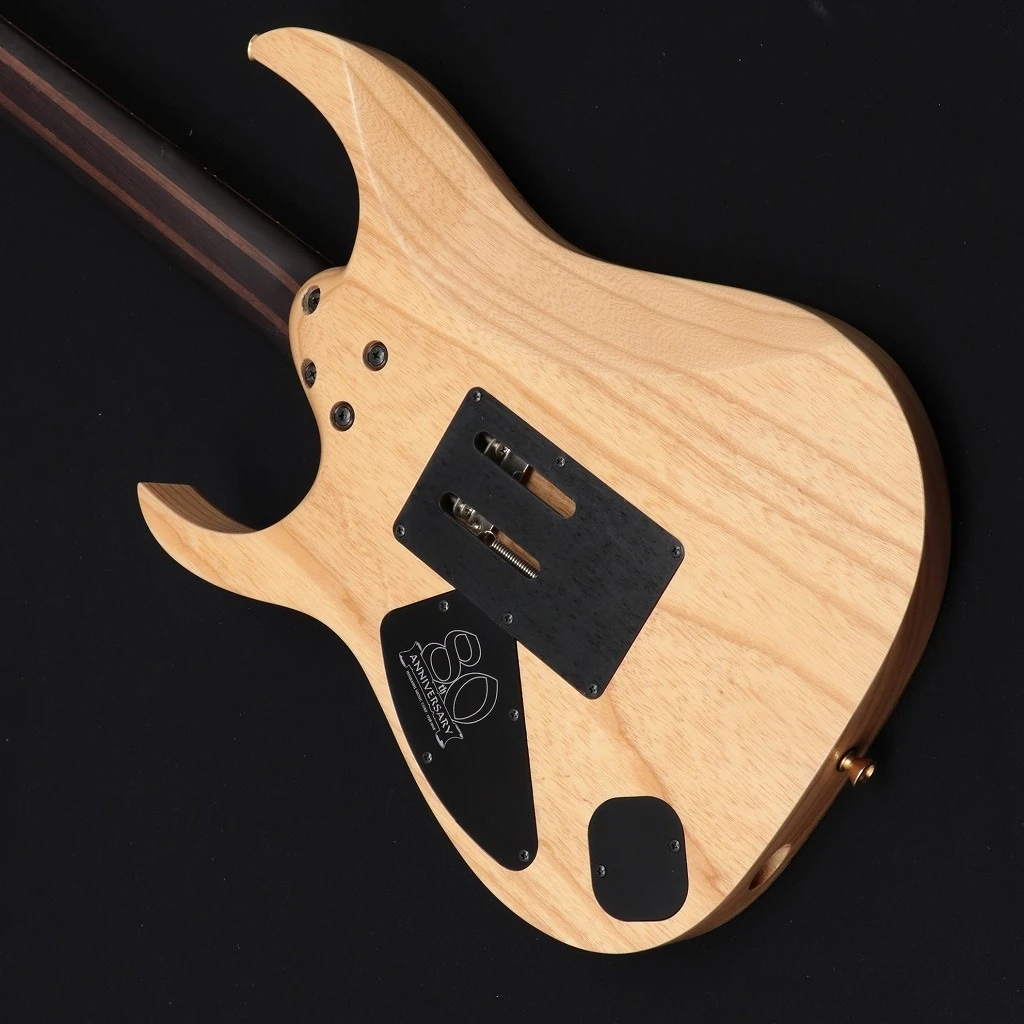

IJCRG80TH5 rear.jpg
Rear of body

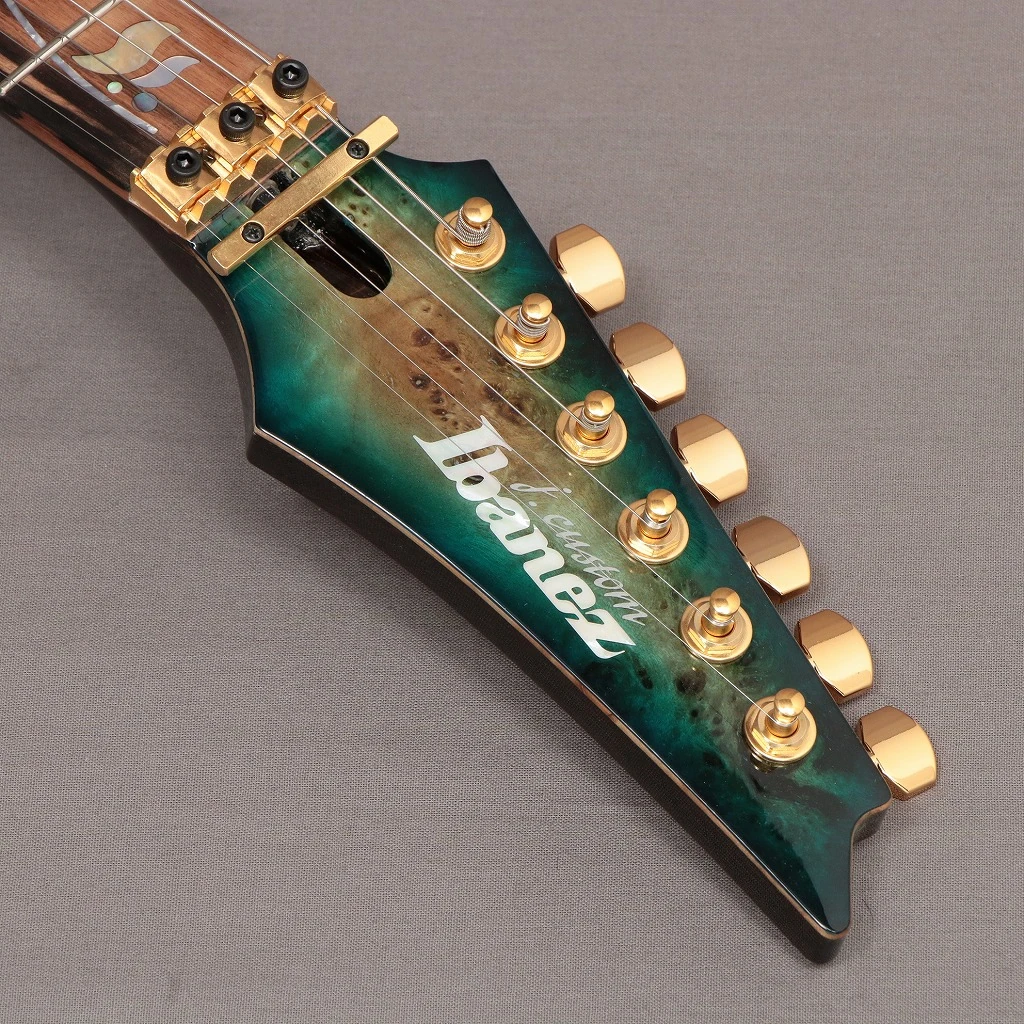

IJCRG80TH5 headstock.jpg
Headstock

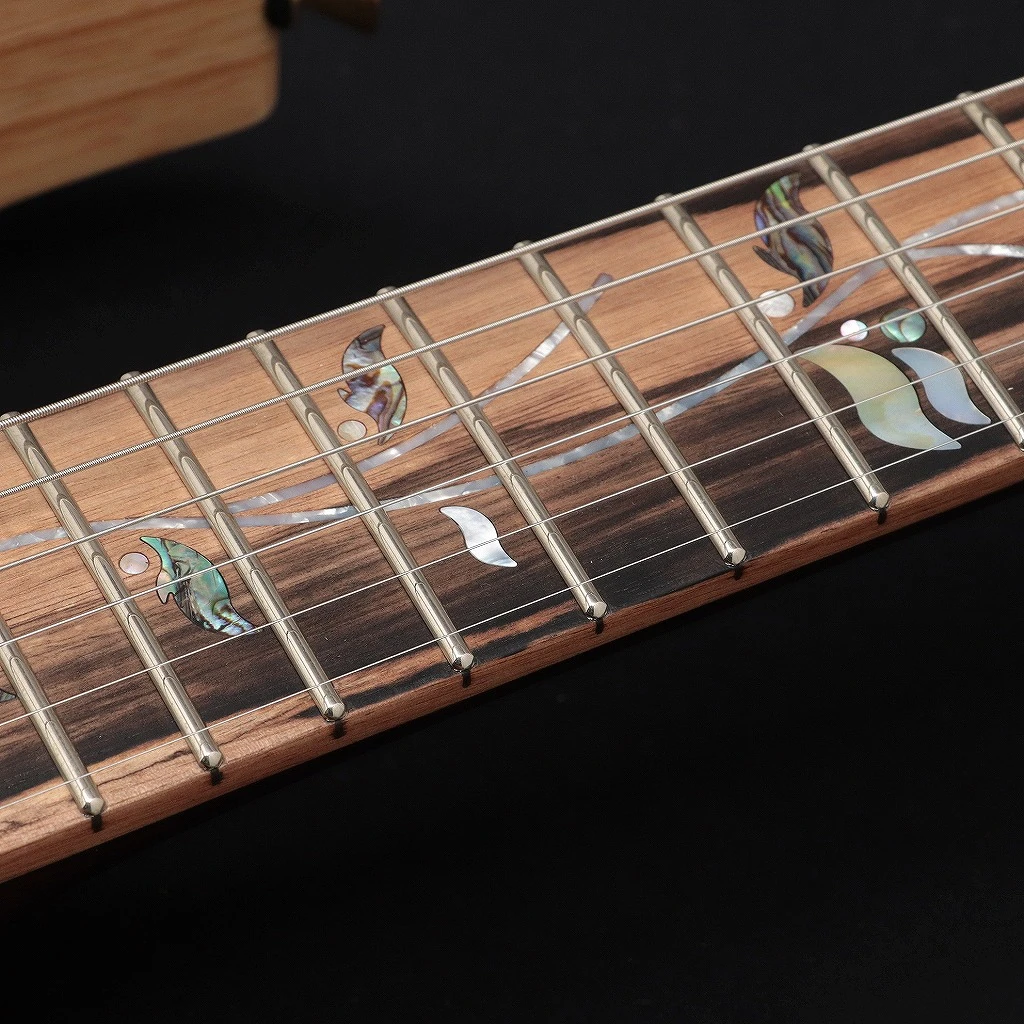

IJCRG80TH5 inlay.jpg
Pearloid Tree of life
HSH 5-way both-splits.png
Pickup switching diagram
Controls VT5.png
Control layout

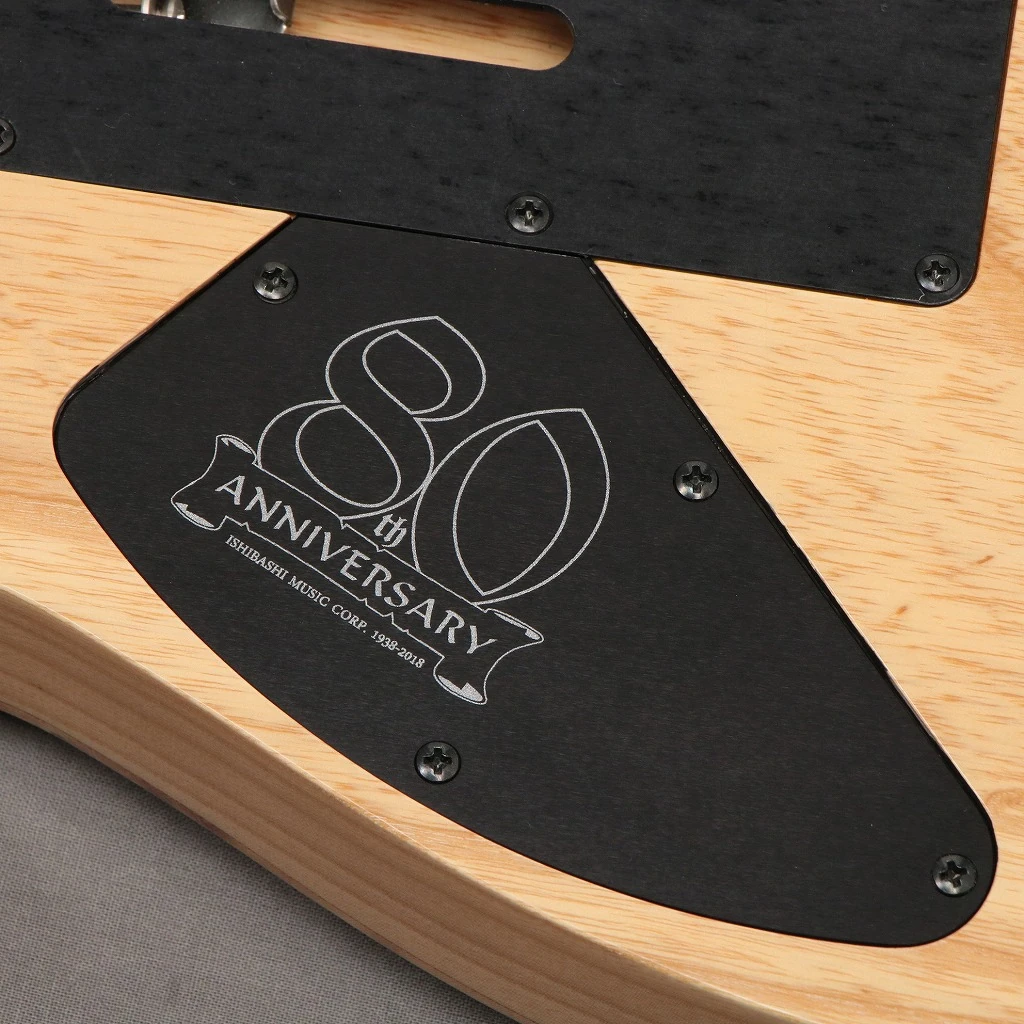

IJCRG80TH5 80th.jpg
80th anniversary detail on the back

Video

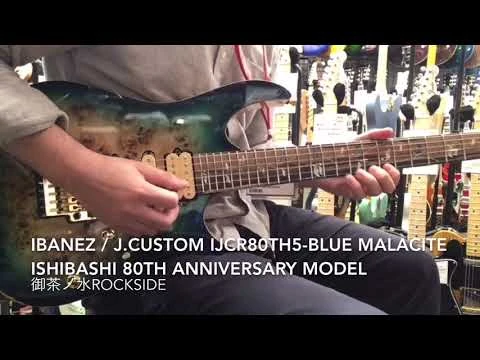

Ibanez IJCRG80TH5-Blue Malacite "80TH Anniversary" ( Demo )
