2019 IJCRG80TH4 HKE
IJCRG80th4 Hawkeye Red copyright sprite

The IJCRG80th4 is an RG series solid body electric guitar model introduced by Ibanez in 2019. It is made in Japan by Sugi as part of the high-end J Custom line. This is one of five distinct J Custom spot models produced to commemorate the 80th anniversary of Japanese retailer Ishibashi Music.

The IJCRG80th4 features neck through body construction with an exotic burl maple top with faux binding on ash body wings mated to a maple and purpleheart asymmetric Super Wizard neck with a Velvetouch finish and an ebony fingerboard with pearl and abalone Tree of Life vine inlays and 24 stainless steel frets. Components include a Lo-Pro Edge double locking tremolo bridge, DiMarzio pickups with a pair of Fusion Edge humbuckers flanking a True Velvet single-coil, recessed Easy Access control knobs, Gotoh locking strap buttons and Gotoh tuning machines.

The IJCRG80th2 and IJCRG80th3 are similar models with resin impregnated tops, bolt-on necks and different pickups. Both of these are also made by Sugi. The IJCRG80th1 and IJCRG80th5 are related models with, respectively, tochu top. The IJCRG80th5 is a similar model with a poplar burl top and different pickups. The latter two models are made by FujiGen.

A certificate of authenticity is included with each guitar. Only a single example was produced in each of the two finishes.

Specifications

Specifications for IJCRG80th4
Year(s) produced: 2019
Sold in: Japan
Made in: Japan
Finish(es): Alexandrite (ALX) / Hawkeye (HKE)
Body
Body type:
Solid body
Body material:
Ash wings w/ 4mm exotic burl maple top
Neck joint:
Neck-thru
Bridge:
Lo-Pro Edge tremolo (10.8mm string spacing)
Strap buttons:
Gotoh Free Lock II
Knob style:
Gotoh VK1-19 recessed
Hardware color:
Gold
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece maple/ purpleheart
Scale length:
648mm/ 25½"
Fingerboard material:
Ebony
Fingerboard inlays:
Tree of life
Frets:
24 / Jescar #55090 Stainless steel (J Custom edge treatment)
Nut:
Top-Lok III
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Fusion Edge (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Fusion Edge (H)
Controls:
Master volume / master tone / 5-way lever
String gauge (factory):
.009/.011/.016/.024/.032/.042
Additional finishes/details

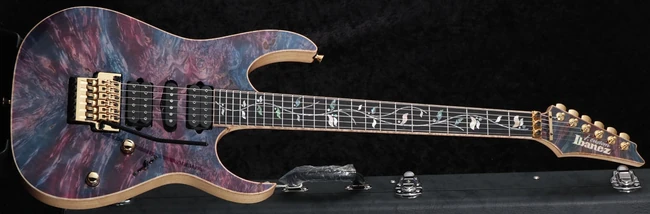

2019 IJCRG80TH4 ALX
Alexandrite
HSH 5-way both-splits
Pickup switching diagram
Controls VT5
Control layout
