2020 IJCRG20C06 Ihatov

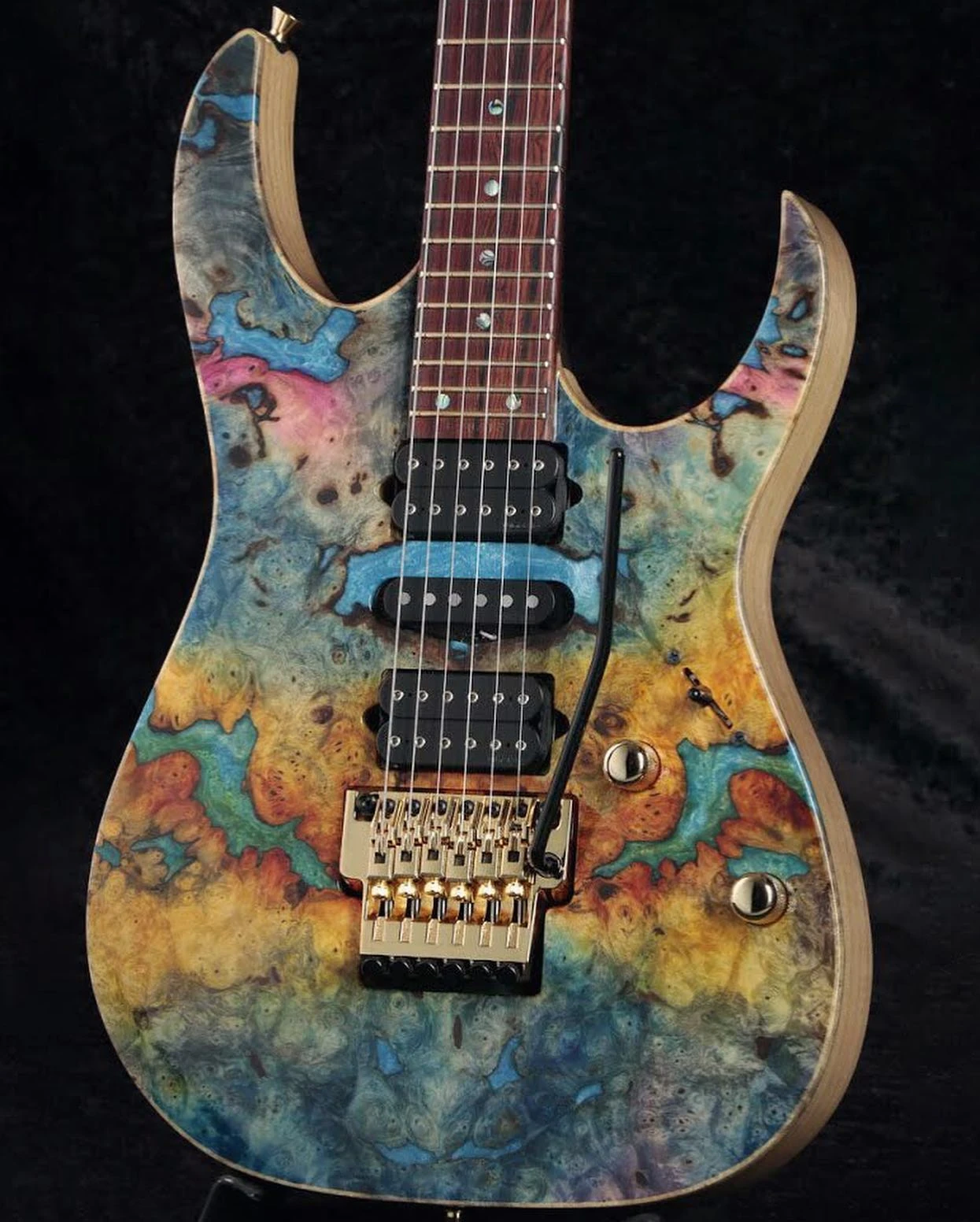

IJCRG20C06 Ihatov (more images) Red copyright sprite

The IJCRG20C06 is an RG series solid body electric guitar model introduced by Ibanez for 2020. It was crafted in Japan by Sugi as part of the high-end J Custom line. The IJCRG20C06 is a spot model which was made in collaboration with Japanese retailer Ishibashi.

The IJCRG20C06 features neck through body construction with a buckeye burl top with blue epoxy resin filling the voids and maple binding on ash wings mated to a wenge, purpleheart and maple neck with a 24-fret cocobolo fingerboard with maple binding and abalone dot position markers. The binding continues on the headstock which has the same buckeye burl veneer and finish as the top. Components include DiMarzio pickups with a pair of Fusion Edge humbuckers flanking a Black Velvet single-coil, a Lo-Pro Edge double locking tremolo bridge, recessed Easy Access control knobs, Gotoh tuning machines and Gotoh Free-Lock II strap pins.

The name of the finish, Ihatov, is a word coined by Japanese poet and novelist Kenji Miyazawa that refers to the utopia in the world.

Only a single example of this model was produced although 5 other one-off models, each with different specs, were released concurrently: IJCRG20C01, IJCRG20C02, IJCRG20C03, IJCRG20C04 and, IJCRG20C05.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for IJCRG20C06
Model name: IJCRG20C06
Year(s) offered: 2020
Sold in: Japan
Made in: Japan
Finish(es): Ihatov
Body
Body type:
Solid body
Body material:
Ash body wings w/ selected buckeye burl and epoxy resin top & maple binding
Neck joint:
Neck-thru
Bridge:
Lo-Pro Edge tremolo
Strap buttons:
Gotoh Free Lock II
Knob style:
Recessed Gotoh VK1-19
Hardware color:
Gold
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece wenge/ purpleheart/ maple
Scale length:
648mm/ 25½"
Fingerboard material:
Cocobolo
Fingerboard inlays:
Abalone dot
Frets:
24 / Jescar 57110 Evolution (J. Custom edge treatment)
Nut:
Top-Lok III (42mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Fusion Edge bridge (H)
Middle pickup:
DiMarzio Black Velvet middle (S)
Neck pickup:
DiMarzio Fusion Edge neck (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

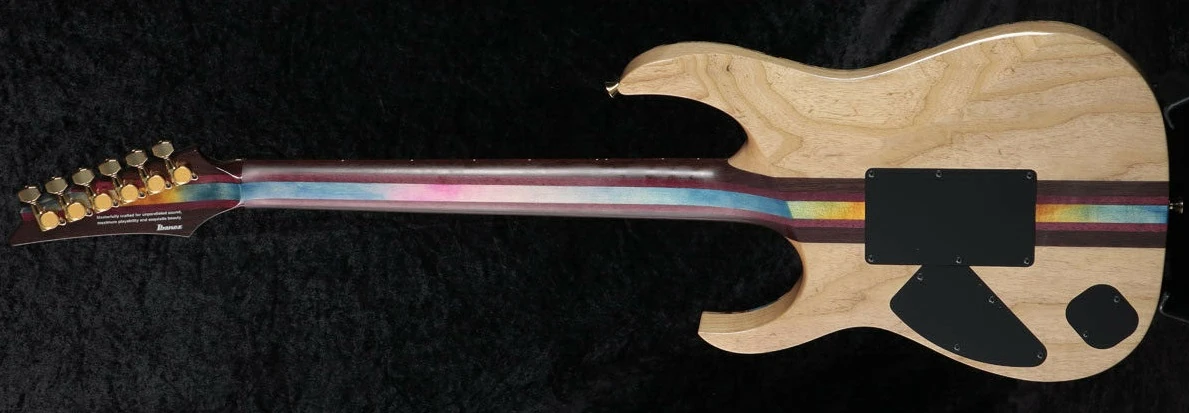

IJCRG20C06 back
2020 Ibanez IJCRG20C06 ( Rear: Ash body with 5-piece wenge/ purpleheart/ maple / JCRG Asymmetric Super Wizard Neck-thru, & Gotoh SG381 tuners ) Red copyright sprite
Additional details

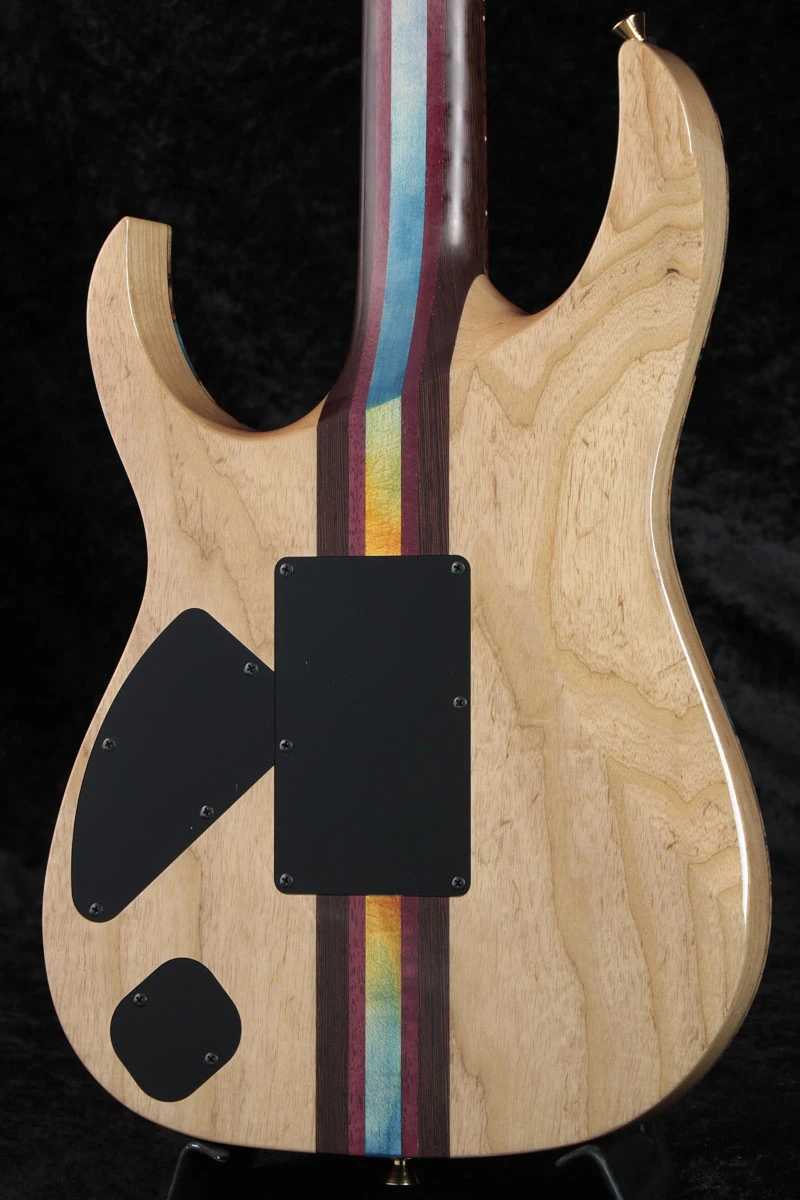

2020 IJCRG20C06 back
Back closeup

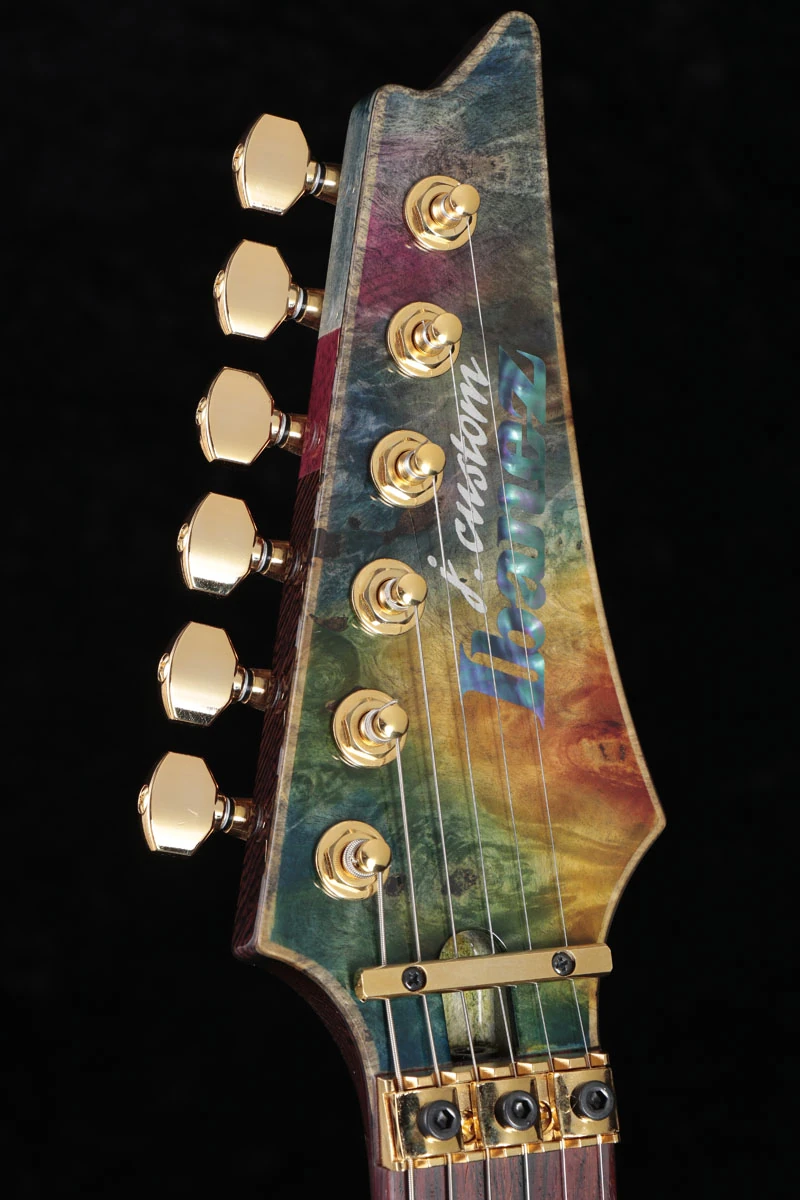

2020 IJCRG20C06 headstock
Headstock

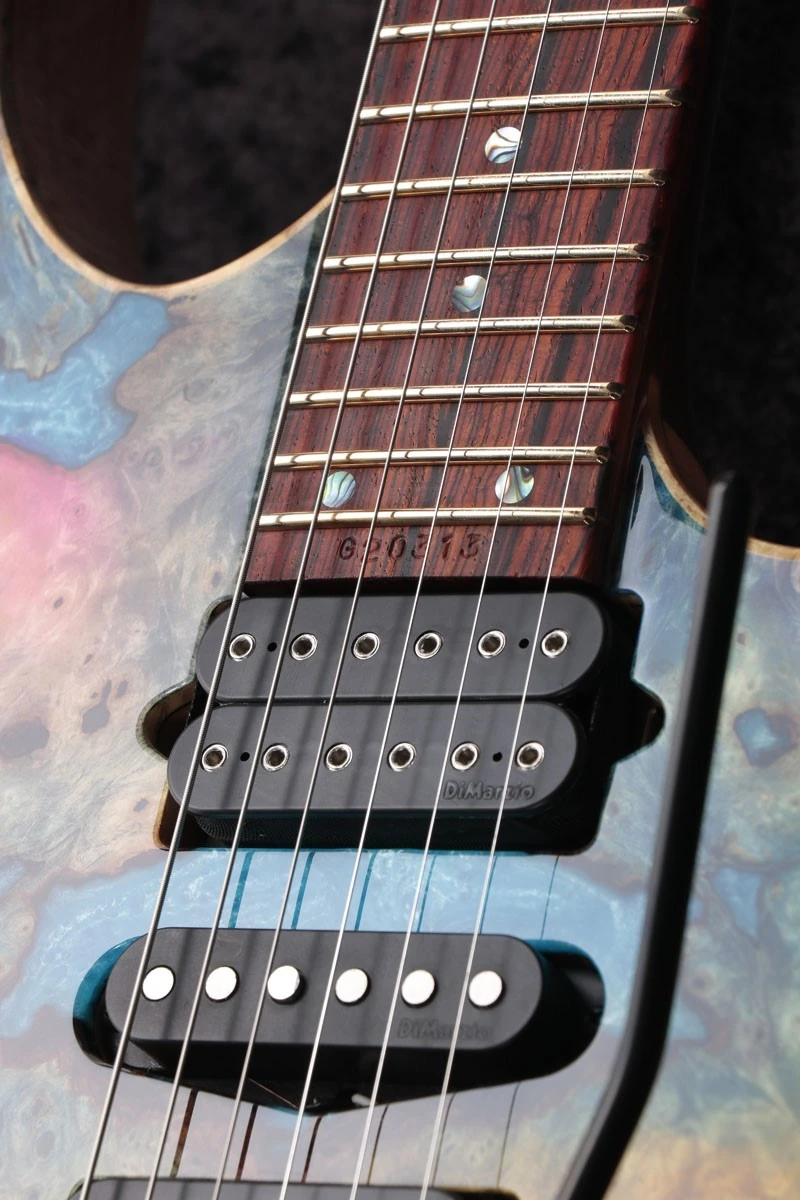

2020 IJCRG20C06 fretboard
Blue dot inlays
IJCRG20C06 body
Body closeup
Controls VT5
Control layout
HSH 5-way both-splits
Pickup switching
