IJCRG20C05 Thunder Storm (more images)

The IJCRG20C05 is an RG series solid body electric guitar model introduced by Ibanez for 2020. It was crafted in Japan by Sugi as part of the high-end J Custom line. The IJCRG20C05 is a spot model which was made in collaboration with Japanese retailer Ishibashi.

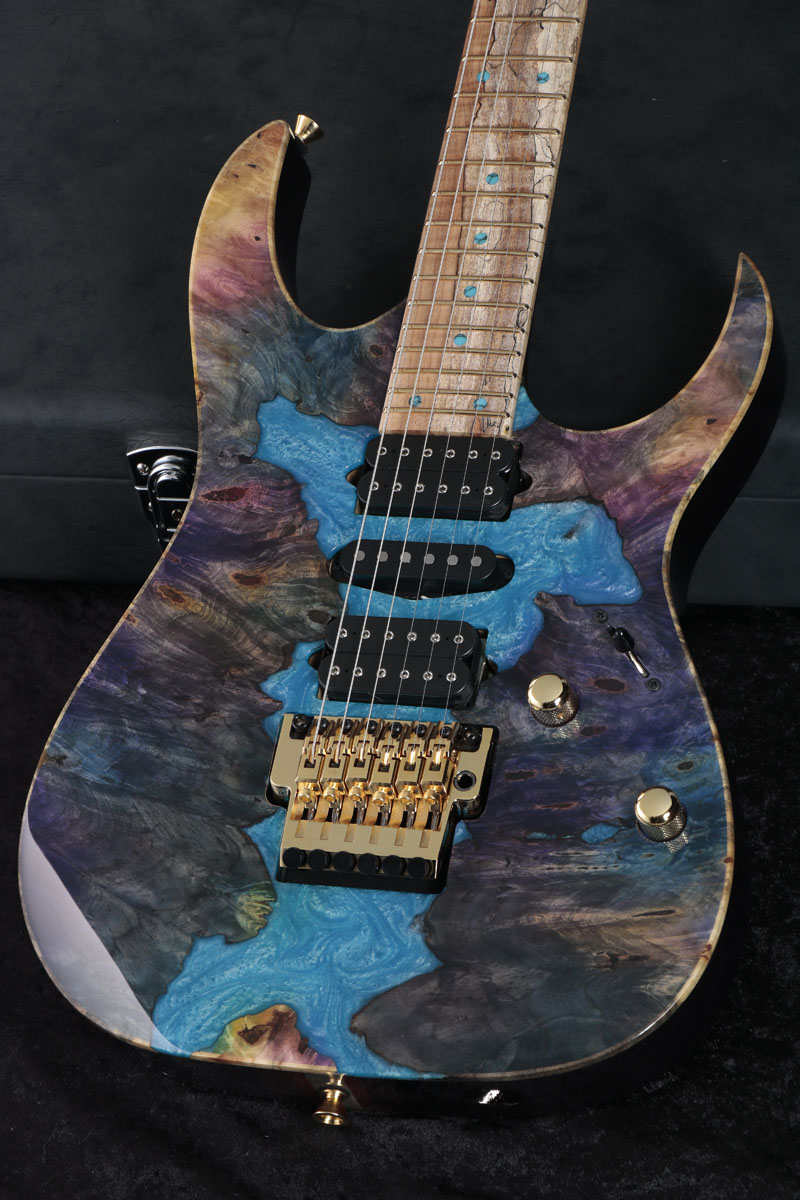

The IJCRG20C05 features neck through body construction with a buckeye burl top with blue epoxy resin filling the voids and maple binding on ash wings mated to a wenge, purpleheart and maple neck with a 24-fret spalted maple fretboard with maple binding and blue dot position markers. The binding continues on the headstock which has the same buckeye burl veneer and finish as the top. Components include DiMarzio pickups with a pair of Fusion Edge humbuckers flanking a Black Velvet single-coil, a Lo-Pro Edge double locking tremolo bridge, recessed Easy Access control knobs, Gotoh tuning machines and Gotoh Free-Lock II strap pins.

Only a single example of this model was produced although 5 other one-off models, each with different specs, were released concurrently: IJCRG20C01, IJCRG20C02, IJCRG20C03, IJCRG20C04 and, IJCRG20C06.

Specifications[]

Related content: J Custom series | RG series |
Specifications for IJCRG20C05
Model name: IJCRG20C05
Year(s) offered: 2020
Sold in: Japan
Made in: Japan
Finish(es): Thunder Storm
Body
Body type:
Solid body
Body material:
Ash body wings w/ selected buckeye burl and epoxy resin top & maple binding
Neck joint:
Neck-thru
Bridge:
Lo-Pro Edge tremolo
Strap buttons:
Gotoh Free Lock II
Knob style:
Recessed Gotoh VK1-19
Hardware color:
Gold
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece wenge/ purpleheart/ maple
Scale length:
648mm/ 25½"
Fingerboard material:
Spalted maple
Fingerboard inlays:
Blue dot
Frets:
24 / Jescar 57110 Evolution (J. Custom edge treatment)
Nut:
Top-Lok III (42mm)
Machine heads:
Gotoh SG381
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HSH
Bridge pickup:
DiMarzio Fusion Edge bridge (H)
Middle pickup:
DiMarzio Black Velvet middle (S)
Neck pickup:
DiMarzio Fusion Edge neck (H)
Controls:
Master volume / master tone / 5-way lever pickup selector

Images[]

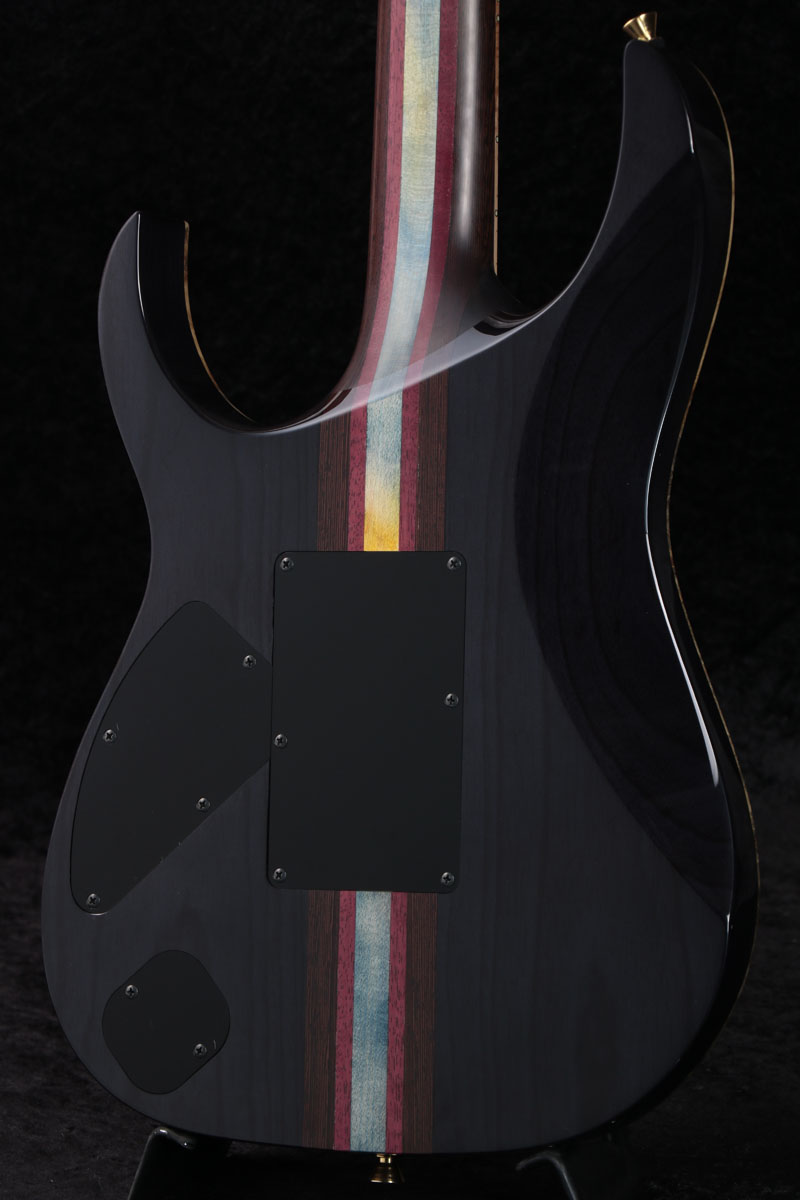

2020 Ibanez IJCRG20C05 ( Rear: Ash body with a 5-piece wenge/ purpleheart/ maple JCRG Asymmetric Super Wizard Neck-thru body construction & Gotoh SG381 machine heads )
Additional details
Body closeup
Back closeup
Headstock
Blue dot inlays
Control layout
Pickup switching
