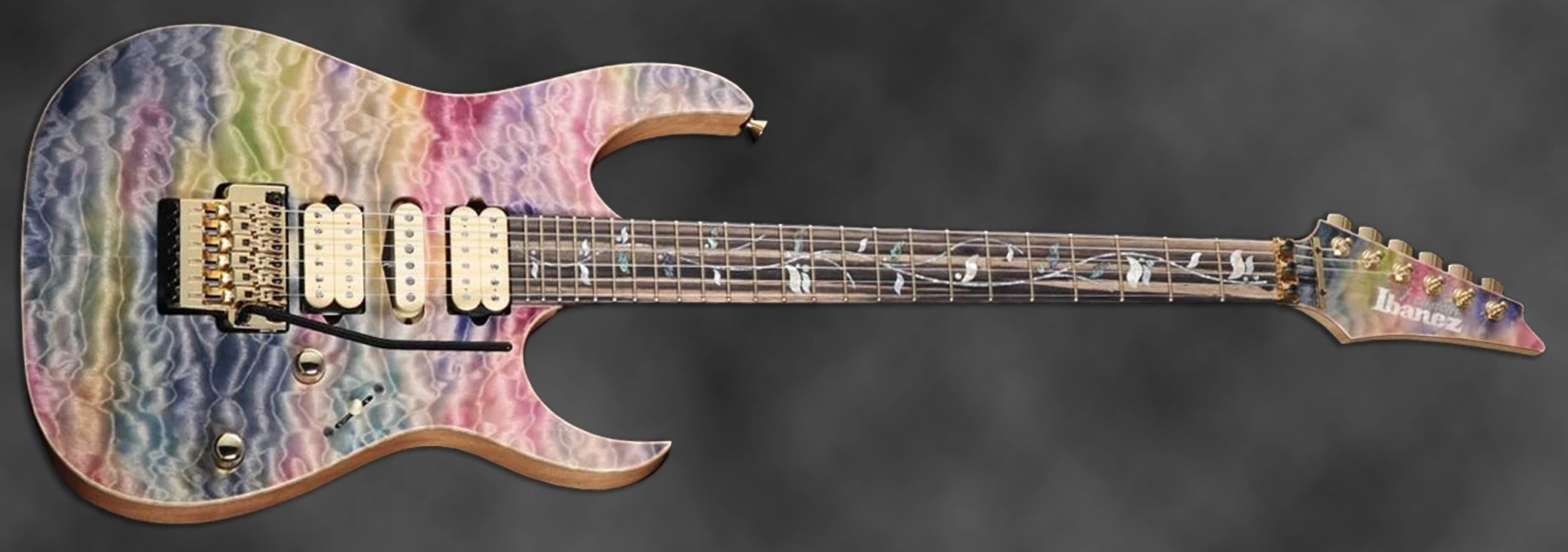

2020 IJCRG20C02 GorgeousLayeredKimono
IJCRG20C02 Gorgeous Layered Kimono (more images) Red copyright sprite

The IJCRG20C02 is an RG series solid body electric guitar model introduced by Ibanez for 2020. It was crafted in Japan by Sugi as part of the high-end J Custom line. The IJCRG20C02 is a spot model which was made in collaboration with Japanese retailer Ishibashi.

The IJCRG20C02 features neck through body construction with a quilted maple top with maple binding on African mahogany wings mated to a wenge, purpleheart and maple neck with a 24-fret white ebony fretboard with maple binding and pearloid and abalone Tree of Life inlays. The binding continues on the headstock which has the same quilted maple veneer and finish as the top. Components include cream colored DiMarzio pickups with Air Norton and Tone Zone humbuckers flanking a True Velvet single-coil, a Lo-Pro Edge double locking tremolo bridge, recessed Easy Access control knobs, Gotoh tuning machines and Gotoh Free-Lock II strap pins.

Only a single example of this model was produced although 5 other one-off models, each with different specs, were released concurrently: IJCRG20C01, IJCRG20C03, IJCRG20C04, IJCRG20C05 and, IJCRG20C06.

Specifications[]

Related content: J Custom series | RG series | Models-icon
Specifications for IJCRG20C02
Model name: IJCRG20C02
Year(s) offered: 2020
Sold in: Japan
Made in: Japan
Finish(es): Gorgeous Layered Kimono
Body
Body type:
Solid body
Body material:
African mahogany body wings w/ quilted maple top & binding
Neck joint:
Neck-thru
Bridge:
Lo-Pro Edge tremolo
Strap buttons:
Gotoh Free Lock II
Knob style:
Recessed Gotoh VK1-19
Hardware color:
Gold
Neck
Neck type:
JCRG Asymmetric Super Wizard
Neck material:
5-piece wenge/ purpleheart/ maple
Scale length:
648mm/ 25½"
Fingerboard material:
White ebony
Fingerboard inlays:
Pearloid & abalone Tree of Life
Frets:
24 / Jescar 57110 Evolution (J. Custom edge treatment)
Nut:
Top-Lok III (42mm)
Machine heads:
Gotoh SG381
Electronics/ Strings
Pickup configuration:
HSH
Bridge pickup:
DiMarzio The Tone Zone (H)
Middle pickup:
DiMarzio True Velvet (S)
Neck pickup:
DiMarzio Air Norton (H)
Controls:
Master volume / master tone / 5-way lever pickup selector
String gauge (factory):
.009/.011/.016/.024/.032/.042 (D'Addario EXL120)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

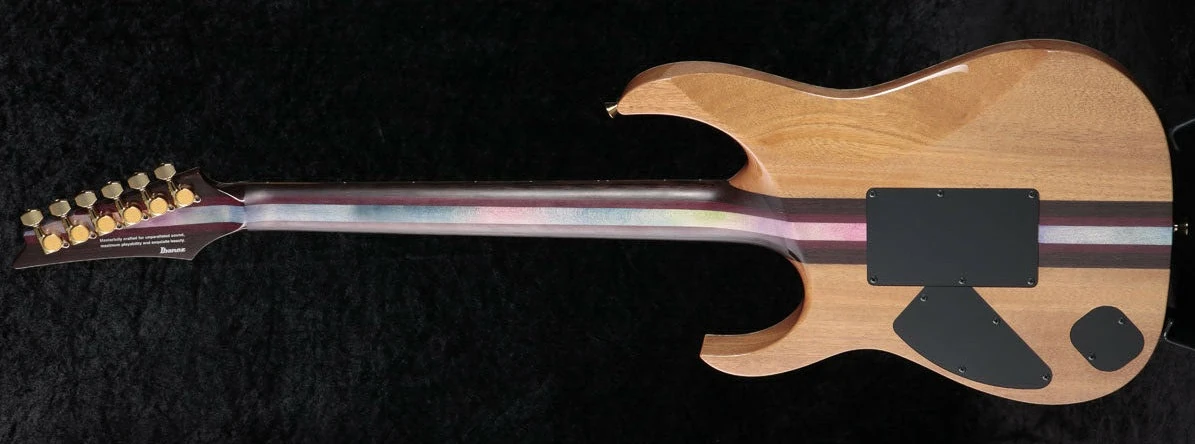

IJCTG20C02 REAR
2020 Ibanez IJCRG20C02 (Rear: African magohany, with 5-piece wenge/ purpleheart/ maple JCRG Asymmetric Super Wizard Neck-thru, & Gotoh SG381 tuners ) Red copyright sprite
Additional details

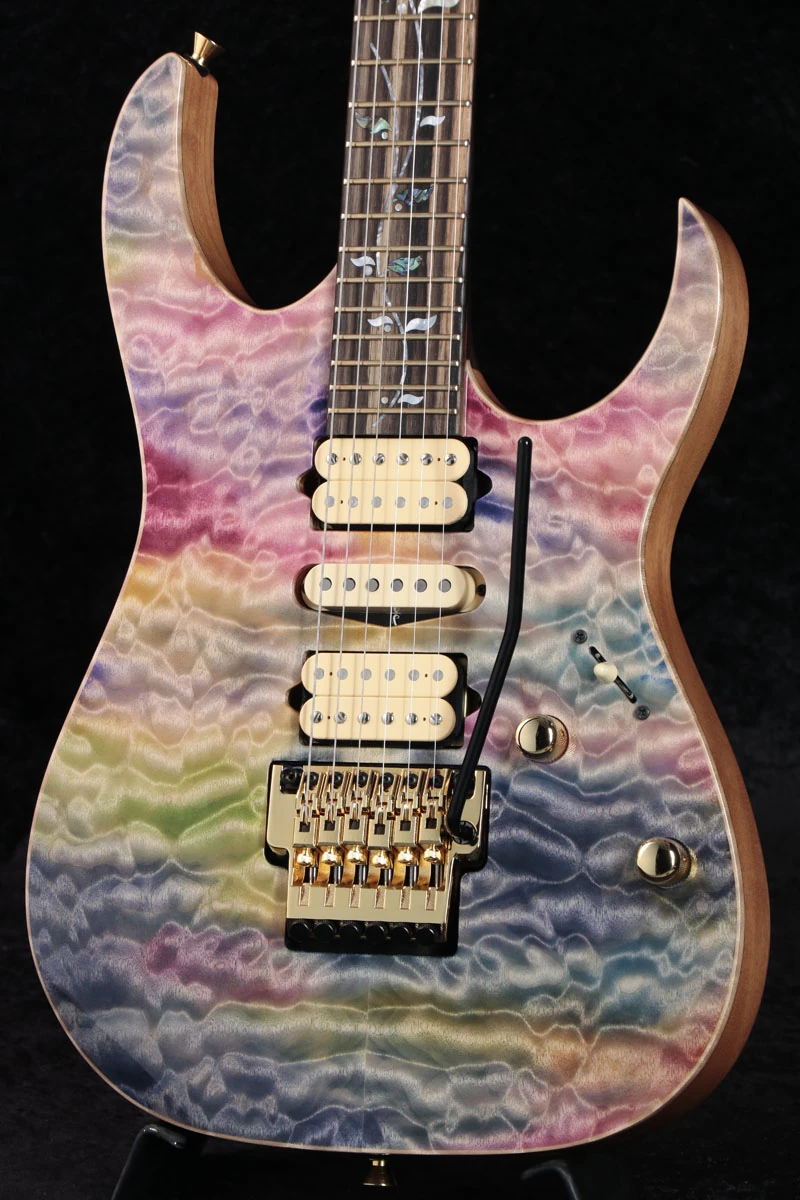

2020 IJCRG20C02 closeup
Body closeup

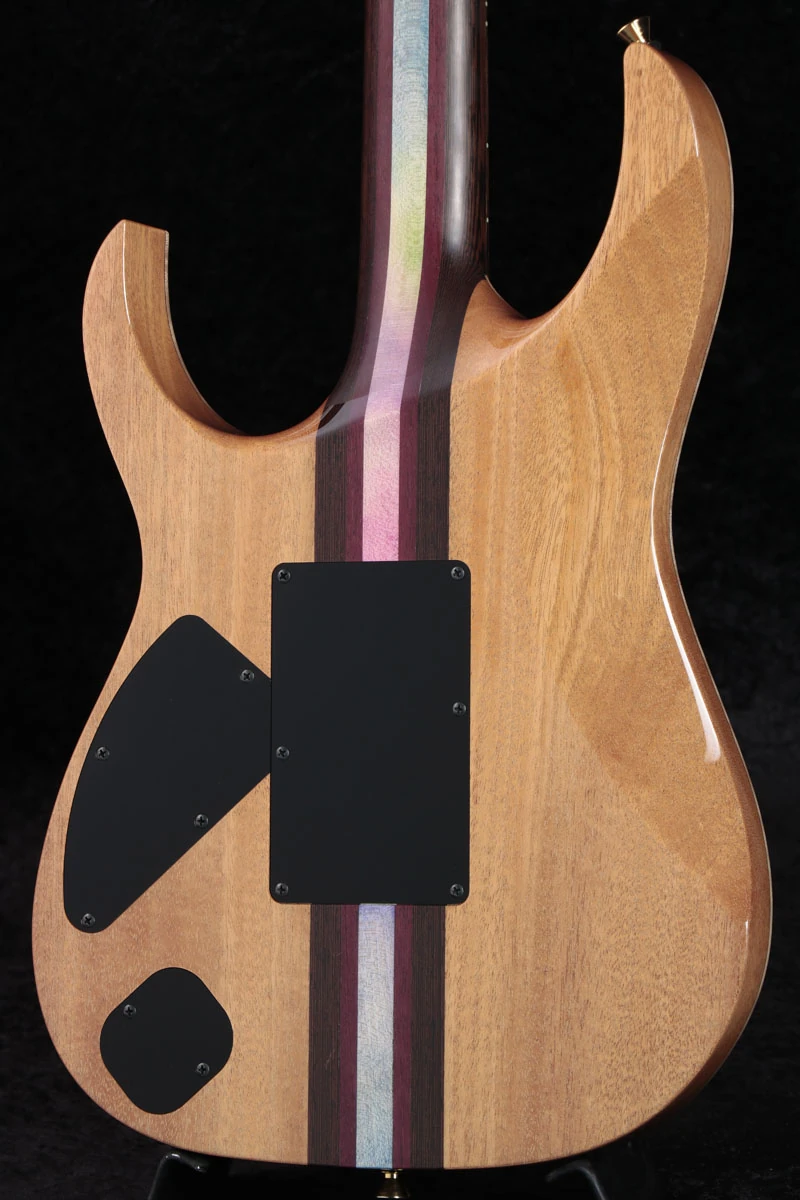

2020 IJCRG20C02 back
Back closeup

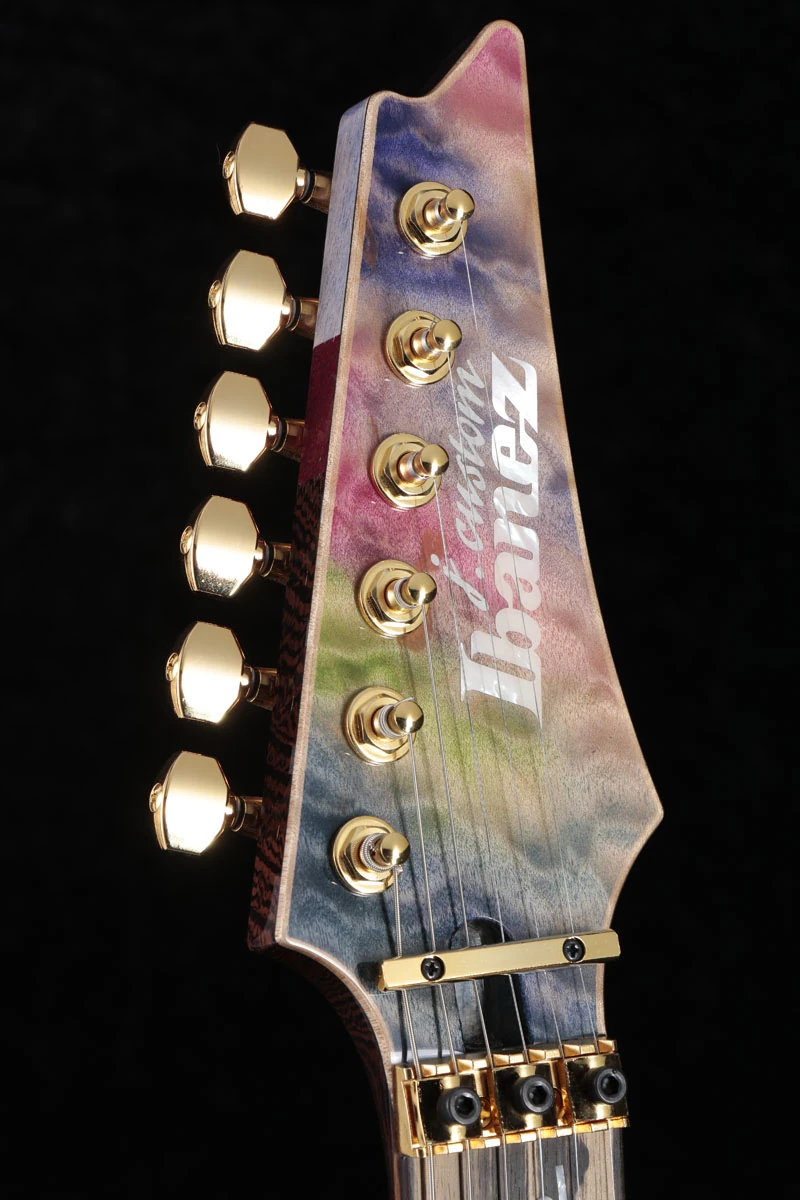

2020 IJCRG20C02 headstock
Headstock
Controls VT5
Control layout
HSH 5-way both-splits
Pickup switching
